Naftos degiklis Bairan STW 133-1P, 40–80 kW, su valdymu

Trumpai apie prekę

Prekė: Naftos degiklis Bairan STW 133-1P, 40–80 kW, su valdymu. Kategorija: Oro šildytuvai.

• Gamintojas: HDM
• Modelis: 23539

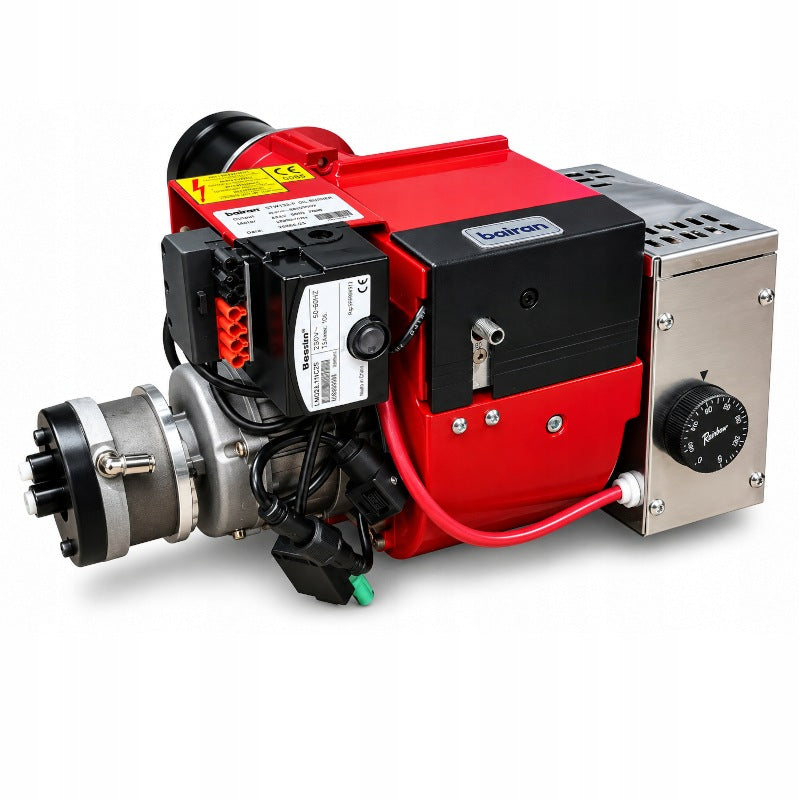

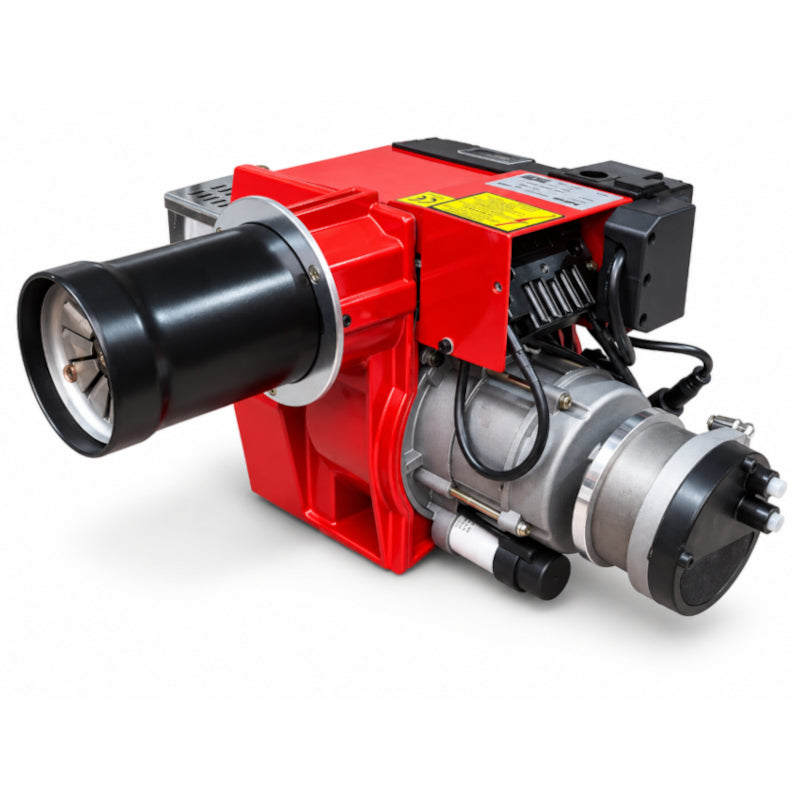

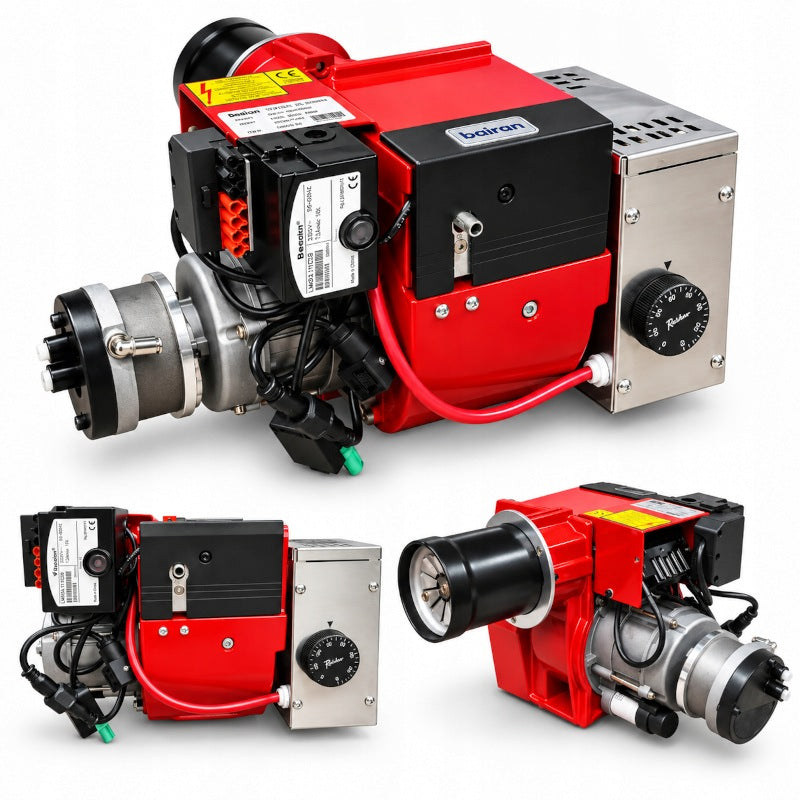

Bairan STW133-1P is an oil / multi-oil burner with a power range of 40 – 80 kW, designed to work with suitable liquid fuels.

The version marked with the letter "P" has a built-in compressor, so it does not require an external source of compressed air. The burner is equipped with one nozzle, fuel heating system and an external oil pump.

THE MOST IMPORTANT PARAMETERS

• Brand: Bairan
• Model: STW133-1P
• Type: Oil / Multi-Oil Burner
• Power range: 40 to 80 kW
• Number of nozzles: 1
• Fuel consumption: approx. 3 to 7 kg/h
• Power supply: 230 V / 50 Hz
• Engine power: 200 W
• Engine speed: 2800 rpm /min
• Built-in compressor
• Fuel heating system
• External oil feeding pump

BUILT-IN COMPRESSOR

The STW133-1P has an integrated air compressor. This solution simplifies installation and eliminates the need for a separate external compressor.

HEATING OF FUEL

The burner features an oil preheating system that helps to reduce fuel viscosity and ensure that it is sprayed properly.

Depending on the type of fuel used, it is required to set the heating temperature, fuel quantity and combustion parameters accordingly.

APPLICATION

The burner can be used with appropriate liquid fuels, m.in :

• heating oil,
• diesel fuel,
• vegetable oils,
• selected used oils,
• other suitable oil fuels.

The device will work well in appropriately adapted:

• heating boilers,
• furnaces,
• heaters,
• workshop installations,
• industrial installations,
• building heating systems.

CONTENTS OF THE SET

The set includes m.in.:

• Bairan STW133-1P burner,
• nozzle 1 mm – approx. 50 to 65 kW
• built-in compressor,
• external oil pump,
• oil filter,
• mounting flange with gasket,
• oil pipes,
• adapters and connection elements,
• key to the nozzle,
• mounting hardware.

IMPORTANT

The burner is technically adapted to work with selected types of overworked oils, but the possibility of technical use of such fuel does not automatically mean that its combustion is legally allowed in any installation.

Used engine, transmission, hydraulic and other overworked oils may have waste status. Their storage, processing and thermal conversion are subject to waste management and environmental regulations.

If the fuel used has the status of waste, the user is obliged to use it only in the installation and on the terms allowed by applicable regulations.

Information about the possibility of using overworked oil determines the technical capabilities of the burner and does not constitute a permit for incineration of waste in any furnace, boiler, workshop or other facility.
