Aprašymas
Trumpai apie prekę
Prekė: Namų stebėjimo 4K IP PoE kamerų rinkinys, 4 vnt., lauko, su mikrofonu, IR LED naktiniam matymui. Kategorija: Rinkiniai.
- Gamintojas: Protec
- Modelis: 4 kamery zewnętrzne 4K UHD IP z PoE

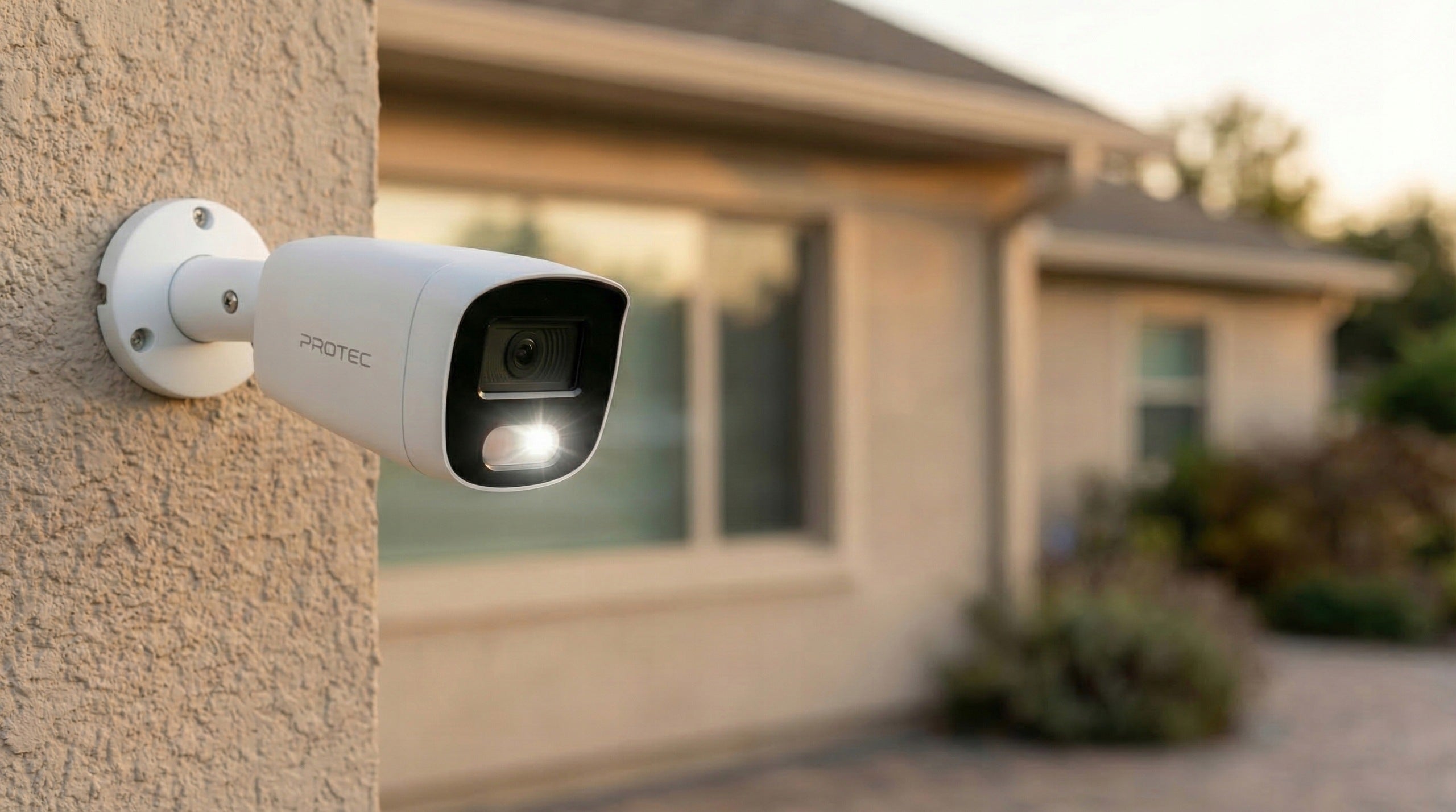

The system consists of 4 4K outdoor cameras that provide highly detailed images both day and night.
Thanks to PoE technology, installation is quick and convenient – one cable is responsible for power supply and image transmission.

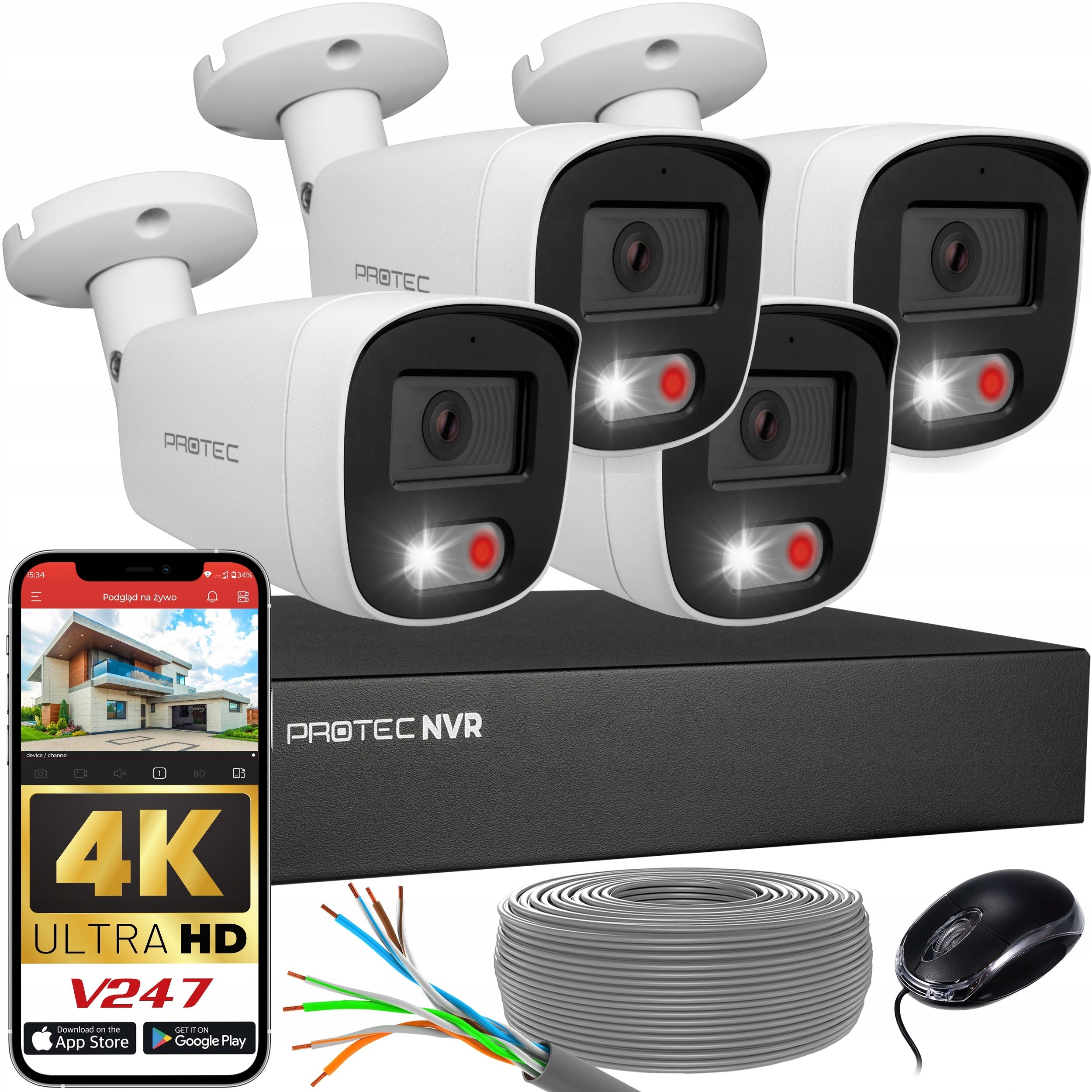

Contents of the monitoring kit:
✅ 4x Professional 4K UltraHD IP Camera
- Cameras have built-in microphone
- Intelligent detection of people and vehicles
- Effective observation in total darkness thanks to IR and LED
✅ NVR with built-in switch (8xPoE)
- Allows you to easily configure your online preview from anywhere in the world with P2P
- You will learn about motion detection immediately through a dedicated application
✅ 1TB drive dedicated to CCTV
- The system records in a loop 24/7 up to 10 days
✅ Accessories needed to start the system yourself
After connecting the recorder to the router and simple configuration, you will get access to the image from the recorder.
The application is available in Polish.
✅ Live view - watch what is happening in front of the cameras
✅ Viewing recordings - check what happened before
✅ Notifications - receive notifications about detections
⭐ Intelligent Motion Detection Technology ⭐
Through the use of advanced artificial intelligence algorithms, this system can precisely recognize movement only related to people. Significantly eliminates false alarms, which often come from random movements, animals or objects irrelevant from the point of view of safety
✅ Intrusion (people and vehicles)
❗About detection you will get a notification in the application ❗
⭐ Intelligent lighting capabilities ⭐
✅ IR mode: the camera works only with the IR radiator on, but this allows you to associate intelligent detection with the camera deterrence function (black and white image at night)
✅ White light mode: the camera will activate the white light radiator at night and allow observation in ( 24/7 color image)
✅ Intelligent mode: the camera will start the IR radiator at night, and if a human is detected in the frame, it will start the white light radiator. So you can see e.g. color of clothing (at night black and white image, after the appearance of someone in the frame, the picture will become colorful)
✅ Camera with microphone
The cameras record not only the image, but also sound from the environment. This is an additional level of security that allows you to better understand the situation and react faster. Hear more – protect more effectively!
The surveillance camera is distinguished by its very wide viewing angle, allowing it to cover a large area without the need to install multiple devices. This solution increases the effectiveness of monitoring and facilitates the control of space, both inside buildings and outside.
The device is also equipped with WDR 120 dB (Wide Dynamic Range) technology, which improves the visibility of details in scenes with high lighting contrast. Thanks to this, the camera can simultaneously capture images well in very light and dark places of the frame.
An additional advantage is the noise reduction system, which reduces image interference, especially in low light conditions. The camera also allows you to adjust image parameters, such as quality, contrast or color saturation, which allows you to adjust the image to specific installation conditions and user preferences.
CAMERA DATA:
Transducer size: 1/2.7"
Image resolution: 3840 x 2160@20kl/s - 4K
Lens: 2,8 mm (Angle of view: 100°)
Coding: H.265 + / H.265 / H.264 + / H.264. In auxiliary: H.265 / H.264
Range of illuminator IR: 30 m
White light illuminator range: 30 m
Audio: Built-in microphone
Power supply: 12 V DC / 48V PoE (802.3af)
Power consumption: > 5 W
Housing: Metal
Protection class: IP67
Weight: 0.28 kg
Dimensions: 172 x 70 x 70 mm
RECORDER DATA:
PoE power supply: 8 independent PoE ports (maximum 30W per port)
Maximum power from PoE ports: 45W
Maximum number of cameras: 8 4K cameras
Audio support: yes, with IP cameras
Video outputs: 1 unit HDMI (max, 3840x2160, default 1024x768)
Image compression method: H265/H264/H265+/H264+
Supported hard drives: 1 x 8 TB SATA III 3,5"
Archiving on external media: Archiving on a USB stick
Access from mobile phone: Yes, application V247
USB: 2 units USB 2.0
Power supply: power supply included
Dimensions: 200 x 175 x 40 mm
Dedicated 1TB drive for 24/7 monitoring
- Recording up to 10 days with 4 cameras with h.265+ encoding - this is twice as much as with older systems.
- Recording time depends on the amount of traffic in the camera frames, with very high activity, recording time can decrease by about 50%
- Provides optimal operating conditions of the entire system
- Allows you to record from all cameras at the same time
All necessary plugs and accessories to start the monitoring system!
- 1x Dedicated, efficient power supply of the recorder
- 1x RJ-45 connector clamp
- Sticker "Note Object monitored"
- 50m cable UTP cat. 5e CCA
- Mouse to operate the recorder
- 16x RJ-45 plug
⬇ Download:
- Software for computers and mobile devices
- Polish manual to the registrar in pdf
- Step-by-step installation instructions in pdf
- Use our VIDEO setup instructions
- www.youtube.com/watch?v=fML9apBAeG8
- Instructions for first system startup, camera connection and first configuration are available on YouTube
FREQUENTLY ASKED QUESTIONS
1. How many meters of wire is included?
The amount of UTP cable is specified in the set composition. Additional cable can be found on our other Allegro offers
2. What can be the maximum cable distance between the recorder/router and the switch?
The maximum cable distance between the recorder and the switch, as well as between the switch and the router is up to 100 meters.
3. What can be the maximum cable distance between the switch and the camera?
The maximum cable distance between the switch and the camera is up to 100 meters. Enabling EXTEND allows you to increase the connection range up to 200m and reduce the transmission speed up to 10Mbps
4. How to connect the DVR to the Internet?
The recorder must be connected wired to a router that has access to the Internet.
5. Can I have a preview on my phone?
Yes, you can. The recorder must first be connected to the Internet and configured. Instructions for connecting to the mobile application are available under the offer itself under the name "guide".
6. What is the difference between the image quality in the mobile application and the presentation in the offer description?
The application shows a live image in a "slim" version to run smoothly even with a weaker Internet. Preview on the phone is only a simplified version – a real, full-quality image is saved directly to the disk on the device. If you want to see the recording in the best quality, just rip it from your device and play it on your computer.
7. How to connect the drive to the recorder?
Remove the top cover of the recorder, connect with two wires (SATA + power supply), and then attach with screws to the base of the recorder. The first time you start the drive, you need to format it.
8. How to get an image from the DVR?
The recorder should be connected to a TV or monitor via HDMI. After connecting, the screen should immediately display the DVR menu.
9. Can I connect the DVR to my laptop with an HDMI cable?
No, laptops have an output, not a video input. This prevents you from getting the image this way.
10. How much is the disk from the set enough?
In the "HARD DRIVE" section, it is calculated how many days of recordings the disk will hold. When the drive is full, the recorder will automatically delete the oldest record and continue working.
11. Can the cameras be mounted outside?
Yes, the cameras have a sealed housing with IP66 rating and can be mounted outdoors. When installing, we recommend properly securing the cable and plugs.
12. What happens in the event of a power outage?
The device will shut down. When the voltage appears, it will automatically restart.
13. Will this monitoring work without internet access?
Yes, the entire surveillance kit will work. Internet access is only needed to access the camera image remotely (e.g. on the phone).
14. Do I need to supply power separately to the cameras?
No, these modern IP cameras have a PoE power system - this means that you only need to connect them with a cable to the recorder from where they will get power.
15. Is it worth choosing this set?
Definitely yes! This surveillance kit, offers the highest image resolution in this price class, intelligent event detection, PoE power supply (one cable for image and power), notifications per phone and very simple installation and configuration.
It is currently one of the best choices in terms of quality, functionality and price – solid, modern and trouble-free in everyday use.
Home monitoring – 24/7 security
The monitoring kit is perfect as:
- home monitoring
- monitoring of the property
- monitoring of the company
- warehouse monitoring
- monitoring of the plot
- construction monitoring
The cameras allow you to observe the terrain in high resolution 4K, making it easy to recognize the face or license plates.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Zestaw do monitoringu PRNVRE04T8LE |
| Parametry | Model | 4 kamery zewnętrzne 4K UHD IP z PoE |
| Parametry | Brand | Protec |
| Parametry | Product width | 30 cm |
| Parametry | Product height | 18 cm |
| Parametry | Product depth | 30 cm |
| Parametry | Product weight | 5.5 kg |
| Parametry | Product weight with unit packaging | 6 kg |
| Parametry | Technology | IP |
| Parametry | Number of supported cameras | 8 |
| Parametry | Maximum recording resolution | 8 Mpx |
| Parametry | Lens | fixed-focus |
| Parametry | Infrared range | 30 m |
| Parametry | Camera waterproof rating | IP67 |
| Parametry | Installed disk capacity | 1 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 8 TB |
| Parametry | Video compression | H.265+ |
| Parametry | Video outputs | HDMI |
| Parametry | Number of USB ports | 2 |
| Parametry | EAN (GTIN) | 5904473556710 |
| Parametry | Packaging status | original |
| Parametry | Customs tariff code | 85258900 |
| Parametry | Batteries included | no |
| Parametry | Other ports | 4x PoE,LAN (RJ-45) |
| Parametry | Functions | phone app,motion detection,PoE,advanced search,digital zoom |
| Parametry | Certificates of conformity | CE,WEEE |
