Namų stebėjimo sistema su 4 IP kameromis IPC-B141H-C, 4MP, PoE, juoda

Trumpai apie prekę

Prekė: Namų stebėjimo sistema su 4 IP kameromis IPC-B141H-C, 4MP, PoE, juoda. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: Zestaw IPC-B141H-C-B(x4) NVR HDD (DSDi Ready)

4x 4MPx IP Camera | IP Recorder for 4 Cameras | 4x PoE Switch | 1TB Drive | Mounting Accessories

This reliable and easy-to-use network surveillance kit includes four HiLook by Hikvision network cameras with a resolution of 4MPx @2560x1440p. This kit is ideal for surveillance in:

• Offices
• Small shops
• Parking lots
• Small industrial facilities

Kit Features:

✅ Provides continuous surveillance of the monitored area, both day and night - in color and infrared (IR illuminator and white light up to 20m)

✅ Guarantees high-quality images with a resolution of 4Mpx 2560×1440

✅ Uses Power over Ethernet (PoE)

✅ Allows for 24/7 recording on a hard drive in the recorder

✅ Can be operated from a mobile app via smartphone or computer

✅ Includes all necessary cabling and accessories to speed up installation

In this kit, you receive a complete, ready-to-install system based on high-quality, branded components.

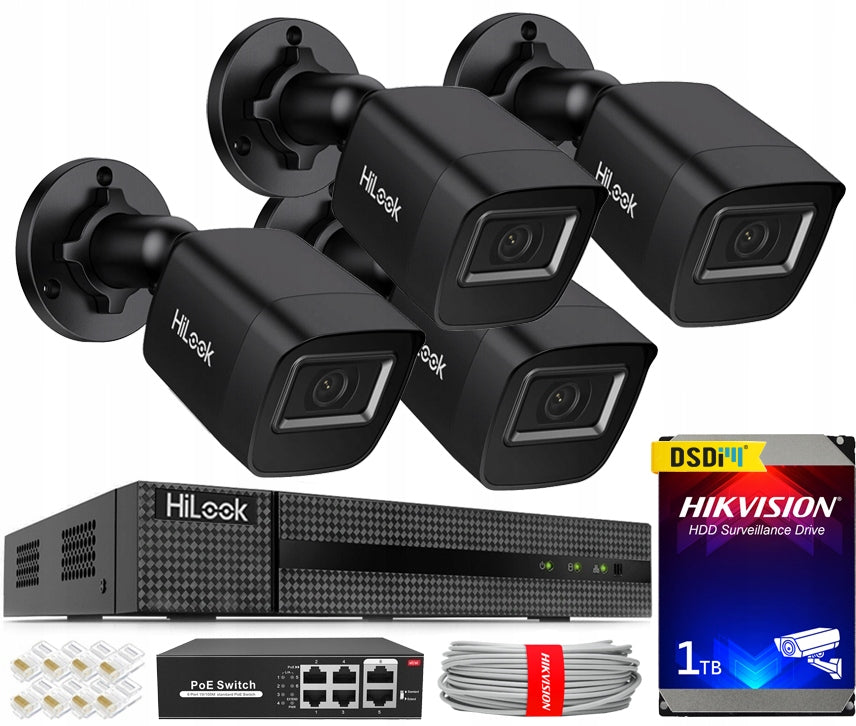

This kit includes:

• 4x 4MP Bullet Camera (2560x1440 True 2.5k) - IPC-B141H-C BLACK HiLook by Hikvision
• 1x 4-Channel IP Recorder - NVR-4CH-4MP HiLook by Hikvision
• 1x CCTV Hard Drive (24/7 Recording) - 1TB Hikvision
• 1x 4+2 Port PoE Switch for connecting and powering the cameras - EI-H1064PL EIFLEX
• 1x UTP Twisted Pair Cable - 20 meters - DS-PL-5E Hikvision
• 8x RJ45 Connector

HiLook by Hikvision surveillance systems are designed to be as simple and intuitive to install as possible. The instructions included in the kit will guide you step-by-step through the installation and configuration process.

HiLook by Hikvision monitoring systems can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

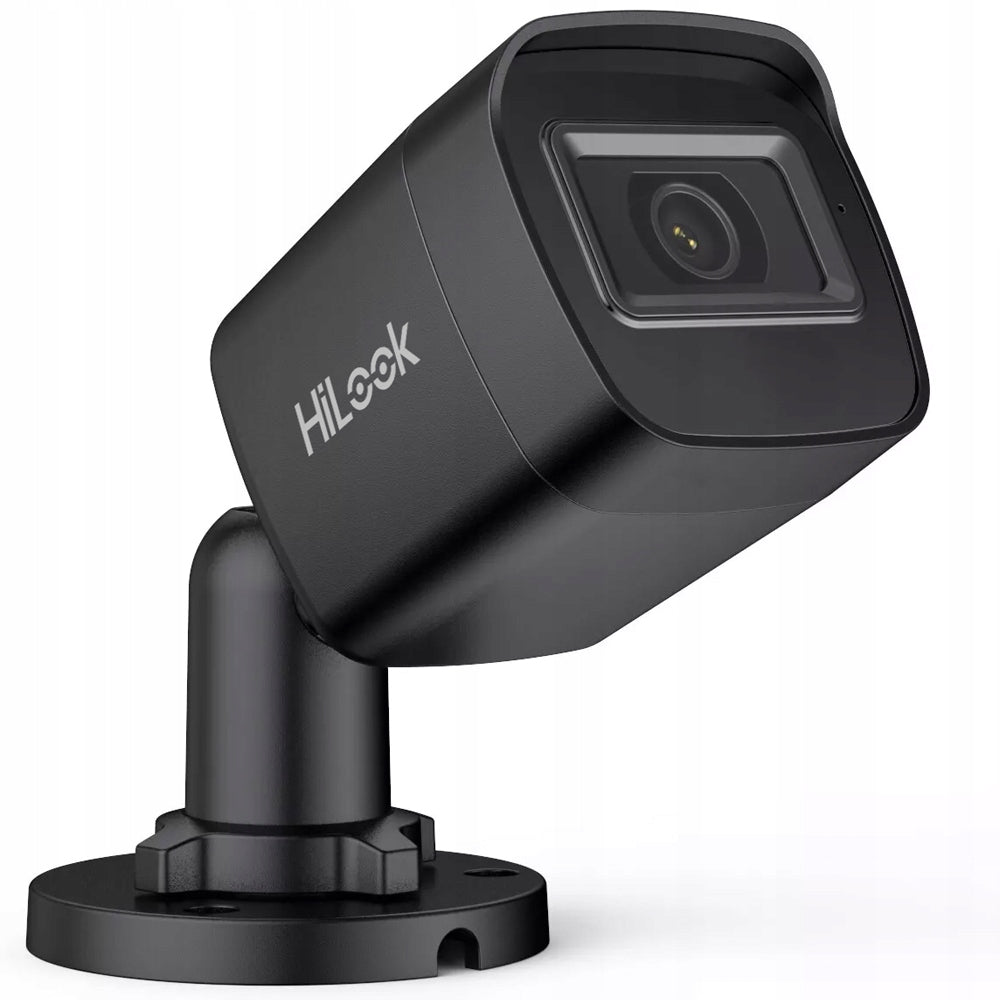

The IPC-B141H-C BLACK camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 20m.

This function allows you to record images via 24/7 in any lighting conditions.

The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.

The cameras included in the kit are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with the recorder is connected using a single UTP cable.

• Converter: CMOS 1/3” 4MPx
• Image resolution: 2560 × 1440p @20fps
• Lens: wide-angle 2,8 mm
• Recording angle: ~100 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: digital WDR
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 20 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB
• Assembly: external or internal
• Housing: plastic / black
• Power Supply: 12V or PoE
• Protection class: IP67

• Number of channels: 4
• Recording resolution: to 6Mpx
• Bitrate in/out: 40/60 Mbps
• Video outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Ethernet interface: 1x RJ45 10 / 100 Mbps
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Preview/remote support: HIK-Connect/HiLook App, iVMS-4200 (lite)
• Storage for HDDs: 1 (up to 6TB)
• Power Supply: 12 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 265 x 225 x 48mm
• Weight: ≤ 1 kg

The disk included is a model Hikvision from the Surveillance series, dedicated to monitoring, characterized by a higher service life.

• Capacity: 1TB
• Cache: 64 MB
• Interface: Serial ATA III
• rpm. /min: 5400 rpm

The switch has 6 ports with a speed of 10/100Mbps, including 4 PoE ports with a total power budget 65W and unit power up to 30W per port.

The device works in Plug&Play mode - it does not require configuration and is ready to work immediately after connecting to the power supply.

• Number of ports: 6
• PoE ports: 4x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbps RJ45
• Switch Type:Unmanaged
• Network protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
• PoE power standard: IEEE 802.3af/at PoE+
• Power of one port: up to 30W
• Total PoE power: 65W
• Bandwidth: 1.6Gbps
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 140*115*40mm
• Weight: 0.4kg
• Power supply: AC100-240V (built-in power supply)

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• A set of instruction manual
• Sticker "Monitored Object" by EC System

DSDi® Ready

The monitoring system we offer, marked with the "DSDi" tag, has a license that allows you to use the services of the DSDi® system, which provides additional after-sales support and control over the purchased equipment. Thanks to the intuitive application, the user can easily check the warranty period for individual devices, as well as expand the package of available service services within the DSDi ecosystem.
