Namų stebėjimo sistema WiFi, 4 sukamosios 5MPx kameros su garsu ir žmonių aptikimu

Trumpai apie prekę

Prekė: Namų stebėjimo sistema WiFi, 4 sukamosios 5MPx kameros su garsu ir žmonių aptikimu. Kategorija: Rinkiniai.

• Gamintojas: Zintronic
• Modelis: 4xIKPW540V1-IR9S18MPL

Modern monitoring set based on WiFi P5 cameras and DVR, ensuring high image quality 5MP, intelligent detection and stable 24/7 operation.

Solid made cameras and metal enclosure ensure durability and aesthetic installation. WiFi connectivity makes it easy to install without the need for additional signal cabling.

🎯 Who is this set for?

• you want to secure your home or property
• you need monitoring company, warehouse or office
• You care about recognition of people and vehicles
• you want to have remote live view from your phone

✅ System fully configured!

✅ Free Application w jez. pol - NO ADS

✅5MP resolution (2560×1920)

✅4 Rotary cameras

✅ Notifications by Email/Apps

✅ Wide viewing angle 109°/2.8mm

✅ Full night vision

✅ Intelligent detection of people

✅ Recording of sound from cameras

✅ Remote access and management

✅ Expansion to 9 cameras: System with potential

🎧 Technical support: Contact a real specialist

🛡 WHY ZINTRONIC

Securing monitoring does not have to cost several thousand zlotys. We offer proven sets that provide high parameters at a reasonable price.

• Individual selection of components – no mass, truncated sets (so-called. ready-made in one carton)
• The ability to purchase each element separately - cameras without software restrictions also work independently
• Increased durability, functionality and reliability compared to ready-made solutions

👉 This means Better quality, longer service life and real savings in the long run.

🔴 LIVE VIEW FROM ANYWHERE

Have a constant view of your cameras, no matter where you are – at home, at work or away.

The recorder is accompanied by free software in Polish, which allows quick login and convenient monitoring operation on various devices.

📺TV | Computer 💻| Smartphone 📱| Tablet:

• TV / Monitor – directly through the DVR
• Computer – via a browser on a local network, iVMS-320 or Bitvision
• Phone / Tablet – intuitive application Bitvision

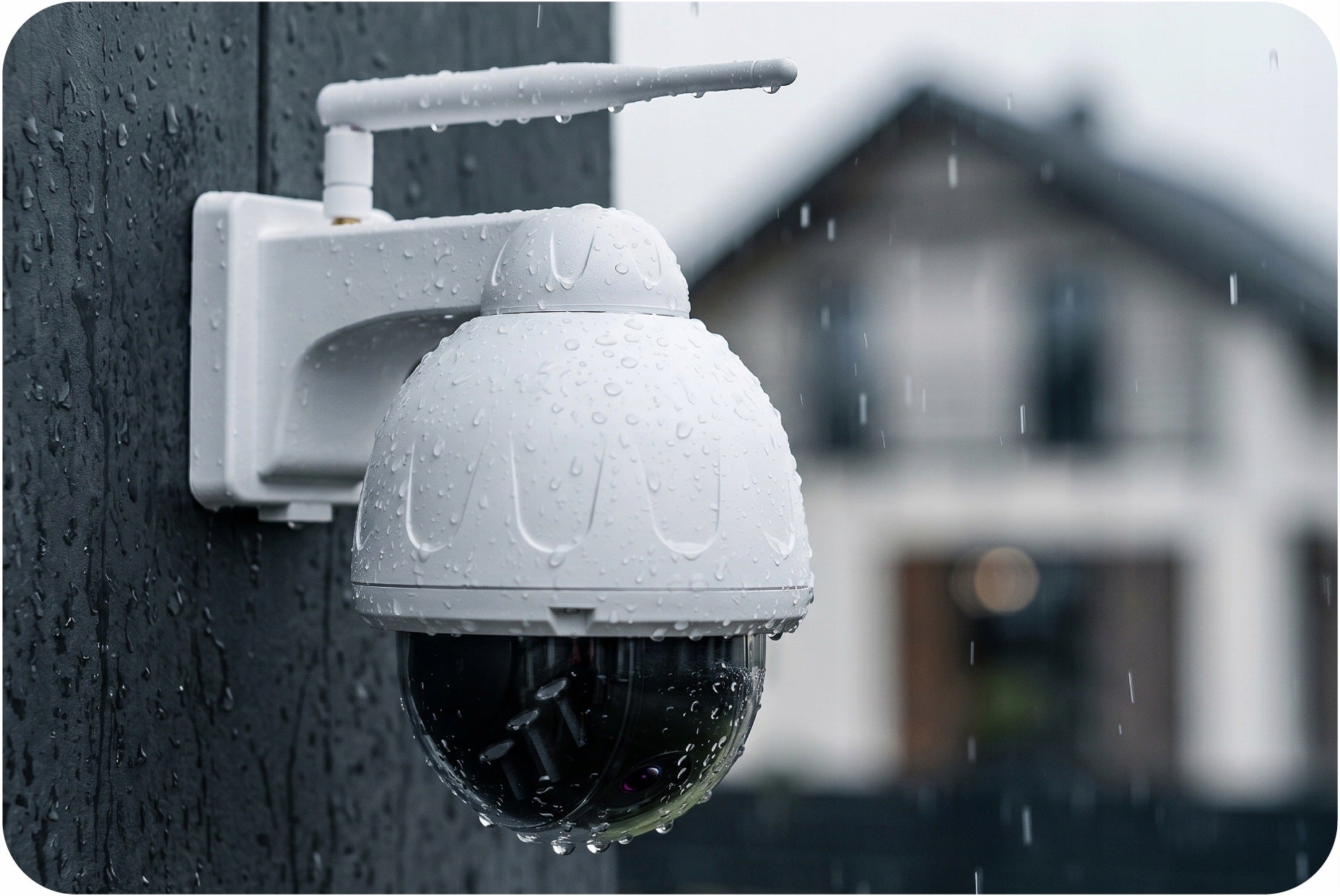

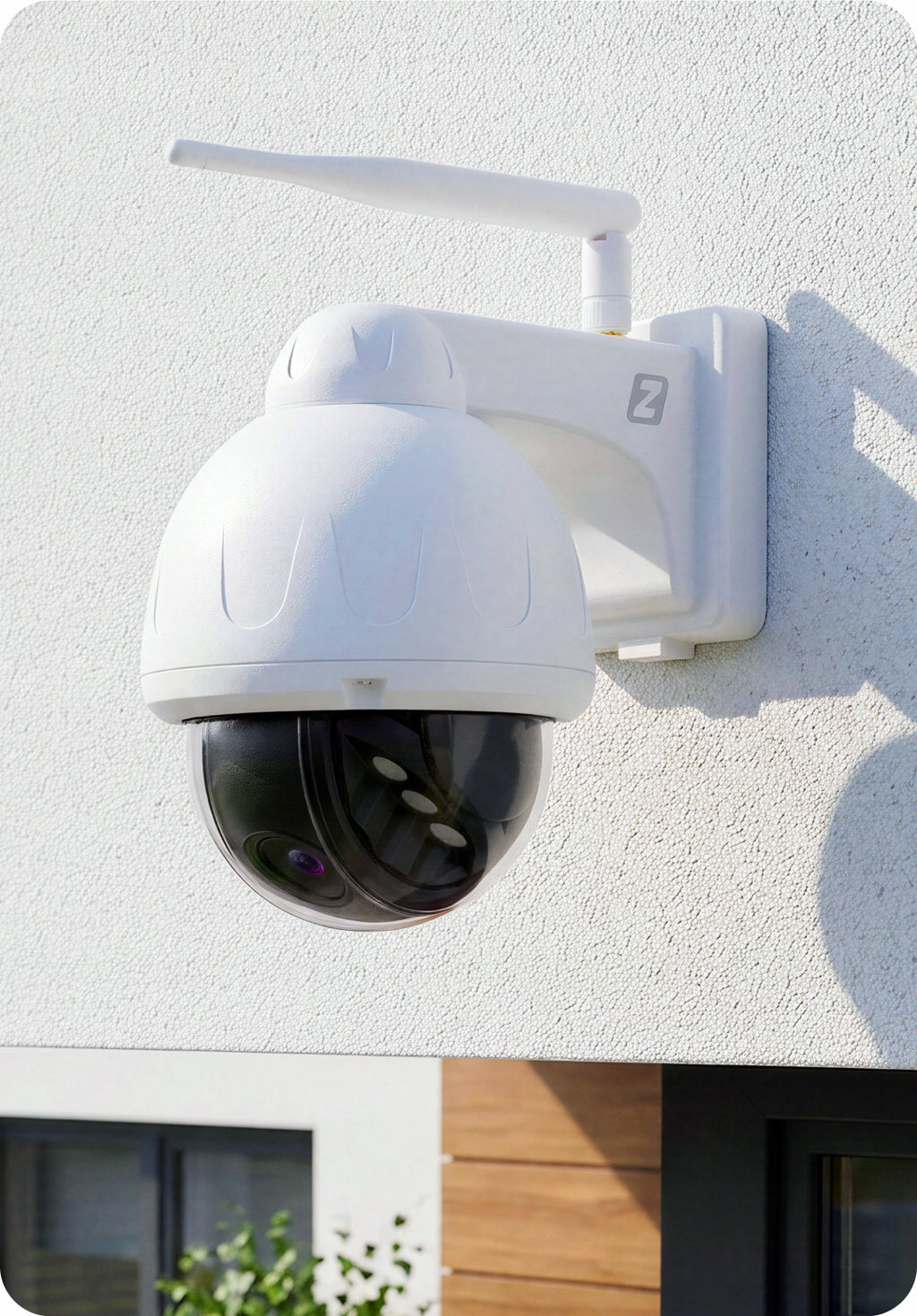

📷 WiFi CAMERAS P5 5MPx

The WiFi P5 camera is a modern and functional solution for home and business monitoring.

The rotating design allows remote control of the viewing angle, allowing you to monitor a larger area without having to install several cameras.

Solid metal housing in elegant black color provides high resistance to damage and adverse weather conditions. Discrete dome construction makes the camera aesthetically compatible with the facade of the building, roof lining or the interior of the object.

✅ SONY STARVIS IMX335 – a branded converter that makes a difference

The model is based on the original SONY STARVIS IMX335 sensor, which provides clean, detailed image and clearly exceeds the cheap, brandless sensors used in budget cameras.

🎯 Why choose IMX335?

• Real resolution 5MP (2592 × 1920) high detail without artificial sharpening and loss of quality.
• Better readability of details clearer license plates, faces and small elements.
• Natural color reproduction good tonal dynamics and no "washed" colors.
• Stable, repeatable image quality

💡 When you buy a camera with a SONY STARVIS IMX335 sensor, you invest not only in a larger number of megapixels, but above all in actual image quality, which can be crucial when identifying people and important events.

🎙 Built-in microphone and speaker – two-way communication

The camera is equipped with a built-in microphone and speaker, which allows not only to record sound from the environment, but also to conduct two-way communication in real time.

This means that you can not only hear what is happening on the spot, but also speak directly through the camera – e.g. to the courier, child or person on the property.

PTZ function – Rotate the camera

The camera allows remote rotation control. The large range of motion allows you to cover a wide field of view without changing the mounting location.

Camera control is possible from:

• Mobile application
• Recorder (NVR)
• Web browser

🧠 Intelligent detection of people

The advanced AI image analysis used in the cameras allows for precise discrimination of human silhouettes, eliminating false alarms caused by animals, rain or moving branches.

The camera responds only to real threats – detects people and cars, marks them in the image and immediately sends notifications

🎯 Automatic Character Tracking (Auto Tracking)

The camera is equipped with the automatic motion tracking function, thanks to which when a person is detected, the lens automatically follows his movement in the frame. The system dynamically adjusts the position of the camera to keep the subject in the center of the image and record the full course of the event.

🌙 Night mode (infrared)

The camera automatically switches to night mode after dark, working in infrared and providing:

• Clear, black and white night vision
• Viewing range up to 40 meters
• Even illumination of the scene without overexposure
• discreet work – no visible light

The recorder is the heart of the entire system – it supports simultaneous viewing of up to 9 cameras, ensuring smooth operation thanks to its efficient processor.

The system is complete and supports 4 cameras in the above configuration, so it is ready for operation immediately after installation.

It is also open for expansion, which means that you can add more cameras at any time without replacing the equipment.

The intuitive interface allows you to fully manage your monitoring from anywhere – on your computer or smartphone, wherever you are.

Recorder Features Included:

👀 Local and Remote Viewing

You can watch camera feeds on a monitor or TV connected to the recorder, as well as remotely on your computer or smartphone – from anywhere, using free software in Polish.

🔔 Email and Push Notifications

Upon motion detection, you'll receive a notification on your phone or email, optionally with a snapshot of the event.

💾 Recording to Disk

Option to record continuously, on a schedule, or only upon event detection (motion, alarm). You can adjust the recording mode to your needs and disk capacity.

The set includes a 1 TB disk, which, when operating with 4 cameras at 5 Mpx resolution, provides up to 10 days of continuous recording.

🔁 Automatic Recording Overwrite

When the disk is full, the system automatically deletes the oldest recordings, ensuring uninterrupted surveillance.

🔒 Privacy Masking

Ability to block out selected areas of the image, e.g., a neighbor's property or a public road – you record only what interests you.

BitVision mobile application – monitoring always at hand

The free BitVision in Polish is available to the recorder, which allows you to easily watch the image from the cameras and view the recorded recordings – no matter where you are.

The application is intuitive and convenient in operation, so people without monitoring experience can also easily cope with it. It allows not only live view, but also save photos and videos directly on your smartphone, so you always have the most important recordings at hand.

Main functions of the application:

1. 📡 Live view from cameras from anywhere
2. 🔔 Real-time notifications about events
3. 💾 Browse recordings stored on the recorder disk
4. 🌍 Remote access to recordings from anywhere
5. 📷 Save photos and videos directly on your phone
6. 🔍 Digital image magnification (up to x8)
7. ⚙ Access to settings – full operation and configuration of cameras in the application

With the BitVision app, you get full control over your monitoring system – conveniently, safely and whenever you need it.

📱 The application works in both Android and iOS environments.

👨 👩 👧 👦 Multi-user access

You can add any number of users to the system – e.g. wife, children, father-in-law or other household. Each of them can have a permanent live view on your phone or computer, from anywhere. You decide who has and what permissions, so that everyone is up to date and you have full control over the system.

➡ WHY MONITORING IP

• IP monitoring gives us better quality and more smooth image
• Lower installation costs IP technology uses only one UTP cable or wireless solutions.
• Installation is simpler and cheaper to run
• Increased functionality

⚠ How to connect the set – quick installation of the WiFi monitoring kit (4 rotary cameras):

1. Place the cameras in the scheduled mounting locations and connect each one to power (power supply included).
2. Connect the included router to power and to the internet (e.g. LAN cable to modem from internet provider).
3. Turn on the cameras and wait for them to go into configuration mode (voice signal or LED message).
4. Connect the recorder to the router with LAN cable (if the set includes a recorder) and to 230V power supply.
5. If you want a preview on your TV or monitor, connect the DVR with an HDMI or VGA cable.
6. Install the Bitvision mobile app (Android / iOS), create an account (preferably gmail.com) and add devices by scanning the QR code: enter your login and password (default: admin / 12345 – if applicable), connect the cameras to the WiFi network of the router according to the instructions in the application.
7. When devices are added correctly, cameras will connect to the router wirelessly.
8. The monitoring set is active.

✅ COMPLETE SET – READY TO ASSEMBLE RIGHT OUT OF THE BOX

The kit is fully prepared for installation:

• cameras paired with the recorder,
• 1TB drive mounted in the middle
• all ready-to-connect components,
• included readable installation instructions.

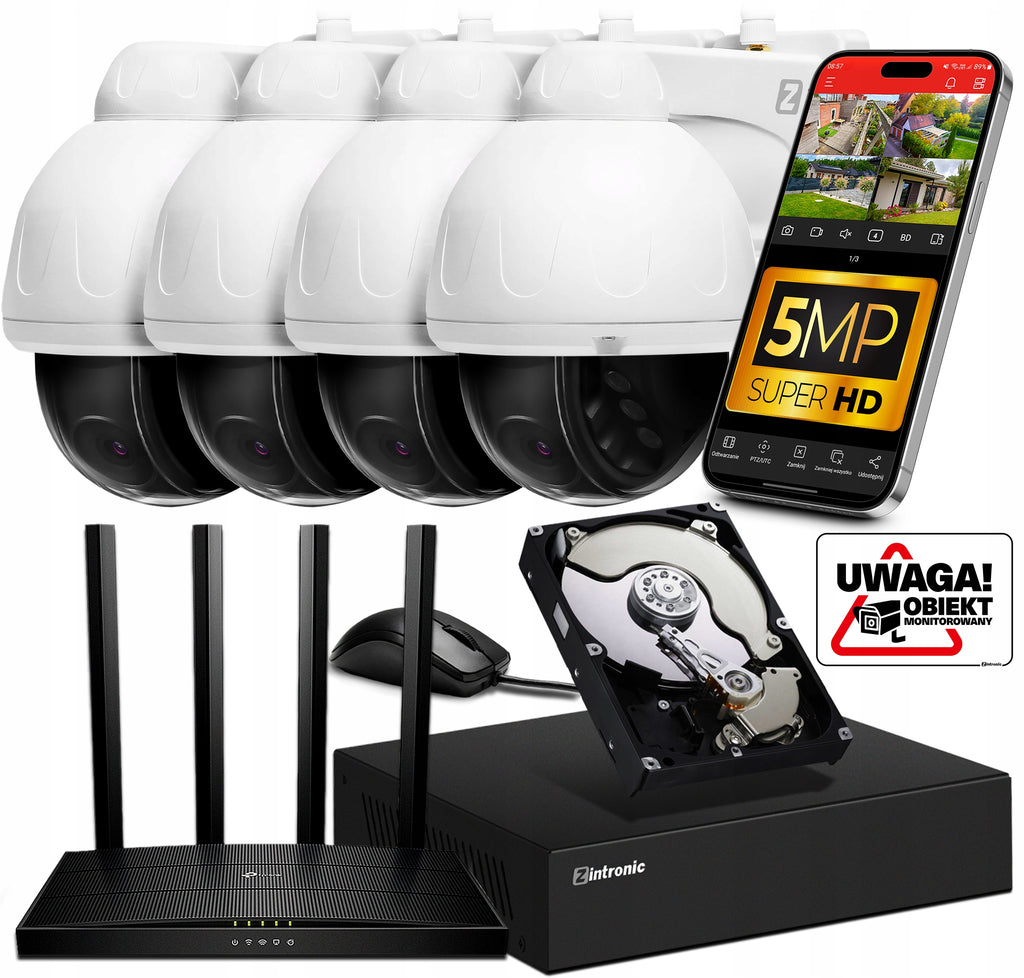

📦 What is included in the monitoring kit:

➡ NVR 9-channel IP recorder

• SKU: IR9S18MP
• Number of cameras supported: 9
• Maximum supported resolution: 12MP/4K (4000×3000)
• Number of hard drive inputs: 1 x SATA, (up to 10TB)

➡ 4× IP Camera P5 / 5MPx

• SKU - IKPW540V1
• Resolution - 5MP 2560×1920@15kl/s
• Matrix: 1/2.8" Low Lux CMOS
• Converter: SONY IMX335
• Audio recording: built-in microphone

➡ 1 TB hard drive (designed for monitoring)

• Seagate SkyHawk ST1000VX013 1TB

➡ Archer C6 Wireless router, standard N

• Ports: 4 ports 10/100Mbps LAN 1 port 10/100Mbps WAN
• Power Supply: 9V / 0,6A
• The 2,4GHz (300 Mbps) and 5GHz (867 Mbps) networks offer a total bandwidth of 1200 Mbps

➡ Table "Monitored object" - SKU: T-25X175Z

🌡 Wide operating temperature range from -30°C to +60°C

The cameras are adapted to work in difficult weather conditions. They work easily at low temperatures up to -30°C.

The resistant, sealed housing protects the devices from rain, snow and frost, ensuring stable operation throughout the year, regardless of the weather.

🎧🛠 Full technical support included in the price

We are a manufacturer of Zintronic equipment in Poland.

With the kit you get full technical support at every stage of use. We help in the configuration, connection of cameras and operation of the system – before and after purchase. Thanks to this, you can be sure that the monitoring will work properly and without unnecessary problems.

When you buy from us, you can be sure of:

• fast contact with Polish support
• real technical assistance
• availability parts and updates
• security purchase from the official channel.

We focus on long-term cooperation and real support.

🏅Certified quality and safety

Our equipment meets European quality and safety standards, including CE and RoHS.

This is a guarantee that the device is safe in everyday use, compliant with applicable regulations and environmentally friendly.

Each copy undergoes quality control before being released for sale.
