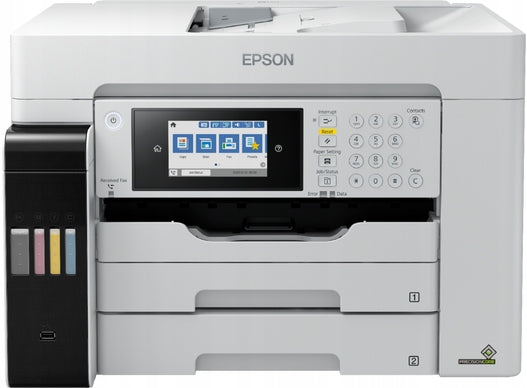

Naudotojo vadovas EPSON EcoTank Pro L15180

Trumpai apie prekę

Prekė: Naudotojo vadovas EPSON EcoTank Pro L15180. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: Epson
• Modelis: EcoTank L15180

EPSON EcoTank Pro L15180 user manual

P/N : C11CH71406

Key Features :

• Extremely economical 4-in-1 A3 printer Economical permanent ink supply system
• Fast printing and scanning Print up to 25 pages. /min and scan to 27,5 rpm. /min
• Easy to use front ink container Easy and convenient ink filling without mess with improved bottles
• Mobile printing and connectivity Wi-Fi, Wi-Fi Direct, Ethernet and free mobile printing applications²
• Advanced software Seamless integration of software into existing IT infrastructure

Continuous saving

Save money every time you print with the L15180. With inexpensive ink bottles, you can enjoy an extremely low cost of printing a page. Epson heat-free technology keeps energy consumption to a minimum, reducing your energy bills.

Time-saving features

The L15180 offers a first-page printout of just 5,5 seconds¹ and a print speed of up to 25 pages per minute. The automatic document feeder allows you to scan up to 26 images per minute.

Advanced software compatibility

In order to increase efficiency, various software solutions can be integrated into existing IT infrastructure. This applies to i.a. Epson Remote Services (ERS) services including a cloud-based device monitoring and management system that provides advanced remote diagnostics for Epson business products.

Slight user interference

The EcoTank Pro printer can print thousands of pages before you need to refill the ink. Two feeders hold 500 sheets. Free yourself from manually loading sheets with the powerful 50-sheet back-loading feeder and automatic feeder (ADF).

Reliability and ease of use

The color LCD touch display allows you to easily select functions. Refilling large ink containers on the front of the device is simple with lockable and intuitive, non-dripping bottles.

Printing from almost anywhere

The L15180 allows you to easily print from phones, tablets and laptops. With Wi-Fi and Wi-Fi Direct support, you can transfer documents for printing from smart devices using the Epson iPrint² app.

Technique

Printing method

PrecisionCore™ Print Head

Nozzle configuration

800 black nozzles, 800 nozzles per colour

Minimum droplet size

3,8 pl

Ink technology

DURABrite™ ET

Efficiency

Workers' Group

Multifunctional

Printing, Scanning, Copy, Fax

Printing

Number of colours

4 colours

Time until the first page is received

Black & White 5,5 Seconds, Colour 5,5 Seconds, According to IEEE/ISO 17629

Print speed ISO/IEC 24734

25 Str. /min. Monochrome, 25 Str. /min. color

Double-sided printing speed ISO/IEC 24734

21 p. A4/min Monochrome, 21 p. A4/min Colour

Printing resolution

4.800 x 1.200 DPI

Number of prints

66.000 Pages per month

colors

Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment]

Print from

PC, MAC, Network, Mobile Device, USB, PC (Wired), PC (Wireless), Mobile Device (WiFi Direct)

Scanning

Double-sided scanning

Yes

Single-sided scanning speed (A4 black)

26 ipm with ADF scan

Double-sided scanning speed (A4 black)

11.5 ipm with ADF scan

Single-sided scanning speed (A4 color)

9 ipm with ADF scan

Double-sided scanning speed (A4 color)

6 ipm with ADF scan

Scanning resolution

1.200 DPI (Horizontal x Vertical)

Optical resolution (automatic document feeder)

1.200 DPI (Horizontal x Vertical)

Editing formats

BMP, JPEG, TIFF, Scan to multi-TIFF, PDF, PNG

Scanner type

Image contact sensor (CIS)

Faxing

Fax transmission speed

do 33,6 kb na s/ok. 3 s per page

Error correction mode

CCITU/ITU Group3 Fax Machine with Error Correction Mode

Fax functions

Computer Faxing, Email Fax, Receipt & Save, Automatic Re-dial, Address Book, Multi-Recipient Fax, Fax Preview, Polling Reception

Connectors

Network protocol

HTTPS, IPv4, IPv6, SNMP

Connections

Hi-Speed USB - USB 2.0 compliant, Ethernet interface (100 Base-TX / 10 Base-T), IEEE 802.11a/b/g/n/ac wireless LAN (WiFi 5), Wi-Fi Direct, USB Host

Security in the WLAN

WEP 64 Bit, WEP 128 Bit, WPA PSK (TKIP), WPA2 PSK (AES)

Paper/carrier support

Paper formats

A4 (21.0x29,7 cm), Legal, A5 (14,8x21,0 cm), A6 (10,5x14,8 cm), B6, B5, No. 10 (envelope), DL (envelope), C6 (envelope), C4 (envelope), Letter, Letter Legal, A3 (29,7x42,0 cm), A3+

Automatic document feeder

50 pages

Appropriate paper weight

64 g/m² - 255 g/m²

double-sided

Yes (A4/A3, plain paper)

Capacity of paper feeder

125 Sheets

Paper Tray Capacity

250 Sheets As standard, 550 Sheets maximum

Rear paper path (special media)

Yes

Number of paper compartments

3

General information

Energy consumption

19 W (autonomous copying, standard ISO/IEC 24712), 0,7 W (sleep mode), 9,7 W Ready, 0,15 W (off), TEC 0,13 kWh/week

Power supply voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

515 x 500 x 350 mm (Width x Depth x Height)

Product weight

21,5 kg

Noise level

6,7 B (A) according to ISO 7779 print pattern on Epson Premium Glossy Photo Paper / Photo RPM mode - 52 dB (A) according to ISO 9226

Compatible operating systems

Android, XenApp 5.0, XenApp 6.0, Citrix XenApp 6.x , Citrix XenApp 7.6 and later, Citrix XenApp 7.x , Citrix XenApp Version 6.5, Citrix XenApp Version 7.6, Citrix XenDesktop Version 7.6, Linux, MAC OS 10.15 + or later, Mac OS 10.10.x , Mac OS 10.11, Mac OS 10.2+, Mac OS 10.3+, Mac OS 10.4+, Mac OS 10.4.11 or later ( Epson Scan only), Mac OS 10.5+, Mac OS 10.5.8 or later, Mac OS 10.5.8 or later (requires driver download from Epson website ), Mac OS 10.5.9, Mac OS 10.6+, Mac OS 10.7.x , 10.13.x OS 10.8.x , Mac OS 10.9.x , Mac OS X, Mac OS X 10.11.x , Mac OS X 10.11.x or later, Mac OS X 10.12.x , Mac OS 10.6.8 or later, Windows 10 (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Vista (32/64 bit), Windows XP Professional x64 Edition SP2 or later, Windows XP SP3 or later (32-bit), Windows Server 2003 R2, Windows Server 2003 SP2 or later, Windows XP Professional x64 version, iOS 5.0+, iOS 6.0+, iOS 7

Included software

Epson Device Admin, Epson Scan 2, Epson Status Monitor, EpsonNet Config

Noise emission

Working: 6,7 B (A)

Acoustic pressure

Operation: 52 dB (A)

Mobile and cloud printing services

Epson Connect (iPrint, Email Print, Remote Print Driver, Scan-to-Cloud), Apple AirPrint

Noise level

Operation (Roll): 52 dB (A)

Power supply

220 V, 240V

Content of the set

1 full set of inks (Bk – 127 ml, CMY – 70 ml), Drivers and auxiliary programs (CD), Installation / Safety Manual, Basic device, Power cable, Quick start guide,

Additional Features

Functions

Touch screen, Print directly from USB

LCD display

Type: Color, Touch screen, Diagonal: 10,9 cm

Print media processing

Double-sided automatic document feeder (A4/A3, plain paper), Double-sided automatic document feeder for faxing (A4/A3, plain paper), Double-sided automatic document feeder for scanning (A4/A3, plain paper), automatic double-sided printing (A4/A3, plain paper)

Memory cards

not dot.

Other functions

Emulations

PCL5e, PCL6

Optional Software & Solutions

Epson Device Admin, Epson Net Config, Remote Panel Tool

Security

TLS, SSL, IEE 802, SNMP, FTP, IPv6, HTTPs, WPA2, WPA3, IEEE802

Efficiency of the included container

Black ink yield

4.500 pages

Color ink yield

2.800 pages
