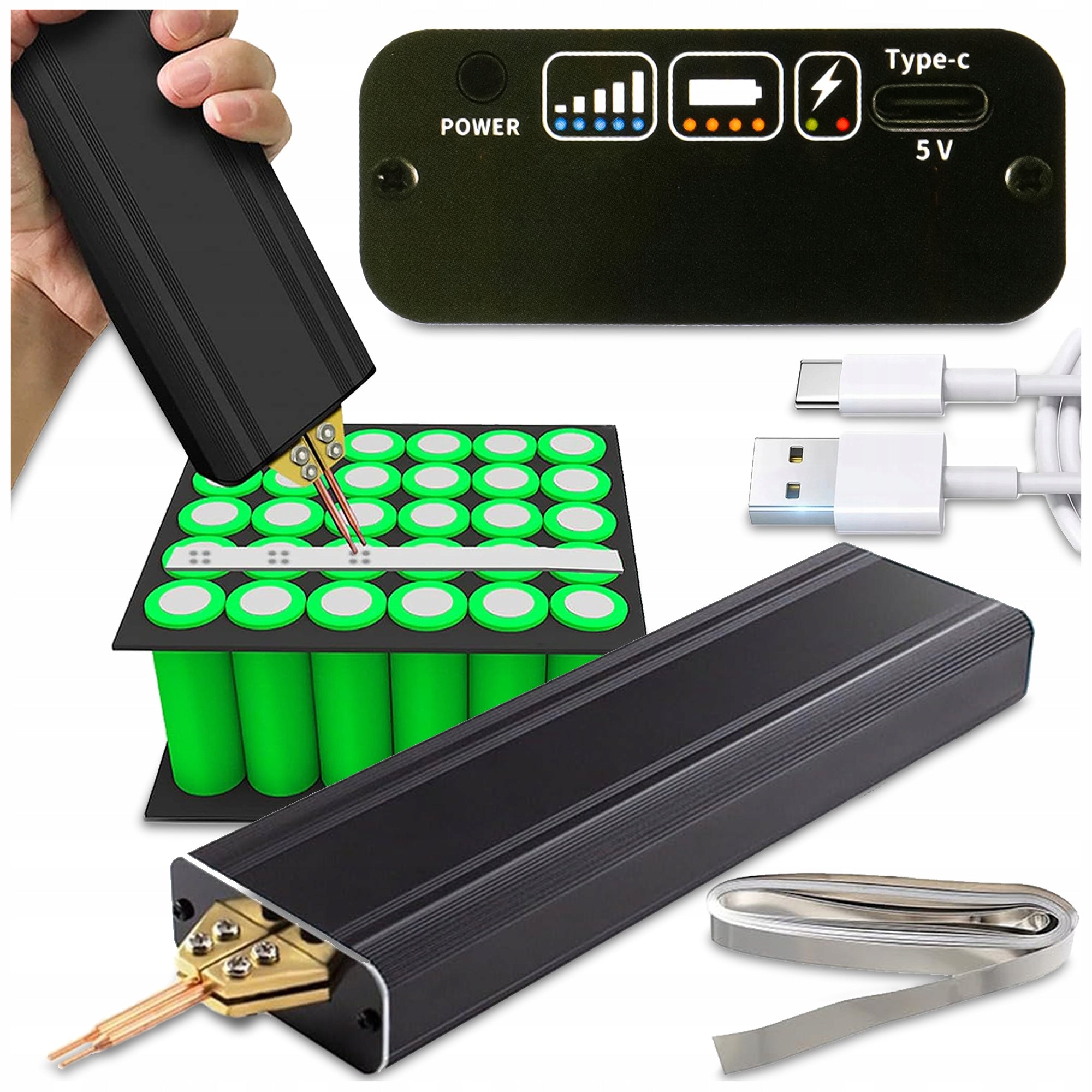

Nešiojama taškinio suvirinimo mašina, 18650, 5000 mAh

Trumpai apie prekę

Prekė: Nešiojama taškinio suvirinimo mašina, 18650, 5000 mAh. Kategorija: Sandarikliai.

• Gamintojas: no brand
• Modelis: 007700

⚙ Modern, compact and precise spot welding machine is the ideal tool for working with lithium-ion batteries, 18650 packages and nickel strips.

Designed for mobility and accuracy, it offers double pulse output, automatic operation and intelligent control that ensures clean, strong and durable welds.

Thanks to the built-in 5000 mAh battery and LCD display, the device is fully self-contained, portable and ready to work anywhere – without the need for constant connection to power.

⚡ DUAL PULSE OUTPUT – MORE PRECISE WELDING

The innovative dual pulse system allows for even more stable and precise metal connections. It ensures even heating of points, which increases the durability and safety of the weld.

✅ Stable operation with nickel strip thickness of 0.1–0.15 mm.

✅ A fully charged device supports over 800 welding cycles.

✅ Can work with strips up to 0.2 mm thick with proper settings.

✅ Automatic detection of electrode contact with metal – the device automatically initiates the pulse.

🧲 PORTABLE AND SMART DESIGN

The Mini welding machine is light, compact and cordless – ideal for quick repairs and building battery packs. Built-in 5000 mAh lithium-polymer battery provides high performance and long working time without the need for frequent charging.

✅ Wireless operation – full mobility.

✅ Charging via USB Type-C port – compatible with most phone chargers.

✅ Support charging during operation (pass-through mode).

✅ Automatic shutdown after 6 minutes of inactivity.

🔋 APPLICATION

The welding machine is ideal for:

🔹 Connections of nickel tapes in lithium-ion battery packs (18650, 21700, etc. ).

🔹 Repair and installation of batteries in mobile devices.

🔹 Workshop and hobby work.

🔹 Creating power kits, powerbanks and RC models.

The compact design allows for precise welding even in hard-to-reach areas.

🧰 TECHNICAL SPECIFICATION

• Product Name: Portable Handheld Spot Welder Mini 18650
• LCD display: 0.96 inch – shows power, gear, delay, voltage, mode
• Power adjustment range: 80 levels (power modes)
• Built-in battery: Lithium-polymer 5000 mAh
• Maximum current: 800 A
• Charging interface: USB Type-C
• Input voltage: 5 V / 2.1 A
• Nickel strip thickness: 0.1 – 0.2 mm
• Welding mode: Automatic (electrode contact detection)
• Device size: 251 × 58 × 25 mm
• Weight: 350 g
• Housing: Metal + temperature resistant plastic

🧭 USER MANUAL – QUICK GUIDE

1. On/off: Short press – on, long – off. After 6 minutes of inactivity, the device turns itself off.
2. Surface preparation: Make sure the nickel tape and battery are clean, smooth and rust-free.
3. Setting: Apply the electrodes at an angle of 60° to the surface of the tape and press evenly.
4. Welding: The device automatically detects electrode contact and triggers a pulse.
5. Power adjustment: A short press of the button changes the power level – the indication appears on the screen (blue light signals active running).
6. Charging: Use a standard 5V/2A charger with a Type-C port.

⚠ Do not use power supplies with a higher voltage than 5 V – this may damage the device.

❓ FAQ – Frequently Asked Questions

✅ Is the welding machine suitable for steel or aluminium strips?

It is recommended for nickel strips (0.1 – 0.2 mm). It is not recommended to weld aluminum or copper.

✅ Can I use while charging?

Yes – the device supports charging during operation.

✅ Do I need to use a pedal or trigger button?

No – the device works automatically when the electrode contact with the tape is detected.

✅ How long does it last after a full charge?

It allows you to make about 800 welds.

⚙ Mini spot welding machine with LCD display is a reliable, portable and intelligent tool for DIYers and professionals.

It combines high power (800 A), ease of use and precision, enabling fast and clean welding of nickel strips in batteries and other DIY projects. 🔋 Compact, powerful and ready for action – your indispensable partner in the workshop and in the field!

PRODUCT CODE: 007700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Series	5463
Parametry	Maximum power	650 W
Parametry	Power supply	rechargeable battery
Parametry	Product weight with unit packaging	0.4 kg
Parametry	Device weight	0.35 kg
Parametry	Manufacturer code	007700
Parametry	EAN (GTIN)	5900670997295
Parametry	Batteries included	yes
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Customs tariff code	84224000
Parametry	Purpose	for metal
