Nešiojamas DAC imtuvas FiiO BTR13, juodas, su Bluetooth LDAC

Trumpai apie prekę

Prekė: Nešiojamas DAC imtuvas FiiO BTR13, juodas, su Bluetooth LDAC. Kategorija: Ausinių stiprintuvai.

• Gamintojas: FiiO
• Modelis: BTR13

FiiO BTR13

Portable Bluetooth DAC with Headphone Amplifier

• Works as a computer sound card/Bluetooth decoder/audio dongle for phones

• Supports HD Bluetooth LDAC codec

• Two fully balanced CS43131 DACs

• High output power of 220 mW

• Global PEQ

• Headphone outputs 3,5 + 4,4 mm

• Large color IPS display

• Patented car mode

• Supports microphones and remote controls on cable

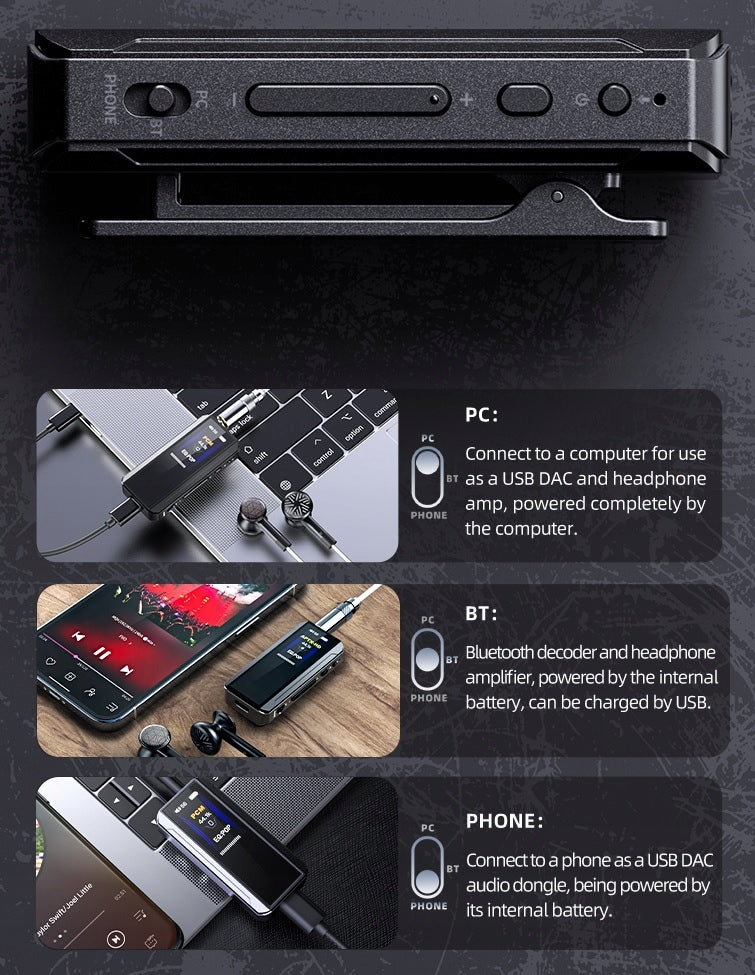

Different uses, all supported by one device

With a three-position switch, you can conveniently switch between PC/BT/PHONE modes so that the BTR13 can work as a computer sound card, Bluetooth decoder, and audio dongle, respectively. BTR13 remains universal.

Global PEQ equalizer

Thanks to the adjustment algorithm developed by FIIO, you will have access to a high-quality PEQ equalizer that can be easily customized using the application or the Internet*.

*PEQ settings when using the BTR13 as a Bluetooth decoder or USB DAC are performed by the built-in QCC5125 DSP, allowing you to support codecs such as LDAC and 96 kHz PEQ adjustment.

*To access the online version of PEQ, go to the BTR13 FAQ section of the official FIIO website and follow the setup instructions.

Two modes of high definition Bluetooth/USB sound card

The BTR13 is a portable DAC/amplifier suitable for a variety of applications. It uses Qualcomm QCC5125 Bluetooth chip as well as supports Bluetooth codecs such as LDAC*, which allows it to support high-resolution audio transmission up to 96 kbps in Bluetooth and USB DAC modes, providing the ability to listen to high-fidelity music on a variety of devices.

*Bluetooth 5.1, supports AAC/SBC/aptX/aptX LL/aptX Adaptive/ aptX HD/LDAC

Headphone outputs 3,5 + 4,4 mm

The BTR13 is equipped with the commonly found balanced 4,4mm headphone jack, which offers more reliable and durable connections compared to the balanced 2,5mm headphone jack in the BTR3K. It also features a 3,5mm single-ended headphone jack, making it compatible with a variety of headphones you already own.

Two fully balanced CS43131 DACs

Each channel is separately supported by a dedicated high-end Cirrus Logic CS43131 digital-to-analog converter. This effectively reduces crosstalk and allows for higher quality and clarity sound.

Independent headphone amplifier power supply

The independent power system, with low noise and high output intensity, is designed specifically for the built-in CS43131 digital-to-analog converter amplifier. This increases the balanced output power of the BTR13 by 282% - compared to the BTR3K up to 220 mW, making it easy to meet any portable audio needs.

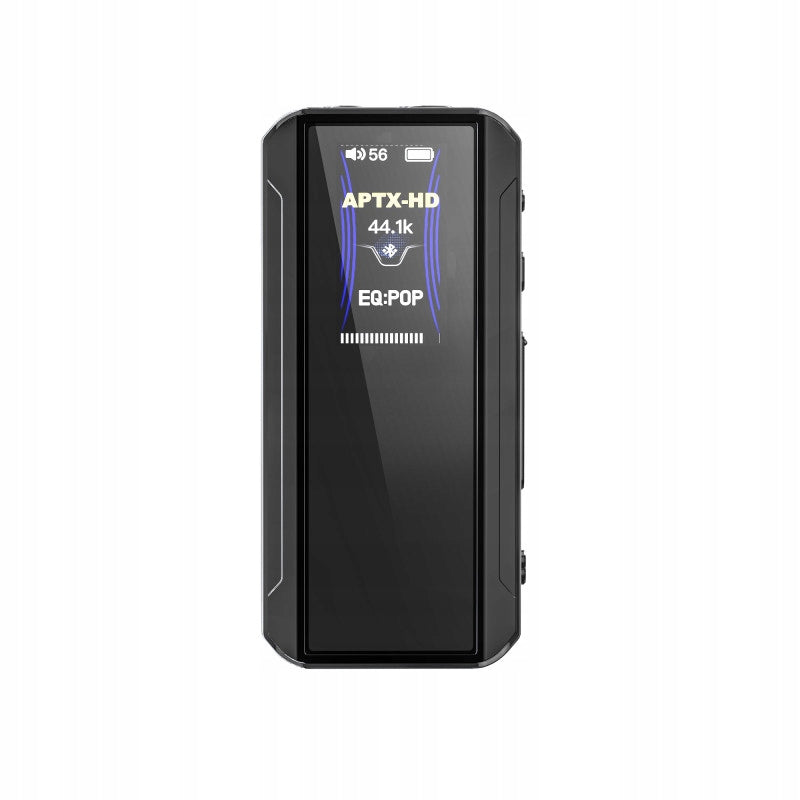

Large 0,96 inch IPS color display

One of the main features of the BTR13 is the large display, which also features a newly improved color interface. This allows you to display more detailed information, making it easy to intuitively read the status of your device and customize different functions.

Patented car mode

Not only does the car mode allow you to conveniently turn the BTR13 on and off with your car, but it also allows you to easily improve the sound quality while driving – so that every journey will be full of high-end sound.

Comprehensive remote control on headphone cable

The 3,5mm jack supports CTIA standard for controlling the flair on the headphone cable. You can not only use the microphone in the headphones, but also play/pause/adjust the volume using the controls on the headphone cable.

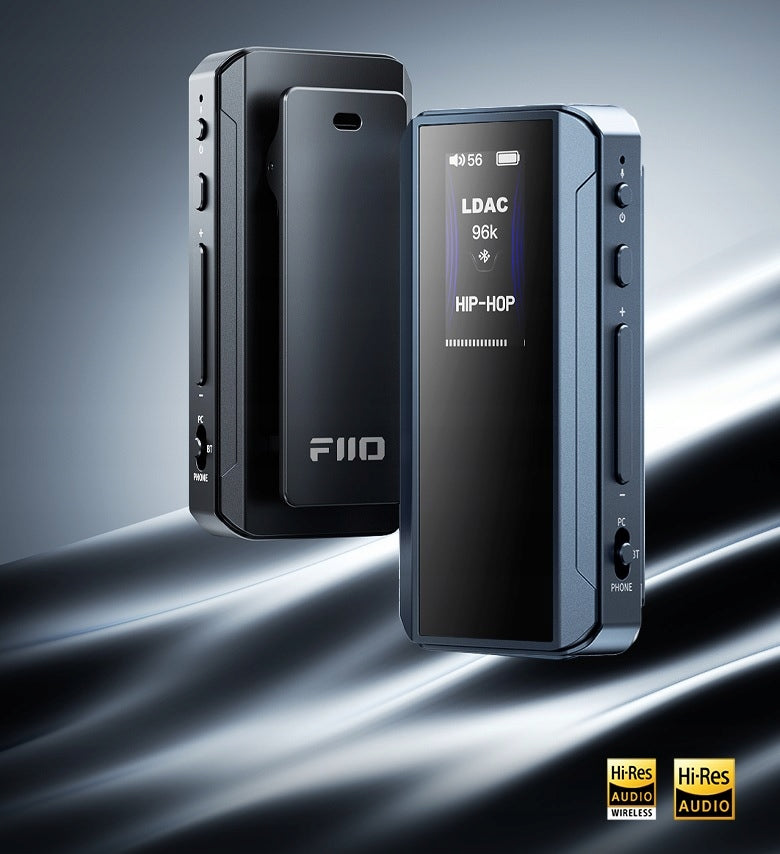

Smart, comfortable, full of life

Choose between black and blue - both are both subdued and elegant.

Weighing in at just 28,6g, it is lighter than a pen.

The clip allows for easy carrying, giving you more freedom when on the move.

Support control from app, feature updates. Quick customization of various functions, OTA updates.

It acts as a computer sound card, noticeably improving the sound quality. It supports high-resolution audio formats, providing better sound for your music.

Included:

① BTR13*1

② Screen protector film (factory installed)*1

③ Dual Type-C*1 Data Cable

④ Lanyard*1

⑤ Quick Start Guide*1

⑥ Warranty card*1

• Bluetooth chip: QCC5125 (Dual Core CPU+DSP Architecture)

• DAC: CS43131*2

• Bluetooth version: 5.1

• Supported Bluetooth codecs: AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC

• USB DAC: PCM 96k without driver

• Display: 0,96-inch 80×160 IPS colors

• Headphone outputs: 3,5 mm single-ended + balanced 4,4 mm

• Cable control: Supports CTIA standard; play/pause/volume

• Dimensions: approximately 63,2x30x18,8 mm, including the clip on the back

• Weight: about 28,6 g

• Charging time: ≤2 hours

• Battery life: about 8 hours

• Output power 1: L+R≥100mW+100mW (32Ω SE, THD+N＜1%)

• Output power 2: L+R≥10mW+10mW (300Ω SE, THD+N＜1%)

• Output power 3: L+R≥220mW+220mW (32Ω BAL, THD+N＜1%)

• Output power 4: L+R≥55mW+55mW (32Ω BAL, THD+N＜1%)

• Frequency Response: 20Hz~40kHz（-3dB）

• Signal-to-noise ratio: ≥128dB (A-weighted)

• Base noise：PO＜1μV (A-weighted); BAL＜1μV (A-weighted)

• Output Impedance: ＜0,6Ω (32Ω load)

• THD+N: ＜0.0018%(1kHz/-4dB@32Ω)

Specifications
