Nešiojamas rankinis taškinio suvirinimo aparatas su mini 18650 tinkleliu

Trumpai apie prekę

Prekė: Nešiojamas rankinis taškinio suvirinimo aparatas su mini 18650 tinkleliu. Kategorija: Sandarikliai.

• Gamintojas: no brand
• Modelis: 6910224734152

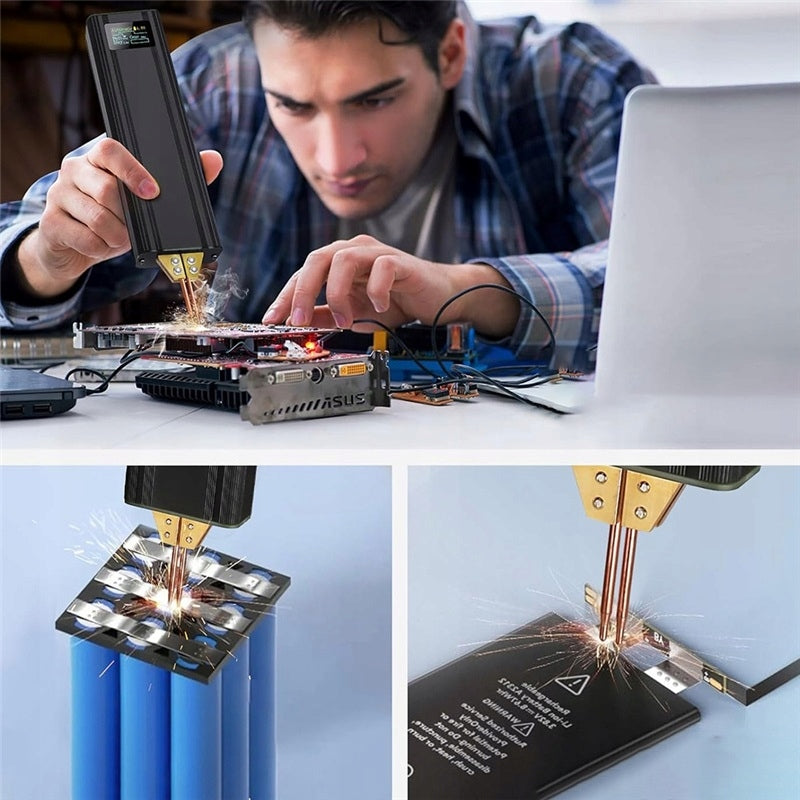

➡ Dual pulse output, more accurate welding

Advantage of one part, can be freed from hand

Used for ordinary nickel sheets or

protection of batteries

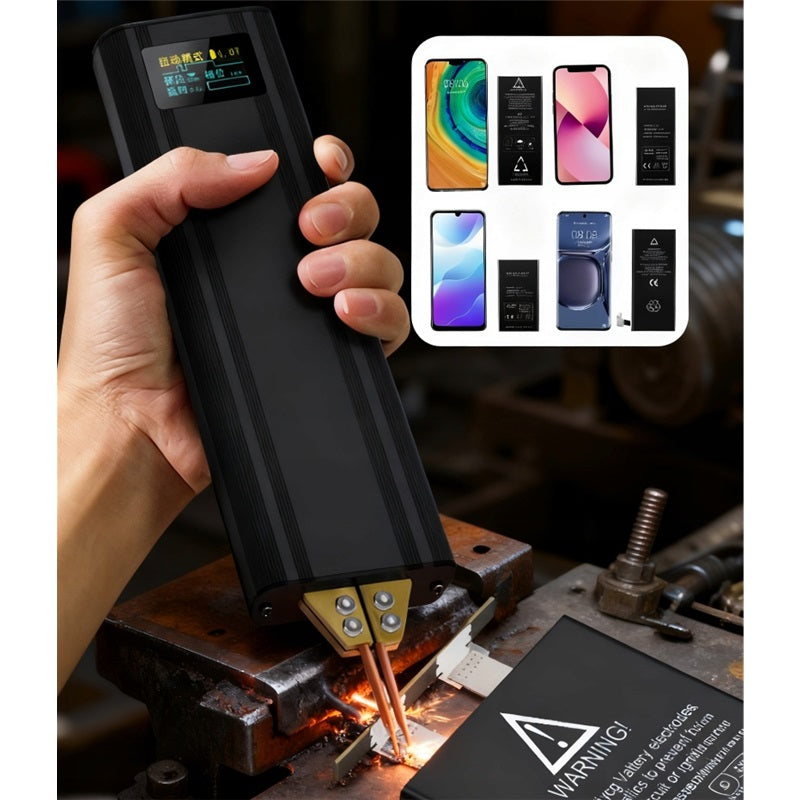

➡ Supports various nickel portable devices

battery for cellular storage with characteristics

portability, easier on mobile phone

telephones outside

➡ Using a more general type C aggravating tribunal yes

cannot distinguish between a face plug that can be charged.

full can be welded more than 800 times

➡ Support thickness0,1-0,15 mmnickel sheet welding, fully charged

0,2 mm thick nickel sheet welding, intelligent identification

Automatic operation is simple and straightforward

stainless steel sheet, stainless steel sheet welding, full welding

excellent place to cook

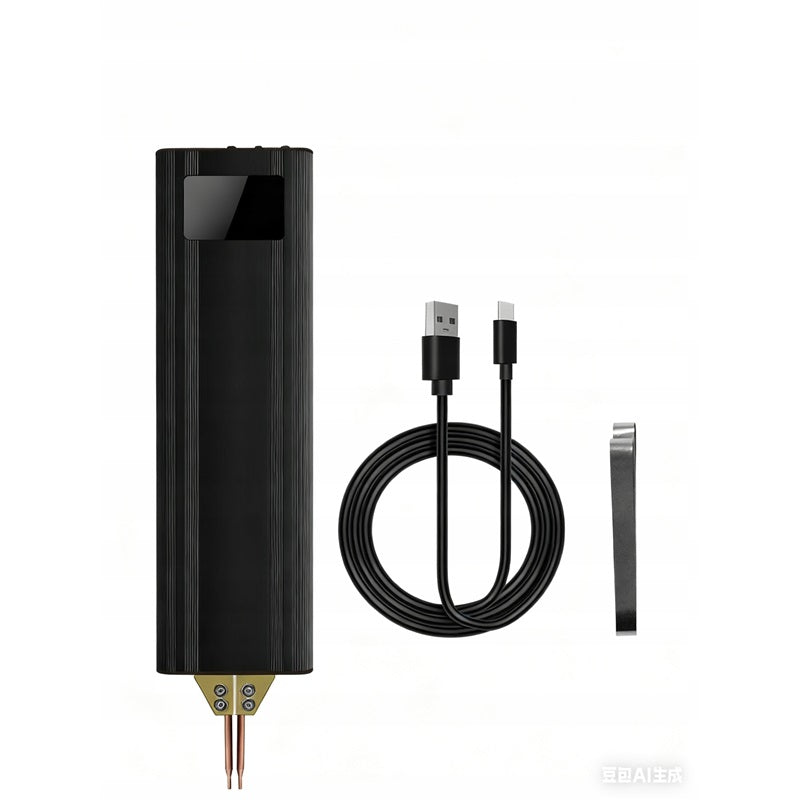

Product Name: Portable Handheld Spot Welder

Liquid crystal display: Power/Gear/Delay/Voltage/Mode

Gear Adjustment: 80

Battery Type: Lithium Polymer Battery

Display Size: 0.96 inch

Battery Capacity: 5000mAh

Design Current: 800A (MAX)

Input Interface: Type-c

Input parameter: 5V/2.1A

Nickel Tape Thickness: 0.1-0.2mm

Product Size: 251*58*25mm

Product Weight: 350g

Welding method: The welding head is held at an angle of 60°

visually horizontal plane and two needles are pressed

At the same time, the surface of the nickel plate

Spot Welder (Spot Welder) Operating Instructions

1. After receiving the goods, please read the instructions carefully

2. Short press to start, long press to turn off, and 6 minutes of inactivity will be automatically turned off

3. Base with 0.1-0.15mm thickness nickel plate

4. After starting the machine, the product is in automatic welding mode for 2 seconds

5. When it is detected that the welding head is in contact with metal, it can go out once. Once you lift it up, you can weld it next time

6. Make sure the battery welding surface is rust-free, clean and flat

7 Make sure the nickel plate is clean and flat

8. Set the spot welding machine and press it with the right force so that the welding needle and nickel plate adhere well to the battery,

It can be welded well without hanging or poor contact. The thickness of the nickel plate is inna, and the gear is different

The greater the strength, the better the effect. Users can try which equipment is more suitable

9. Please use Android mobile phone charger for charging, 5V input (high voltage input is prohibited) and charging

The current intensity is 1A. It is recommended to use a 5V/2A charger. This product supports charging while in use

10. After starting the machine, the output power of the spot welder can be changed by a short press of a button, and the blue light indicates the gear position

✅We are a professional manufacturer of spot welders, providing good service while saving your wallet.

✅We will ship the goods as soon as possible

Specifications
