Nešiojamas suvirinimo aparatas FNIRSI SWM-20 su 1200A akumuliatoriumi

Trumpai apie prekę

Prekė: Nešiojamas suvirinimo aparatas FNIRSI SWM-20 su 1200A akumuliatoriumi. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Fnirsi
• Modelis: 62349-0

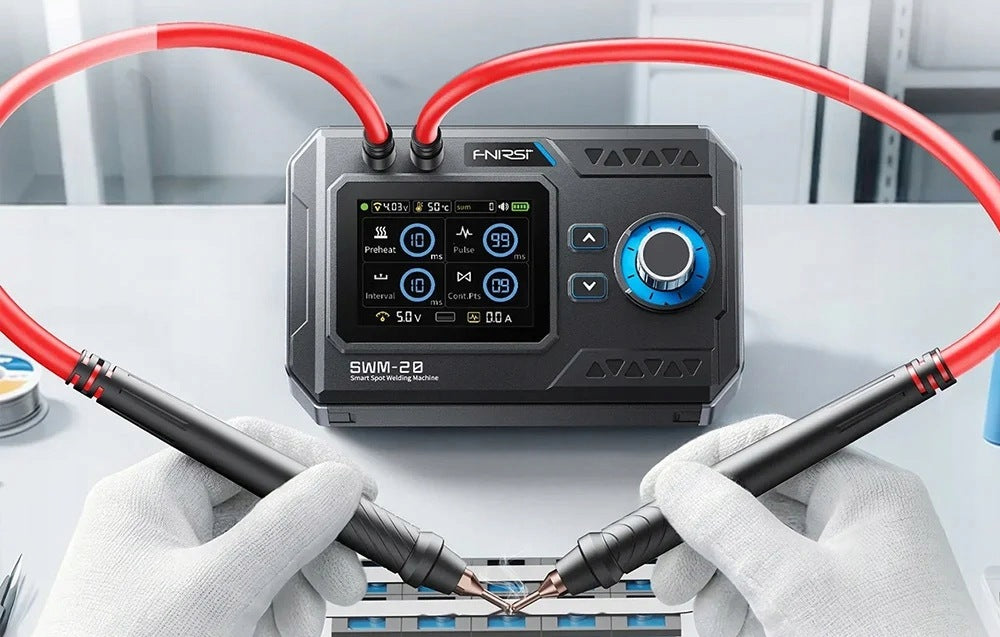

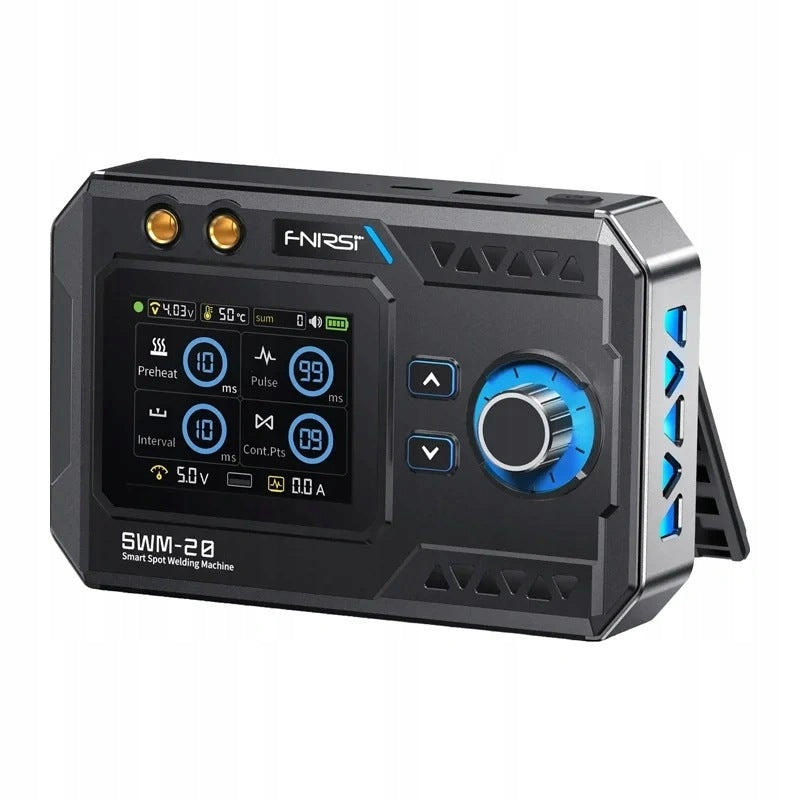

The FNIRSI SWM-20 manual spot welding machine combines high power, precision and ease of use in a compact, portable design. The maximum welding current of 1200 A, dual pulse technology and more than 10 000 levels of adjustment allow you to adjust the parameters to different materials and applications. The powerful batteries ensure long-lasting performance, while the TFT color display makes it easy to keep track of all your most important settings. The device also acts as a powerbank with a capacity of 5000 mAh, thanks to which it will work not only during workshop work, but also in the field. It is a comprehensive solution for professionals, service technicians and people implementing their own electronic projects.

⚙ Specification:

• Manufacturer: FNIRSI
• Model: SWM-20
• Battery capacity: 5000 mAh
• Discharge: 5 V / 2,1 A
• Welding thickness: 0,1‒0,5 mm
• Levels of preset combination: 4 levels
• Charging: 5 V / 2,1 A
• Welding materials: Nickel, iron, stainless steel
• Maximum welding current: 1200 A

⭐Included:

• spot seal
• welding pens
• replacement tips
• USB-C cable
• nickel strip
• instruction manual

✅ Advantages:

✔ Powerful welding current of 1200 A – double pulse technology guarantees clean and durable welds on steels, nickel and copper.

✔ Up to 1500 welds per charge – the 5000 mAh battery provides high performance and USB powerbank function.

✔ Precise parameter control – TFT 2,4" color screen with convenient knob and more than 10 000 levels of power control.

✔ Copper handles 99,9% and protection system – excellent thermal conductivity combined with complete 8-stage protection.

⭐Power that provides durable and clean welds⭐

FNIRSI SWM-20 generates a peak current of up to 1200 A, thanks to which it allows you to perform strong and repeatable welds on many types of materials. The double pulse technology used ensures cleaner and more stable welds - the first pulse removes the oxide layer from the surface of the material, while the second is responsible for the proper execution of the weld, improving its purity and stability. The device supports materials from 0,1 to 0,5 mm thick, including nickel-plated steel up to 0,4 mm, steel up to 0,5 mm, pure nickel up to 0,25 mm, iron up to 0,3 mm, and copper and nickel-plated copper up to 0,1 mm. Over 10 000 levels of power regulation and the ability to individually set parameters such as preheating, pulses, intervals between them or the number of welds performed in continuous mode allow you to precisely adjust the operation of the device to a specific material and task.

⭐Full control and convenient operation⭐

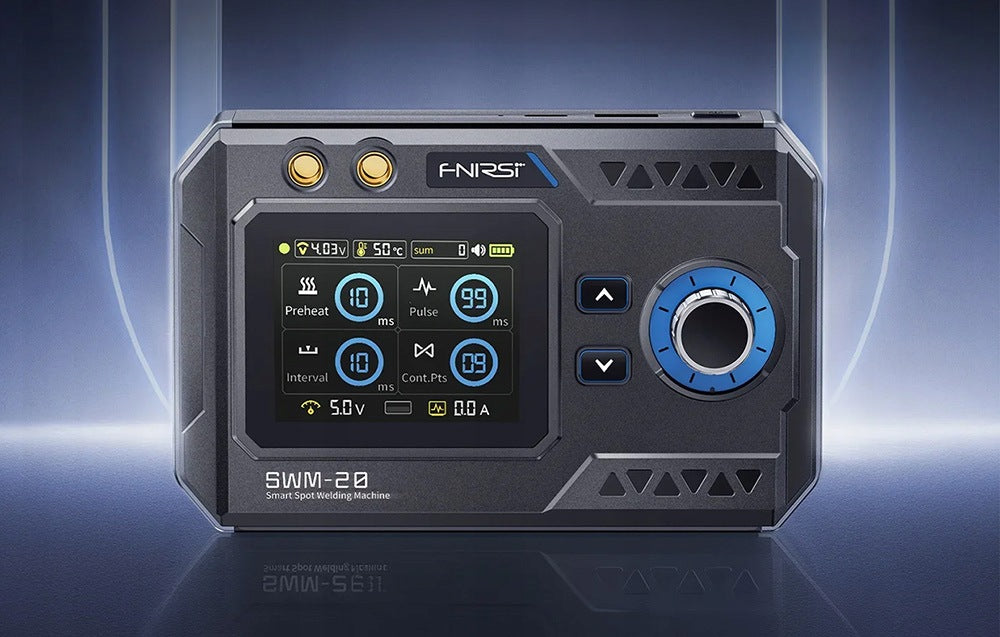

Working with the device is facilitated by a clear, color TFT display with a diagonal of 2,4 inches, which in real time presents voltage, temperature and all the most important welding parameters. The intuitive knob allows you to quickly and very accurately enter settings, thanks to which the change of parameters runs smoothly even during intensive work. The welding machine also supports software updates via USB-C port, allowing you to take advantage of future improvements and new features.

⭐Efficient battery and practical design⭐

The device is equipped with two high-quality cells with a total capacity of 5000 mAh, which ensure stable operation and adequate energy supply even during demanding tasks. One charge allows you to perform up to 1500 welds, reducing the need for frequent replenishment of energy. Fast charging via USB-C (5 V / 2,1 A) reduces the time of preparing the device for further work. The FNIRSI SWM-20 can also act as a powerbank, offering a USB 5V/2,1A output for powering or charging other devices. Detachable welding handles are equipped with tips made of copper with a purity of 99,9%, which provide very good conductivity, effectively dissipate heat and are distinguished by high durability.

⭐Safety at every job⭐

FNIRSI SWM-20 is equipped with an intelligent eight-security system that protects the device against overheating, too low voltage, overcharging, excessive discharge, short circuit, voltage fluctuations, low temperature operation and impact effects, among others. An additional convenience is the automatic shutdown function with adjustable time from 0 to 99 minutes, which helps to save energy and increases the safety of use. The welding machine is perfect for building battery packs, repairing electric bicycles, replacing batteries in smartphones and many other electronic and DIY projects.
