Nešiojamas taškinio suvirinimo aparatas 18650 akumuliatoriams

Trumpai apie prekę

Prekė: Nešiojamas taškinio suvirinimo aparatas 18650 akumuliatoriams. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: no brand
• Modelis: 567

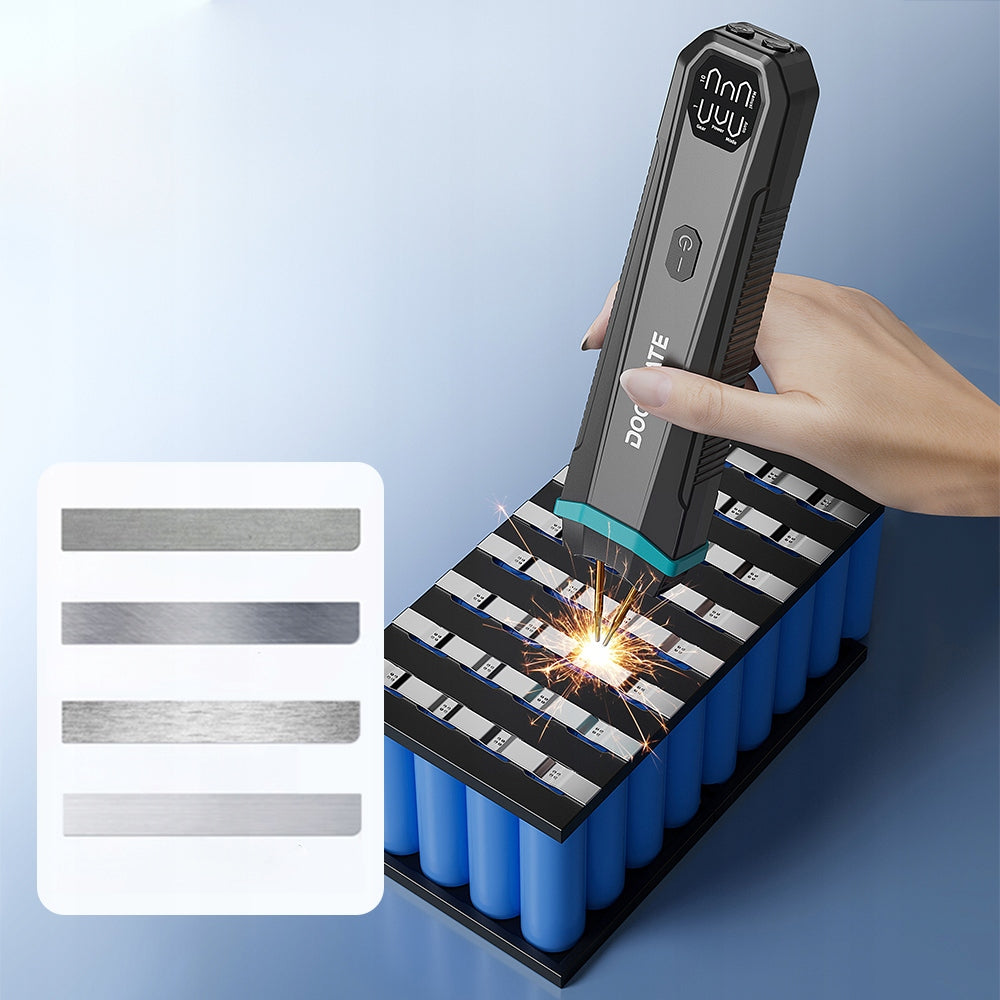

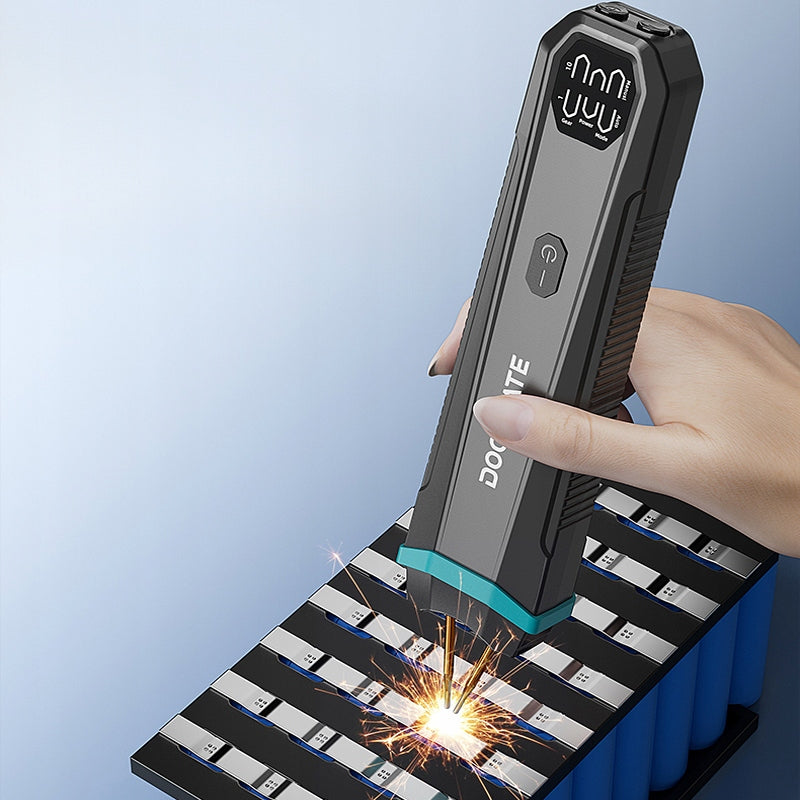

⭐⭐Portable manual spot welding machine, battery and display welding machine, maximum power 3360 W, adjustable in the range of 1-10, copper welding head, portable spot welding machine with lithium-ion battery (for DIY, repair, outdoor use)⭐⭐

✅ Supports two modes: automatic and manual

💛 Portable spot welding machine enables easy, one-handed installation of electronic components and spot welding.

💛 Its compact, integrated design makes it easy to weld nickel-plated plates into charging electrodes, breathing new life into electrical appliances.

💛 We have optimized the trigger button in manual mode, providing excellent control over the welding duration.

✅ Manual spot welding machine for batteries

💛 Inspired by DIY spot welding, it combines power supply and welding machine in one device, allowing easy welding without external mandrels.

💛 Welding is carried out immediately, causing minimal damage to the base material, while providing greater ease and safety of operation. The ideal choice for battery production.

✅Perfect for battery repair and production

💛This battery powered welding machine has 10 adjustable speeds.

💛At full power, 1-3 speeds are suitable for repairing chip batteries or cell phone batteries, while 4-10 speeds are used for welding batteries with a thickness of welded nickel-plated material from 0,1 to 0,25 mm.

💛Perfect for home use, DIY projects and electrical appliance repairs, it focuses on product safety and includes many safety features that protect both you and your equipment.

✅Convenient to transport

💛Manual spot welding machine does not require an additional welding torch, so it can be easily moved.

💛The combination of a built-in power supply and welding torch in one device allows easy welding without the need for an external welding torch.

✅Replacement needle for spot welding

💛This manual spot welding machine eliminates the need to carry additional welding needles, making it convenient to carry.

💛Integrating the power source and welding needle into one device allows for easy welding without the need for an external needle.

💛Just replace the needle when it wears out, avoiding having to throw away the entire device. This significantly reduces long-term operating costs, protects the environment and is more economical.

✅Increased security

💛 Beginner-friendly – triple safety mechanism: automatic shutdown in case of overheating + short circuit protection + insulated handle to prevent burns.

💛 The entire spot welding machine has only two buttons: a one-button actuation mechanism for one-handed operation. Beginners can quickly master its operation, minimizing the risk of operational errors.

✅ 10-stage power output adjustment

💛This spot welding machine has 10 adjustable output power settings to adapt to different spot-welded materials.

💛Levels 1-3 are suitable for cell phone batteries, levels 3-6 for nickel plated plates with a thickness of 0,1 mm, and levels 6-10 for nickel plated plates with a thickness of 0,15-0,25 mm.

✅ Long-term work

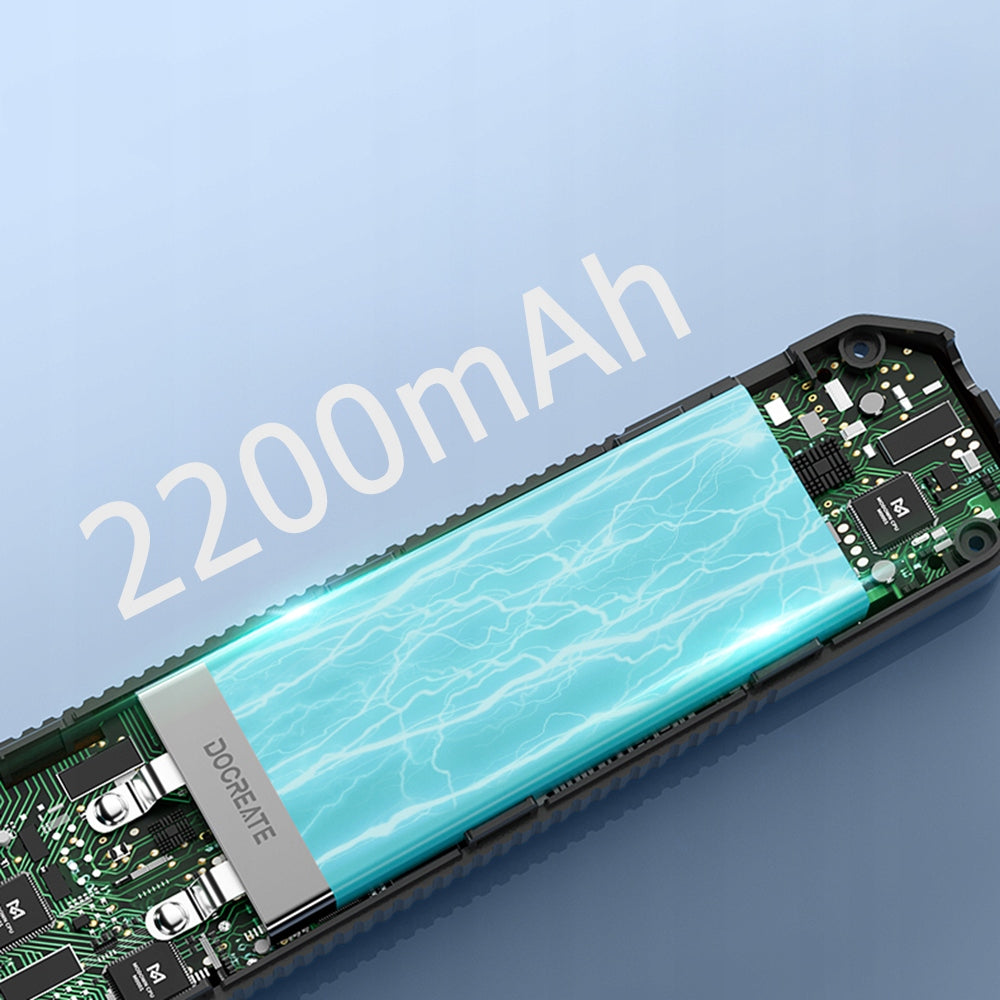

Equipped with a 2200 mAh battery, this spot welding machine is characterized by extremely low power consumption. One 2.5h charge allows you to make more than 200 spot welds.

✅ Product Specifications:

✔ Material: ABS

✔ Control mode: manual/automatic

✔ Charging Input: 5 V/1 A

✔ Input current: maximum 800 A

✔ Output power: maximum 3360 W

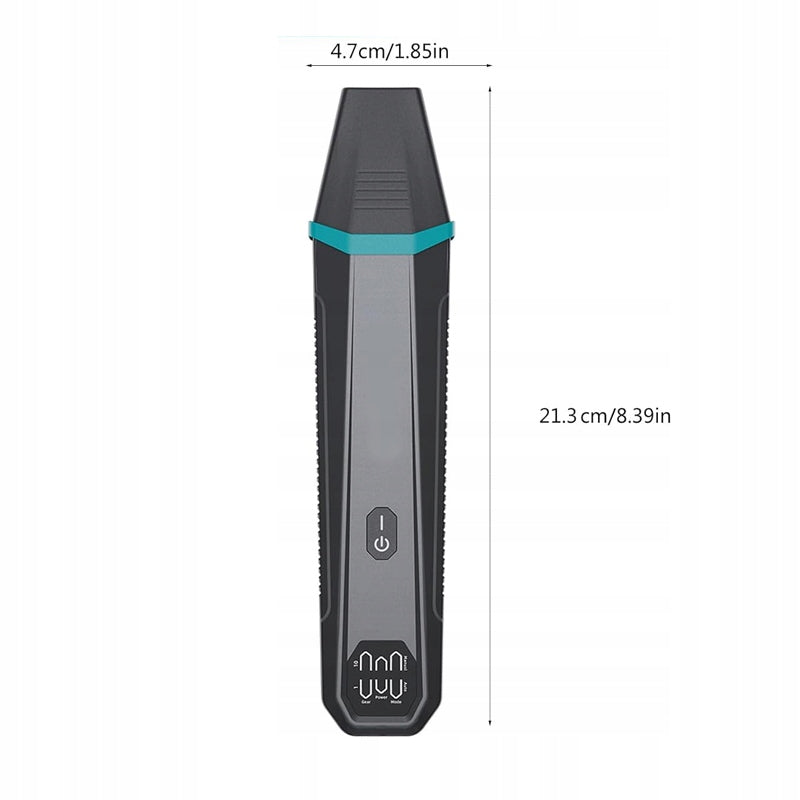

✔ Dimensions: 213*37*27 mm

🌺Welding thickness:

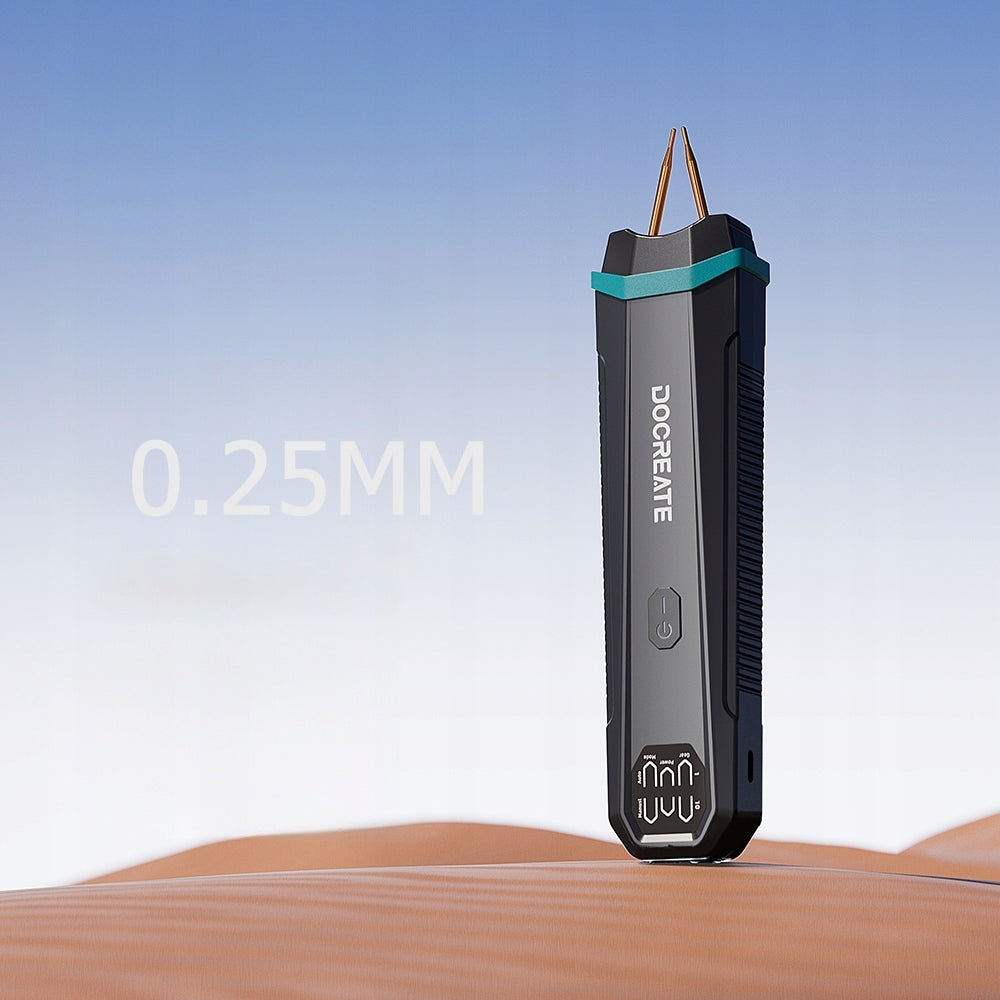

➡ Nickel-plated material: 0,1 – 0,25 mm

➡ Pure nickel material: 0,1 – 0,15 mm

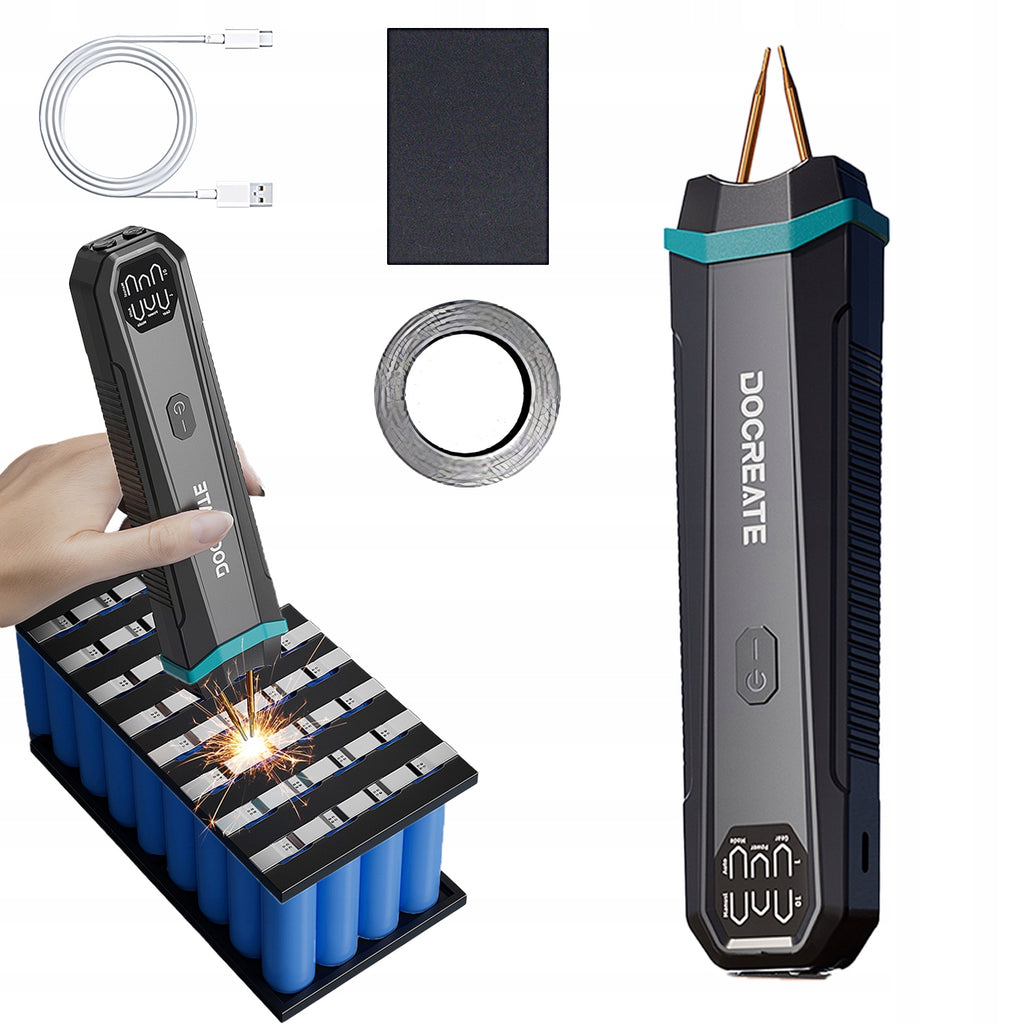

📦List of packages

✨Point welding machine *1

✨Nickel tape *1

✨TYPE-C*1

✨Instructions for use

✅Point welding angle

For spot welding, an angle of 60° is more suitable. You can also experiment with other angles; the angle that best suits your spot welding needs is the one that will prove to be most effective.

✅Position of point welding machine contact:

➡ When setting the spot welding, both spot welding pens must simultaneously come into contact with the material to be welded.

➡ Spot welding current is produced, and the welding reaction occurs only when both pens come into contact with the material.

✅The surface of the material intended for spot welding should be smooth:

➡ During spot welding, make sure that the soldered surface is smooth and clean.

➡ When welding the 18650 batteries, they should be laid flat on the solder so that there are no gaps between the battery and the solder.

➡ If there are gaps, gently press the bottom with a spot sealer to ensure full contact between the battery and the solder.
