Nuotolinio valdymo jungiklis, 2 kanalai, 24V, 10A

Trumpai apie prekę

Prekė: Nuotolinio valdymo jungiklis, 2 kanalai, 24V, 10A. Kategorija: Rinkiniai.

• Gamintojas: no brand
• Modelis: 24V2P

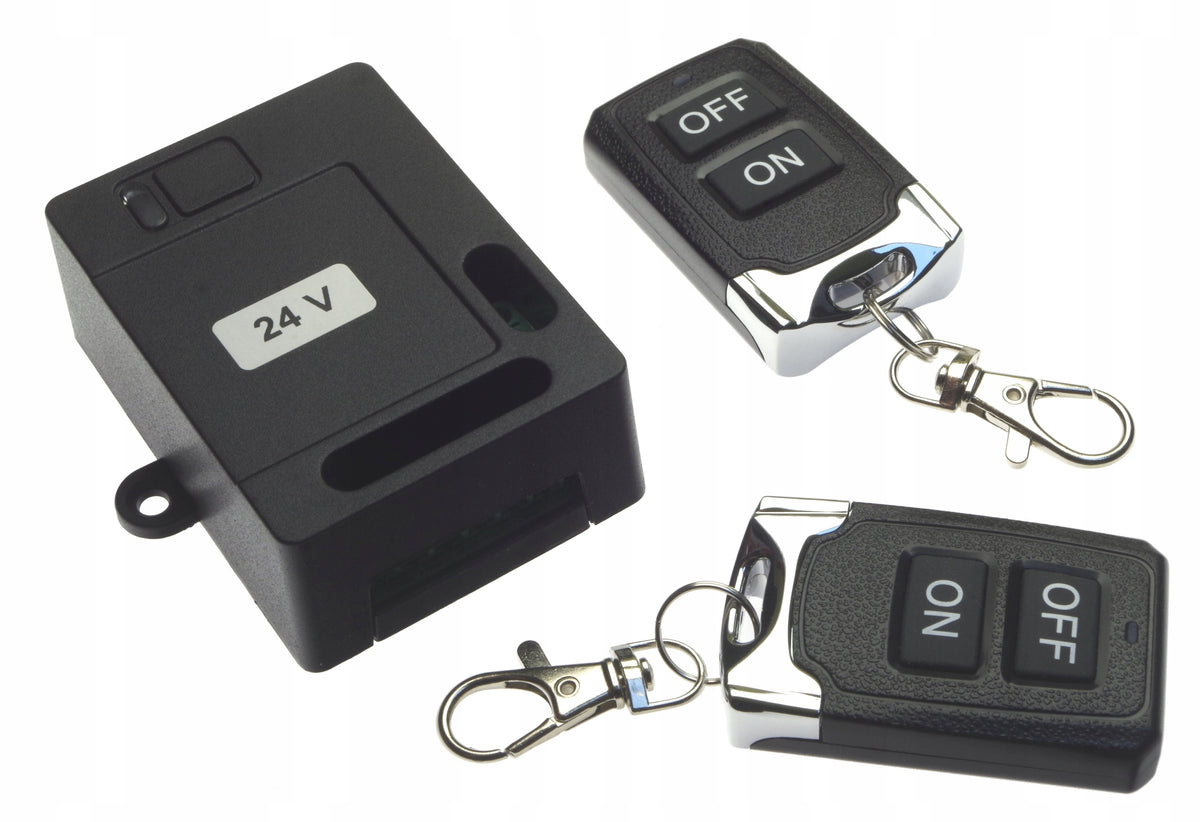

Universal radio controller, two-channel with built-in control relays.

Mainly used for controlling e.g. lighting, ventilation, air conditioning, electric doors, windows, industrial elevators, gates, roller shutters and other electrically controlled devices where this type of controller is required.

Technical data of MT-STER-201 driver

1) Sensitivity: -105dBm

2) Operating frequency ： 433 MHz

3) Voltage ： DC 24V

4) Resting current ： ≤6mA

5) Operating current : ≤40mA (1 channel), ≤ 80mA (2 channels)

6) Max. relay contact current ： 10A-240V AC / 10A-24V DC/12V DC

7) Operating temperature ： -40 ℃ – + 80 ℃

8) Size ： 75x55x28mm

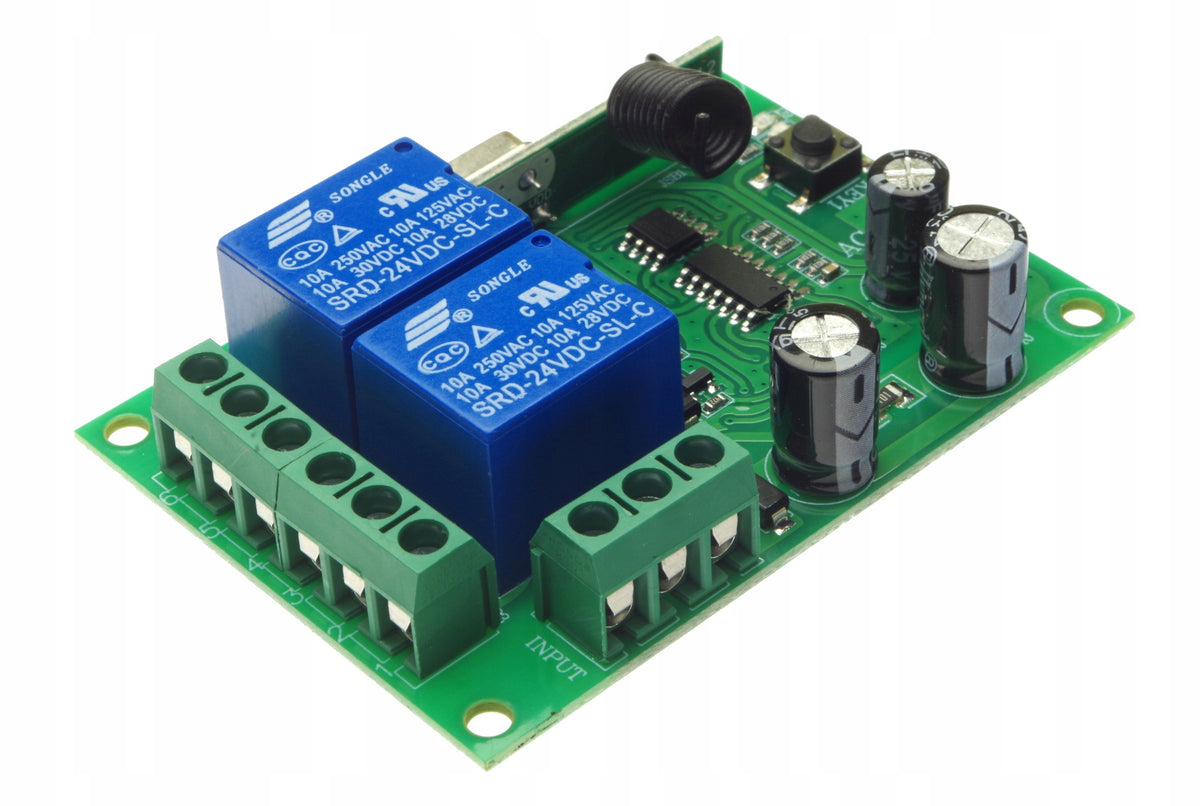

Types of operation of the MT-STER-201 controller

Changing the way of work can be done with jumper Z.

AND). MOMENTARY: Free position 1,2,3

Control: Press the remote control button A, the controller relay A will turn on. Compact contacts :COM and NO. As long as we hold the remote control button A, the relay A is included. Release the remote control button A, the controller relay A will turn off. Open contacts: COM and NO.

Control: Press the remote control button B, the controller relay B will turn on. Compact contacts :COM and NO. As long as we hold the remote control button B, the relay B is included. Release the remote control button B, the controller relay B will turn off. Open contacts: COM and NO.

B). TRANSDUCER (A/B): Jumper mounted on contacts 2 and 3

Control: Press the remote control button A, the controller relay A will turn on. Compact contacts: COM and NO. Press the remote control button B, the controller relay A will turn off. Open contacts: COM and NO. At the same time, the controller relay B will be switched on.

C ). ON/OFF (A/A)(B/B): Jumper mounted on contacts 1, 2

Control: Press the remote control button A, the controller relay A will turn on. Compact contacts: COM and NO. Press the remote control button A again, the controller relay A will turn off. Open contacts: COM and NO.

Control: Press the remote control button B, the controller relay B will turn on. Compact contacts: COM and NO. Press the remote control button B again, the controller relay B will turn off. Open contacts: COM and NO.

The controller relays A and B operate independently. They can be turned on and off at will.

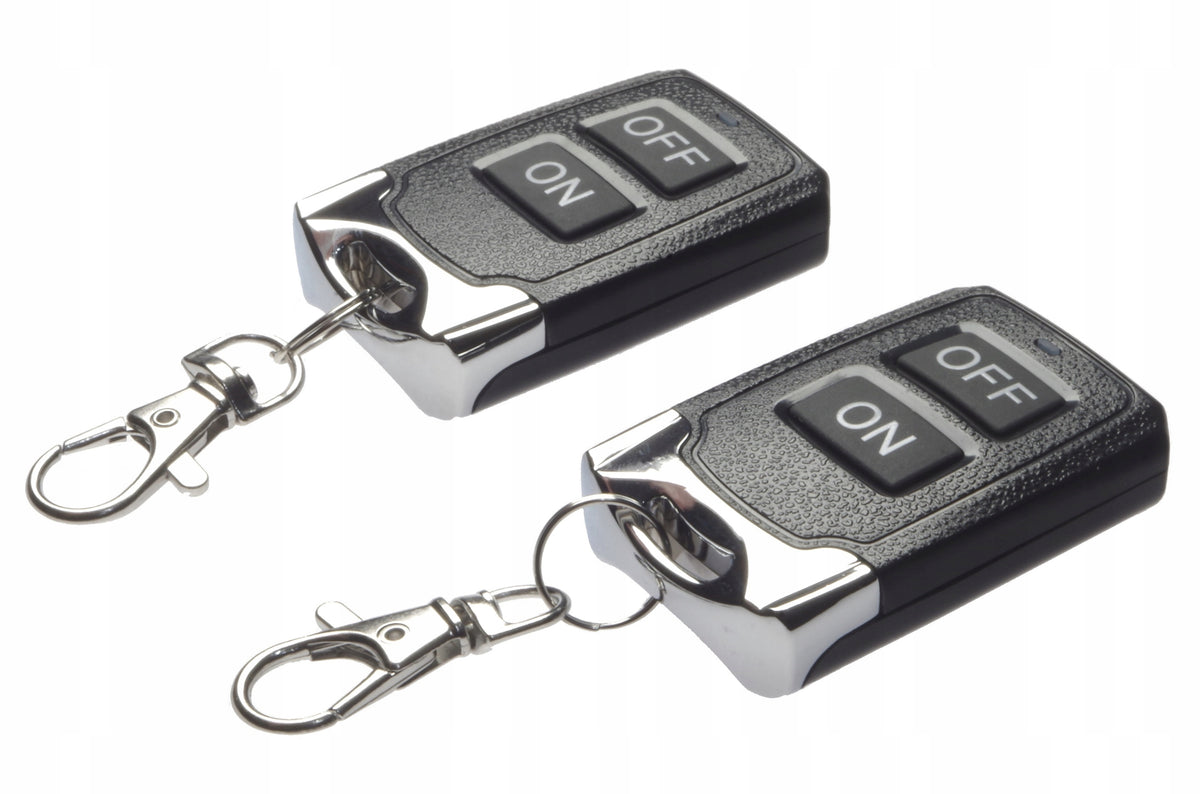

PROGRAMMING AND ERASURE OF PILOTS.

The remotes are programmed with the controller housing removed. Be careful!

Turn on the power, press the “learning” button, the “learning” LED light will light up for a while and go out, press any

The remote control button within 6 seconds, the LED “learning” light will flash 4 times, then go out. This means that the remote control is programmed correctly.

Note: The controller can support up to 16 remote controls. 17 deletes pilot no.1

Deleting all remote controls from memory

Press the “learning” button and hold for about 8 seconds, the “learning” LED light will light up and go out. This means that all pilots are deleted correctly.
