Nuotolinio valdymo pultas GORKE RSU-K04 PUK-104, 4 kanalų, 100 m

Trumpai apie prekę

Prekė: Nuotolinio valdymo pultas GORKE RSU-K04 PUK-104, 4 kanalų, 100 m. Kategorija: Rinkiniai.

• Gamintojas: Gorke
• Modelis: 4789

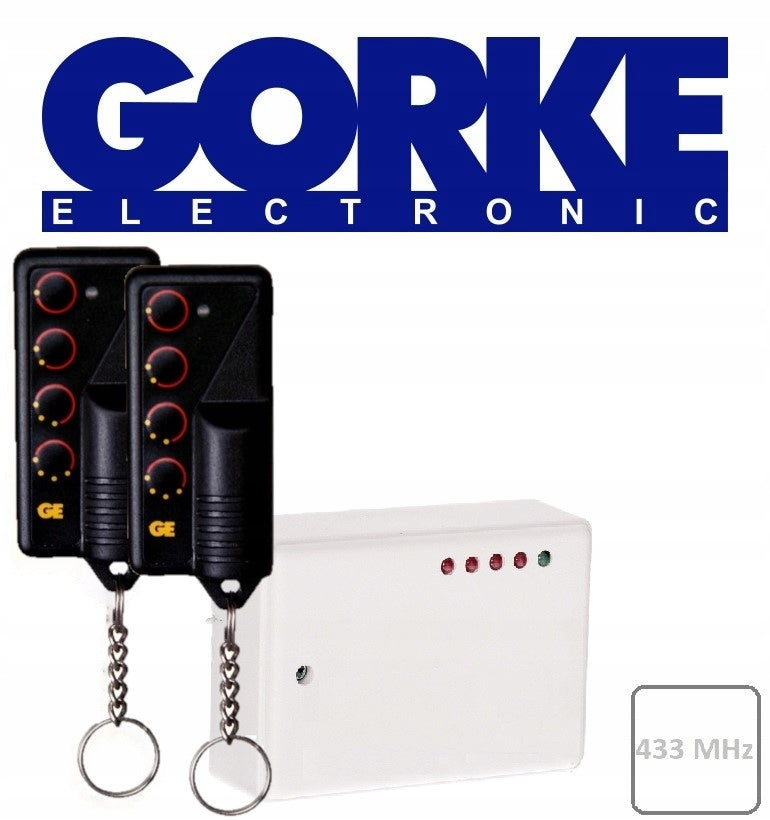

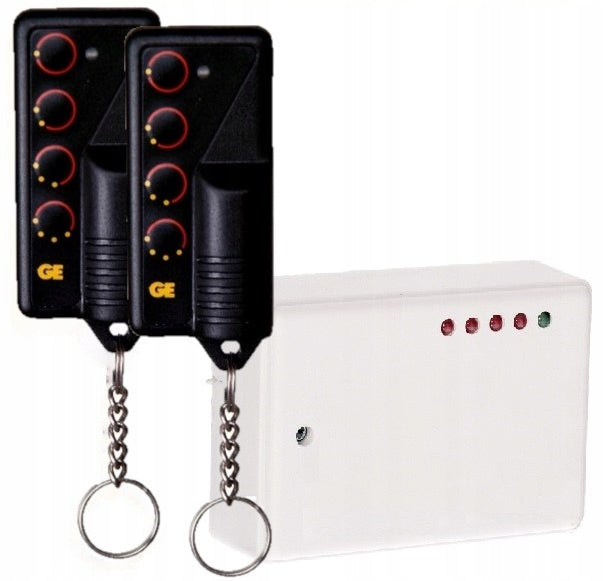

RSU-K04/2 4-channel radio line set Gorke

RSU-K04/2 is a popular, economical, ready-to-use set of 4-channel receiver RSU-K04 and 4-key remote controls PUK-104. The working range of the set is approx. 100 meters.

The set is distinguished by additional modes of operation of receiver relays. In addition to the basic bi and monostable modes, we can choose between instantaneous mode (the relay is attached as long as we press the remote control key) and two-key mode (in this mode the relay can be attached with a key with an odd code assigned to a given channel, while the relay is switched off after receiving a signal from the key with an even number).

Main applications of radio controllers:

- remote control of devices connected to receiver outputs, e.g. entrance and garage doors, blinds and blinds, electromagnetic locks, lighting, pumps, air conditioning, etc.

- in alarm systems - as an anti-pad button, zone control, etc.

Installation of wireless systems is economical and fast, does not require conducting wires, at any time it can be disassembled and moved to another place.

The transmission between the receiver and the remote control is based on variable code, which ensures high safety of use and resistance to radio signals from other devices. Each transmitter has its own individual code. The receiver responds only to those transmissions that come from transmitters programmed into its memory. The undoubted advantage of the offered devices is their compatibility. This means that:- firstly, at any time, the set can be enlarged by any remote control of the sA series - secondly, the remote control from the set can be programmed to another receiver of our production.

Working ranges

The ranges given are for open space (without obstacles, when the receiver and remote control “see” each other). If there are obstacles between the receiver and the transmitter, it is necessary to provide for a reduction in the working range for: wood and gypsum by 5-20% * brick by 20-40% * reinforced concrete by 40 - 80%, respectively. With a large number of obstacles, we recommend configuring sets based on SH class receivers and using retransmitters. For metal obstacles, the use of radio systems is not recommended. Consider installing the WLC201 module, which allows you to bypass these types of obstacles.

Variable code

The transmission between the transmitter and receiver is based on variable code (KEELOQ from Microchip Technology Inc.), which ensures high safety of use and resistance to radio signals from other devices. Each transmitter has its own individual code. The receiver responds only to those transmissions that come from transmitters programmed into its memory.

Frequency 433,92MHz

Bands that do not require special permits and usage licenses. Installation of devices does not require reporting to URTIP.

Receiver installation requirements

It is recommended to mount the receiver as high as possible, away from metal and electrical equipment., in dry and closed rooms, because the super-reaction receiver is sensitive to electromagnetic interference. For conditions of high electromagnetic interference, it is recommended to use superheterodyne receivers, e.g. type OPC.

Technical specification:

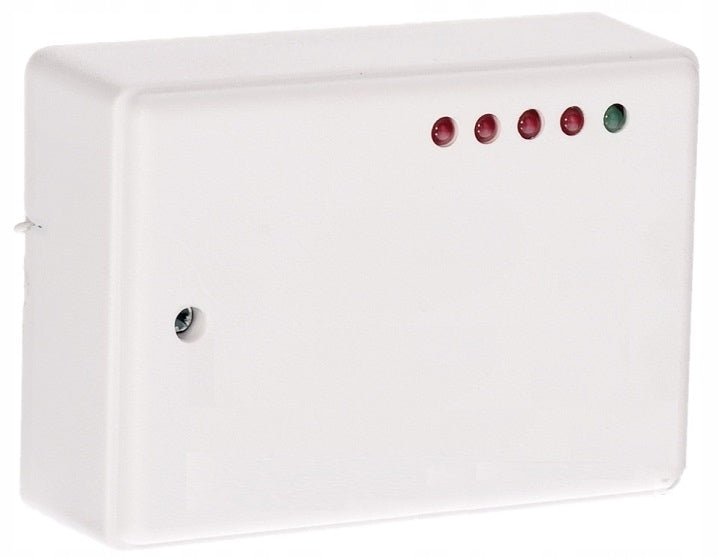

• Model: RSU-K04
• Manufacturer: Gorke
• Frequency: 433,92 MHz
• Coding: variable code
• Receiving module: heterodin H1 (sensitivity -108 dBm)
• Memory capacity: 40 keys
• Number of relays: 4
• Working mode: mono, bistable, instantaneous, two-key
• Monostable time range: ~1s-4min15s
• Power Supply: 12V DC (10-15V DC)
• Resting current consumption: 14 mA
• Maximum current consumption: 80 mA
• Relay output: 1A/ 30V DC
• Tamper output: 50mA/ 12V DC
• Temperature range of work: -10 ÷ +55 °C
• Dimensions (mm): 68*48*26
• Cooperation: any sA series transmitter

Technical specification:

• Model: PUK-104
• Manufacturer: Gorke
• Frequency: 433,92 MHz
• Coding: variable code
• Transmission power: ≤+4 dBm
• Number of keys: 4
• Power supply: 1x A23 12V battery
• Range: 100m with receiver with H1 module (e.g. RSU), 200m with receiver with H2 module (e.g. OPC)
• Working temperature: -10 ÷ +55 °C
• Moisture: max. 93% ± 3%
• Dimensions (mm): 68*28*13
• Mass: 24g
• Cooperation: any receiver of the sA series

I invite you to my other auctions, you will find there a full offer for Gorke devices.

Please remember to check the tab with additional information below, if available, they will be posted there: user manuals, data sheets, assembly instructions or various types of guides.
