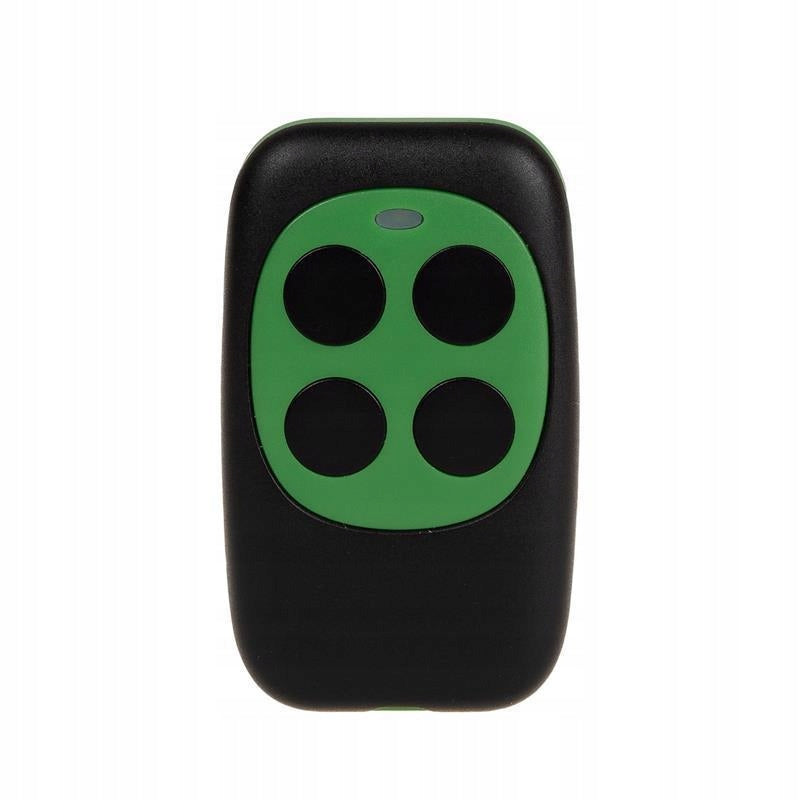

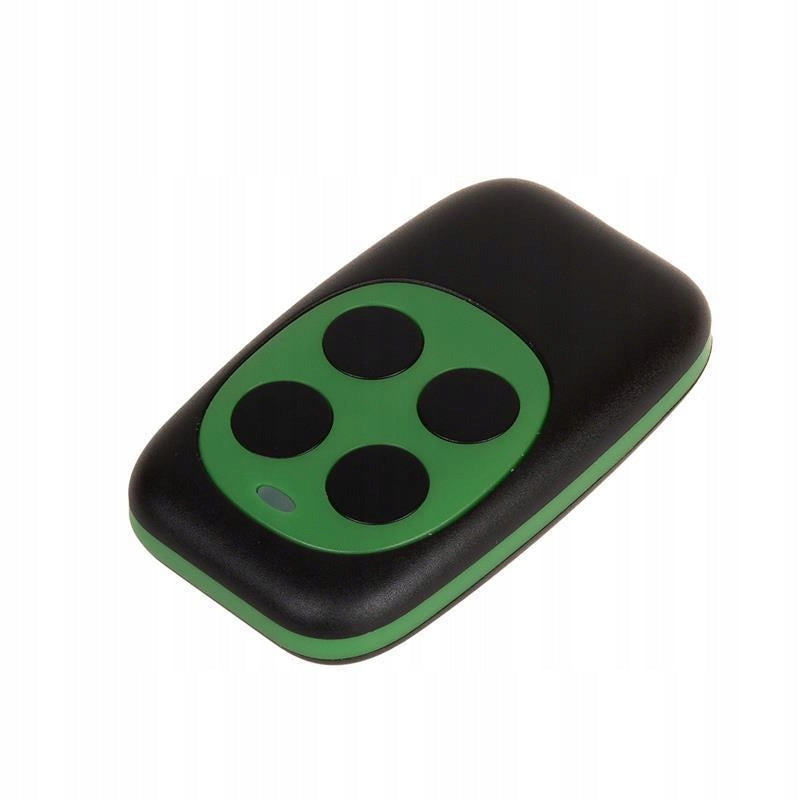

Nuotolinio valdymo pultelis FW-KEY, 4 mygtukai

Trumpai apie prekę

Prekė: Nuotolinio valdymo pultelis FW-KEY, 4 mygtukai. Kategorija: Išoriniai moduliai.

• Gamintojas: F&F
• Modelis: FW-KEY

Product description:

4-button remote control-brelok. F&Wave Transmitter.

Designed for radio, remote control of F&Wave system modules.

The FW-KEY remote-brelok allows remote control of receivers that are part of the F&Wave radio system after assigning functions to the buttons.

- roller shutters (blind controllers FW-STR1P, FW-STR1D, FW-STR1P-P, FW-STR1D-P)

- lighting (bistable relays: FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D)

- brightness of lighting (modules: FW-D1P, FW-D1D, FW-LED2P, FW-LED2D)

Features of the module:

* 4-button remote control transmitter;

* Works with F&Wave remote control receivers;

* Ability to control any number of receivers;

* On/off functionality (bistable switch) with receivers FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;

* Functionality lift/lower roller shutter with receivers FW-STR1P, FW-STR1D;

* Dim/brighten light functionality with FW-D1P, FW-D1D, FW-LED2P, FW-LED2D receivers.

F&Wave radio control

Construction of the F&Wave remote control system

The system consists of:

receivers - actuators. They are manufactured in a version for installation in a flush-mounted box Ø60 or for mounting on a TH-35 rail (width 1 module, i.e. 17,5 mm).

transmitters. These are handheld remote controls or devices for installation in a flush-mounted box.

Action:

A unique feature of the F&Wave system is signal retransmission - each receiver that receives the control signal from the transmitter automatically transmits it further. This significantly increases the control range for receivers far away from the transmitter so that they are out of range of the original signal.

Scope of action

In the open space without the presence of factors interfering with the range of devices controlled by radio, it oscillates within 100 m. In the conditions of installation and in the presence of sources of interference (power lines, transmitters, etc. ) the actual range may be smaller. The range can be improved by directly retransmitting modules that are in mutual range.

Attention

Long-term operation with an incorrectly connected neutral cable can cause irreversible damage to the driver.

The device also monitors the voltage at the output contact, which allows you to detect the "gluing" of the internal relay contacts. If this situation is detected, all 3 LEDs will flash cyclically.

Attention

Security only works when switching from a lower priority phase to a higher priority phase (e.g. from L2 to L1). Does not work when switching to a lower priority phase (e.g. from L1 to L2).

Technical data:

• Supply voltage 3 V
• Number of channels 4
• Transmitter function
• Radio frequency 868 MHz
• Battery type 2032 (lithium)
• Operating temperature -25 ÷ 50 °C

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	Remote Control
Parametry	Series	F&Wave
Parametry	Brand	F&F
Parametry	Power supply	batteries
Parametry	Manufacturer code	FW-KEY
Parametry	EAN (GTIN)	5902431673158
Parametry	Product weight with unit packaging	0.1 kg
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
