Nuotolinio valdymo rinkinys GORKE OPC-K02 RNB-101S, 2 kanalų, 1000 m

Trumpai apie prekę

Prekė: Nuotolinio valdymo rinkinys GORKE OPC-K02 RNB-101S, 2 kanalų, 1000 m. Kategorija: Rinkiniai.

• Gamintojas: Gorke
• Modelis: gorkeOPC-K02/RNBS

2-channel radio line set Gorke

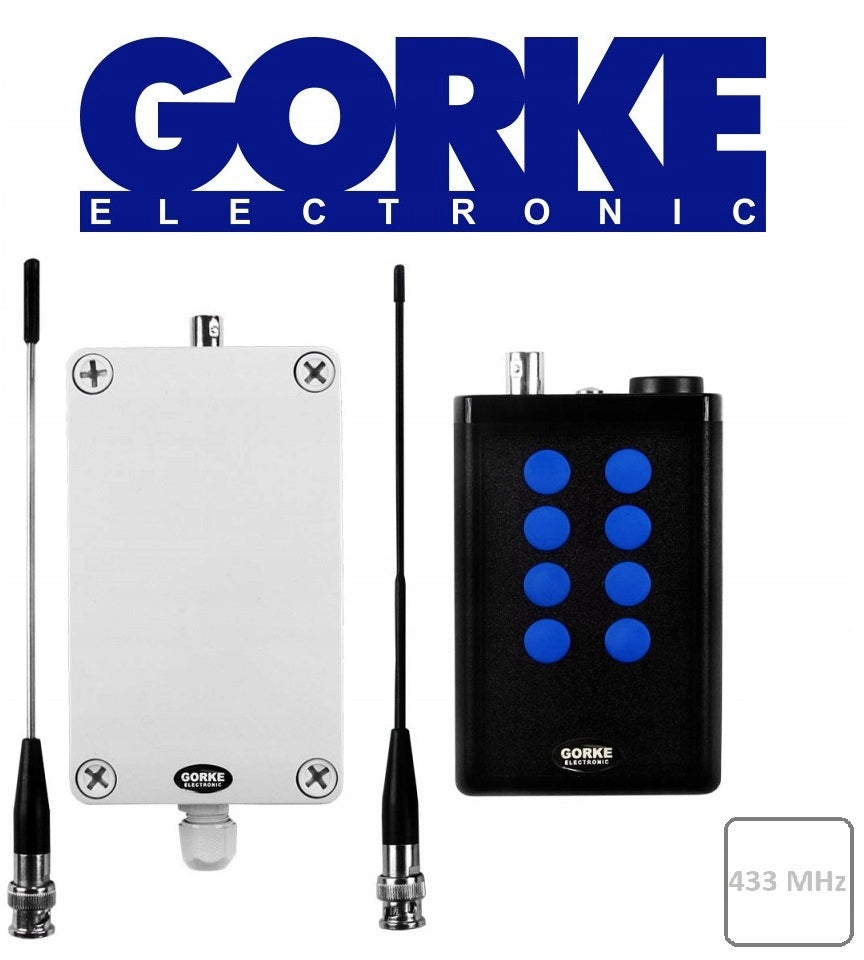

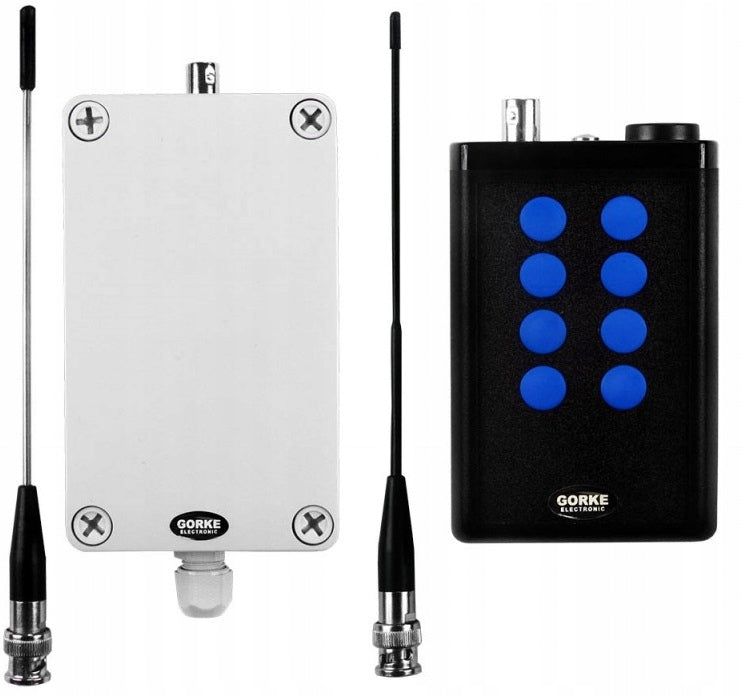

Ready-to-use receiver and remote control set, with a working range of up to 1000 meters (open area). The set consists of: 2-channel receiver with increased sensitivity OPC-K02 and remote control type RNB-101s.

Popular applications of radio equipment:

- remote control of devices connected to receiver outputs, e.g. entrance and garage doors, blinds and blinds, electromagnetic locks, lighting, pumps, air conditioning, etc.

- in alarm systems - as an anti-pad button, zone control, etc.

Installation of wireless systems is economical and fast, does not require conducting wires, at any time it can be disassembled and moved to another place.

The transmission is based on variable code, which ensures high safety of use and resistance to radio signals from other devices. Each transmitter has its own individual code. The receiver responds only to those transmissions that come from transmitters programmed into its memory.

The advantage of the offered devices is their compatibility. This means that:

- firstly, at any time the set can be enlarged by any remote control of the sA series

- secondly, the remote control from the set can be programmed to another receiver of our production.

Working ranges

The ranges given are for open space (without obstacles, when the receiver and remote control “see” each other). If there are obstacles between the receiver and the transmitter, it is necessary to provide for a reduction in the working range for: wood and gypsum by 5-20% * brick by 20-40% * reinforced concrete by 40 - 80%, respectively. With a large number of obstacles, we recommend configuring sets based on SH class receivers and using retransmitters. For metal obstacles, the use of radio systems is not recommended. Consider installing the WLC201 module, which allows you to bypass these types of obstacles.

Variable code

The transmission between the transmitter and receiver is based on variable code (KEELOQ from Microchip Technology Inc.), which ensures high safety of use and resistance to radio signals from other devices. Each transmitter has its own individual code. The receiver responds only to those transmissions that come from transmitters programmed into its memory.

Frequency 433,92MHz

Bands that do not require special permits and usage licenses. Installation of devices does not require reporting to URTIP.

Technical specification:

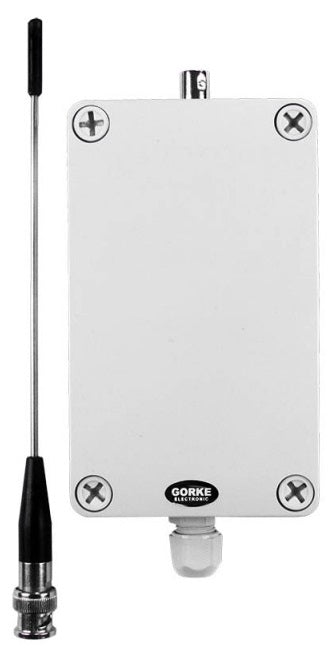

• Model: OPC-K02
• Manufacturer: Gorke
• Frequency: 433,92 MHz
• Coding: variable code
• Receiving module: heterodin H2 (sensitivity -114 dBm)
• Memory capacity: 113 transmitters
• Number of relays: 2
• Working mode: mono or bistable
• Monostable time range: ~1s - 256s (4min 16s)
• Power Supply: 12V DC (10-15V DC)
• Resting current consumption: 14 mA
• Maximum current consumption: 45 mA
• Relay output: 1A/ 30V DC
• Indicator output: 0,5A/ 12V DC
• Tamper output: 50mA/ 12V DC
• Temperature range of work: -10 ÷ +55 °C
• Dimensions (mm): 130*80*35
• Moisture: max. 93% ± 3%
• Cooperation: any sA series transmitter
• Antenna: rod, BNC connector, 50 Ohm
• Other: IP 65

Technical specification:

• Model: RNB-101S
• Manufacturer: Gorke
• Frequency: 433,92 MHz
• Coding: variable code
• Transmission power: ≤+10 dBm
• Number of keys: 9
• Power supply: 1x 6F22 9V battery
• Range: 500m with receiver with H1 module (e.g. RSU), 1000m with receiver with H2 module (e.g. OPC)
• Working temperature: -10 ÷ +55 °C
• Moisture: max. 93% ± 3%
• Dimensions (mm): 110*64*30(without antenna)
• Mass: 174g
• Cooperation: any receiver of the sA series
• Indication during transmission: built-in buzzer + LED
• Others: belt clip, low battery signaling, flexible antenna included
