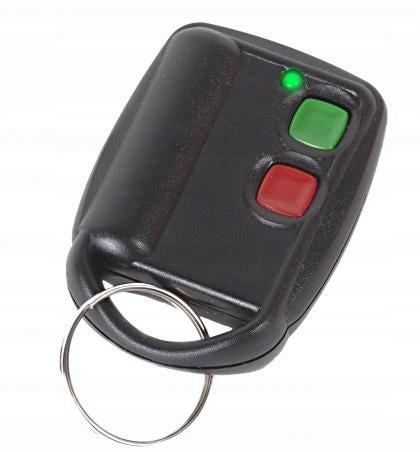

Nuotolinis valdymo pultas ELMES DWB100HT, 2 kanalų, 100 m, 433,92 MHz

Trumpai apie prekę

Prekė: Nuotolinis valdymo pultas ELMES DWB100HT, 2 kanalų, 100 m, 433,92 MHz. Kategorija: Išoriniai moduliai.

• Gamintojas: Elmes
• Modelis: DWB100HT

DWB100HT dual channel remote control for ELMES devices

• operating frequency 433,92MHz;
• power < 5mW;
• GP23A 12V battery included
• dimensions (L/W/H) 50/37/14mm.

The DWB100HT dual-channel remote control works with ELMES devices such as controllers, radio lines, notifications and alarms.

KEELOQ® variable coding system

Alarm transmissions are dynamically encoded in the KEELOQ® system from Microchip USA, ensuring the highest level of security. Each press of the remote control button generates and sends a new code. Codes once used are not accepted - making it impossible to reuse captured codes.

The programming of the remote control can be found in the instructions of the device to which it is to be programmed.

Example of pilot programming:

a) Press briefly (1s. ) PRGX button (SCIENCE) in the Elmes receiver. When the LED button is released, it glows green.

b) Press the selected remote control button. The LED in the receiver will turn red.

c) Press the same remote control button a second time

Specifications
