Nuotolinis WiFi įvesties modulis Zamel RNW-01, 4 kanalai, SUPLA

Trumpai apie prekę

Prekė: Nuotolinis WiFi įvesties modulis Zamel RNW-01, 4 kanalai, SUPLA. Kategorija: Automatizavimo moduliai.

• Gamintojas: Zamel
• Modelis: RNW-01

✔ Product Description

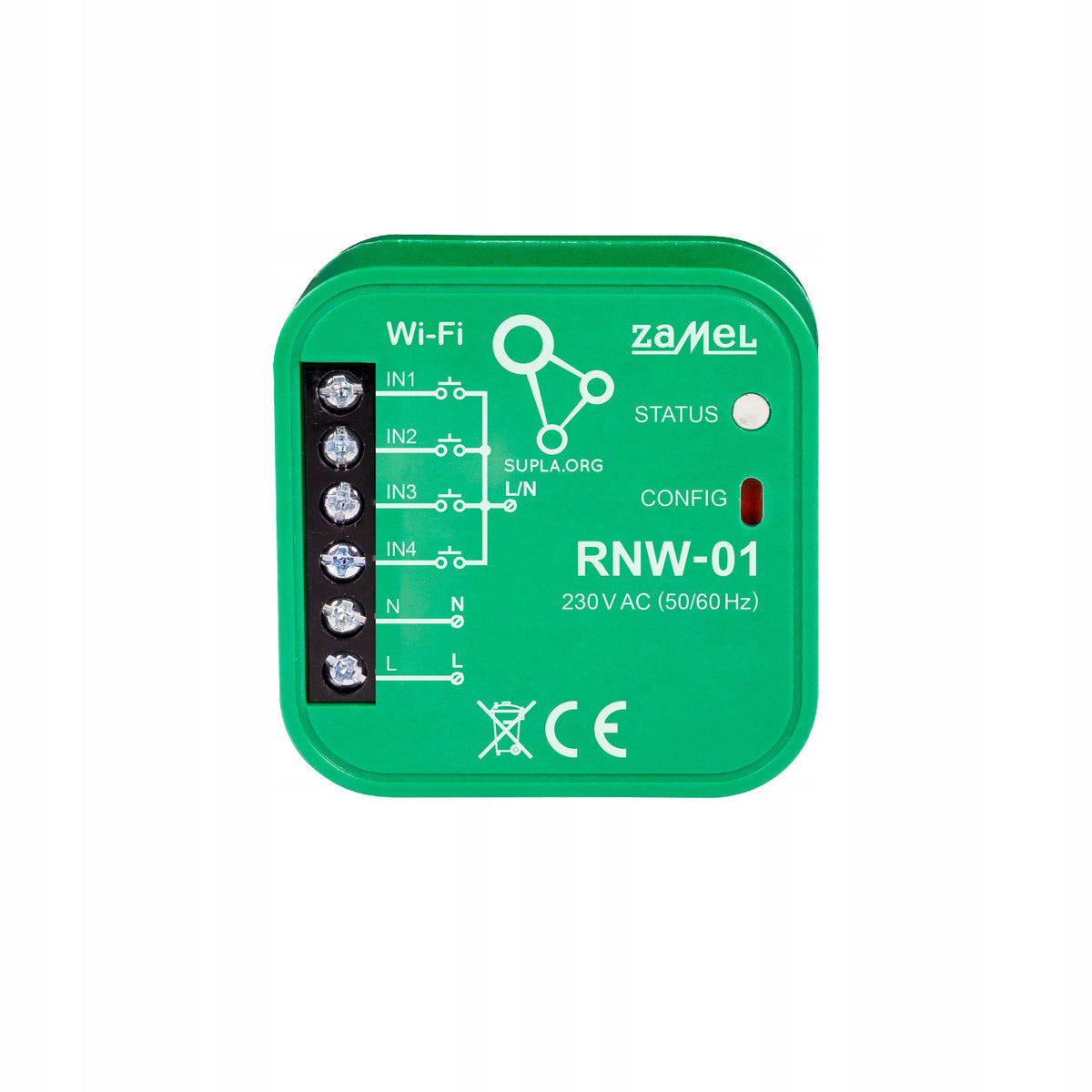

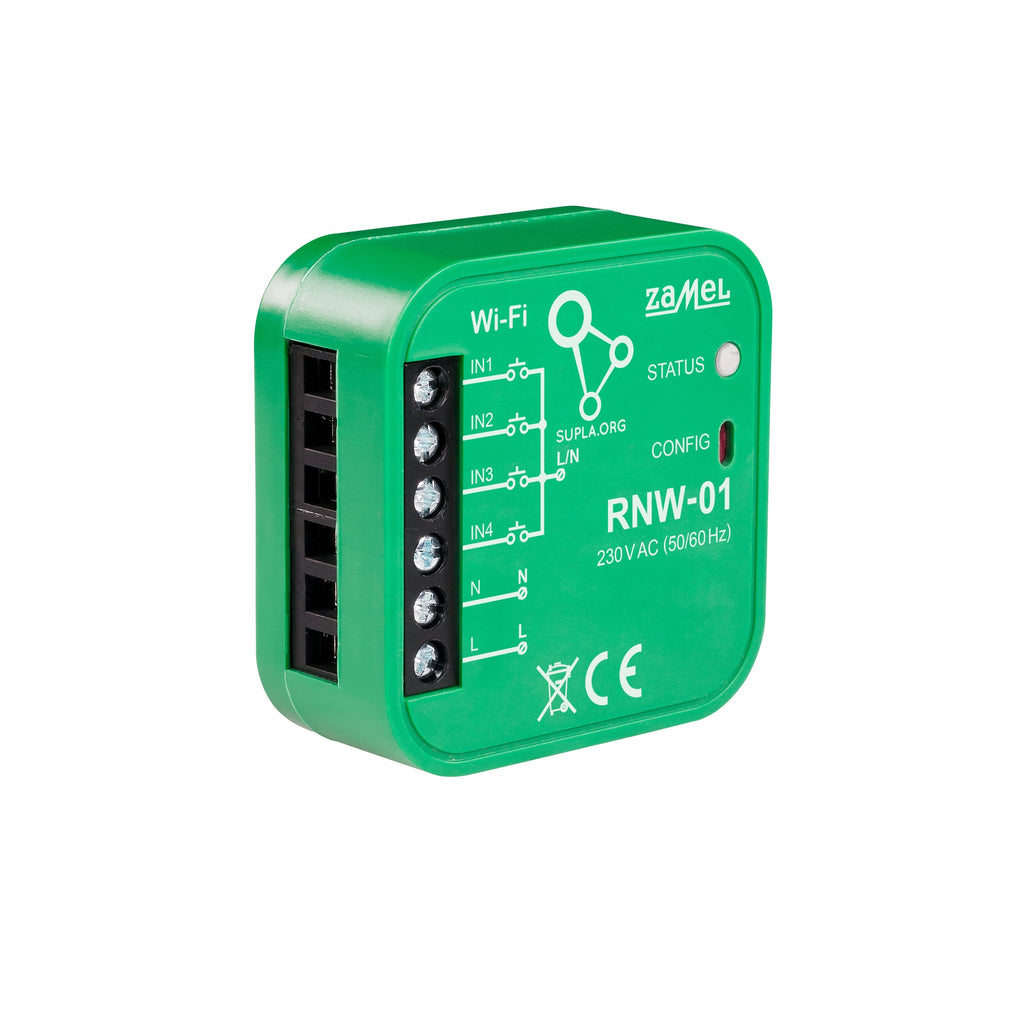

RNW-01 is a interface of 4 SUPLA inputs designed to implement the function of remote switching on and off lighting and devices, as well as opening and closing window blinds and garage gates.

The device is designed for installation in concealed boxes with a minimum diameter of Ø 60 mm under existing accessories. This solution allows the use of electrical equipment of any manufacturer without affecting the design and character of the interior.

The transmitter is equipped with four inputs triggered by 230 V AC. Triggering is done by shorting the appropriate input with the phase potential.

Example applications:

✅ Turn on and off lighting throughout your home with the touch of a button

✅ Central control of all blinds from one place

✅ Opening the gate with the push of a button

✔ Product Features

✅ Four inputs triggered by 230 V AC

✅ Installation in flush-mounted boxes minimum Ø 60 mm

✅ Possibility of installation under existing equipment

✅ Cooperation with electrical equipment of any manufacturer

✅ Wireless control of all SUPLA Wi-Fi receivers

✅ Wireless control of SUPLA device groups

✅ Multi-click support

✅ Support longer keyholding

✅ Control of lighting, window blinds and garage doors

✔ Technical data

✔ Supply voltage [V]: 230 AC

✔ Voltage tolerance [%]: ÷

✔ Rated power consumption [W]: 0,75

✔ Relay contact parameters: -

✔ Maximum output load capacity: -

✔ Number of connection terminals: 6

✔ Number of inputs: 4

✔ Wire cross-section [mm2]: to 2,5

✔ Degree of protection of housing [IP]: 20

✔ Number of communication channels: 4

✔ Operating range : Wi-Fi coverage

✔ Wi-Fi transmission : 2,4GHz b/g/n

✔ Energy class: -

✔ Protection class: -

✔ Installation method: installation box Ø60 mm

✔ Temperature operating range [°C]: -10÷+55

✔ Housing colour: green

✔ Width [mm]: 47,5

✔ Diameter [mm]: -

✔ Number of modules: -

✔ Height [mm]: 47,5

✔ Depth [mm]: 20

✔ Weight [g]: 45

✔ Package width [mm]: 95

✔ Package height [mm]: 103

✔ Package depth[mm]: 25

✔ Weight with packaging [g]: 48

✔ Compliance with the following standards: PN-EN 60669-1, PN-EN 63000, PN-ETSI EN 300 328

The set includes

1. Device RNW-01.

2. User manual.
