Aprašymas
Trumpai apie prekę
Prekė: Oro aušintuvas–šildytuvas GWC KLIMA 200 mm, 40 kW. Kategorija: Rekuperacinės vėdinimo sistemos.
- Gamintojas: no brand
- Modelis: NAGRZEWNICA CHŁODNICA 200MM 40KW
Before you buy, watch the video https://www.youtube.com/watch?v=m8BvSsrRX5w
Channel water heater cooler 200mm 4-row 40kW for glycol GWC and ice water based air conditioning
Duct water heaters are used for heating and cooling air in ventilation systems. The energy carrier is water.

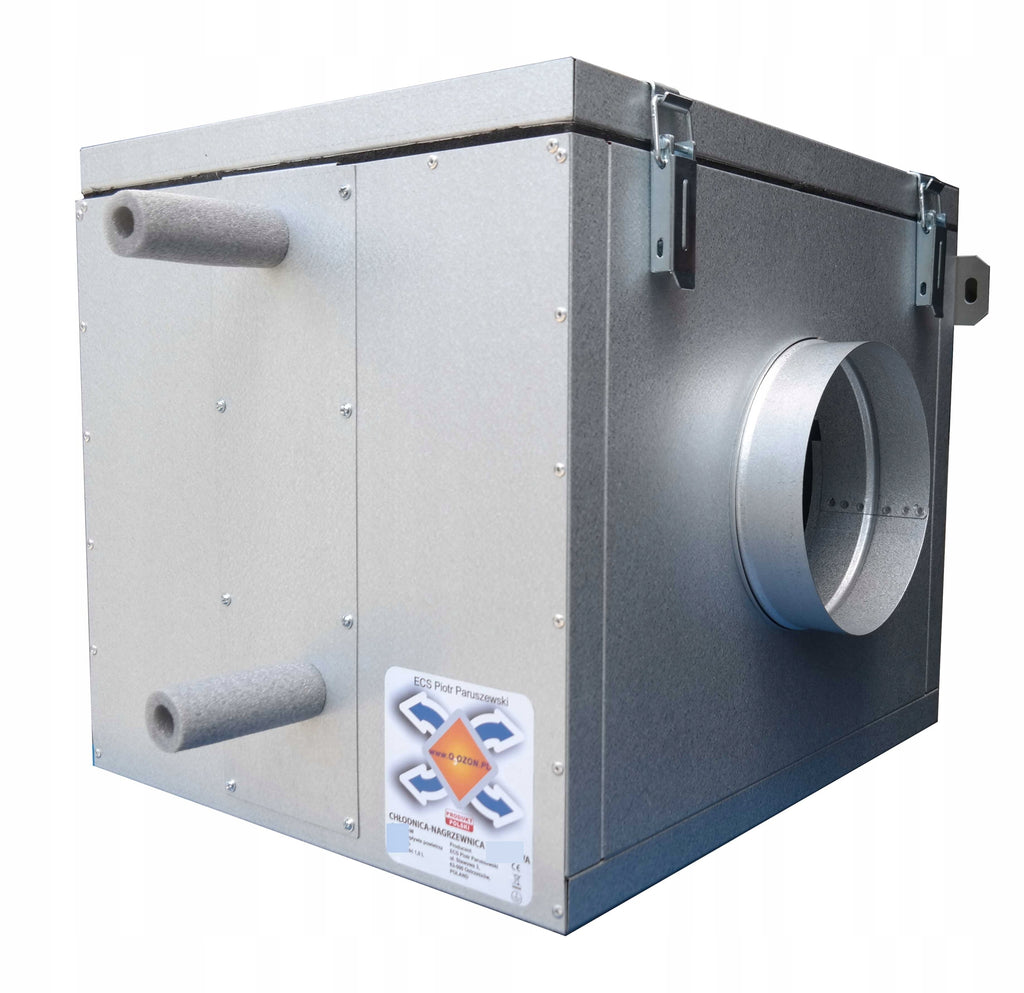

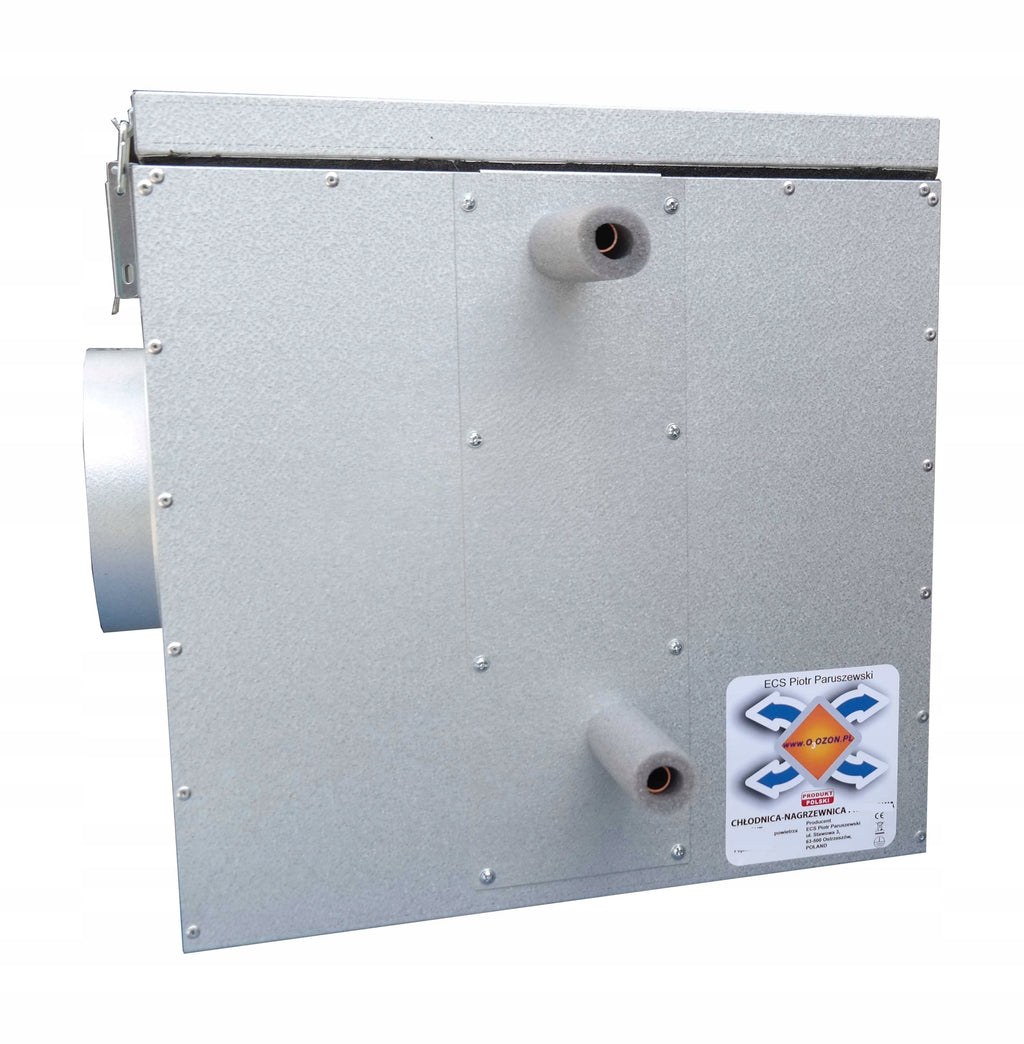

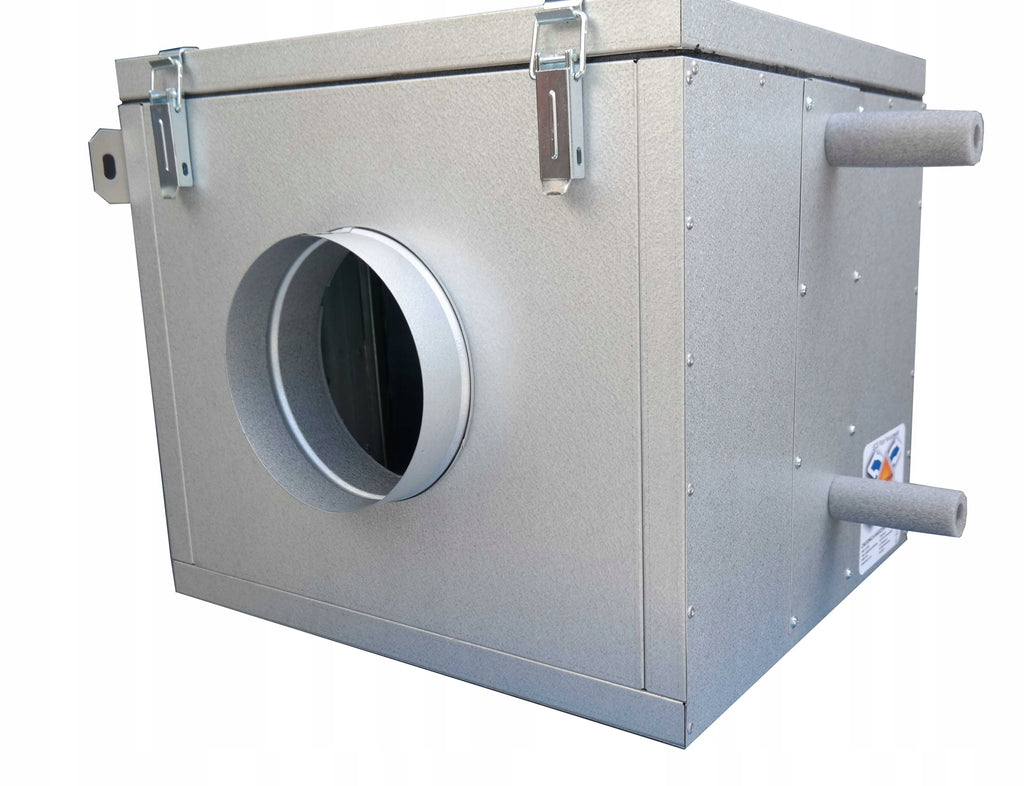

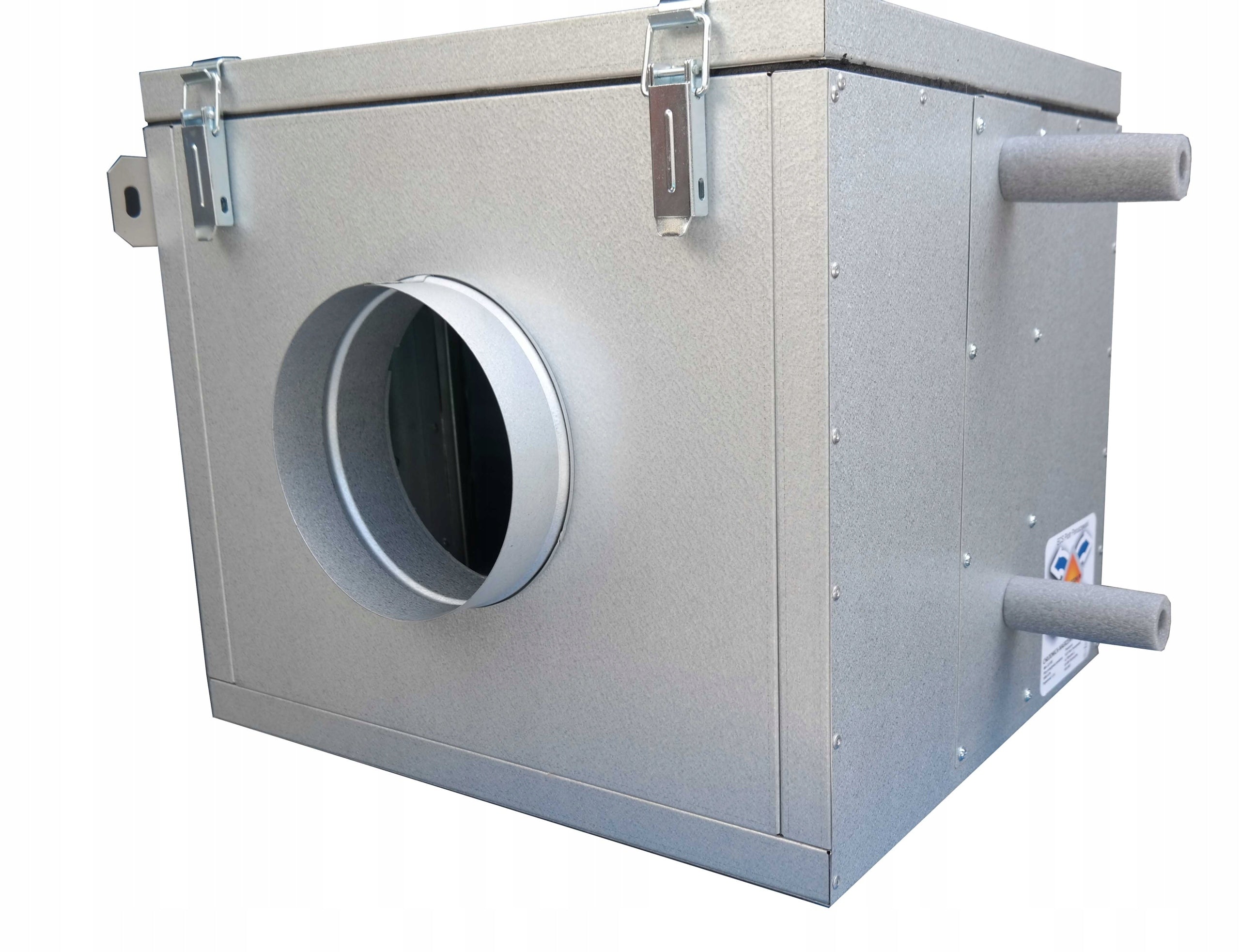

The heater cooler is closed with a lid that allows you to control and clean the exchanger, has two round connection connectors
The housing is made of steel sheet alumocynk
The coil and connection pipes are made of copper, while the exchanger lamellas are made of aluminum.
NW water heater cooler can be installed in the ventilation duct has a condensate drain
Maximum operating temperature: max +90oC min. 4oC
Maximum working pressure: 1,0MPa (10 bar)
The power to be calculated with glycol GWC about 3,5-4 kW powered from ice water at a temperature. 6oC about 5-6kW with air flow 600m3/h
DIMENSIONS H 447 mm base 542x472mm

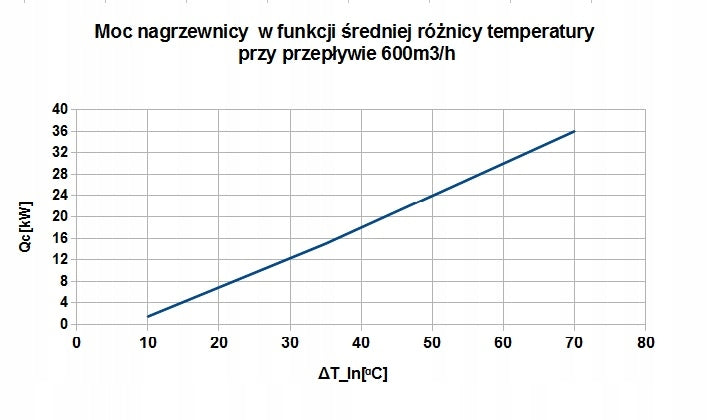

Power tested at a flow rate of 600m3/h

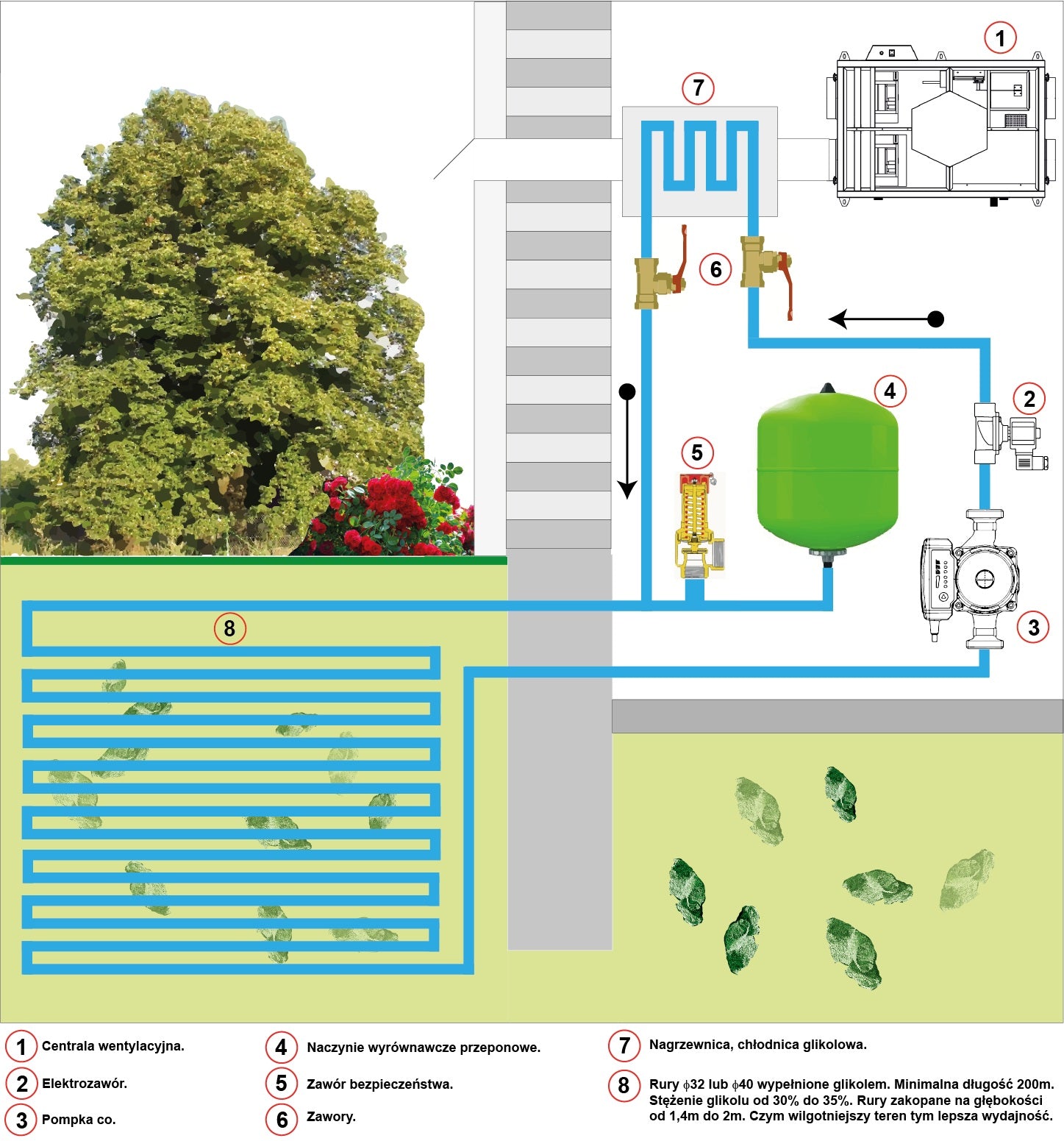

GLYCOL GWC REGIMEN
WATCH THE VIDEO HOW TO MAKE GWC GLYCOL https://youtu.be/OWXBK8SUx0I
See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself
▶ https://youtu.be/zwnY-pdrwj8
presentation of the system
▶ https://youtu.be/m8BvSsrRX5w

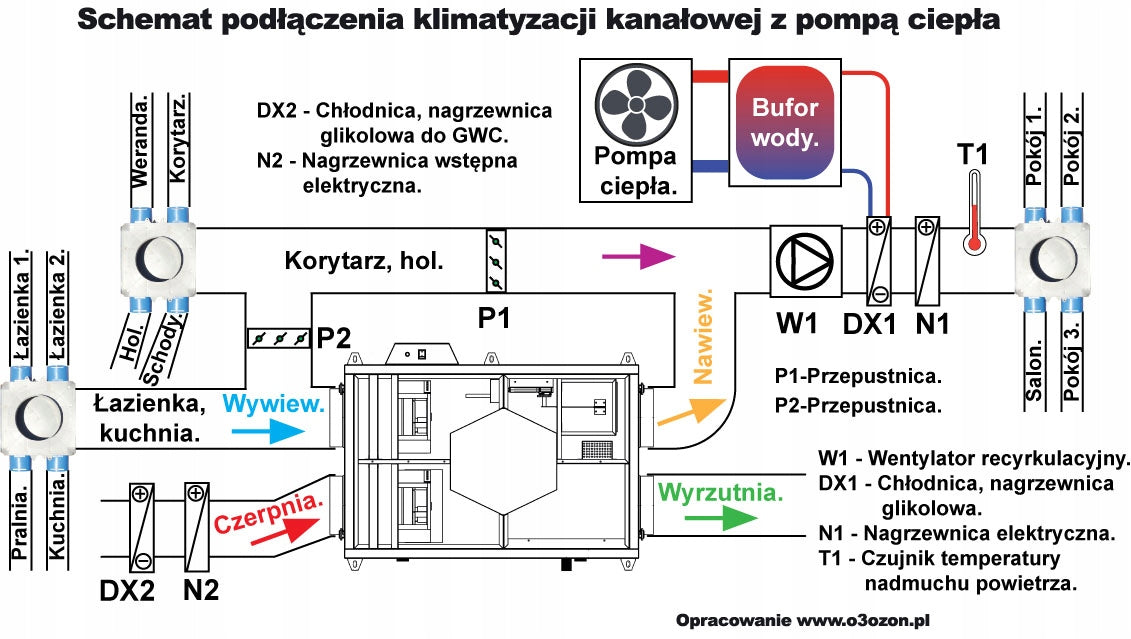

presentation of the entire GWC duct air conditioning, etc. . Look
▶ https://youtu.be/a3_OZIj2fLI
Durability of our products
▶ https://youtu.be/ZMhyH29QXEY
See the installation course of ventilation system recuperation in the MAX-VENT system and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to install devices, how to choose, how to design ventilation with recuperation and channel air conditioning
▶ https://youtu.be/PQYRlMa0cU4
How to choose an exchanger for the ventilation unit, recuperator recuperation course odc1
▶ https://youtu.be/JaYdZvX_Jl0
How to select and make intakes and launchers , recuperator course of recuperation assembly odc1a
▶ https://youtu.be/T4-kbpZCiRg
How to choose a recuperator, ventilation units, installation course of ventilation recuperation odc3
▶ https://youtu.be/hmj_Zri58Wo
Great anemostat theory in ventilation recuperation, installation course of ventilation recuperation odc4
▶ https://youtu.be/zW6ewKM40F4
Linear diffuser mezzanine how to make , installation course of ventilation recuperation section 4a
▶ https://youtu.be/TUGCt0jLmsk
Great theory of ventilation recuperation , installation course of ventilation recuperation odc5
▶ https://youtu.be/2DrL7inP8xA
Theory of anemostat distribution , installation course of ventilation recuperation section 6 part 1
▶ https://youtu.be/tT88G79NqjE
Distribution of anemostats in accordance with PN-83 , installation course of ventilation recuperation section 6 part 2
▶ https://youtu.be/Uq1FjNinR7U
CONNECTING DISTRIBUTION BOXES SYSTEM MAX-VENT GEN2 EASE OF INSTALLATION RECUPERATION
▶ https://youtu.be/qKcPhyyynKM
Arrangements of anemostats according to FASHION FACEBOOK , installation course of ventilation recuperation section 6 part 3
▶ https://youtu.be/TzhaNNL84hU
Distribution of anemostats ideas of Paruszewski , installation course of ventilation recuperation section 6 part 4
See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Kind | heat recovery ventilator |
| Parametry | Manufacturer code | NAGRZEWNICA CHŁODNICA 200MM 40KW |
| Parametry | Range of energy efficiency classes | A+ - G |
| Parametry | Energy efficiency class | A |
