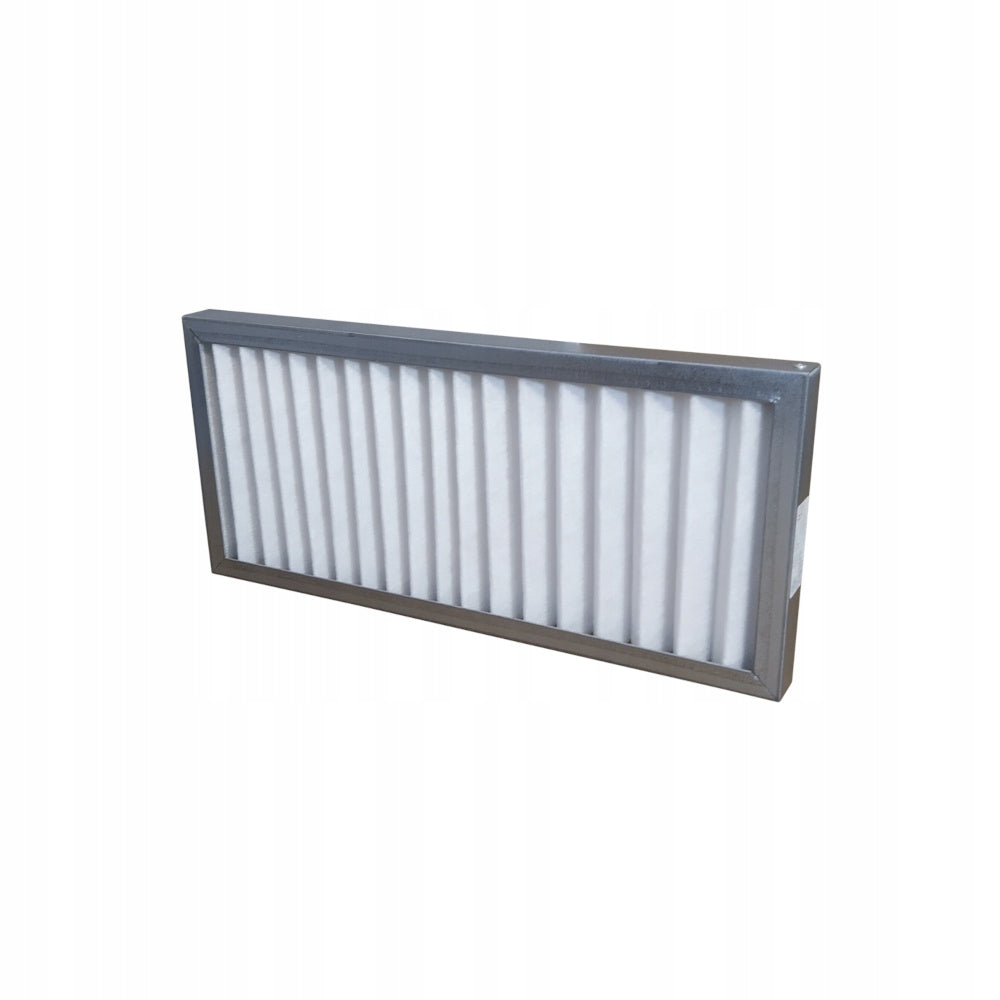

Oro filtras ASPOL-FV WINDMAKER RAPTOR 500 G4, ISO COARSE 70%

Trumpai apie prekę

Prekė: Oro filtras ASPOL-FV WINDMAKER RAPTOR 500 G4, ISO COARSE 70%. Kategorija: Dalys.

• Gamintojas: Murano Feniks
• Modelis: 18186608

Murano Feniks

• Air filter type: Plot pleated
• Scope of filtration efficiency: Rough
• Filter material used: Synthetic polyester
• Filter class EN779:2012: EU4 / G4
• Filtration standard DIN EN ISO 16890: Iso coarse 70%
• Filter frame type: Galvanized steel

Allotment filter

G4 Iso Coarse 70% 146 x 396 x 20 mm

Manufacturer name Murano Feniks: *MF/ZLE/OC G4 ISO COARSE 70% 146x396x20 mm

Allotment filter with galvanized sheet frame for rough filtration in mechanical ventilation, recuperation and air conditioning units. The construction of the filter is a cartridge made of synthetic material formed into pleats resembling a slightly stretched harmonica, then tightly embedded in the glue in the edges of the metal frame. The corrugated filter cartridge allows for more efficient use of the frame volume by obtaining a larger filter surface, ensuring longer filter operation. And by pasting the filter fizelin, the maximum tightness of the panel filter. Filter medium made of synthetic material with increasing density at the exhaust side of the air from the filter. Providing very low air resistance throughout the filter filling period with pollutants. Pleated cassette filter G4 Iso Corase 70% in dimension 146x396x20 mm allows to capture 70% of coarse particles from the air, i.e. leaves, insects, hair, sand, ash, fine sand, plant spores, pollen and other impurities greater than 10 μm (micrometers). We include it as a pre-filter for rough filtration, thus this filter allows for basic air filtration in mechanical ventilation central systems with heat recovery called recuperation. Our filters are made of materials that meet high energy classes to ensure the lowest possible consumption of electricity by your recuperator.

Technical data:

G4/EU4 Pleated Cassette Filter

Dimensions:

• Width: 146 mm
• Height: 396 mm
• Frame depth: 20 mm

Parameters:

• Filter material: pleated synthetic material

• Frame type: galvanized sheet

• Filtration class according to EN 779:2012: G4

• Filtration class according to ISO 16890: ISO Coarse 70%

• Degree of filtration (Am): > 90 %

• Efficacy: > 25 % < 35 %

• Maximum operating temperature: < 80 °C

• Permissible relative humidity: < 100%

• Recommended final resistance: 200 Pa

• large filter surface

Filter material:

• Innovative synthetic pleated material.

Construction:

• Completely sealed and durable construction.

• Nonwoven fabric pasted into a galvanized steel frame.

Application:

• Pre-treatment filter in air conditioning, heating and ventilation systems. Filters characterized by high efficiency with low pressure drops. They can be used in schools, offices, tetras, swimming pools, hospitals, shopping malls, hotels, homes, paint shops, pharmaceutical and machinery food industry plants.

Properties:

• Synthetic nonwoven fabric

• Low pressure drop

• High dust absorption

• Low energy costs

• Long lifespan

• Moisture-resistant

• Flame retardant (F1 according to DIN 53438)

• Standard and special dimensions

• Filters are made in accordance with the requirements of the Quality Management System ISO 9001 ensures that the product constantly maintains the highest quality.

The air supplied by ventilation, air conditioning and recuperation systems is as clean as the filters that clean them and therefore the quality of filters and their reliability and durability has a huge impact on the operation of the entire ventilation system and the air quality provided by it.







.

Allotment filter with metal frame for mechanical ventilation unit with dimension 146x396x20 mm in filtration class g4 eu4 with efficiency Iso Coarse 70%. Cheap basic filter for basic filtration in your home, office and business. Pleated filter with galvanized sheet frame preliminary for rough air filtration in mechanical ventilation, recuperator.

Murano Feniks 18186608

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Murano Feniks
Parametry	Kind	filter
Parametry	Product weight with unit packaging	5 kg
Parametry	Manufacturer code	18186608
Parametry	Batteries included	no
