Oro filtro rinkinys Dospel Optimal 400/600, 520x265 mm, M5+M5

Trumpai apie prekę

Prekė: Oro filtro rinkinys Dospel Optimal 400/600, 520x265 mm, M5+M5. Kategorija: Dalys.

• Gamintojas: Murano Feniks
• Modelis: 20949970

Murano Feniks

• Manufacturer code: BWM23457
• Brand: other, BWM
• Condition: New

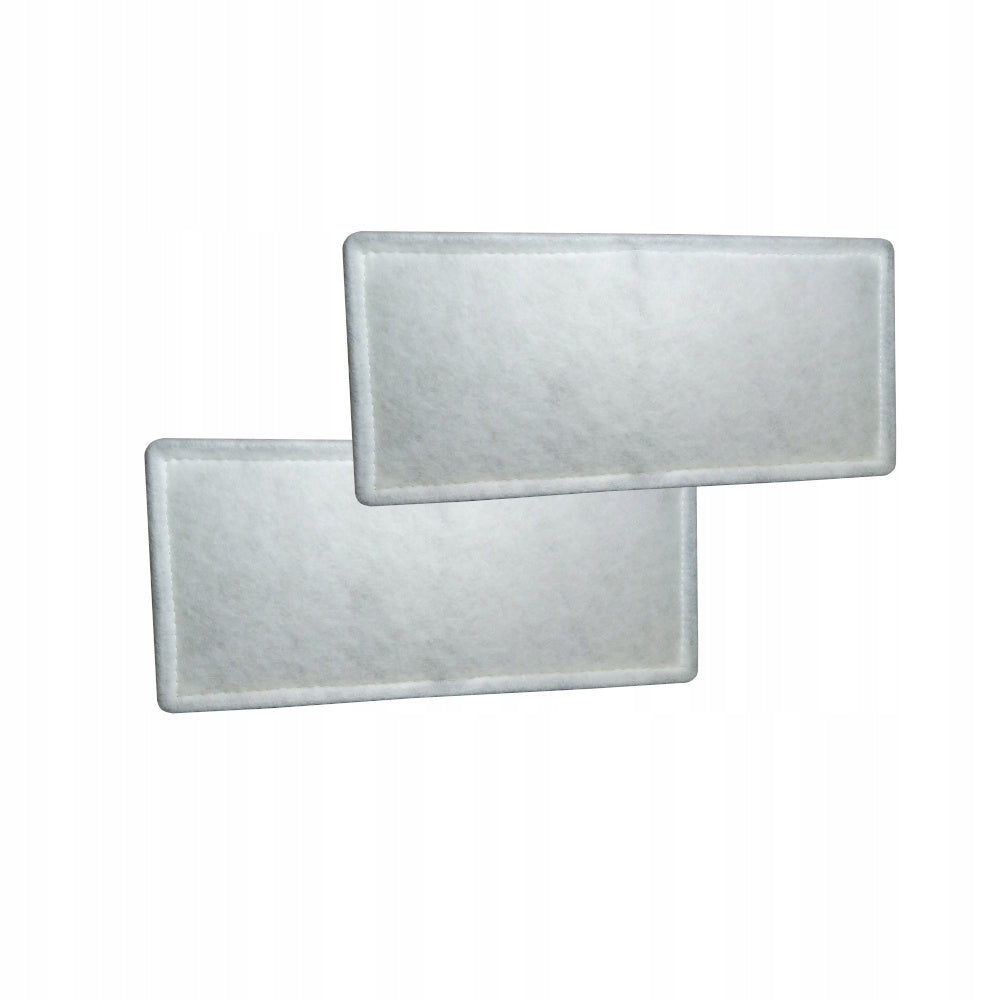

Dospel Optimal 400/600 filter set 520x265

The set includes 2 filters with a dimension 520x265 mm. One for filtering supply air and exhausted air.

Filters for central ventilation Dospel Optimal 400/600

Filtration class:

Ventilation: M5/EU5 Filter dimensions 520x265 mm 1 pc. (coarse)

Exhaust: M5/EU5 Filter dimensions 520x265 mm 1 pc. (coarse)

Depth of filter frame 5-8 mm

Filters are mounted according to the direction of air flow marked on the filter with a label - the label should be broken immediately before installation.

Filters are subject to periodic replacement depending on the ambient conditions, usually from 3 to 6 months.

Filters manufactured in accordance with the filtration standard air EN 779:2012

The filtration efficiency is determined by the numbers at the letters - the higher the filter is more effective and retains more impurities.

1. Frameless flat filter M5/EU5

Dimensions:

• Width: 520 mm
• Height: 265 mm

Parameters:

• Filter material: pleated synthetic material
• Filtration class according to EN 779:2012: M5
• Filtration class according to ISO 16890: ISO Coarse 90%
• Degree of filtration (Am): > 97,1 %
• Efficacy: 45,60 %
• Maximum operating temperature: < 80 °C
• Permissible relative humidity: < 100%
• Recommended Final Resistance: 200 Pa

Filter material:

100% polyester fibers progressively superstructured, thermally bonded, compacted from the side of the air outlet. It is characterized by high efficiency throughout its life and high mechanical strength.

Construction:

• Durable construction.
• Filter nonwoven fabric laid flat and trimmed on stainless steel wire.

relaxing and relaxing massage

Pre-treatment filter in air conditioning, heating and ventilation systems. Filters characterized by high efficiency with low pressure drops. They can be used in schools, offices, tetras, swimming pools, hospitals, shopping malls, hotels, homes, paint shops, pharmaceutical and machinery food industry plants.

Pulp filter

• Synthetic nonwoven fabric
• Low pressure drop
• High dust absorption
• Low energy costs
• Long service life
• Resistant to moisture
• Flame retardant (F1 according to DIN 53438)
• Standard and special dimensions
• Filters are made in accordance with the requirements of the Quality Management System ISO 9001, which ensures that the product constantly maintains the highest quality.

• The air supplied by ventilation, air conditioning and recuperation systems is as clean as the filters that clean them and therefore the quality of filters and their reliability and durability has a huge impact on the operation of the entire ventilation system and the air quality provided by it.

20949970

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Murano Feniks
Parametry	Kind	filter
Parametry	Manufacturer code	20949970
Parametry	Batteries included	no
