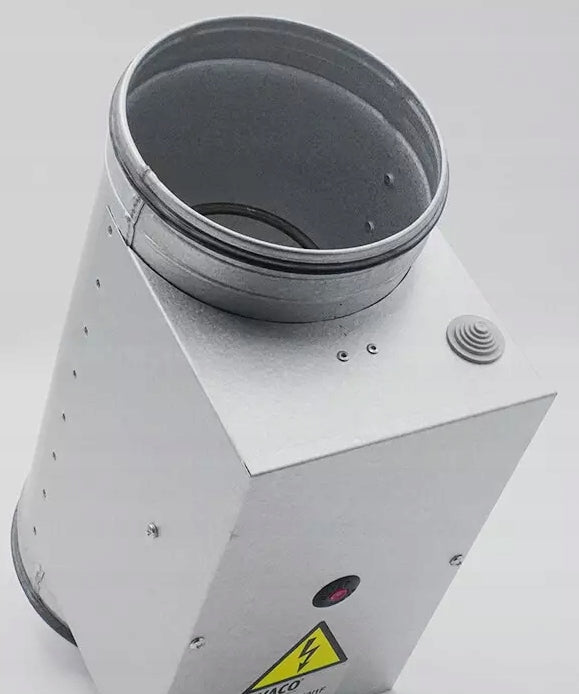

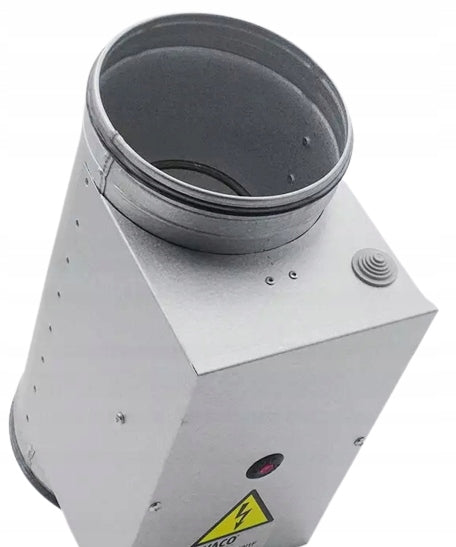

Oro kanalo elektrinis šildytuvas HAVACO 200, 3 kW, apvalus

Trumpai apie prekę

Prekė: Oro kanalo elektrinis šildytuvas HAVACO 200, 3 kW, apvalus. Kategorija: Oro šildytuvai.

• Gamintojas: Havaco
• Modelis: ECH 200/3

Round Air Heater 200

Air Duct Heater

⭐⭐⭐⭐⭐

Each heater has two-stage protection against overheating:

• - I degree at 50°C – automatic reset.
• - II degree at 100°C – manual reset required.

ECH is an electric channel heater without built-in automation. The heating power regulation of the heater can be implemented via the external HRK controller. ECH heaters are adapted for installation in round channels. They come in typical ventilation diameters from 100 to 500mm and powers from 0,3 to 24,0 kW.

Duct Electric Heater

⭐⭐⭐⭐⭐

Construction

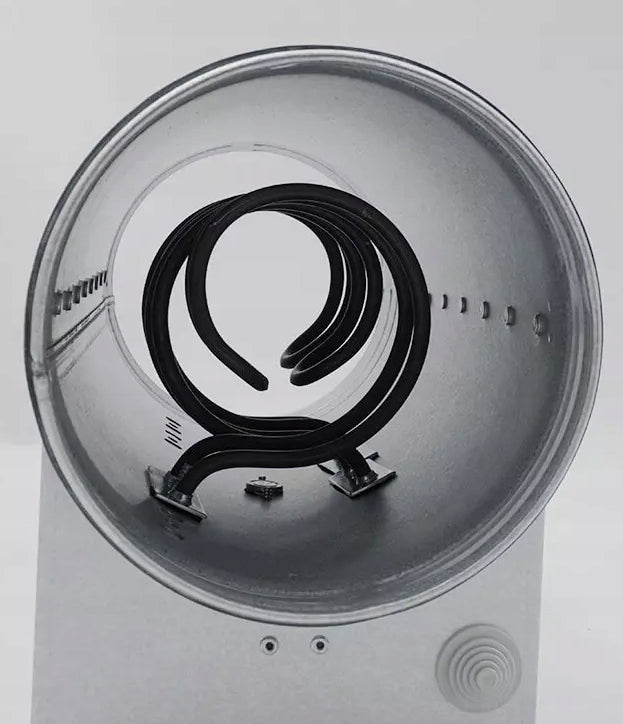

The heater housing is made of steel sheet covered with high quality Aluzinc coating, which guarantees high corrosion resistance. Connection connectors are made in negative tolerance and have an EPDM seal. The heating elements are made of AISI 304 stainless steel. The junction box has a protection rating of IP44.

Application

Duct heaters are used to heat clean air in domestic ventilation installations, especially in autumn and winter, as well as in industrial installations requiring a constant temperature of the supplied air. ECH heaters also work well as pre-heaters or secondary heaters, complementing installations based on ventilation units with heat recovery.

Duct Heater 3KW

⭐⭐⭐⭐⭐

Installation

Heaters can be mounted in any position except in the downward facing junction box position. If there is a possibility of accidental contact with heating elements, appropriate covers should be used. The speed of air flowing through the heater must not be less than 1,5 m/s. The flow of explosive or aggressive gases is prohibited. Heaters can only be used to heat clean air. Devices designed for internal installations.

Electrical connection

The electrical connection must be made by a qualified electrician, in accordance with applicable national and international regulations. The power source and power cord must match the data on the heater's rating plate. The circuit breaker shall be selected according to the technical data. The heater must be grounded.

Specifications
