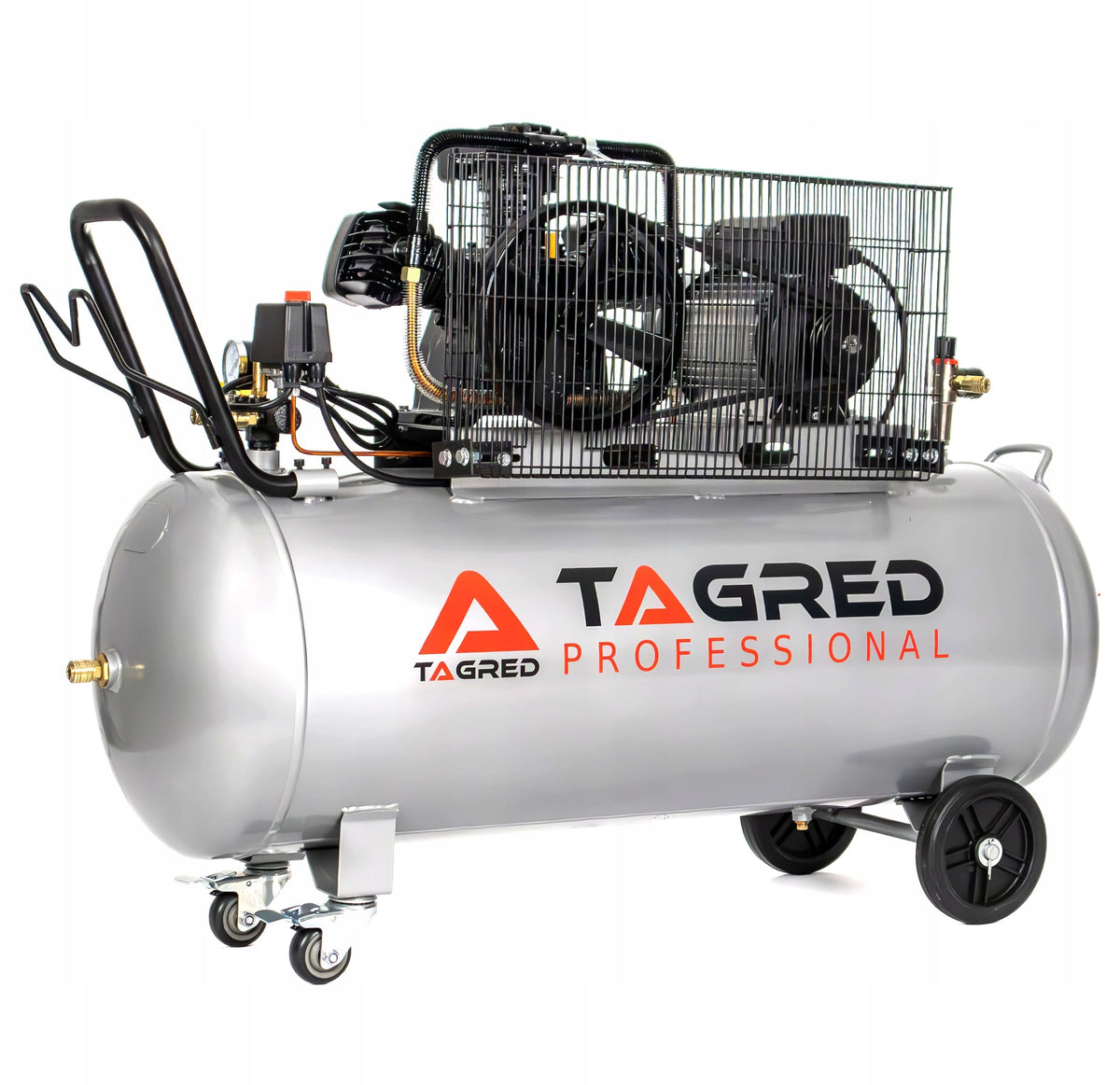

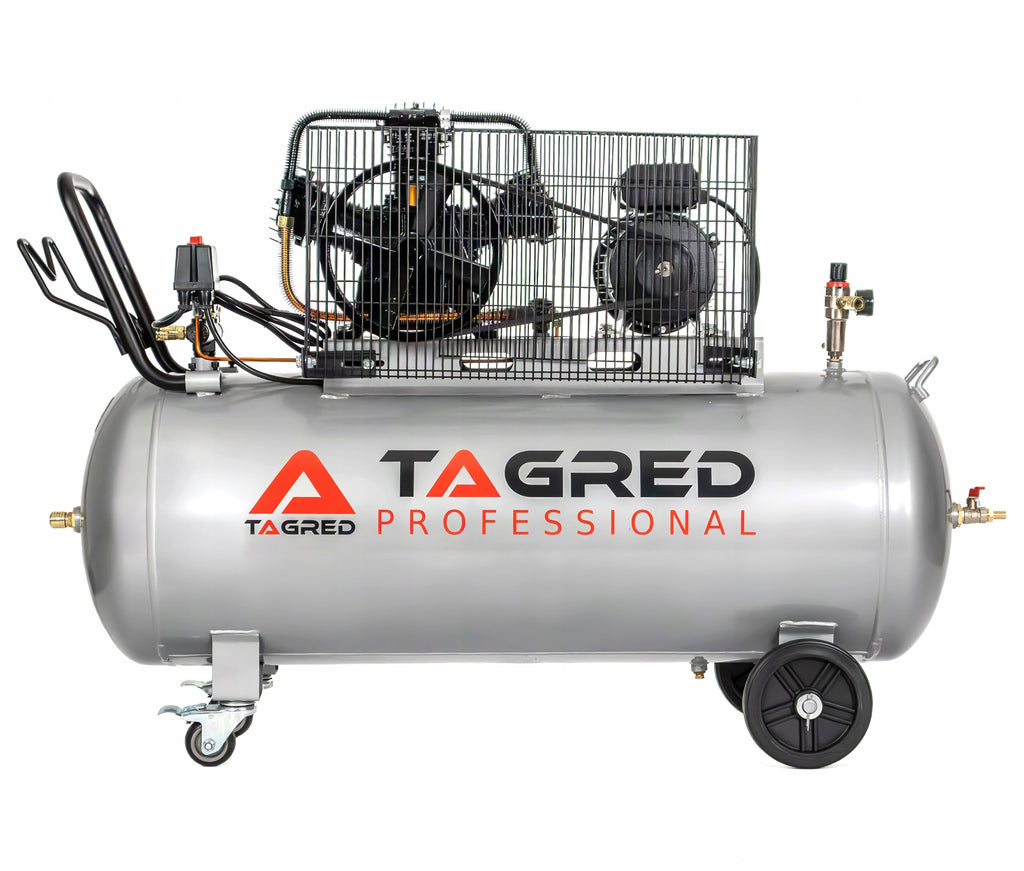

Oro kompresorius 200 l, 3 cilindrų, 230V, B. Strong, patvarus

Trumpai apie prekę

Prekė: Oro kompresorius 200 l, 3 cilindrų, 230V, B. Strong, patvarus. Kategorija: Kompresoriai.

• Gamintojas: Tagred
• Modelis: TA326BTA107SZTA1L
• Galia: 4.1 kW
• Įtampa: 230 V

New! The compressor is equipped with a hose retractor! Only on this action to the set we give a professional crimped pneumatic hose 10m free!

Includes FREE 1 bottle of specialized compressor oil TAGRED 1 L

Ball valve + conical connector + brass quick-connector directly screwed into the cylinder !

• New, strong, better.
• Tank made of thick, certified steel sheet.
• Includes FREE 1 bottle of specialized compressor oil TAGRED 1 L + ball valve + conical connector + brass quick-connector directly screwed into the cylinder !
• 3 pistons
• Full UDT documentation(sent upon customer request)
• It is ideal for most pneumatic devices - for pumping, cleaning, blowing, painting surfaces.
• Economical - wide ribs for better cooling.
• It is characterized by low energy consumption while maintaining high performance parameters.
• Increased diameter and high flow avoid blocking dirt.
• High efficiency of air flow.
• Mobile - The compressor has 2 large rubber wheels and additionally 2 swivel wheels!
• Ergonomic - has a pressure reducer equipped with an innovative mechanism for adjusting the lower and upper pressure
• 2in1 - The compressor is equipped with an oil separator with a pressure reducer that traps water and oil in the blown air.
• Safety switch
• Air filters
• One pressure gauge showing pressure.
• Two outputs directly from the tank
• A product for professionals that will perfectly "find" e.g. in every garage, home workshop, farm.
• New! The compressor is equipped with a hose retractor! Only on this action to the set we give a professional crimped pneumatic hose for free!
• High tightness and welding accuracy.

As a few, we use piston rods made of cast iron with an admixture of duralumin in our pumps, so that our compressors can work for a long time in extreme unfavorable conditions, i.e. Frost and very high temperatures are not able to destroy our devices, an additional advantage is the fact that the pumping set mounted on the cylinder is low-speed, which also affects relatively quiet operation.

We use plastic air housings, because we know from experience that the compressor during operation produces certain vibrations that simply cause these filters to unscrew, which is very dangerous for pumps when they draw polluted air and we can afford it thanks to a solution that does not allow pumps to heat excessively even at a pressure of 10bar

This is a more expensive solution, but thanks to this, the issue of any defect has been minimized to practically zero.

polish compressors by Tagred are technologically advanced devices that are made of high quality materials. Other valuable advantages of our compressors are: low operating costs multitasking, precision and work culture. The low weight of the compressor makes it very ergonomic, it also has an automatic lubrication system, air filtration, pressure reducer and transport wheels.

We guarantee that while maintaining the highest standards and norms, Tagred compressors will meet your expectations.

Certified product. Has a declaration of conformity and the necessary directives, which proves the quality of the product!!!

As the only company on the Polish market, we offer compressors with a modern spacing of head mounting screws.

The new X-type screw spacing technology allows the compressor to operate without damaging the seals. In addition, there are reinforced head pins (hardness 10,9).

The competition has on sale compressors with head attachment for 4 screws in such cases, after heating the head, the gasket blows out.

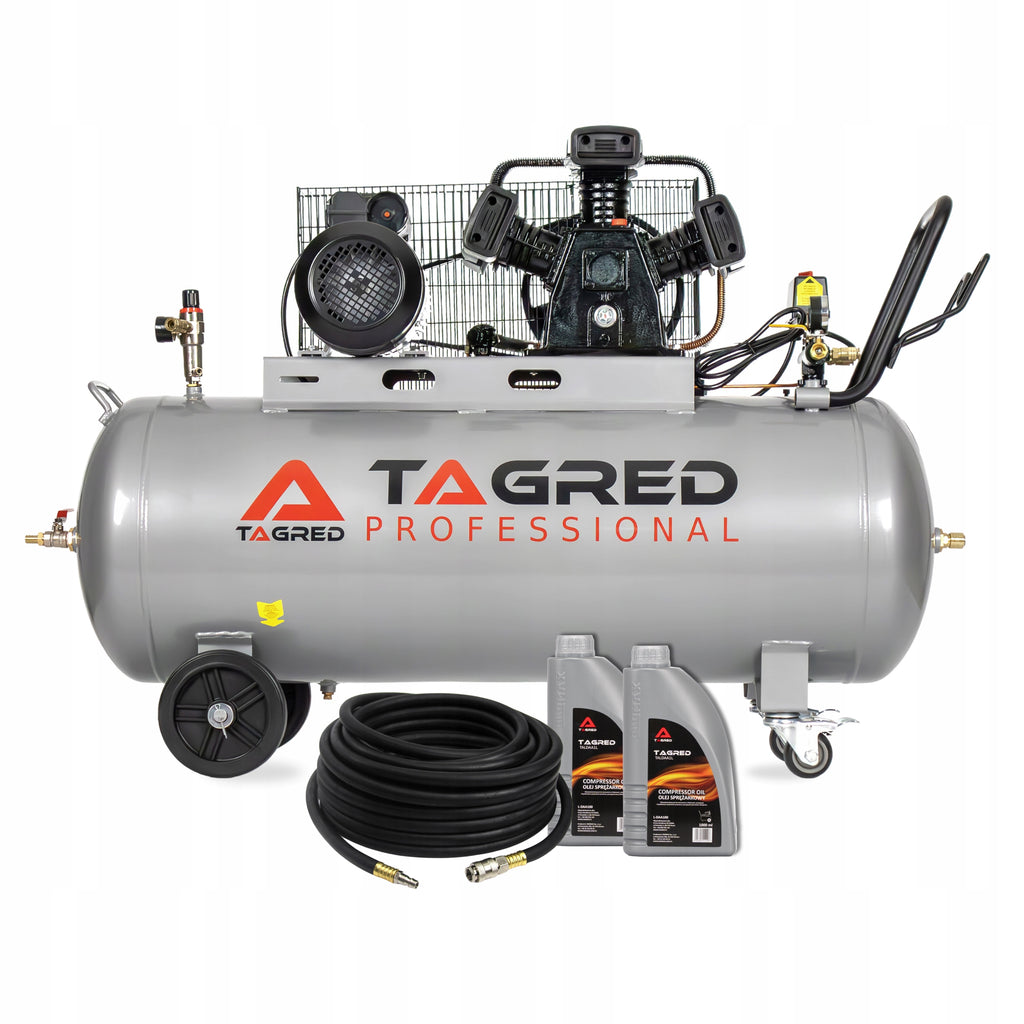

Composition of the set

• Oil compressor TA326B
• Full UDT documentation(sent upon customer request)
• 2 large rubber wheels and 2 additional swivel wheels!
• Drain valve of accumulated water in the tank.
• GRATIS 1 bottle of specialized compressor oil TAGRED 1 L
• 2 quick couplers
• Brass quick coupler directly screwed into the cylinder
• Ball valve + conical connector
• Pressure cable 10 M with quick couplers, crimped
• User manual in Polish

Technical data

Compressor

• Model: TA326B
• Number of pistons – 3
• Supply voltage – 230V / 50 Hz
• Pump operating pressure - 8 BAR
• Efficient suction capacity: 650 L
• Test real performance, effective on the blowout on the finish - 475l/min.
• Pump rotation – slow-rotating type 1440 rpm.
• Sound pressure level - 72,4 dB (A). Sound power level - 87 dB (A).
• Engine speed – 2840 rpm.
• Test performance real, effective on the blowout - 499l/min.
• Maximum engine power – 4,1 kW – 5,6 hp
• Nominal engine power - 3 kW – 4,1 hp
• For proper and safe operation of the device, it is required to use protection in the switchgear: overcurrent switch min.C20A
• Maximum tank pressure - 10 BAR
• Tank – 200 liters

Technical data - hose

• Model: TA107
• Connection threads: standard quick couplers
• Operating pressure: 20 bar
• Breaking pressure: 55 bar
• Material: rubber
• Operating temperature: +70 degreesC / -40 degreesC
• Length: 10 m
• Inner diameter: 10 mm
• Outside Diameter: 17mm

• This solution gives access to a large and immediate amount of air, unlimited switch or filter,
• ideally suited for blowing, pumping truck tires, or powering large pneumatic wrenches

The compressor has 2 large rubber wheels and an additional 2 swivel wheels!

2in1 - The compressor is equipped with an oil separator with a pressure reducer that traps water and oil in the blown air.
