Oro kompresorius 50 l V2 dviejų cilindrų, 10 bar, su 18 dalių priedų rinkiniu ir alyva

Trumpai apie prekę

Prekė: Oro kompresorius 50 l V2 dviejų cilindrų, 10 bar, su 18 dalių priedų rinkiniu ir alyva. Kategorija: Kompresoriai.

• Gamintojas: Tagred
• Modelis: TA365TA103SZO
• Galia: 3.5 kW

❇ The TAGRED compressor is a solid and efficient device, designed for fast tank filling, powerful engine and quiet operation. With its intuitive operation and easy installation, it is suitable for both workshop and home applications. Aesthetic and durable workmanship ensures reliability and comfort of use for many years!

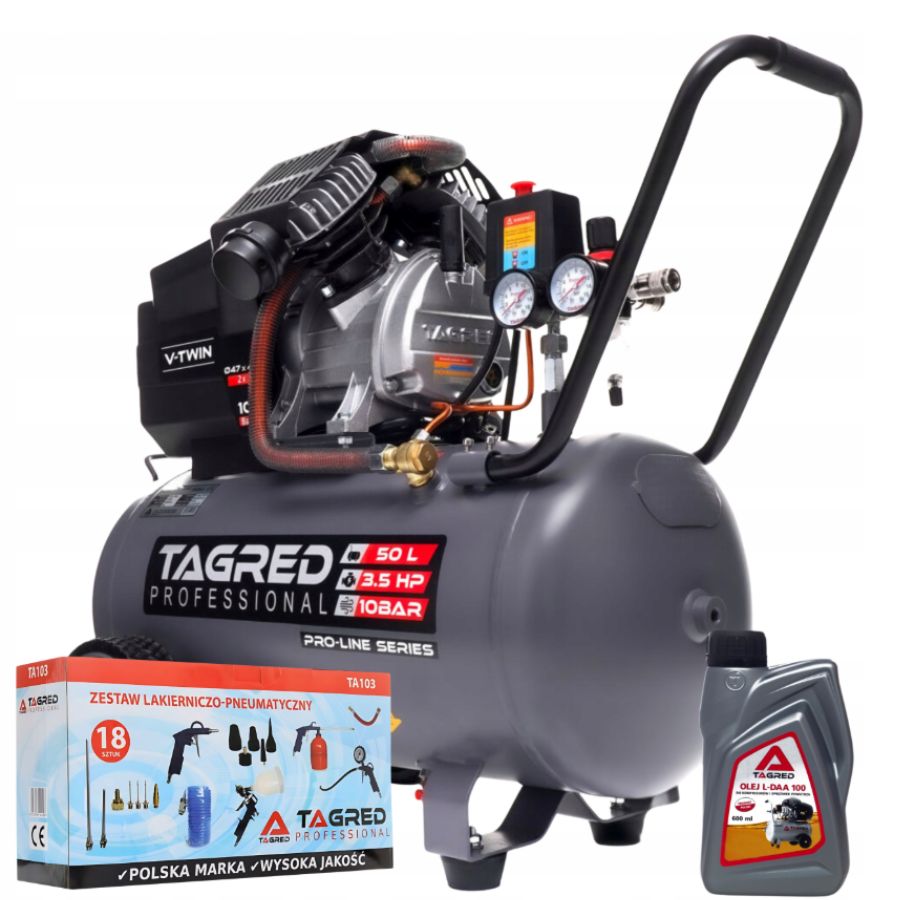

➡ Composition of the set

• Oil compressor TA365
• Quick couplers x 2 pcs, which are already mounted on the compressor
• Quick coupler for self-assembly directly screwed into the cylinder
• 2 rubberized wheels
• 2 rubber feet
• Built-in dehydrator with reducer - oil separator with reducer and pressure gauge.
• 2 x air filter with cartridge
• 1 vent
• 1 infusion stopper
• User manual in Polish
• Free: 1x bottle of specialized compressor oil TAGRED 0,6 L
• Pneumatic set 18in1

➡ Specification

• Model: TA365
• Engine: electric, air-cooled: 10 blade fan with increased diameter
• Efficiency on blow at 1 Bar is 640 L
• Efficiency on blowout at 10 Bar is 460 L
• Pressure max pump: 10 Bar
• Number of pistons: 2
• Plunger diameter: 47mm
• Nominal pressure: 10 bar
• Maximum engine power: 3,5 KW/ 4,7HP
• Nominal engine power(on shaft): 2,6 KW/3.5HP
• Compressor from novelty set to 10 bar
• Frequency: 50-60Hz
• Current: C16A
• Voltage: 230V
• Dimensions of the compressor in the package: length 77cm, width 39cm, height 73cm
• Dimensions of the assembled compressor ready to work: length 78cm, width 42cm, height 67cm
• Weight: 40 kg
• Iron cylinders: Yes
• Separator: yes
• Built-in pressure regulator

Pneumatic set - a practical addition to the compressor, which will be used in every household, workshop. In the set you will find accessories Tagred:

• The top tank paint gun is ideal for precise painting with metallics, varnishes, acrylic and waterborne paints. It works great in car paint.
• Gun for washing the so-called. The "oiler" has a practical spray nozzle that makes it easy to wash and clean The pump gun with pressure gauge is perfect for pumping and controlling the pressure of pneumatic tires. It has a rubber clock housing. It is equipped with an air drain valve.
• 5m spiral hose for connecting pneumatic tools, spray guns, other pneumatic equipment or for extending pneumatic hoses.
• The blow gun will be helpful in removing contaminants from poorly accessible places.
• The set also includes 12 tips, which are helpful, among others. in pumping balls, inflatables, car wheels, toys, mattresses.
• Hose - extension

➡ Film presentation of the compressor!

Watch the video and see how this product looks live!

Copy the link below and paste it into the top bar of your browser.

https://youtu.be/JMn8xkLCWiE

➡ Ready to go - 1x oil included!

In this compressor kit you also get 1 bottle of oil for compressors TAGRED 0,6l

Thanks to this, you can immediately start working with the compressor!

If you need a larger set take a look at our other listings!

❇ Maximum capacity of 640 L/min and pressure up to 10 BAR!

Do you need equipment that can handle any task? This compressor delivers up to 640 L/min and reaches a pressure of up to up to 10 bar which makes it an ideal tool for intensive work in the garage, workshop or even at home.

❇ Cast iron, durable cylinders with increased ribs

Thanks to iron, durable cylinders with increased ribs and doubled number of blades of the cooling fan (10 pieces), the compressor better transfers heat, which prevents it from overheating during intensive work. This solution provides reliability and extends the life of the device.

➡ Three rings on the piston – greater efficiency and protection

The use of three rings on the piston ensures an appropriate level of compression, allowing the compressor to reach pressures up to 10 BAR! In addition, this minimizes the risk of oil entering the air, which increases work safety.

➡ Cords and shaft – durability at the highest level

Our compressor uses aluminum connecting rods secured with a self-control screw and steel alloy shaft with high abrasion resistance. These components ensure longevity and failure-free pump operation, even with long-term use.

❇ Modern safety valve – pressure control!

The compressor is equipped with a modern safety valve, which automatically drops excess pressure when operating above 10 BAR, preventing damage to the equipment.

☝ Increased motor power and improved capacitor system!

The 3,5 kW compressor motor is equipped with a enhanced capacitor and an additional capacitor supporting start, which facilitates starting the device even at negative temperatures. This ensures that the compressor runs stably and smoothly, providing high performance even under heavy loads.

➡ Increased cylinder capacity up to 47 mm + improved capacitor system – maximum efficiency!

By increasing the cylinder capacity to 47 mm , the compressor achieves even higher performance and efficiency . The larger cylinder volume allows for more efficient air compression, which translates into stable operation, better performance under heavy loads.

In the combination of a reinforced capacitor and an additional capacitor supporting start-up , the device achieves very high efficiency, regardless of operating conditions. This solution guarantees a smooth start and high performance even in demanding conditions.

☝ Innovative Pro-Line coating – greater resistance to operating conditions

The new TAGRED Silver Pro-Line compressor series has been coated with Pro-Line class varnish, which provides higher corrosion resistance and adverse operating factors.

Thanks to this, the device is more durable and retains its aesthetics and functionality for a longer time, even in difficult workshop conditions. It is an ideal choice for professionals who expect reliability and long life of equipment.

➡ Larger fan with targeted propellers

The larger fan with a 10-blade cooling system and properly targeted propellers effectively cools both the pump and the electric part of the compressor. This solution avoids overheating problems, which significantly extends the service life.

➡ Why choose the TAGRED compressor?

Choosing the TAGRED compressor is an investment in reliability, performance and quality, which will work both in intensive workshop work and in home use. Here’s what sets this model apart:

✅Large turbine diameter - The larger turbine provides high airflow efficiency, preventing impurities from blocking, which increases cooling efficiency and compressor efficiency.

✅Oil separator with pressure reducer - The compressor is equipped with an oil separator with pressure reducer, which traps water and oil in the blown air, guaranteeing cleanliness and safety of operation.

✅Economic energy consumption - Our compressor is characterized by low energy consumption, which allows for efficient operation while reducing operating costs.

✅ Approved cylinder with perfect welds - The compressor cylinder has been made and welded using automatic welding machines, which ensures perfect weld quality and reliability.

✅ Mobility and convenience - Thanks to the mounted transport wheels, the compressor is mobile and easy to move, which facilitates work in various conditions.

✅ Ergonomic - has a pressure reducer equipped with an innovative adjustment mechanism, a large pressure gauge located on the compressor in a position that facilitates reading parameters and a convenient tap drain.

✅ The compressor is one of the few that has a modern capacitor system combined with a system relaxer, which significantly facilitates start-up in difficult conditions.

❓ Frequently Asked Questions and Answers ❓

✔ Is the compressor ready for use immediately after purchase?

Yes, the set includes 1 bottle of compressor oil to get you started right away.

✔ What security does the compressor have?

The compressor has a modern safety valve that automatically drops excess pressure, protecting the device from overcharging, and an oil separator with pressure reducer and pressure gauge.

✔ What is the maximum pressure of the TAGRED compressor?

The TAGRED compressor can reach a maximum pressure of 10 BAR, which allows for a wide range of applications both in workshops and at home.

✔ What sets the compressor apart from other counterparts?

The TAGRED compressor features a robust design with durable cast iron cylinders and a steel shaft for longevity. In addition, it has a modern safety valve and oil separator with pressure reducer, which improves work safety and air cleanliness. Increased motor power, increased number of capacitors and mobility make this device extremely efficient and easy to use, even in difficult conditions.

✔ What pressure is factory set in the compressor?

The TAGRED compressor, thanks to the factory setting for a maximum pressure of 10 BAR, provides greater efficiency and versatility compared to standard solutions available on the market. Thanks to this, it offers a wide range of applications, both in professional workshops and home garages. Such high pressure allows for efficient power supply of various types of pneumatic tools, paint and devices requiring stable and strong air flow. This makes the compressor perfect for both intensive industrial use and everyday DIY work.
