Oro kompresorius BLACKSMITH K7, 100 l, 12 bar, stūmoklinis, be alyvos

Trumpai apie prekę

Prekė: Oro kompresorius BLACKSMITH K7, 100 l, 12 bar, stūmoklinis, be alyvos. Kategorija: Kompresoriai.

• Gamintojas: Kowal Polska
• Modelis: KowaL Polska k7
• Galia: 3 kW
• Įtampa: 230 V

• + oil + filters + dehydrator + reducer

• Already on sale -New, best 7th generation blacksmith
• enlarged valve seats for faster airflow
• Raised head heat sink
• When turned on, the compressor fills the cylinder up to 10 BAR!
• enlarged diameter of the cooling turbine
• oil lubrication, splash lubrication
• 2 x 48 mm diameter three-ring pistons

• height: approx. 80 cm
• length: approx. 110 cm
• Width: approx. 40 cm

The company KowaL Polska, with this model, was one of the first to introduce the FORGED CONNECTING RODS system. Thanks to this solution, even after many years of use, there is no oval on connecting the piston with the pin!

The air pump pumps air into a 12 Bar pressure cylinder. The switch (recessor) disconnects the pump when filling a tank of 10 Bar. Thanks to the use of a pump with 20% stock, the unit is not strained, which significantly translates into its service life!

• Our compressor has a cylinder with approval with a real capacity of 100 Liters !
• tank dimensions : diameter 35 cm x length 105 cm
• If you run a company under the supervision of a labour inspectorate, know that we add all documents to each compressor to be reported in UDT

The blacksmith model looks great compared to the competition. His cylinder punching times of 100L and capacity up to a given pressure are:

1. from 0 to 1 bar = 15,5 s 390 L/min
2. 0 to 2 bar = 31 s 387 L/min
3. 0 to 3 bar = 47 s 383 L/min
4. from 0 to 4 bar = 1 min 7 s 358 L/min
5. from 0 to 5 bar = 1 min 30 s 333 L/min
6. from 0 to 6 bar = 1 min 56 s 310 L/min
7. from 0 to 7 bar = 2 min 22 s 296 L/min
8. from 0 to 8 bar = 2 min 57 s 271 L/min
9. from 0 to 9 bar = 3 min 28 s 260 L/min
10. from 0 to 10 bar = 4 min 250 L/min

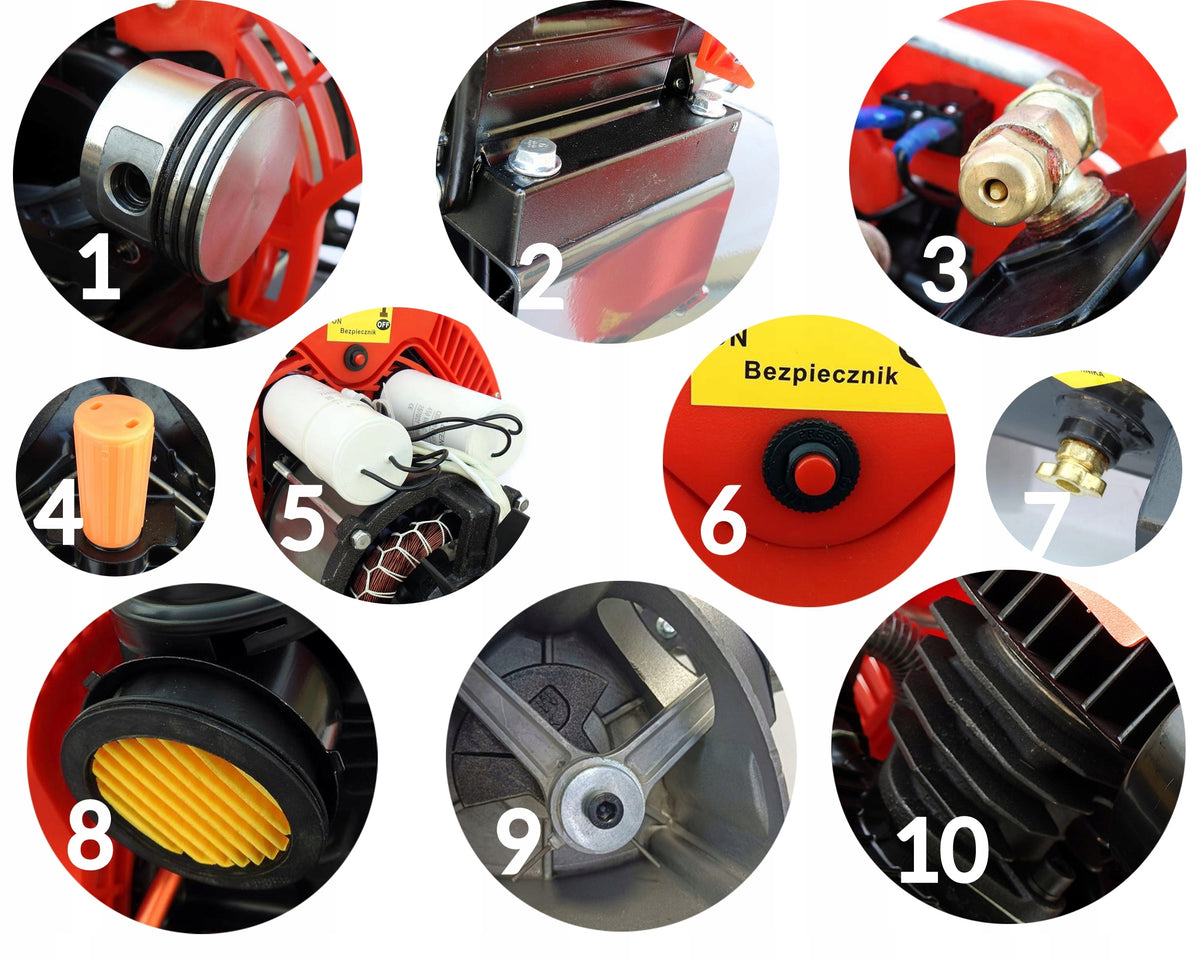

1. Pistons made of duralumin. 3 rings per piston. Piston diameter up to 48 mm!

2. Pump base with two full and solid mounting feet

3. Two starting decompression valves (final and start)

4. Air vent (crankcase ventilation) with a ball valve inside

5. BEST ENGINE. Two starting capacitors (120uF) connected in parallel to the motor (not in series).! blacksmith starts even in winter!

6. Installed overcurrent fuse + thermal fuse directly at the motor winding

7. Tank water separator

8. Solid metal filters with effective HEPA cartridges!

9. Reinforced connecting rods with cast iron counterweight to reduce vibration levels

10. Cast iron cylinders with honed sleeves - perfect oil film distribution

• suction capacity max: 540 L-min
• max working capacity: 390 L/min
• pressure max: 12 Bar
• working pressure: 10 Bar
• tank: 100 L
• rated power (on motor shaft): 2,2 kw
• max engine power consumption: 3 kw (3000 watt)
• Number of working sockets: 3
• oil pan capacity: approx. 0,4 Liter
• power supply: 230v
• Frequency: 50 / 60 Hz
• Volume: 97 dB
• Weight: approx. 55 kg
• Piston system: V
• Number of pistons: 2
• Piston diameter: 48 mm
• pressure reducer: YES
• Dehydrator: YES
• overload protection: YES
• built-in starter relaxer: YES
• induction motor: YES
• certificates: YES
• Declaration of conformity: YES
• built-in safety valve !
• oil used: compressor LD-100
• 1 replacement after 5 hours, then every 50 hours
• lubrication: splash
• Cylinders: cast iron
• correct oil level: covered 3/4 slide
• Check the oil level before each start. If necessary, supplement its condition.

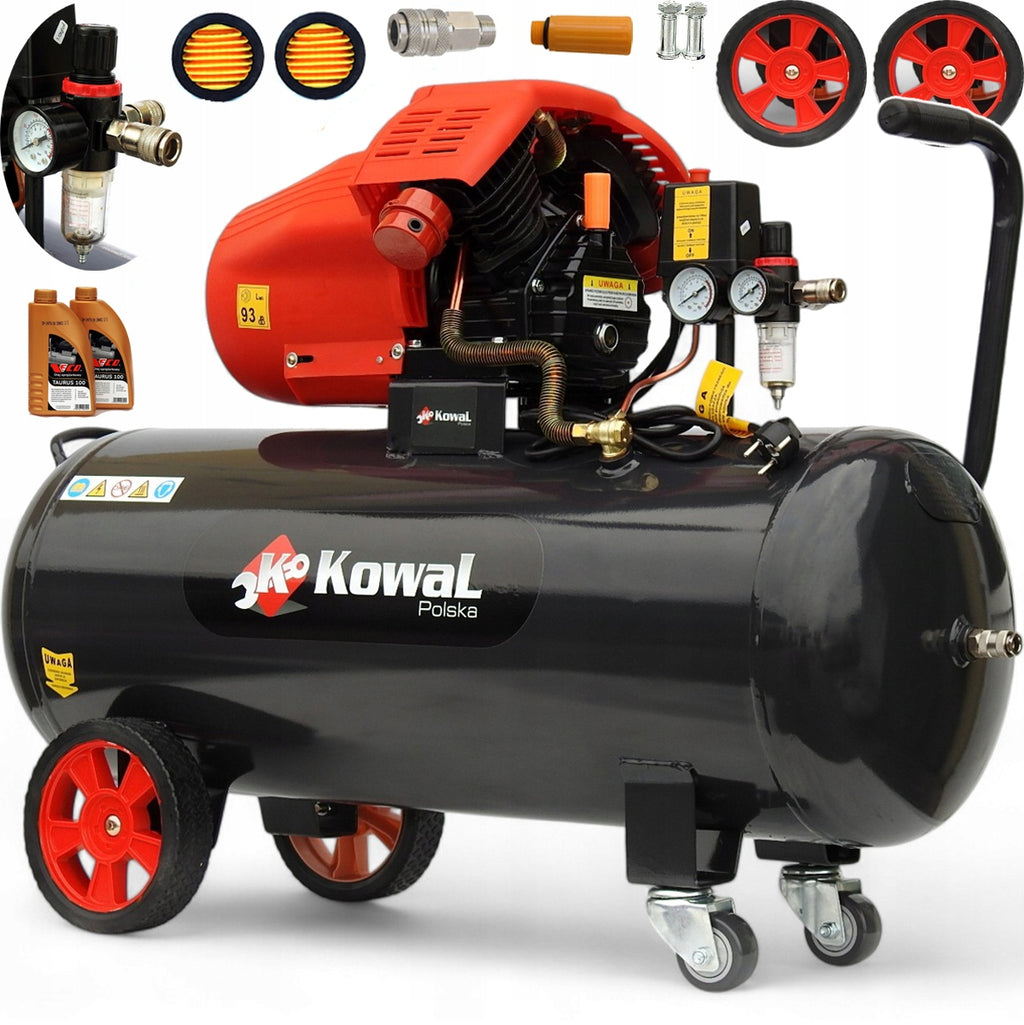

• 2 rubberized wheels
• 2 x swivel wheel
• 3 quick-connectors
• built-in dehydrator with reducer
• 2 x metal air filter with Hepa cartridge
• instruction PL
• 1 vent
• 1 infusion stopper
• 0,4 L of oil Ld-100 (2 x 0,2L or 1 x 0,4L)

- Increased engine power

- Copper motor winding

- Iron cylinders

- Built-in pressure reducer

- Large cooling turbine - quieter compressor operation

- Brushless motor

- Separator

• 2 pistons 48mm
• 3 rings
• cast iron cylinders
• steel valve plates
• Quiet operation
• increased piston stroke o compared to the previous model
• clear oil level indicator
• large vent with ball valve.

• better heat flow (heat dissipation) from the piston to the cylinder, which has an even better effect on the life of the compressor
• Sealing, i.e. preventing oil from entering the oil chamber into the cylinder!!

• overload protection
• enlarged cooling turbine
• induction motor - brushless
• copper motor winding
• Large, vane fan resulting in an even more efficient cooling system
• Efficient induction motor with overload fuse with max power consumption 3000 watt
• Additional second output for possible installation of another quick-connector with thread 1/2"

ONLY HERE!! ESSENTIAL COMPONENT FOR PAINTING WORK!

Every compressor in the set includes a separator with a water drain.

This component captures all impurities from the outlet air (water, oil, solid substances).

It has a large tank and a manual valve for draining condensate/impurities.

.

• Tank powder-coated with anti-corrosion protection
• Tank numerically welded by welding robots - please note the perfect weld quality!
• Tank with homologation!

• Thanks to this solution, you have access to a large and immediate amount of air, unlimited switch or filter.
• It is ideal for blowing, pumping truck tires, or powering large pneumatic wrenches
• the ideal solution for powering the most demanding pneumatic wrenches. Large unlimited airflow 10 atmospheres!!

• silence the compressor operation
• do not throttling the air flow
• do not melt for longer work
• increased resistance to mechanical damage
• super filtering HEPA cartridges!
• red or black color - we send randomly

Specifications
