Oro kompresorius BLACKSMITH K8, 100 l, 14 bar, aliejinis, stūmoklinis

Trumpai apie prekę

Prekė: Oro kompresorius BLACKSMITH K8, 100 l, 14 bar, aliejinis, stūmoklinis. Kategorija: Kompresoriai.

• Gamintojas: Kowal Polska
• Modelis: k8 14 Bar
• Galia: 3 kW
• Įtampa: 230 V

• + oils + filters + dehydrator + swivel wheel !

• New, improved design!
• enlarged valve seats for faster airflow
• Raised head heat sink
• increased compression ratio to 14 BAR
• enlarged diameter of the cooling turbine
• oil lubrication, spray lubrication
• 3 ring pistons with a diameter of 2x 65 mm + 1x 51 mm

• Height: approx. 85 cm
• length: approx. 110 cm
• Width: approx. 38 cm

This model has up to 4 quick-connectors! One of them is mounted directly at the cylinder, which allows for maximum airflow.

• Our compressor has a cylinder with approval with a real capacity of 100 Liters !
• tank dimensions: diameter 35 cm x length 105 cm
• tank wall thickness: 3,5 mm!!
• the max strength of the tank is up to 19,8 BAR!
• If you run a company under the supervision of a labour inspectorate, know that we add all documents to each compressor to be reported in UDT

His 100L cylinder punching times are:

1. from 0 to 8 bar = 2 min 35 s
2. from 0 to 10 bar = 3 min 20 s
3. from 0 to 12 bar = 4 min 05 s
4. 8,5 to 12 bar = 59 s

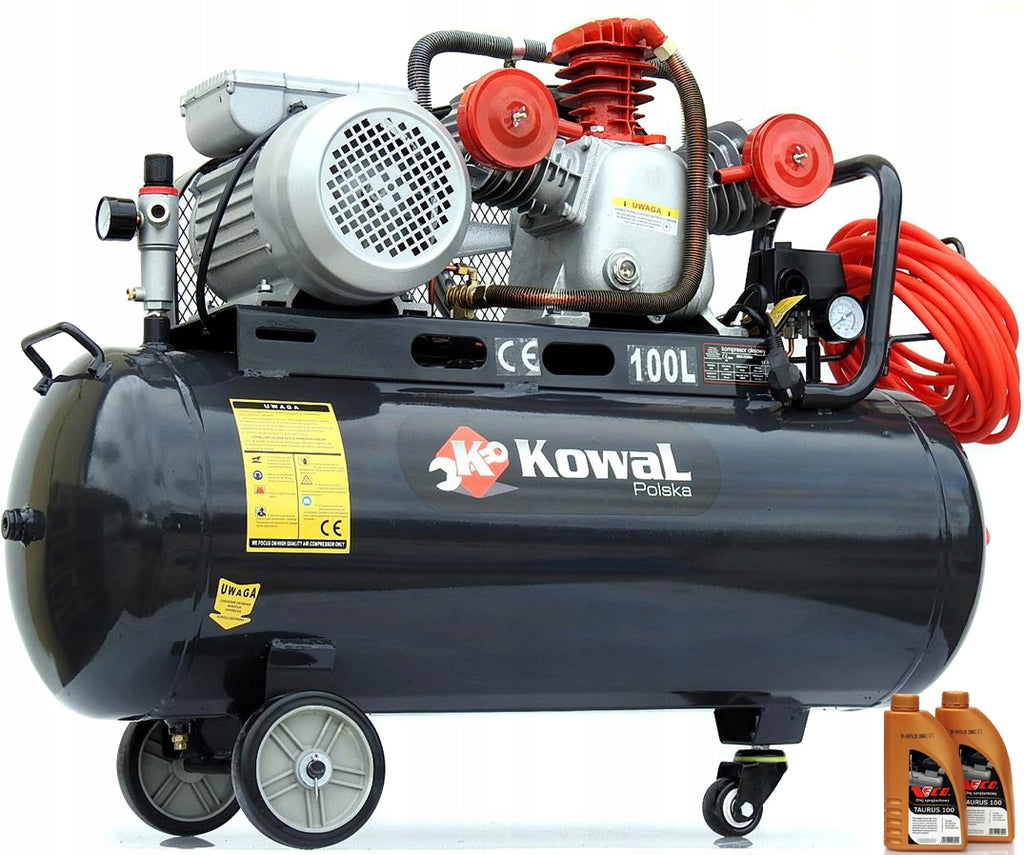

100L oil compressor from the renowned company KowaL Polska. It is about high engine power of 3000 watt. It will work perfectly in any workshop. It can drive various kinds of pneumatic tools, be used for spray painting, sandblasting, wheel pumping and find other applications.

Equipped with two readable pressure gauges showing pressure.

This model dissipates heat very well and is characterized by low energy consumption while maintaining high performance parameters.

The enlarged diameter of the turbine affects the high efficiency of air flow, in addition, it prevents the blockage of impurities.

In addition, it is equipped with wheels (2 fixed + 1 swivel) for easy and trouble-free movement.

Thanks to the application of the 3-piston motor, the device is adapted to intensive work.

The compressor additionally has a SEPARATOR - it retains water and oil in the blown air.

ONE OF THE BEST COMPRESSORS ON THE MARKET IN ITS CLASS

• max suction capacity: 600 L-min
• max working capacity: 360 L-min
• pump type: slow-rotating with punching piston
• max pump pressure: 14 bar
• Operating pressure: 12 bar
• Engine power: 3000 watt ( 3kw )
• Current protection required: C20
• tank: 100L
• number of working sockets: 4 quick couplers
• 230v/50Hz power supply
• Volume: 97 dB
• Weight: approx. 100 kg
• Piston system: W
• Number of pistons: 3
• Piston diameter: 2 x 65 mm + 1 x 51 mm
• pressure reducer: YES
• Dehydrator: YES
• built-in starting relaxer: YES
• induction motor: YES
• certificates: YES
• Declaration of conformity: YES
• built-in safety valve !
• equipped with 2 swivel wheels
• oil used: compressor LD-100
• 1 replacement after 5 hours, then every 50 hours
• lubrication: splash
• Cylinders: cast iron
• correct oil level: covered 3/4 slide
• Check the oil level before each start. If necessary, supplement its condition.

Our compressor as one of the few has 2 relaxers for easy start-up (start-up and end-up)

• 2 rubberized wheels
• 1 steering wheel
• built-in dehydrator with reducer
• 2 x metal air filter with hepa cartridge
• 4 quick couplers
• PL instruction
• 1 vent
• 1 infusion stopper
• 1 Liter of Ld-100 oil (in bottles or poured into a compressor)

- Increased engine power

- Copper motor winding

- Iron cylinders

- Built-in pressure reducer

- Large cooling turbine - quieter compressor operation

- Brushless motor

- Sturdy wheels allow for easy transport to the right place

- Separator

• duralumin pistons
• metal air filter housings
• 3 ring pistons
• cast iron cylinders
• steel valve plates
• Quiet operation
• Increased efficiency from 500 to 600 L/min!
• clear oil level indicator

• pump is much more viable and quieter
• reduced vibration levels
• less heated
• pump operation is neat, even and "pleasant to the ear"
• optimal crankshaft load
• there is no unexpected crank break on the killing piston

In addition, it is worth noting that the motor with the pump is connected by a belt transmission. This is a low-speed compressor because the number of engine revolutions is translated into about 1000 pump revolutions per minute. This significantly increases the service life of the entire unit while maintaining high pump efficiency.

• enlarged cooling turbine
• induction motor - brushless
• cast iron engine body!
• The large dimensions of the motor are a confirmation of its power, the winding of the motor entirely wound with copper wire which in combination with an overload fuse makes this motor an effective and reliable element of the compressor, which affects the quality of satisfaction during use.

Taking into account the weight and size of the compressor, KowaL Polska used a comfortable and most importantly solid transport handle!

• welded in two places (up/down) at the cylinder tube. Unlike other brands where the handle is welded only from the top at the cylinder
• perfectly centered and balanced handle
• handle made of high carbon steel
• does not tremble or make noise during operation
• No need to constantly tighten the screws!
• does not limit access to the switch and quick-connector
• is guided high and manoeuvring does not require excessive bending of the operator!
• and most importantly, it does not protrude behind the front outline of the cylinder, so it does not increase the volume of the entire compressor

• Thanks to this solution, you have access to a large and immediate amount of air, unlimited switch or filter.
• It is ideal for blowing, pumping truck tires, or powering large pneumatic wrenches
• the ideal solution for powering the most demanding pneumatic wrenches. Large unlimited airflow 10 atmospheres!!

• Hose diameter: 8 x 12 mm
• length 10 m
• made of PVC + silicone
• Internal reinforcement: YES
• 2 cuffed quick-connectors
• Operating pressure 12 Bar

ONLY WITH US!! AN ESSENTIAL ELEMENT IN PAINTING WORKS!

Each compressor in the set has a separator with a dehydrator.

This element captures all impurities from the exhaust air (water, oil, solids).

It has a capacious reservoir and a manual valve for condensate-pollution drain.

New, aesthetic colors! Powder coated cylinder!

• BRAND KowaL - 10 YEARS OF EXPERIENCE IN THE PNEUMATICS INDUSTRY, THOUSANDS OF SATISFIED CUSTOMERS
• CERTIFIED PRODUCT WITH UNINFLATED PARAMETERS
• CERTAINTY OF PROFESSIONAL ADVICE ON PURCHASE AND SERVICE
• WE HAVE OUR OWN SERVICE (AVAILABILITY OF ALL PARTS TO OUR PRODUCTS DURING WARRANTY AND POST-WARRANTY TIME)
• ONLY WITH US THIS CLASS PRODUCT AT SUCH A LOW PRICE WHICH WILL BE USED IN ALL CONDITIONS IN WHICH IT WILL WORK!
