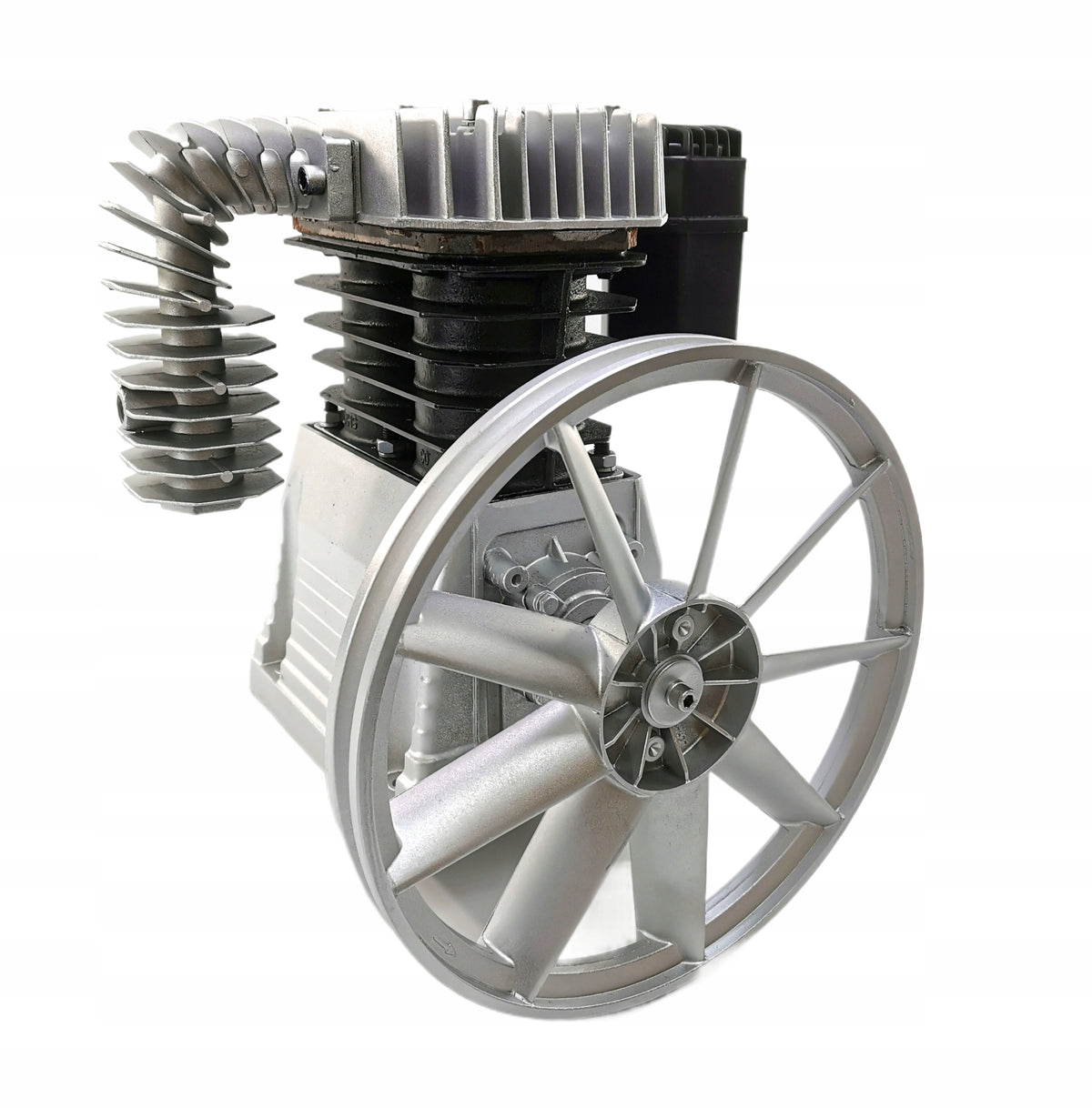

Oro kompresorius H2090, 2 cilindrų, Z2090 tipo, Italija, 970 l/min

Trumpai apie prekę

Prekė: Oro kompresorius H2090, 2 cilindrų, Z2090 tipo, Italija, 970 l/min. Kategorija: Kompresoriai.

• Gamintojas: Cyklon
• Modelis: C-APH2090
• Galia: 5 kW

Oil compressor from renowned pneumatic brand CYKLON

970l/min 2-piston

10 BAR H2090 "ITALY MODEL"

2 PARALLEL PISTONS IN THE H SYSTEM

PISTON DIAMETER 90MM

We present a solid two-cylinder air compressor. The device is equipped with an air filter with a double ventilation system - this solution allows you to achieve maximum efficiency from a relatively small compressor. The compressor is fitted with hardened, iron cylinders guaranteeing a long service life and efficient cooling of the compressor. In addition, the design has proven solutions to increase the cooling of the compressor m.in cooling radiators and cooling ribs on the heads, which our design is characterized by high resistance to mechanical damage and very good ability to dissipate heat to the environment.

Two-piston compressor with air efficiency at the input of 970l/min, in practice the compressor achieves up to 700l/min effective output efficiency.

The solutions used in this compressor made it possible to obtain higher pressure in the system both at the input and output from the compressor (Air Force In/Out technology). Plungers and rings were made of the highest quality materials. Cast iron cylinders and compressor heads are equipped with extended ribs,heat dissipation radiators have been installed on the pressure pipes connecting the cylinders,which translated into more efficient heat dissipation generated during the operation of the compressor – the whole structure was supplemented with a reinforced pulley along with blades placed on it cooling the entire structure.

The C-APH2090 model is characterized by more efficient cooling of the entire device and thus increased resistance to work in heavy and unfavorable conditions, thanks to which gained recognition among professionals using compressors in work related to painting, sandblasting, pumping and for all kinds of work using pneumatic devices.

• Reinforced pulley with compressor cooling blades during operation
• belt pulley HB-17
• efficient air filter
• forged connecting rods
• reinforced pistons and piston rings made of high quality materials - piston diameter 2x90 mm;
• iron cylinders
• iron compressor body
• enlarged ribbed for better heat dissipation
• pressure pipes with heat sink installed to support heat dissipation

The applied solutions enable the use of the compressor in work related to painting, sandblasting, pumping and for all kinds of work with pneumatic devices.

✔ Recommended min engine power: 4-5 Kw (5 - 6,5 HP)

✔ Recommended cylinder capacity up to 300 l

✔ Reliable performance EFFECTIVE: 700 l/min

✔ Max pressure: 10 Bar

✔ Number of cylinders: 2 x 90 mm

✔ Pulley diameter: 350 mm (17 mm V-belt)

✔ Mounting screw spacing: 185 x 175 mm

✔ Rotation: left looking from the side of the wheel

✔ Rotation: 800 - 1100 /min

Dimensions:

• Height: 440 mm
• Width: 350 mm
• Length: 400 mm

Diameter of connection thread: 27 mm

Unlike the competition, our pump model has a more expensive and advanced solution for a large canned air filter.

The compressor uses additional rheat dissipation support compounds, and thus a longer compressor life:

• reinforced pistons and piston rings made of high-quality materials reduce friction inside the cylinder, and thus its heating
• iron cylinders
• iron body compressor
• enlarged ribbed, which even better dissipates heat from the working device
• rpressure pipes with heat sink installed to support heat dissipation

• Compressor H2090 10 BAR
• belt wheel 350 mm
• complete air filter
• speculum
• air vent
• air pressure drain valve
• 2x LDAA 46 compressor oil

Selection of pulley:

The pulley should be selected based on the engine speed and the required compressor speed.

The following formula is used:

Ds = (Dc × RPMc) / RPMs

where:

• Ds - diameter of pulley on engine
• Dc - pulley diameter on compressor
• RPMc - compressor speed
• RPMs - engine speed

Example:

Suppose we have a compressor with a rotational speed of 900 RPM (turns per minute) and a pulley with a diameter of 250 mm. The electric motor has a speed of 1800 RPM. We calculate the diameter of the pulley for the engine:

Ds = (250 mm × 900 RPM) / 1800 RPM = 125 mm

In this case, the appropriate diameter of the pulley on the engine is 125 mm.

Remember that these values are examples, and in fact they should be adapted to the specifications of a specific engine and compressor.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Cyklon
Parametry	Manufacturer code	C-APH2090
Parametry	Type	oil compressor
Parametry	Kind	piston compressor
Parametry	Engine power	6.5 KM
Parametry	Power	5 kW
Parametry	Theoretical output	970 l/min
Parametry	Effective capacity	700 l/min
Parametry	Maximum pressure	10 bar
Parametry	Tank capacity	300 l
Parametry	Device weight	29 kg
Parametry	Tank system	horizontal
Parametry	Power supply	mains
Parametry	Product weight with unit packaging	30 kg
Parametry	EAN (GTIN)	5906630546299
Parametry	Model	C-APH2090
Parametry	Batteries included	no
