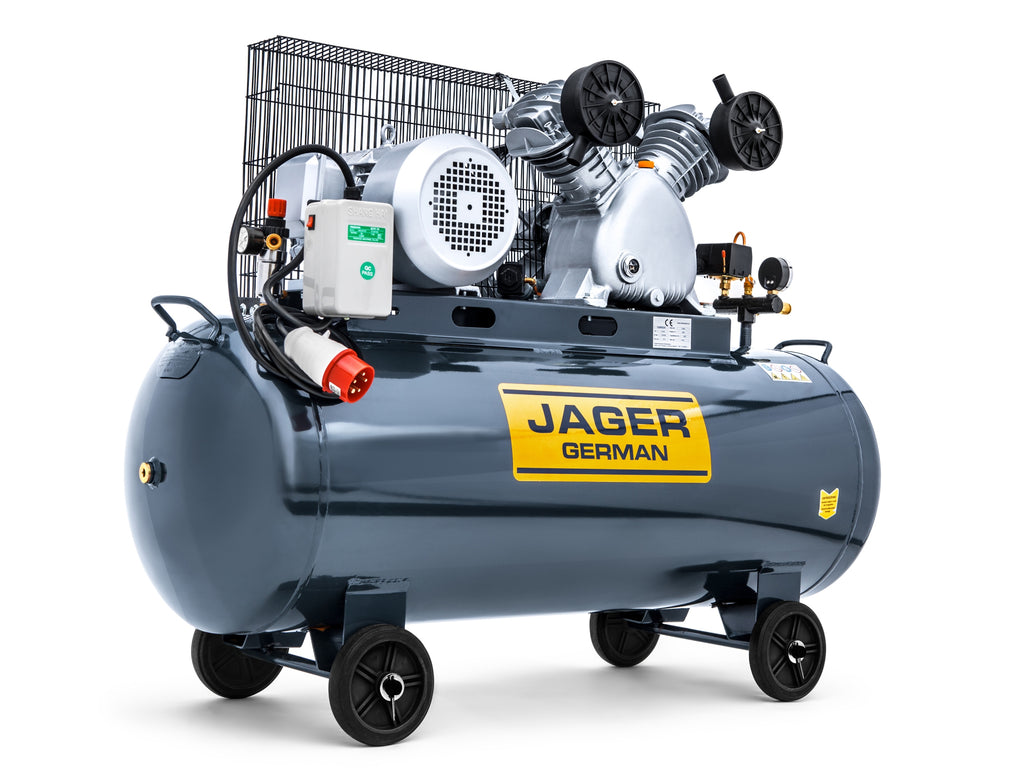

Oro kompresorius Jager 200 l, 789 l/min, 400 V, vokiečių

Trumpai apie prekę

Prekė: Oro kompresorius Jager 200 l, 789 l/min, 400 V, vokiečių. Kategorija: Kompresoriai.

• Gamintojas: Jager German
• Modelis: Jager German ZR
• Galia: 4 kW
• Įtampa: 400 V

Compressors, compressors brand JAGER GERMAN.

Model, trade name: Jager ZR

New Strong Model!

Watch the TEST / Review on youtube!!!

this compressor on:

youtube jager german.

Enter in the youtube search engine:

test review comparison of compressors 100l piston jager german compressor

Watch the TEST / Review on youtube!!!

this compressor on:

youtube jager german.

Enter in the youtube search engine:

test review comparison of compressors 100l 3 piston jager german compressor

Why piston compressors should not use pressures above 8 bar.

10 bar / 12,5bar or more is a WADA and problems and not an advantage!!!

First of all.

The vast majority of paint guns have the maximum pressure needed to work from 1,5 to 3,5 bar. Exceeding this pressure in such a gun can damage it.

Impact wrenches to operate e.g. passenger cars or BUS up to 3,5 tons. It has maximum working pressure!!! 6,3 Bar. Exceeding this pressure in such a key can damage it.

The same applies to compressor-powered tools such as:

- grinders

- pneumatic lifts,

and any other pneumatic equipment used in the workshop. Check for yourself in the technical data of the device you want to buy!

In a word, working pressure 8 bar. Satisfies with stock, the needs of 99% of devices in the company and home workshop.

Second, the.

Air temperature in cylinder.

Air compression, e.g. up to 10 or extreme!!! strongly 12,5 bar very strongly raises the air temperature in the tank. This is a serious flaw!

In our compressors, thanks to the use of high-quality materials, the average temperature of air pressed in the cylinder is on average below 37*C.

If when compressing air up to 8 bar we have such a temperature, how much higher is it when we compress the air in the tank to an even higher temperature???

Our research shows that:

With air compression up to 12,5 bar. The air temperature, very often, exceeds 80*C!!!

In the warranty records of pistols, keys of other devices listed above. Most often there is a prohibition of air supply with a temperature exceeding 60*C

Above this temperature, the devices used are mechanically damaged. min. seals. Damage caused in this way is not covered by the warranty. Such equipment is only suitable for throwing away.

Third, the one.

At such a high temperature in the tank, the heated air does not cool down and all the water vapor contained in the air goes to the paint gun, key or other devices. Destroying them corrosively. In the case of e.g. Paintings appear paint defects.

In our tank air at a lower temperature, the difference reaches nearly 100% - dehydrates. In the form of condensate in the tank. Thanks to this, we get incomparably better air for use with tools. Practically devoid of water vapor, water.

Fourth, the.

The air pump head at a pressure of 12,5 bar is heated so that you can get burned from it.

The pumps are heavily overheated and have a shorter service life. The oil works at huge temperatures very quickly losing its properties. Pumps are forced to work at the limit of their endurance. Their durability is usually very low.

Therefore, pressures above 8 bar should not be used in reciprocating compressors.

10 bar, 12,5bar or more is a disadvantage and not an advantage!!!

The tanks are made of thick, certified sheets

steel from the best steelworks.

High tightness and accuracy welding is ensured by

automated welding robots that are controlled

numerically.

In our compressors, we use the latest technology

cast iron, compressor pumps.

We use branded accessories, the most recognized European

suppliers

Strong and strong!!!

Electric motors, meet the latest and strictest requirements

technical standards set by European Union and Polish Standards.

All you need is a C-16 fuse in the switchboard!!!

Thermal motor protection - built-in automatic fuse!!!

Advanced design and thoughtful design.

Designed for paid work in the workshop!!!

Technical parameters:

Power supply from the socket - strength. 16A cable and plug - 5 pin.

Reservoir – 200 litres

Power supply voltage – 400V / 50 Hz

Maximum tank pressure - 10 BAR

Pump operating pressure - 8 BAR

Engine power - 4 kW – 5,44 HP

Theoretical efficiency – 789 l/min

Test performance effective from 0 to 8 bar – 510 l/min

Test real performance, effective on blowing on the finish - 640 l/min.

Engine speed – 2820 rpm

Pump rotation – slow-rotating type

Sound pressure level - 82,4 dB (A)

Acoustic power level - 97 dB (A)

You get:

• Compressor
• Safety switch
• 4 quick couplers
• Air reducer
• Air filters
• One pressure gauge showing pressure.
• The drain valve of accumulated water in the tank.
• Two outputs directly from the tank
• Four very large, comfortable wheels.
• A comprehensive instruction manual in Polish.
• Complete documentation for trouble-free registration with UDT - Office of Technical Inspection.

Maximum Efficiency. New pumps with reduced internal resistance. And in them new larger crank-piston systems. All for even greater efficiency.

Maximum Power. The latest solutions in the field of energy saving. New energy-efficient motors that use even less electricity. The new 4 kW engine perfectly replaces the old 3 kW units. You no longer have to worry about whether your electrical system will withstand it.

Maximum of your safety. They guarantee original, branded safety valves. .

New electric motor. Unit in class A. More than 30% lower energy consumption compared to its predecessor.

Maximum Durability. Even lower turnover! The new low-rotation pump with two cylinders in the V system. Now needs even lower revolutions to continue to provide the highest parameters and maximum durability.

High quality equipment. Additional ubiquitous heat sinks, excellently distribute the accumulated heat from the most sensitive components of the pump and engine.

Additional radiators have wires and a new technology of casting cast iron pumps.

The latest thermal and electrical protection of the engine.

New generation, energy-saving motor (Ver. 2.0 ) high power and high efficiency - 4 kW. It replaces the old solution. The current, very successful and praised engines from previous models are replaced by a new, energy-efficient unit in class A.

You no longer have to wonder if it will break fuses in your electrical switchboard.

Very low air temperature discharged into the cylinder.

New tanks and new anti-corrosion protection inside the tank.

The latest generation of environmentally friendly varnishes.

You certainly get the best solutions in the latest version.

The technical data of our compressors are given real, certified and measured operating parameters.

Compressor for professional and home use.

Each purchased compressor has complete documentation, required by law, including by the Office of Technical Inspection (UTT).

The set of documents required for the registration of the compressor, by UDT, consists of six (6) different documents, two attachments, Without these documents UDT refuses to register the compressor and additionally, at a later time, during an inspection or accident, you risk being excluded from work, with full responsibility to the National Labour Inspectorate and the Office of Technical Inspection.

Exposing yourself and the employee to work with a dangerous tool: compressor, compressor threatens financial and criminal liability, up to two years for the employer.

When purchasing a compressor, make sure that the compressor offered has all six required documents. This is very important!!! Do not buy a compressor without proper documentation. It's dangerous.

By purchasing a compressor, a compressor offered by STOKEXPRES, you can be sure that you are investing in the safety of yourself and your employees.

Compressors offered by STOKEXPRES, undergo several times a year, additional tests hydrodynamic, strength, tightness, organoleptic. The tests are taking place in our country - Poland. They are performed by independent, authorized, certified research units with authorizations and certificates, granted, among others, by the Institute of Welding in Poland as part of the Polish Centre for Accreditation, the Office of Technical Inspection, the Office of Transport Technical Inspection. Relevant licenses granted by the Ministry of Infrastructure,

You are sure.
