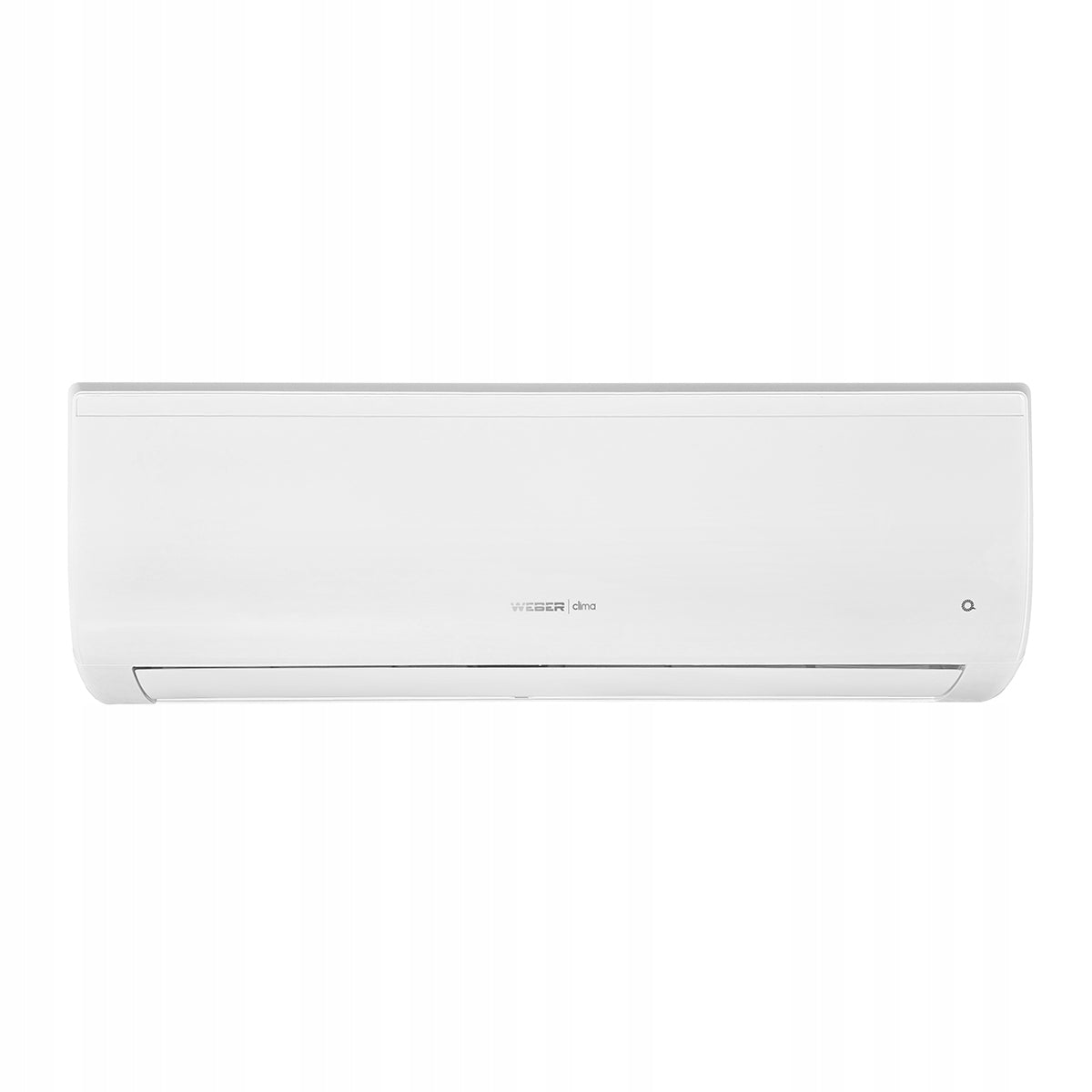

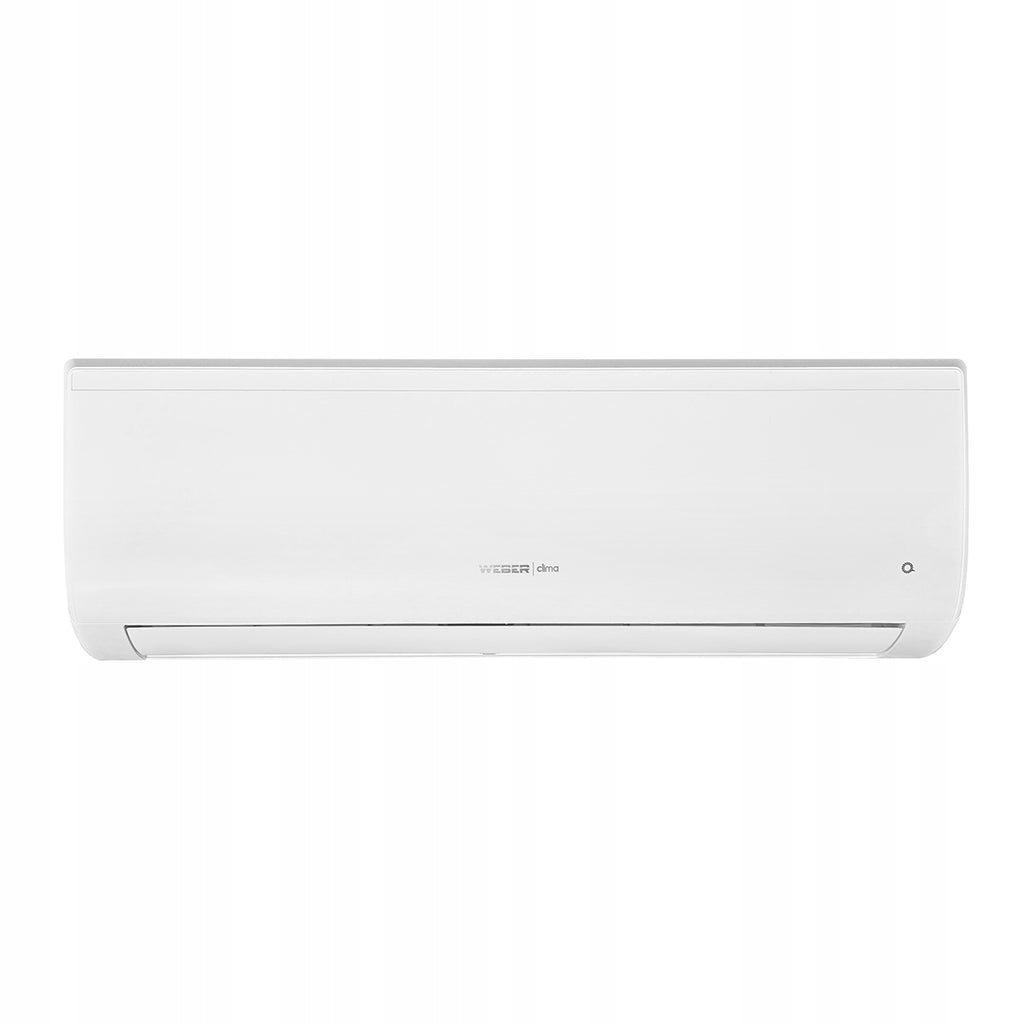

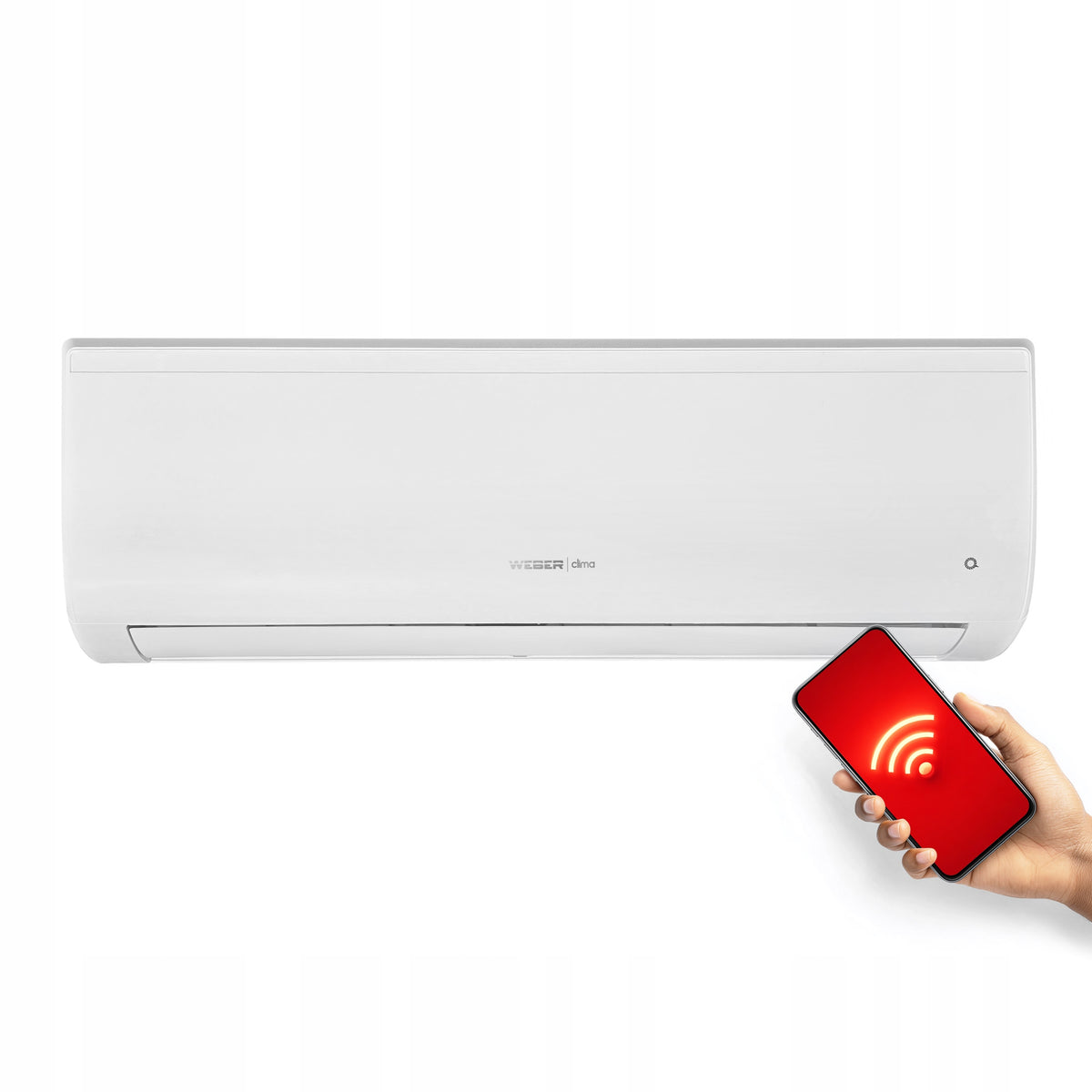

Oro kondicionieriaus vidinis blokas WEBER CLIMA MULTI Q 3,4 kW

Trumpai apie prekę

Prekė: Oro kondicionieriaus vidinis blokas WEBER CLIMA MULTI Q 3,4 kW. Kategorija: Oro kondicionieriai.

• Gamintojas: Weber
• Modelis: 05010251

Index: 05010251

The Multi split air conditioner is used to cool or heat several rooms at the same time using a common outdoor unit. This offer applies to the internal unit itself.

RELEVANT INFORMATION

The WEBER CLIMA MULTI air conditioner is a device used to ensure adequate comfort of use of rooms by cooling, heating, drying or forcing air circulation.

The multi split air conditioner provides adequate operating conditions in several rooms at the same time, using several indoor units and one central outdoor unit.

This solution allows independent temperature settings in each room, but in one selected mode (heating or cooling).

The number and type of indoor units of the WEBER CLIMA MULTI Q air conditioner should be selected each time according to the needs of the room for cold / heat. After selecting the indoor units, proceed to select the appropriate power of the outdoor air conditioning unit. Remember that the device is used to heat rooms and it is not recommended to use it as the main source of heating of the building, because its heating power decreases with lowering the external temperature.

The indoor unit of the multi split air conditioner WEBER CLIMA MULTI Q with a capacity of 3,4 kW is designed to provide temperature comfort in rooms with an area of up to 35 m². However, it is recommended to calculate the real demand for heat/cooling each time, taking into account the thermal insulation of the room and its exposure to sunlight.

Detailed technical data of the air conditioner are provided in the product grille.

SELECTION OF UNITS

The outdoor unit WEBER CLIMA MULTI 5,1 Q can handle the following configurations of indoor units:

• 2 x 2,6 kW
• 1 x 2,6 kW + 1 x 3,4 kW
• 2 x 3,4 kW

The outdoor unit WEBER CLIMA MULTI 7,9 Q can handle the following configurations of indoor units:

• 3 x 2,6 kW
• 2 x 2,6 kW + 1 x 3,4 kW
• 1 x 2,6 + 2 x 3,4 kW
• 3 x 3,4 kW

Please note that when selecting configurations with the highest power of indoor units, their power may be slightly lower than 2,6 and 3,4 kW respectively.

MAIN FUNCTIONS OF THE INTERNAL UNIT WEBER CLIMA MULTI Q

• Cooling, heating, dehumidification, circulation mode

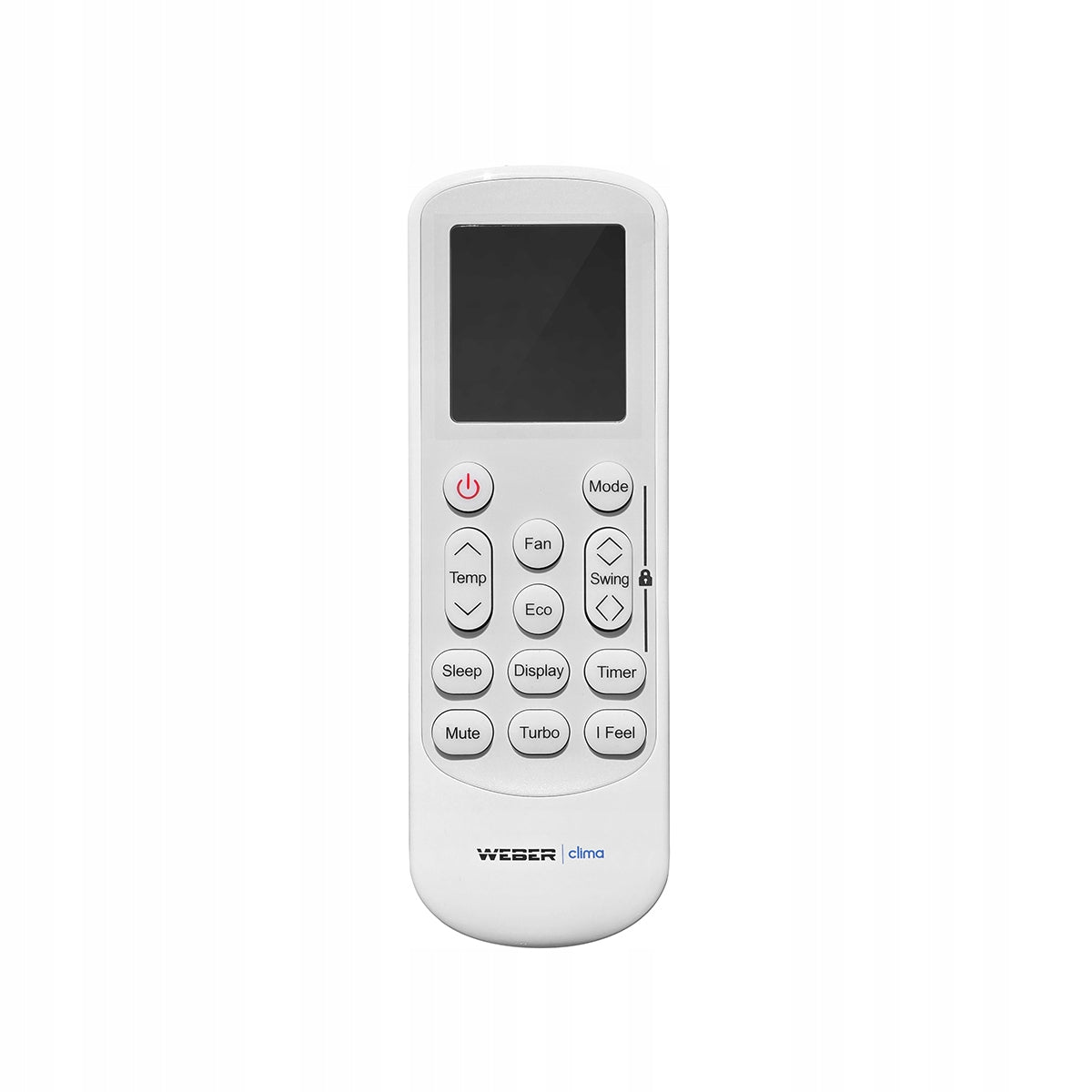

• Control from the remote control
• Control via WI-FI
• Timer and sleep mode
• Temperature setting
• Fan power setting

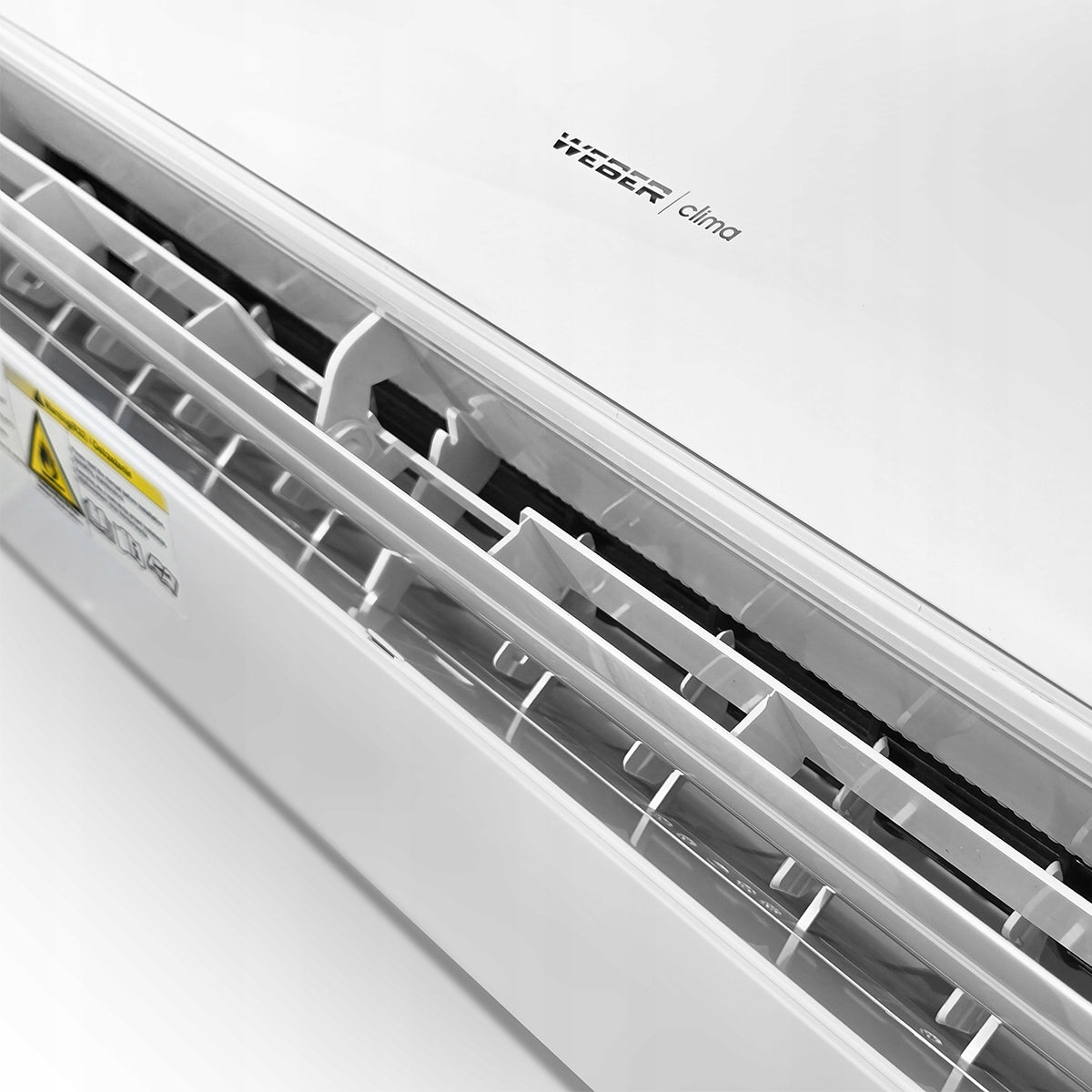

• Automatic adjustment of horizontal and vertical blades
• Energy saving mode
• Turbo mode

MAIN ADVANTAGES

• Possibility of controlling from the phone
• Quiet operation
• Control of airflow and airflow direction
• Inverter technology
• High energy efficiency
• Intuitive operation
• Access to spare parts
• Hygiene certificate of the National Institute of Hygiene

TECHNICAL PARAMETERS

• Model: AKL-12DUI
• Power of the device: 3,4 kW
• Air conditioner type: Weber Clima Multi Q (one. internal)

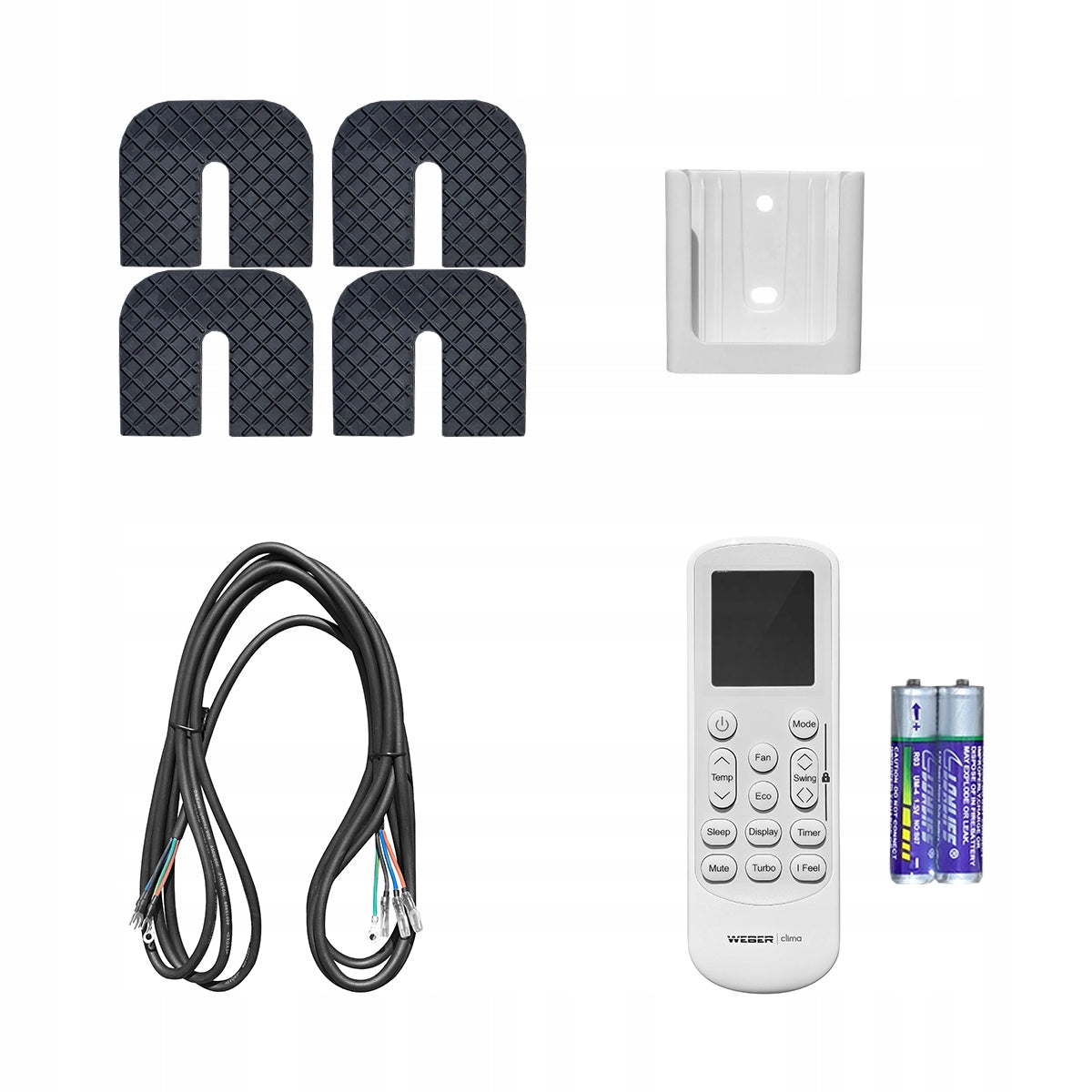

• Package contents: Pilot + WiFi
• Rated input power: 35 W
• Maximum cooling area: up to 35 m²
• f/V/Hz power supply: 1/220-240/50
• Internal dimensions (W) x H x depth. ): 758 x 205 x 247 mm (net)
• Internal dimensions (W) x H x depth. ): 840 x 315 x 260 mm (gross)
• Energy class: A++
• Weight: 7,5 kg
• Color: White

SALES AND INSTALLATION OF DEVICES CONTAINING F-GASES

Pursuant to Regulation (EU) No 517/2014 and the amendment to the Act on SZWO and F-gases of 12 July 2017 (consolidated text Journal of Laws 2017 item 1951), the following provisions apply to air conditioning and refrigeration equipment, including heat pumps, containing F-gases:

NOTE

Portable air conditioners and monoblock heat pumps can be purchased without additional pre-purchase activities. If you place an order in a swatt warehouse or through our allegro account. Orders are not subject to any additional requirements as long as the buyer does not interfere with the refrigeration system.

Type split - Purchase of devices by natural persons

The purchase of split air conditioners and split heat pumps can be carried out only after the buyer has sent the scan an assembly agreement concluded with a company with an appropriate certificate for enterprises. The shipment of goods takes place after verification of the correctness of the contract. Failure to send the contract is tantamount to resignation from the purchase due to the fault on the part of the buyer. Access to companies with appropriate authorizations can be found here: udt.gov.pl/wykazy/REJ_ZAKL_UPR_FG.html

Due to the restrictive compliance by our company with the provisions of Regulation No. 517/2014 and the Amendment to the Act on SZWO and F-gases of 12 July 2017 (consolidated text Journal of Laws 2017 item 1951), the time of execution of orders covering air conditioning equipment and heat pumps may slightly increase due to the need to verify documents (statements,

Type split - Purchase of devices by installation companies certified F-Gaz

The purchase of split air conditioners and split heat pumps can only be carried out after the buyer has sent an active F-Gas certificate number for enterprises, which is issued identical to the data on the invoice.

Type split - Purchase of devices by companies not certified F-Gaz

The purchase of split air conditioners and split heat pumps can only be carried out after the buyer has sent a statement that the devices are intended for further resale or an assembly contract with a company with an appropriate certificate for enterprises.

A model statement regarding the sale and installation of devices containing f-gases can be downloaded in the auction link under the name guide.
