Oro kondicionierius Bosch Climate 5000 Multi-Split, 7,9 kW, 3 vidiniai blokai

Trumpai apie prekę

Prekė: Oro kondicionierius Bosch Climate 5000 Multi-Split, 7,9 kW, 3 vidiniai blokai. Kategorija: Oro kondicionieriai.

• Gamintojas: Bosch
• Modelis: 8733500812

Interior units should be purchased for the air conditioner on their own up to 3 pieces - depending on the demand.

Are you looking for a reliable way to keep your home at the perfect temperature without disfiguring the facade with multiple devices? The Bosch Climate 5000 MS aggregate with a powerful 7,9 kW power will handle as many as three air conditioners at once, guaranteeing pleasant relief on hot days and cheap heating in winter.

It is an investment in the highest comfort, peace of mind and noticeably lower bills for many years.

Forget about devices that give up at summer temperature records. This model guarantees stable operation in cooling mode even when there is +50°C outside! Thanks to the DC Inverter technology, the device smoothly adjusts the power to current needs, which translates into a high energy class A++.

This means a powerful cooling capacity (7,9 kW), which you will connect to the standard 230V power supply, avoiding costly and problematic conversion of the installation to "force" (three-phase).

✴ Premium class without overpayment:

The air conditioner offers the same parameters and quality as the most expensive Japanese brands, but it is much more affordable.

✴ Reliability in extreme heat:

Unlike cheap devices, it works very quietly and does not overheat – it works without any problems even when the temperature outside reaches 50°C.

✴ Confidence for years:

Bosch is a solid, proven brand. You can be sure that the equipment will last for years, and the manufacturer will not suddenly disappear from the market, leaving you without service or spare parts.

✴ Summer cooling and efficient heating in winter:

The device is perfectly matched to polish weather. Great cooling in hot weather, and on colder days it acts as a fuel-efficient heat pump, effectively heating your apartment.

✴ Savings:

Class A++ and intelligent power management (Gear function).

✴ Health:

Biofilters and HD Filters: Remove dust, pollen and unpleasant odors, taking care of the health of household members.

✴ Aesthetics and Convenience:

One unit instead of three,

✴ Remote control:

The system works with the Bosch HomeCom Easy application (iOS / Android) via the optional IP Gateway G 10 CL-1 (cat. no. 7736604125 - bought separately). Capabilities: changing modes, temperature, schedules, monitoring of energy consumption, error notifications.

✴ Self-Cleaning Function:

Prevents the growth of mold and bacteria inside the device.

✴ Split air conditioner:

Therefore, it can not only cool, but also heat. It can also dehumidify the air and filter airborne particles.

☑ Gear Mode:

The unique energy saving functioni. Allows the user to "rigidly" limit the compressor power to 50% or 75%. This is ideal when other devices with high power consumption are operating at home and we want to avoid "breaking the traffic jams", or when we want ultra-efficient work.

☑ Turbo mode:

Immediately increase the efficiency of the compressor and fans to the maximum, to cool the heated room in a few minutes when you return home.

☑ Sleep mode:

Intelligent temperature curve – the system gently raises (in cooling mode) or lowers (in heating mode) the temperature, preventing the body from cooling or overheating during sleep and saving energy.

☑ Follow Me:

Temperature sensor built into the wireless remote control (the remote is not included). Traditional air conditioners measure the temperature at the ceiling (in the indoor unit), where the air is warmer. Follow Me tells the system to follow the reading from the remote control, which ensures the ideal temperature exactly where the user is.

☑ Silent Mode:

Ideal for the night – the unit works almost inaudibly, taking care of your sleep.

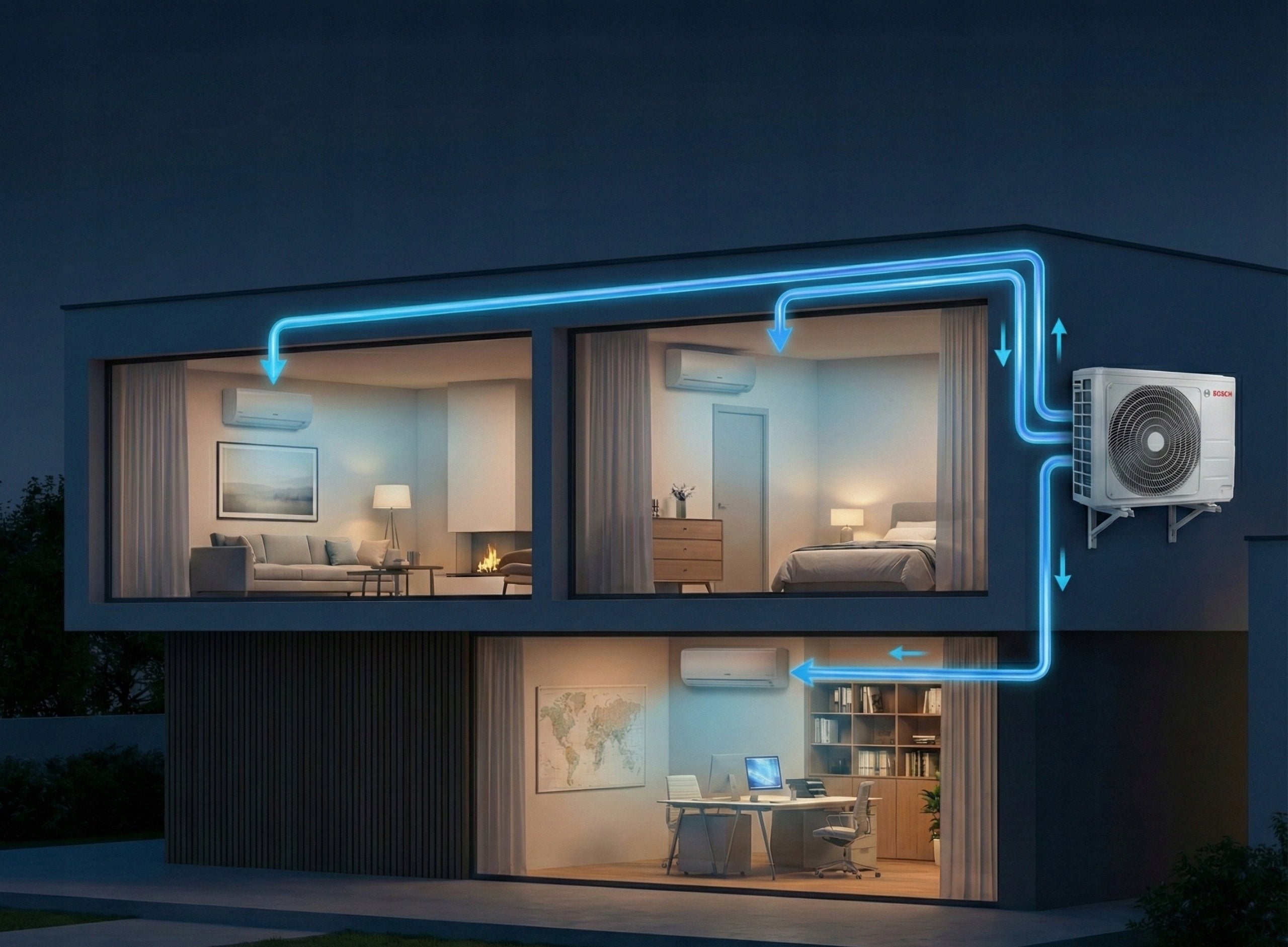

The Multi-Split system, whose heart is the discussed outdoor unit, is a solution dedicated to facilities requiring independent climate control in many rooms while reducing interference with the body of the building.

✴ Reduction of mounting space:

Replacing three separate units with one allows to maintain the aesthetics of the facade, which is crucial in modern construction and in facilities under conservation protection.

✴ Power Centralization:

The system requires power supply to only one point outside the building, which simplifies electrical installation and reduces material costs.

The heat exchanger of the outdoor unit is covered with a special protective coating (often referred to as Golden Fin or Blue Fin depending on the production batch and model).

☑ This coating is hydrophilic

facilitates water runoff, accelerating defrosting and resistant to corrosion caused by acid rain and salinity of air. This protects aluminum from oxidation, which in low-cost devices leads to a drastic decrease in performance after 2-3 years.

☑ Degree of Protection:

❗ IP2X:

Protection against access to hazardous parts by hand (safety of the service).

❗IPX4:

Protection against splashing water from any direction. This means full resistance to jamming rain, which allows installation on unshielded facades or flat roofs.

Precise power adjustment to the needs, which translates into quieter operation and longer compressor life.

High SEER/SCOP indicators are due to advanced compressor control. Inverter technology enables smooth power modulation.

✴ Unlike ON/OFF systems that operate "zero-one", the Bosch 27 OUE adjusts the compressor speed to the current demand.

✴ When the room temperature approaches the desired temperature, the system slows down, drawing a minimum amount of energy, which eliminates power-hungry start-up cycles and stabilizes the temperature with an accuracy of +/- 0,5°C.

With its advanced inverter technology, the device precisely selects the power to suit your needs. It does not waste energy on continuous on and off. The result? Energy class A++ for cooling and A+ for heating. Your bills will thank you.

Thanks to the energy class A+ and SCOP 4.0, you get up to 4 kWh of heat from 1 kWh of electricity. Heating with this system is up to 4 times cheaper than traditional current heaters!

Biofilters remove odors, dust, smoke, and pollen, ensuring fresh and healthy air.

Breathe fully, knowing that your air is free from hazards. In combination with the Climate series indoor units (especially the 5000i line), the system ensures the highest hygiene. The patented i-Clean technology automatically freezes and heats the evaporator up to 56°C. This sterilization process eliminates 99% of bacteria, viruses and mold from inside the device.

In a duo with HD filter and catalytic filter, the device effectively gets rid of dust, pollen and unpleasant odors – it is an ideal solution for allergy sufferers and families with young children.

The heat of the century? Bosch cools without shortness of breath even at +50°C. Cold winter? The device will effectively heat your home even at -15°C. This is a special task equipment that you can rely on all year round.

Most of standard air conditioners have an upper limit of work at the level of +43°C or +46°C. In urban conditions, with heated facades or roofs covered with pap, the local temperature often exceeds these values, which leads to the shutdown of cheaper devices (high pressure switch operation) exactly when they are most needed.

Noise is one of the key parameters determining comfort.

✴ External Unit:

The sound power level (LWA) is about 67 - 68 dB. However, it is worth distinguishing between acoustic power (source energy) and sound pressure (what we hear at a given distance). Sound pressure at a distance of several meters is much lower (approx. 53-56 dB(A) ), which corresponds to the level of silent conversation or background noise in the office. Specially profiled fan blades and inverter compressor drive eliminate the hassle of humping.

✴ Silent Mode :

The ability to reduce the fan speed of the outdoor unit at night, so as not to disturb the peace of neighbors.

The device works on a modern, ecological factor R32. It is more efficient (cools faster) and more environmentally friendly than old gases.

This is a key value in the context of EU F-gas regulation. R32 has GWP three times lower than R410A (GWP 2088). Thanks to this, this device is "future-proof" - will not be subject to service restrictions or high environmental fees in the coming decades, which is the case with systems based on older gases.

Prevents the growth of mold and bacteria inside the device.

This is an advanced evaporator self-cleaning process:

1. Freezing: The system intensively cools the exchanger, causing frosting that binds dust, bacteria and fat.

2. Distraction: There is a rapid thawing, and flowing water flushes out impurities into the drip tray.

3. 56°C sterilization: In the last phase, the exchanger is annealed to 56°C for a specified period of time. This temperature effectively denatures the proteins of most bacteria and viruses and prevents mold growth inside the device.

The main board of the outdoor unit constantly monitors the gas circulation. If it detects a pressure drop/leakage, the system interrupts operation and displays an error code, protecting the compressor from burning.

Most competing units with a power close to 8-10 kW often require three-phase power supply, which generates additional costs for adapting the electrical system. Bosch MS 27 OUE remains in the 230V standard, which is a great modernization facilitation.

The 27 OUE outdoor unit is a universal platform that works with a wide range of Climate series indoor units:

- Wall Mounted: Climate 3000i / 5000i / 6000i models – the most popular, aesthetic.

- Cassette (Cassette): Compact (60x60) for suspended ceilings, ideal for offices.

- Ducted: Built-in G-K ceilings, allowing you to completely hide the installation.

- Consoles: Mounted at the floor, resembling radiators, perfect for rooms in attics with bevels.

1. Outdoor unit Bosch Climate 5000 MS 27 OUE.
2. Factory filling with R32.
3. User manual in Polish.

The graphic shows the outdoor unit of the Bosch air conditioner from four different perspectives. The device is presented on wooden pallets, which makes it easier to imagine its real dimensions.

The exact physical parameters shown in the picture are:

• Width: 87,5 cm
• Height: 70 cm
• Depth: 36 cm
• Weight: 53 kg

The solid weight of the device indicates the use of large heat exchangers and a solid housing

For comparison, budget units of similar power can weigh less than 45 kg, which often results from the "weight loss" of copper in exchangers, which negatively affects efficiency and durability.

• Manufacturer: Junkers Bosch
• Model: CL5000 MS 27 OUE air conditioner, Multi-Split outdoor unit
• Article number: 8733500812
• EAN: 4057749948823
• Cooling power: 7,9 kW
• Heating power: 8,2 kW
• ErP Product Data Sheet / as an attachment
• Manufacturer Guarantee
• Electrical power consumption in cooling mode: 3,22 kW
• Heating power: 8,2 kW
• Heating power (min): 2 kW
• Heating power (max. ): 9,4 kW
• Power consumption in heating mode: 2,89 kW
• Height: 702 mm
• Width: 875 mm
• Depth: 363 mm
• Net weight: 53 kg
• Working temperature cooling (min): -15°C
• Working temperature cooling (max. ): 50°C
• Working temperature heating (min): -15°C
• Working temperature heating (max. ): 24°C
• Outdoor unit sound pressure level cooling: 54 dB(A)
• Outdoor unit sound power level cooling: 67 dB(A)
• Outdoor unit sound power level heating: 67 dB(A)
• Liquid Conductor Outer Diameter: 3 x 1/4 inch
• Outer diameter of suction hose: 3 x 3/8 inch
• Maximum total pipe length: 60 m
• Maximum height difference between indoor unit and outdoor unit: 15 m
• Fill quantity Refrigerant: 12 g/m³
• System voltage: 230 V
• Power connection: 1 phase
• Power supply: 50 Hz Operating current (cooling, max. ): 14,3 A
• Working current (heating, max. ): 12,9 A
• Energy efficiency class (cooling): A++
• Energy efficiency class range: from A+++ to D
• Energy efficiency (cooling, SEER): 6,1
• Design efficiency (cooling): 7,9 kW
• Energy efficiency class (heating, medium climate): A+
• ZEnergy efficiency class range: from A+++ to D
• Energy efficiency (heating, SCOP): 4,0
• Design efficiency (heating, medium climate): 5,7 kW
• Sound pressure level (cooling, max. ): 55 dB(A)
• Acoustic power level (cooling, max. ): 67 dB(A)
• Environmental information: Contains fluorinated greenhouse gases
• Type of refrigerant: R32
• Global warming potential (GWP) of refrigerant: 675 kg CO₂-eq
• Amount of refrigerant: 1,72 kg
• CO₂ equivalent in refrigerant quantity: 1,161 to CO₂-eq
• Refrigerant circuit design: Non-hermetically sealed
• Manufacturer: Bosch Thermotechnik GmbH
• Number: 8733500812
• Package dimensions: 965 x 395 x 765 mm
• Total weight with packaging: 56,5 kg

According to the current legislation, the sale of devices containing FGC to end users (not having F-gas certificates) can take place only on the basis of the presented contract for the installation of the purchased air conditioner with an installation company with the appropriate certificate (F-gas).

• Statement of intended use for further resale
• installation agreement with an installation company or installer with FGAZ privileges

• installation agreement with an installation company or installer with FGAZ privileges.

Before buying, please read the regulations (included in the tab) regarding the sale of wall air conditioners with mounting kits. The buyer placing the order declares that he has read the regulations.

Without providing an appropriate statement, it is not possible to purchase products covered by the F-gas Act (non-hermetically sealed).

Downloadable statement in the attached guide.
