Oro kondicionierius KAISAI PRO HEAT+ 7,0 kW

Trumpai apie prekę

Prekė: Oro kondicionierius KAISAI PRO HEAT+ 7,0 kW. Kategorija: Oro kondicionieriai.

• Gamintojas: Kaisai
• Modelis: KRW-24TLHI/KRWB-24TLHO

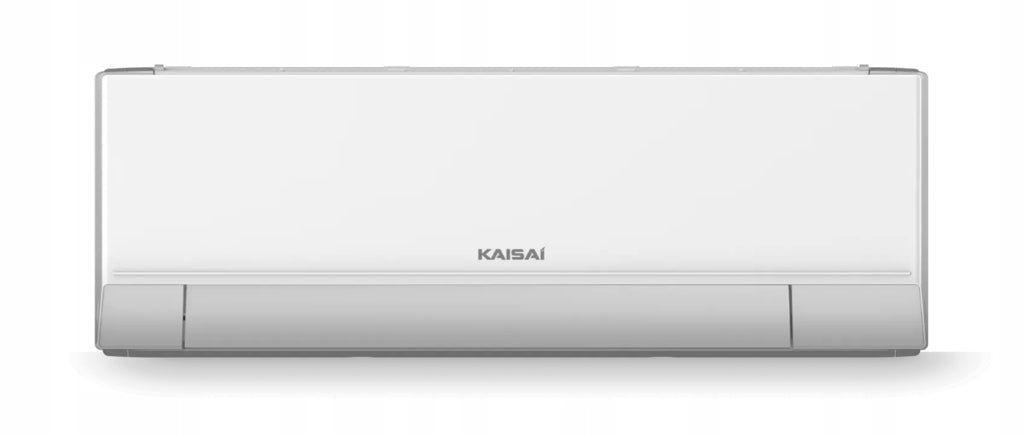

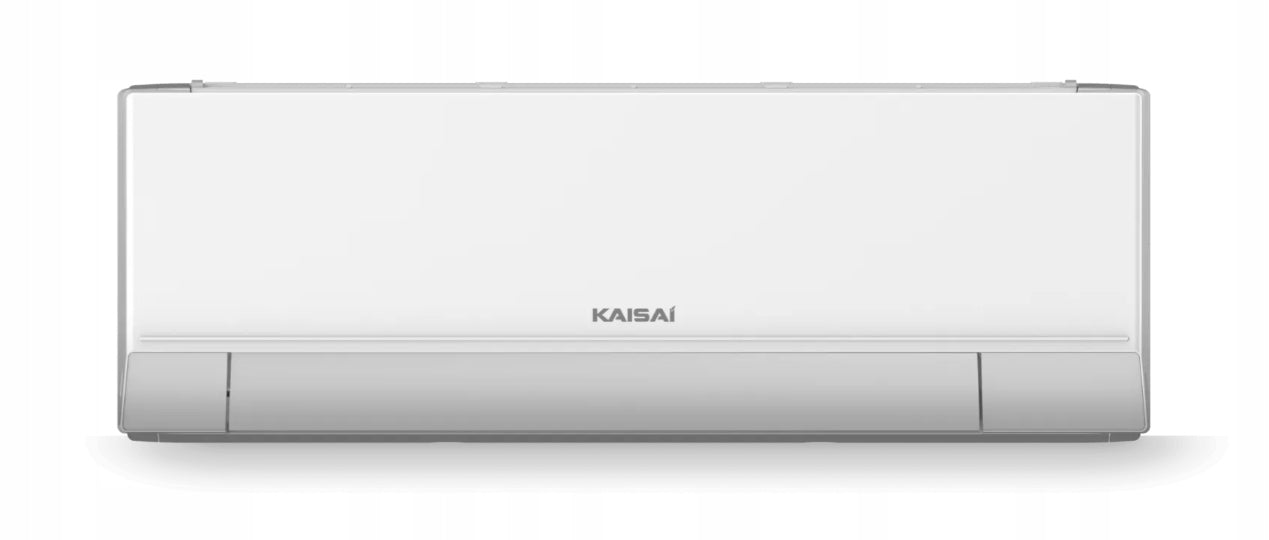

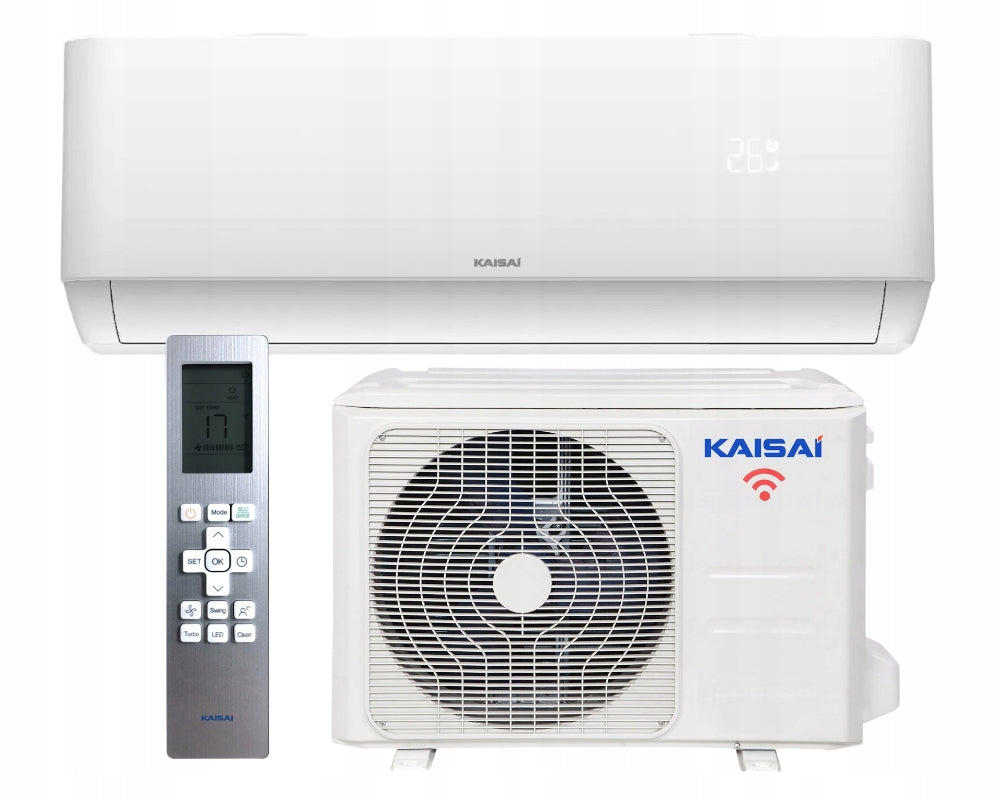

KAISAI PRO HEAT+ wall air conditioner with a cooling capacity of 7,0 kW and a heating power of 7,1 kW controlled by Wi-Fi, enriched with additional functions - air ionization, UVC lamp and gold lamellas. Extremely high energy efficiency coefficients and the ability to efficiently heat rooms at outdoor temperatures up to -25°C.

AIR IONIZATION

The ions emitted by the air conditioner break down particles of mites, mold, bacteria and viruses, eliminating them from the environment. An additional effect of the ionizer is air hydration, which positively affects the skin and gives a pleasant feeling of freshness in the air-conditioned room.

GENTLE COOLING

More than 1000 precisely spaced outlet micro-holes generate a gentle stream of air that propagates evenly throughout the room. This feature minimizes draft sensation, providing optimal thermal comfort and subtle cooling, ideal for those sensitive to intense airflow.

3D AIR SUPPLY

Automatically controlled horizontal and vertical blinds ensure optimal air circulation and even temperature distribution throughout the room. Thanks to this function, the air flow precisely reaches every corner, creating comfortable conditions regardless of the interior layout.

GOLD LAMELLAS

The special coating used on the heat exchanger lamellas protects them from corrosion, extending the life of the device and increasing its efficiency. This ensures that the air conditioner remains reliable and efficient even in demanding conditions, while also reducing maintenance costs.

UVC LAMP

It effectively eliminates bacteria, viruses, and other microorganisms, ensuring hygienic and healthy conditions in the air-conditioned room. The operation of the lamp also supports the neutralization of unpleasant odors, which translates into higher air quality.

HEATING 8 °C

It allows you to maintain a minimum temperature in unused rooms, preventing the building from cooling down and freezing the installation. The function works especially well in seasonal homes and utility rooms.

DRIP TRAY HEATER

It prevents condensate from freezing during operation in heating mode, ensuring continuity of operation of the device even at low temperatures. This solution increases the reliability of the air conditioner in harsh winter conditions.

BUILT-IN EXPANSION VALVE

Optimizes the flow of refrigerant, increasing the efficiency of the device and the stability of its operation. This solution reduces energy consumption and ensures smooth operation of the cooling and heating system.

Technical data

Kaisai Pro Heat 7,1 kW (KRW-24TLHI / KRWB-24TLHO)

Refrigeration capacity

• Nominal: 7,1 kW
• Operating range: 1,8 – 7,8 kW

Heating capacity

• Nominal: 7,1 kW
• Operating range: 1,9 – 8,0 kW

Power consumption – cooling

• Nominal: 1940 W
• Working Range: 410 – 2830 W

Power consumption – heating

• Nominal: 1810 W
• Working Range: 420 – 3010 W

Working current

• Cooling: 8,7 A (2,3 – 15,5 A)
• Heating: 8,0 A (2,3 – 16,0 A)

Efficiency and performance

• Energy Class: A++/A++
• SEER: 8,5
• SCOP: 4,7

Internal unit

• Airflow: 1100 m³/h
• Dehumidification capacity: 2,0 l/h
• Sound pressure level: 50 / 44 / 40 / 37 / 34 / 30 / 26 dB(A)
• Net dimensions: 1100 × 333 × 222 mm
• Net weight: 14 kg

External unit

• Airflow: 4000 m³/h
• Sound Pressure Level: 58 dB(A)
• Net dimensions: 978 × 803 × 421 mm
• Net weight: 45 kg

Installation

• Pipe diameter (liquid/gas): 6,35 / 12,7 mm
• Maximum installation length: 25 m
• Maximum level difference: 10 m
• Factory Factor Filling: 1,27kg
• Additional factor: 25 g/m
• Power supply: 220 – 240 V~, 50 Hz, 1 phase
• Protection: 20 A
• Power cord: 3 × 2,5 mm²
• Control cable: 4 × 1,5 mm²

Scope of work

• Set temperature: 17 to 32°C (cooling), 0 to 30°C (heating)
• External temperature: -15 to 53°C (cooling), -25 to 30°C (heating)

In connection with the amendment to the Act Journal of Laws 2017 item. 1567 from 01.01.2018. Please be advised that in accordance with applicable law, as a seller of non-hermetically sealed devices filled with fluorinated greenhouse gases and for the sake of the environment, we require:

• if the sale is made to an entity authorized to perform the service of installing the device, the Buyer presents an F-GAZ certificate issued by the Office of Technical Inspection.
• if the sale is made to an entity not authorized to perform assembly, the Buyer presents a declaration of signing a contract for the performance of the installation service, containing information about the name and number of the F-GAZ certificate.
• if the sale is made to the entity for further resale, provide an appropriate statement.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kaisai
Parametry	Kind	on-wall
Parametry	Cooling power	7000 W
Parametry	Heating power	7100 W
Parametry	Energy class - cooling	A+++
Parametry	Energy class - heating	A++
Parametry	Recommended maximum room size	70 m²
Parametry	Manufacturer code	KRW-24TLHI/KRWB-24TLHO
Parametry	Product weight with unit packaging	67 kg
Parametry	Batteries included	no
Parametry	Range of energy efficiency classes	A++ - E
Parametry	Functions	cooling,heating
Parametry	Control	manual,with the remote control
Parametry	Additional information	control via Wi-Fi,built-in temperature display
