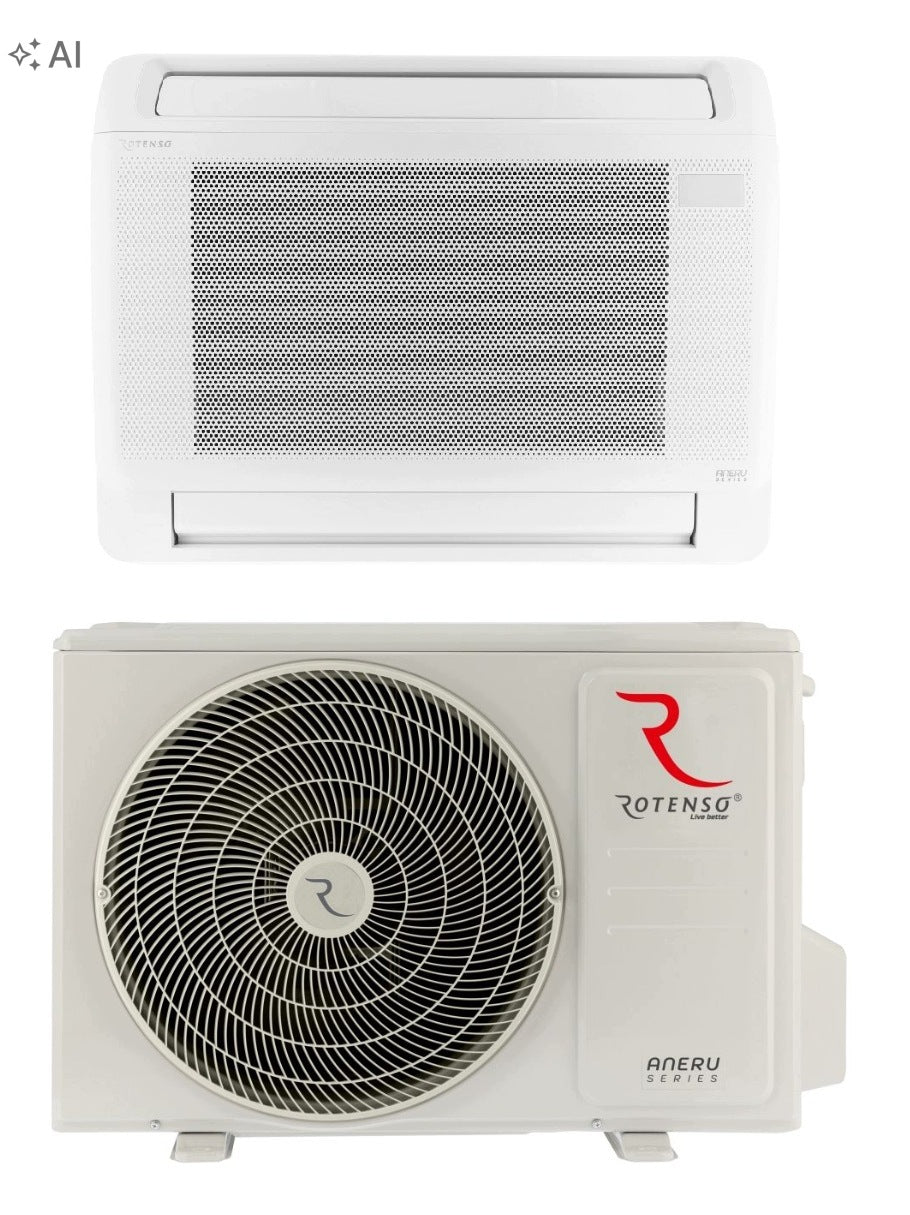

Oro kondicionierius Rotenso Aneru, 3,5 kW, A+++/A++, veikia iki -30°C

Trumpai apie prekę

Prekė: Oro kondicionierius Rotenso Aneru, 3,5 kW, A+++/A++, veikia iki -30°C. Kategorija: Oro kondicionieriai.

• Gamintojas: Rotenso
• Modelis: AHP35XI/AHP35Xo

Product Description

Rotenso® Aneru HP is a technologically advanced console unit with extremely high performance, designed for the most demanding interiors and users. Provides maximum comfort throughout the year. It combines the function of a super-efficient air conditioner (cooling energy class A+++) and an energy-efficient heat pump (heating energy class A++), which guarantees efficient heating of the house even in extreme frosts up to -30°C and really lower energy bills.

Thanks to its unique two-fan design, “ANERU HP” is perfect where the installation of a classic wall air conditioner is impossible. It offers unprecedented silence (from 20 dB) and purifies the air.

The device is compatible only with Split single systems with a dedicated AHP external unit.

Technical specification in a nutshell:

• Energy Class: Cooling: A+++ / Heating: A++ (lower bills)

• Minimum noise level: only 20 dB (exceptional design ensures ultra-quiet operation)

• Heating even at -30°C outdoors / Cooling at -25°C (extreme performance)

• Mounting dimensions: Height only 62 cm (Dedicated for low bevels, installation like a radiator)

• Independent control of up/down blinds,

• Built-in Super Ionizer + Humidity Sensor

• Wi-Fi included

• Built-in SMART winter package (Dedicated for heating)

• Split (SINGLE) only system compatibility

Aneru HP can successfully serve as the main or alternative heat source. Safe and effective operation during severe frosts is ensured by the factory package of year-round (winter) work, which consists of a built-in drip tray heater and heating the compressor carter.

Comfort and health you will love:

• Ideal alternative to a radiator: Thoughtful design and only 62 cm in height allow you to mount the device right next to the floor, under windows or on low elbow walls. The console unit replaces the traditional radiator and perfectly copes with the heat in hard-to-cool attics.

• Warm floor effect (No more cold feet): Thanks to independent control of up/down blinds, in heating mode, the air conditioner directs a stream of warm air up and down ensuring perfect heat distribution from the floor itself and eliminates unpleasant drafts.

• Home Health Zone (Ionizer + Humidity Sensor): Built-in iAIR Super Ionizer actively generates ions that neutralize viruses, bacteria, mites and bad odors. An additional humidity sensor allows for continuous monitoring and optimization of air parameters for a healthy microclimate.

• Smart control from anywhere: The built-in Wi-Fi module allows you to fully manage your device from your smartphone.

• The remote control has a Smart Follow function – the built-in temperature sensor ensures that the air conditioner cools or heats exactly where you are currently.

• Subtle design and home protection (+8°C): The modern housing line is complemented by a built-in, hidden display. In turn, the function of intelligent temperature maintenance 8 ° C effectively protects water installations from freezing and protects walls from moisture during winter trips.

Technology, reliability and automation:

• Independent 2-fan design: The innovative division into two independent fans allows for precise separation of the air stream into the upper and lower parts, increasing the efficiency of heat exchange in the room and improving operating parameters.

• SMART year-round operation package: The outdoor unit has an integrated compressor carter heater and an intelligent drip tray heater. The heater works on the basis of advanced time algorithms – it starts only during the defrost and a few minutes after it, which drastically reduces energy losses.

• Durability in harsh environments: The heat exchanger is coated with anti-corrosion, gold-plated lamellas. Such protection not only drastically extends the life of the device, but also makes it easier to keep it clean. As a result, the air conditioner maintains full efficiency, ensuring high air quality in your home.

• Extensive building integration options: “ANERU HP” offers optional:

• Ability to integrate with building management systems (BMS).

• Expandable with a dedicated individual or central controller.

• Support for external ON/OFF NC contact (ideal for integration with hotel cards or window contacts).

Our mission is to provide state-of-the-art solutions in the air conditioning, ventilation and heating industries, based on high-performance, energy-efficient inverter technology. Thanks to many years of investments in technology development, Rotenso devices are among the most innovative solutions enabling temperature regulation and control in buildings. Rotenso consistently strengthens its strong position as a supplier of modern, reliable and environmentally friendly air conditioning systems and air-to-air, air-to-water heat pumps. Every year, the Rotenso offer is expanded with new units that are characterized by better technological parameters and modern design.

Whatever we do, you are always at the center. We use technological innovations for the sake of health and comfort of use of the air conditioning systems we provide. The multi-stage filtration and air purification process is created by the PureAIR Rotenso system, which ensures healthy and clean air in your environment. The increasing efficiency and energy efficiency of our devices is a response to the growing need to rationalise energy costs and care for the environment.

Comfort and silence wherever you are

In the living room when you enjoy moments of relaxation.

In the bedroom, when you enjoy a peaceful sleep. In an office where you need focus.

The Rotenso line of air conditioners covers all spheres of your life, from business to private space, creating the optimal environment for you.

A wide range of Rotenso air conditioning equipment and systems will meet your needs no matter where you are. The functions of Rotenso air conditioners meet specific and different requirements for public and private spaces.

Specification

• Model Aneru 3,5 kW
• Series Rotenso Aneru
• Generation X
• Efficiency / Cooling / Nominal (W) 3517
• Efficiency / Cooling / Min-Max (W) 762-4982
• Power Consumption / Cooling / Nominal (W) 840
• Power Consumption / Cooling / Min-Max (W) 170-1600
• Operating Current / Cooling / Nominal (A) 3.7
• Operating Current / Cooling / Min-Max (A) 0,7-7,0
• Efficiency / Heating / Nominal (W) 4982
• Efficiency / Heating / Min-Max (W) 454-6448
• Power Consumption / Heating / Nominal (W) 1240
• Power Consumption / Heating / Min-Max (W) 150-1950
• Operating Current / Heating / Nominal (A) 5.4
• Operating current / Heating / Min-Max (A) 0,7-8,5
• Type of reverse air-to-air heat pump
• Refrigeration load (kW) 3.6
• SEER (W/W) 8.5
• Energy efficiency class - cooling A+++
• Annual energy consumption - cooling (kWh/a) 148
• Thermal load (Tbiv -7°C) (kW) 3.6
• SCOP (W/W) 4.6
• Energy efficiency class - heating A++
• Annual energy consumption - heating (kWh/a) 1107
• Dehumidification (l/h) 1.8
• Maximum energy consumption (W) 2800
• Maximum operating current (A) 12.2

Internal unit AHP35Xi

• Product code EAN j. internal. 5905567606045
• Fan Speed / (H. Wed. No. Ci. ) (rpm) 992 / 884 / 776 / 650
• Airflow / (H. Wed. No. Ci. ) (m³/h) 650 / 580 / 490 / 420
• Sound Pressure Level / (H. Wed. No. Ci. ) (dB(A)) 40 / 37,5 / 31,5 / 25 / 20
• Sound power level (dB(A)) 56
• Power Consumption (W) 42
• Operating current (A) 0.2
• Net Dimensions / (S×G×W) (mm) 794 × 206 × 621
• Gross dimensions / (S×G×W) (mm) 865 × 280 × 719
• Net weight / Gross weight (kg) 14,9 / 18,8
• Condensate drain (mm) 16
• Pipe connections / Liquid / Gas (mm(inches)) Φ6,35 / Φ9,52 (1/4"" / 3/8"")

Outdoor unit AHP35Xo

• Product code EAN j. external. 5905567606052
• Fan Speed / (H. Wed. No. ) (rpm) 700 / 610 / 530
• Maximum airflow (m³/h) 3500
• Sound pressure level (dB(A)) 56
• Sound power level (dB(A)) 63
• Net Dimensions / (S×G×W) (mm) 890 × 342 × 673
• Gross dimensions / (S×G×W) (mm) 995 × 398 × 740
• Mounting spacing / (S×G) ((mm)) 663 × 348
• Net weight / Gross weight (kg) 39,8 / 43
• Refrigerant / Type R32
• Refrigerant / GWP 675
• Refrigerant / Quantity (up to 5 mb) (kg) 1.15
• Refrigerant / Quantity (up to 5 mb) (TCO2eq) 0.78
• Additional factor over 5 mb (g/m) 12
• Pipe connections / Liquid / Gas (mm(inches)) Φ6,35 / Φ9,52 (1/4"" / 3/8"")
• Maximum installation length (m) 25
• Maximum level difference (m) 10
• DC Rotary Compressor Type
• Type of power supply for outdoor unit (V-Hz, Ø) 220-240~50, 1f
• Security (A) B16
• Power cords: outdoor unit (il. × mm²) L < 20m 3 × 1,5
• Control and power cables: outdoor unit. - internal. (il. × mm²) 4 × 1
• Range of work in the room / (Cooling/Heating) (°C) 16~32 / 0~30
• Outdoor working range / (Cooling/Heating) (°C) -25~50 / -30~24
• Declared performance under heating conditions / (average season) (kW) 3,424
• Power supply under heating conditions / (average season) (kW) 0,176

The device contains HFCs (hydrofluorocarbons) with a GWP of more than 150. For assembly, you must have a personal certificate in accordance with Article 20 of the Act of 15 May 2015. o Substances that deplete the ozone layer and certain fluorinated greenhouse gases (OJ. of 2015 )

Retail customer – is obliged to send a certificate that the device will be installed by the company or installer with appropriate F-GAZ permissions

Company - is obliged to provide a certificate that the device will be installed by a company certified UDT F-GAZ.
