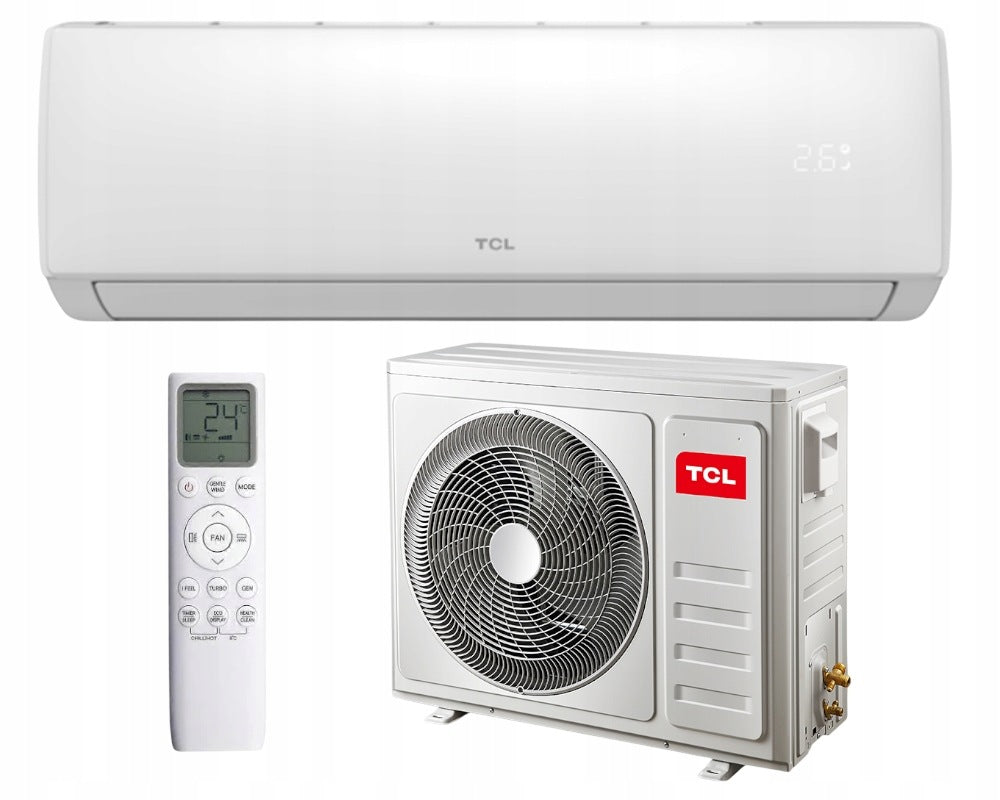

Oro kondicionierius TCL Elite Plus XA73I 3,5 kW šildymui, komplekte 3 m vamzdynas

Trumpai apie prekę

Prekė: Oro kondicionierius TCL Elite Plus XA73I 3,5 kW šildymui, komplekte 3 m vamzdynas. Kategorija: Oro kondicionieriai.

• Gamintojas: Lindab
• Modelis: TAC-12CHSD/XA73I

TCL TAC-12CHSD/XA73I from the Elite XA73I series is a modern wall air conditioner that combines efficient cooling and heating with high energy efficiency and a rich set of functions to improve the comfort of use.

The device is offered by m.in. I Feel, I Set, Anti-Cold, shutter memory, drip tray heater, intelligent air supply, Mute mode and automatic restart. Thanks to DC Inverter technology, the air conditioner smoothly adjusts its performance to the current conditions in the room.

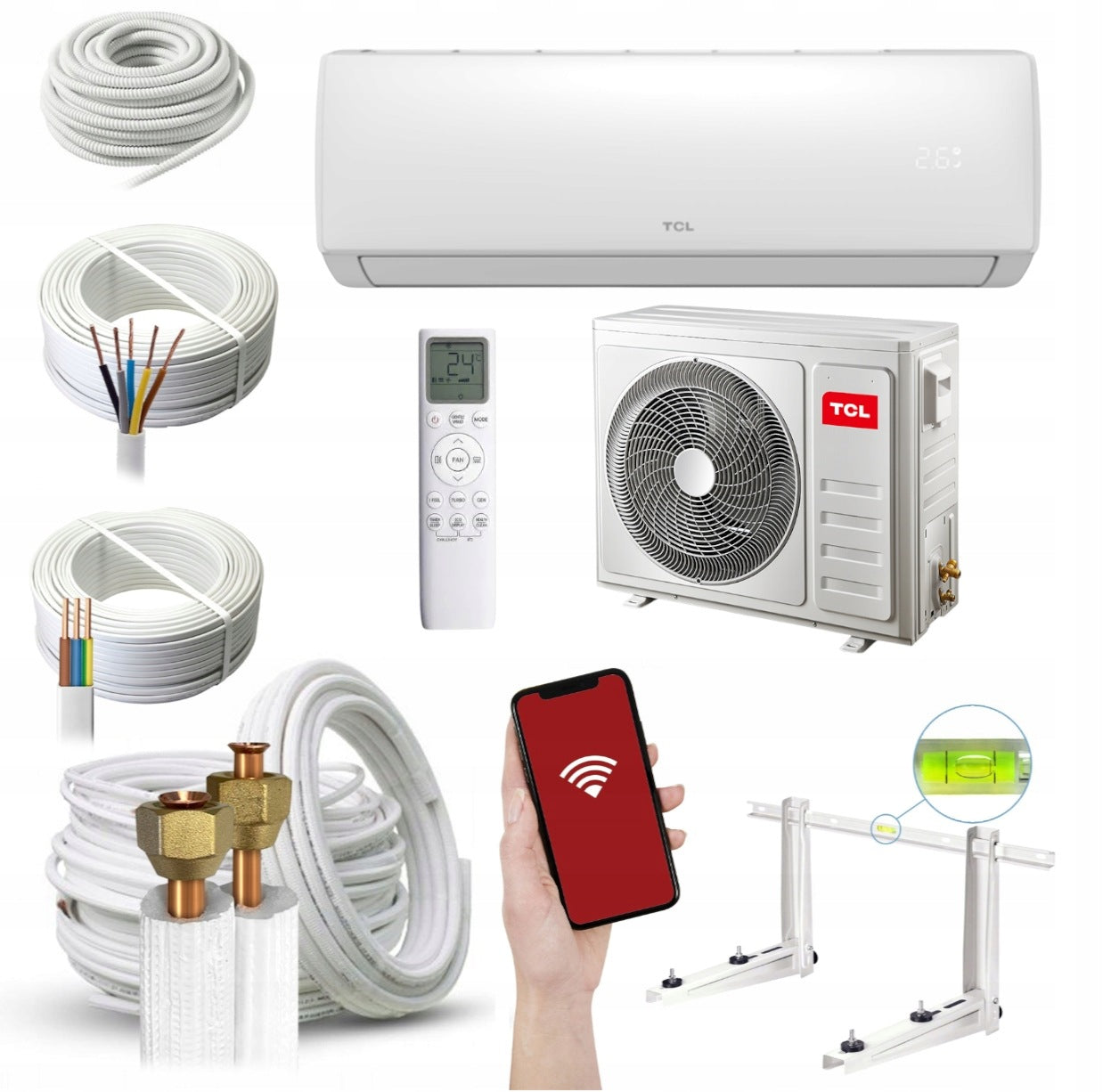

Contents of the set

The set includes an air conditioner and a set for mounting, mounting the air conditioner:

• Freon/copper tubes 3m in sheath with tips
• 3m 5-wire signal cable
• 3m 3-wire electric cable
• 3m cable for condensate 16mm
• Fragrance cartridge
• Anti-vibration pads
• Bracket for hanging an outdoor unit

✅ DC Inverter technology

The inverter compressor smoothly adjusts the performance of the device to the current demand.

• rapid achievement of the set temperature
• stable maintenance of comfort
• smooth power regulation
• more economical operation than traditional systems

✅ Fast cooling and heating

The high-efficiency compressor allows you to cool or heat the room to a set temperature in a short time.

• rapid cooling of the heated interior
• efficient heating of the cooled room
• quick response to changing settings
• comfort without long waiting

The model is also equipped with Turbo mode, which uses the highest fan speed to reach the set temperature faster.

✅ Drain tray heater

When operating in heating mode, the drip tray heater protects the outdoor unit from freezing condensate.

• limiting the formation of ice in the drip tray
• more effective drainage of condensate
• Increased reliability during heating
• support for the operation of the device at low temperatures

✅ I Feel – temperature where you are

The I Feel function uses a temperature sensor located in the remote control.

Thanks to this, the air conditioner can control the temperature in the place where the user is located along with the remote control.

• more accurate temperature measurement
• greater user comfort
• more precise adjustment of the device operation

✅ I Set – remember your favorite settings

The I Set function allows you to save your preferred air conditioner settings and restore them quickly.

• convenient saving of work settings
• Quick return to your preferred configuration
• greater convenience of everyday use

With I Set, you don't have to manually set all the parameters of the device every time.

✅ Anti-Cold – comfortable heating without cold air

The Anti-Cold function prevents cool air from entering immediately after starting the heating.

The fan starts working at low revs and increases the speed as the temperature of the internal unit exchanger increases.

• limiting the feeling of cold draft
• Gentle start of heating
• greater comfort during a cold start
• more pleasant use in winter

✅ Intelligent air supply – cooling and heating comfort

The air conditioner automatically adjusts the direction of supply to the selected operating mode.

In cooling mode, the air is directed towards the ceiling, from where it gradually falls. During heating, a stream of warm air is directed downwards to more effectively warm the zone near the floor.

• better use of natural air movement
• more even temperature distribution
• greater cooling comfort
• more efficient heating of the room

✅ Louver memory

The air conditioner remembers the shutter setting and automatically returns to the previous position when restarted.

• maintaining the preferred airflow direction
• no need to re-adjust the blinds
• greater convenience of use

✅ Quiet operation – Mute Mode

The special Mute mode reduces the sounds generated by the device, ensuring comfortable work even during sleep or rest.

For the indoor unit, the sound pressure level is about 22 dB(A) in Mute mode, which allows for very discreet operation of the device.

• comfortable work at night
• ideal for bedrooms
• suitable for children's offices and rooms
• the ability to adjust the intensity of the air supply

Model: TAC-12CHSD/XA73I

Series: Elite Plus XA73I

Type: Split Wall Air Conditioner

Technology: Inverter

Heating Function: Yes

Color: White

Performance:

• Cooling capacity: 3,40 kW
• Cooling capacity min./max.: 1,00 – 3,77 kW
• Heating capacity: 3,42 kW
• Heating capacity min./max.: 1,00 – 3,81 kW

Energy efficiency:

• Energy class – cooling: A++
• Energy class – heating: A+
• SEER: 6,1
• SCOP: 4,0
• Annual energy consumption – cooling: 195 kWh/a
• Annual energy consumption – heating: 840 kWh/a

Power supply and power consumption:

• Power supply: 220 – 240 V / 50 Hz / 1 phase
• Power consumption – cooling: 1,13 kW
• Power consumption range – cooling: 0,29 – 1,50 kW
• Power consumption – heating: 0,92 kW
• Power consumption range – heating: 0,29 – 1,72 kW
• Current – cooling: 5,8 A
• Current range – cooling: 1,5 – 9,0 A
• Electricity – heating: 4,7 A
• Current range – heating: 1,5 – 10,0 A

Refrigerant:

• Refrigerant: R32
• Factory Factor Filling: 570 g
• Additional filling: 15 g/m

Air flow and dehumidification:

• Air flow – indoor unit: 550 m³/h
• Air flow – outdoor unit: 1900 m³/h
• Dehumidification capacity: 1,2 l/h
• Number of Fan Speeds: 5

Noise level:

• Internal unit noise level: 22 / 25 / 33 / 37 / 40 dB(A)
• External unit noise level: 50 dB(A)
• Internal unit acoustic power: 32 / 35 / 43 / 47 / 50 dB(A)
• Acoustic power of outdoor unit: 60 dB(A)

Operating temperature range:

• Cooling: -15°C to +53°C
• Heating: -20°C to +30°C
• Temperature setting range: 16 to 31°C

Dimensions and weight:

• Internal unit dimensions: 777 × 250 × 201 mm
• Internal unit weight: 8,0 kg
• External unit dimensions: 777 × 498 × 290 mm
• Weight of outdoor unit: 24,0 kg

Refrigeration system:

• Liquid pipe diameter: 1/4" (6,35 mm)
• Gas pipe diameter: 3/8" (9,52 mm)
• Maximum installation length: 25 m
• Maximum height difference: 10 m

In connection with the amendment to the Act Journal of Laws 2017 item. 1567 from 01.01.2018. Please be advised that in accordance with applicable law, as a seller of non-hermetically sealed devices filled with fluorinated greenhouse gases and for the sake of the environment, we require:

• if the sale is made to an entity authorized to perform the service of installing the device, the Buyer presents an F-GAZ certificate issued by the Office of Technical Inspection.
• if the sale is made to an entity not authorized to perform assembly, the Buyer presents a declaration of signing a contract for the performance of the installation service, containing information about the name and number of the F-GAZ certificate.
• if the sale is made to the entity for further resale, provide an appropriate statement.

This product meets the strict quality and safety standards of the European Union, which is confirmed by the CE marking. This designation ensures that the product complies with the statutory requirements applicable in the EEA, including health, safety, and environmental standards. This means that you can have complete confidence in the quality and safety of this product.
