Aprašymas
Trumpai apie prekę

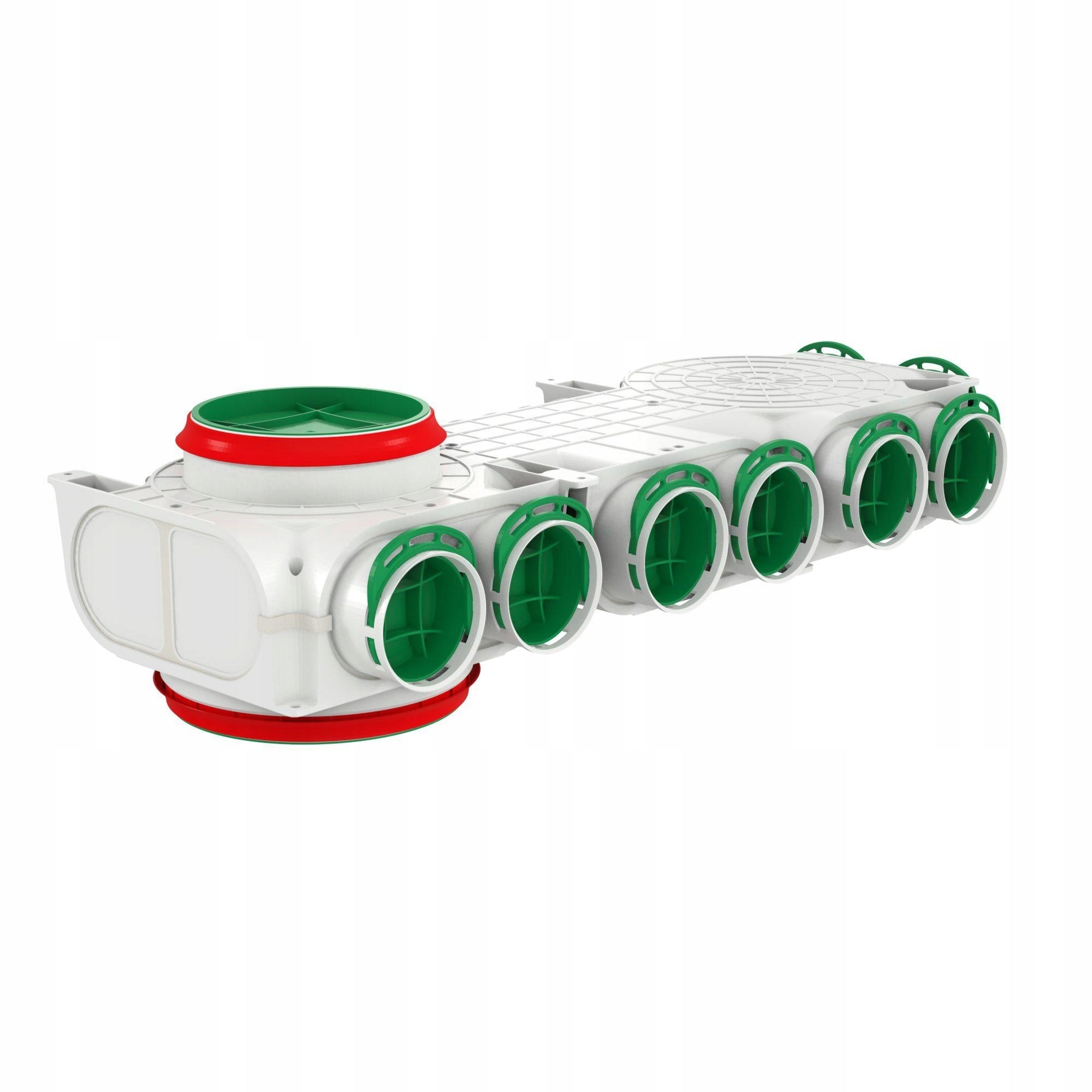

Prekė: Oro paskirstymo dėžė AWENTA PRO VCBR160/200 kairinė, 8x75. Kategorija: Dalys.
- Gamintojas: Awenta
- Modelis: VCBR160/200-8-L
The VCBR160/200-8 Awenta PRO through-pass distribution box is designed to distribute the air flow between two floors. The through channel Ø 160 / Ø 200 mm serves the air flow to the next floor of the building, while the channels Ø75 mm allow you to connect up to 8 ventilation channels of the rooms on the lower floor. Regulation of air flow between floors is performed on anemostats. In addition, you can use a throttle mounted before the inlet to the distribution box on the upper floor. Unused channels can be closed with gasket caps included in the set. AWENTA PRO boxes are equipped with a patented fastening system that allows precise adjustment of the box distance from the mounting planes and allows you to easily disassemble the box if necessary. Independently adjustable brackets allow horizontal mounting of the device, also giving the possibility of its tilt.
NUMBER OF CONNECTIONS MAX: 8 x FI 75
CONNECTIONS ON ONE SIDE LEFT
VCB series boxes are designed for installation in the heated zone of the building, otherwise it must be insulated with a layer of mineral wool (min. 15 cm. ). It can be permanently flooded in the spout or ceiling or built under G/K plates.
DESCRIPTION OF DIMENSIONS:
- HEIGHT: 19,00cm
- WIDTH: 72,70cm
- DEPTH: 28,30cm
- CONNECTIONS FI 160 FI 200 AND 8xFI75
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Awenta |
| Parametry | Kind | distribution box |
| Parametry | Manufacturer code | VCBR160/200-8-L |
| Parametry | Packaging status | original |
