Oro pūstuvas SECOH EL-S-60, metalinis, tinkamas nuotekų aeravimui

Trumpai apie prekę

Prekė: Oro pūstuvas SECOH EL-S-60, metalinis, tinkamas nuotekų aeravimui. Kategorija: Siurbliai.

• Gamintojas: Secoh
• Modelis: ELS-S-60
• Galia: 44 W

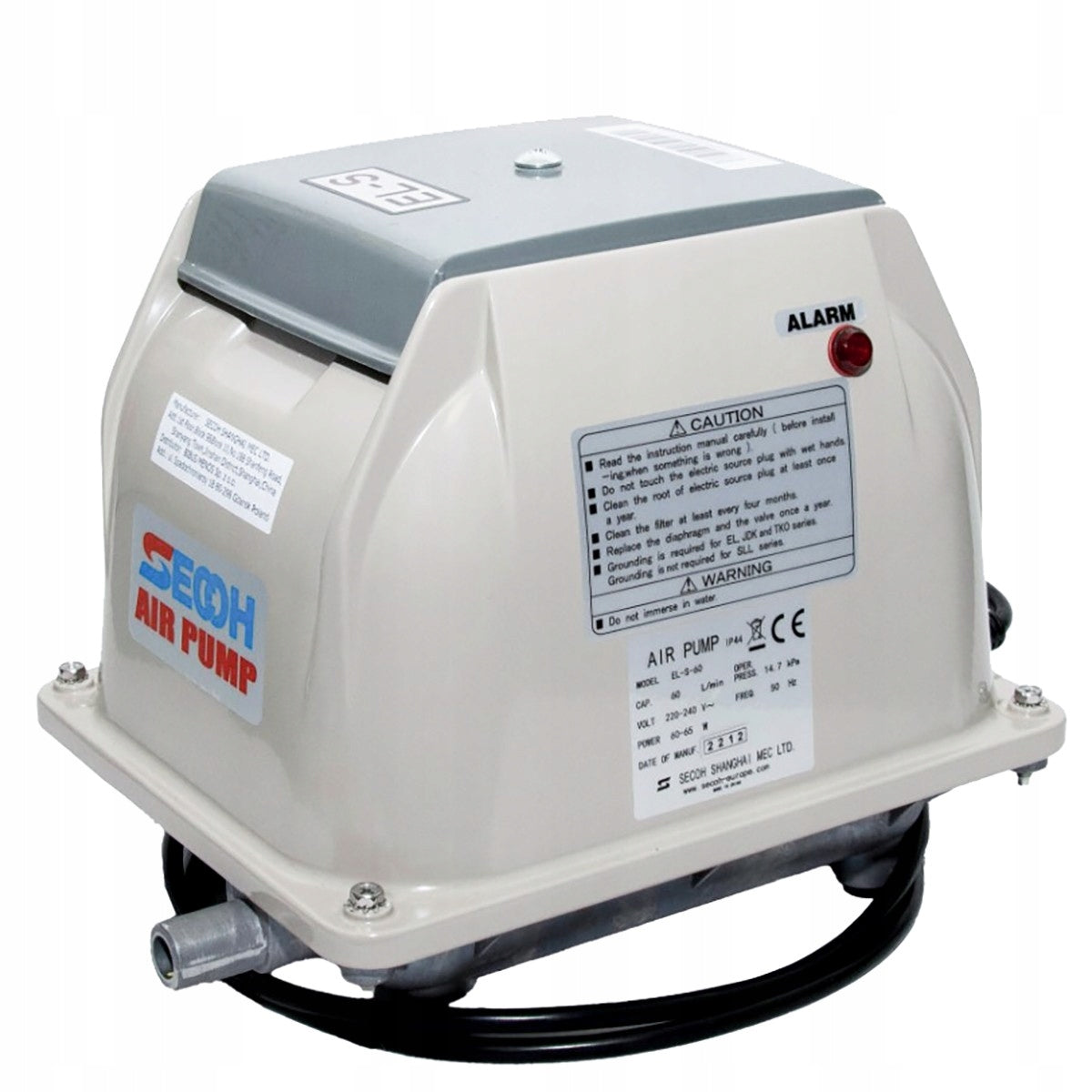

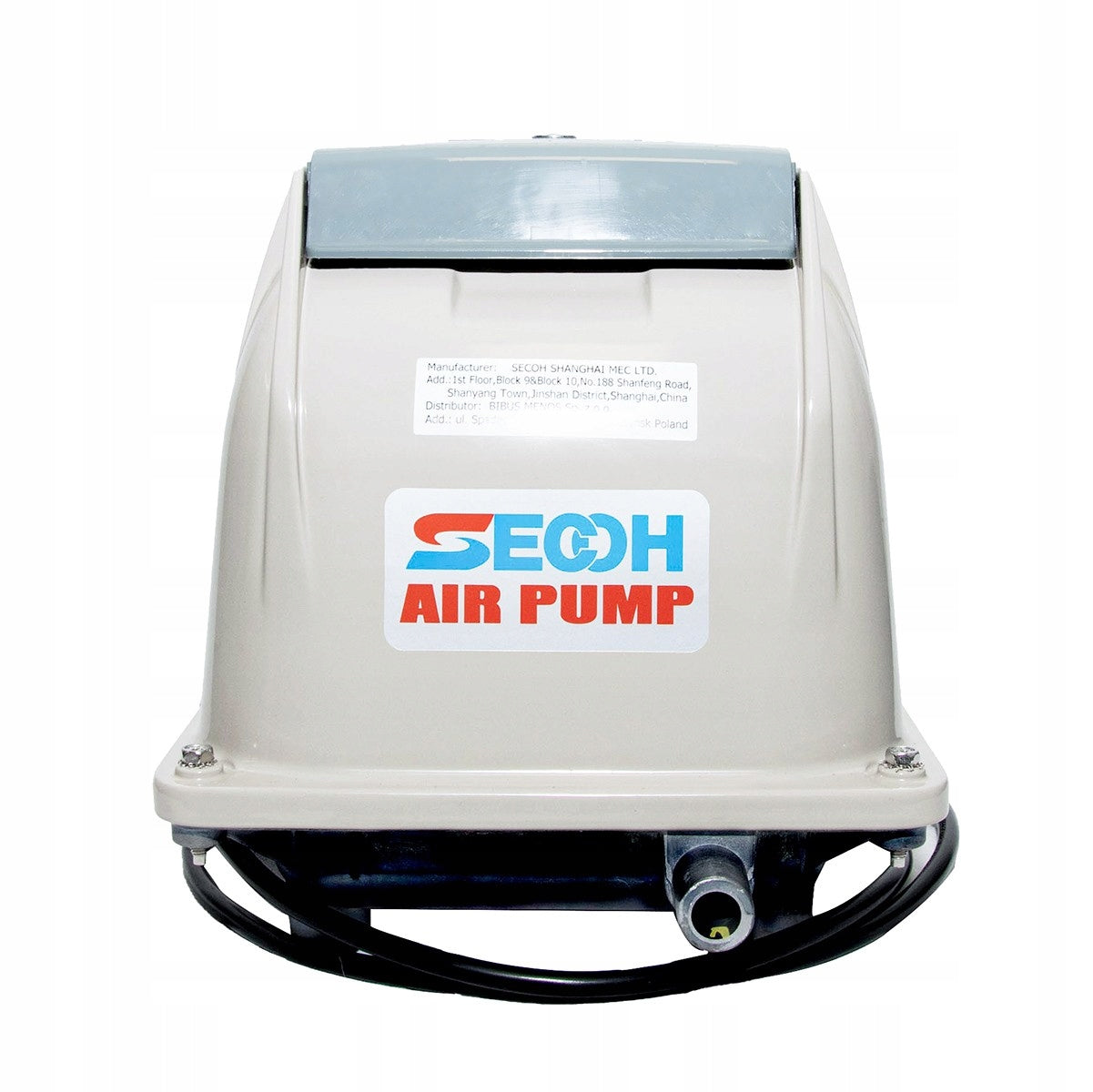

SECOH blower EL-S-60 metal compressor for Aeration of MESH SEWAGE

SECOH diaphragm blower EL-S-60 compressor wastewater aeration metal

recommended for aeration of sewage and ponds | metal housing | protection - AUTO-STOPPER | consumption (W): 44

Blower - compressor EL-S-60 belongs to the series of models with metal housing, with increased resistance. Metal blower housings are not so exposed to mechanical damage or those resulting from overheating of coils (as opposed to plastic covers).

All EL series blowers have additional protection, which is a mechanical switch - auto-stoper, which in the event of membrane breakage or valve damage will cut off the power supply, and thus protect the blower from further internal damage to individual elements.

Universal use of compressor - blower SECOH EL-S-60:

• home sewage treatment plants,
• aeration of watercourses,
• aeration of Koi carp breeding and ponds,
• filtration systems,
• aeration of chemical and biological baths,
• fragrance systems and odor neutralization,
• regulation of pressure in tanks,
• air beds and anti-decubitus mattresses,
• hydromassages and water circulation systems in swimming pools,
• pressure therapy,
• inhalers and nebulisers,
• illuminated decorative columns with bubble effect.

The most important features of the compressor - compressor of the Japanese brand SECOH:

Integrated thermal protection - The EL series is equipped with a overload thermal switch as standard. The electrical system is disconnected when the coil winding temperature reaches a dangerous level of 130°C. Reactivation of the system occurs automatically after the coil temperature is lowered below 120°C.

High life and efficiency of the compressor - The principle of operation, high-quality materials, compact and lightweight design ensure a long service life of the device. High efficiency. The principle of electromagnetic oscillation used, which virtually eliminates the problem of friction by minimizing energy consumption, guarantees high efficiency.

Low noise - Soundproof housing together with built-in noise attenuator effectively reduce noise levels.

Low vibration level - The drive and the pump base are separated by a rubber anti-vibration spacer, the motor is mounted on the base with special vibration reducing feet, so that they are small.

No lubrication required - Oil-free operation guarantees the flow of dry and unscented air.

No pulsating airflow - Specially profiled internal chambers and exhaust silencer integrated into the base of the tank guarantee air flow practically without pulsation.

Weather resistance - The EL series is splash-proof and weather-resistant, however, due to safety of use and service life, they should not be exposed to direct sunlight, rain or snow.

Technical data of EL-S-60 compressor:

Air flow (l/min):

• 50 mbar - 96
• 100 mbar - 83
• 150 mbar - 68
• 200 mbar - 54
• 250 mbar - 40

• Power supply (V/Hz) -230/50
• Power consumption (W) for 200 mbar - 44
• Noise level dB(A) - 36
• Dimensions (cm): 26,9 x 20,1 x 21,6
• Weight (kg): 8,5

NOTE - EL-S-60 and EL-S-60N blower are two different models - spare parts are not compatible between models.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Secoh
Parametry	Pump capacity l/h	2501 - 5000 l/h
Parametry	Power	44 W
Parametry	Manufacturer code	ELS-S-60
Parametry	EAN (GTIN)	5906395528387
Parametry	Product weight with unit packaging	9 kg
Parametry	Packaging status	original
