Oro rekuperatorius AIR SAVER VT 125 mm su WiFi, papildomi filtrai

Trumpai apie prekę

Prekė: Oro rekuperatorius AIR SAVER VT 125 mm su WiFi, papildomi filtrai. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Prodmax
• Modelis: VT125-MS

✔ for installation in rooms such as rooms, living rooms and bedrooms

✅ADVANTAGES AND FEATURES:

✔ High efficiency - 20 ÷ 60 m3/h

✔ Diameter of ventilation duct - 125 mm

✔ Noise level: from 13 to 33 dB(A) / 3m

✔ High efficiency of heat recovery - up to 90%

✔ Supply voltage - 230V / 50Hz

✔ Includes TWO FILTERS (one mounted in the device, the other free to replace).

✔ Includes remote control

✔ Control the application on your smartphone

✔ Collaboration of up to 8 devices simultaneously

✔ Temperature and humidity reading

✔ Ceramic, hygroscopic (capable of absorbing water vapour and water - no condensation effect), accumulative heat exchanger

✔ Humidity sensor - adjustable in the range of 60÷90 %

✔ Energy efficiency class - A

✔ The device is designed to work indoors under the following conditions: outdoor air temperature from -20 °C to +50 °C and relative humidity in the room up to 50 %;

✔ Installation possible for walls with thickness from 32 cm to 50 cm

✔ Possibility of extension of the channel in the case of a thicker wall (wall) than 50 cm - using a channel with the symbol 150-5 (see above on Order in one shipment) - The connector is unnecessary, this additional pipe overlaps the one that is included with the device. After insertion, the pipe should be cut so that the whole has the required length for installation.

✔ Reputable manufacturer - PRODMAX

✅ The AirSaver wall recuperator is equipped with a ceramic exchanger, fan and filters. The accumulation exchanger retains heat energy from the exhaust air, and then heats the air supplied to the room. This system ensures that air streams do not mix.

The advantage of the system is the ability to synchronize several devices and control them wirelessly (remote control, smartphone application).

👍 AirSaver devices are perfect for single-family and multi-family residential buildings, when there is no space in your building for the installation of centralized recuperation or when we rent a room in the building and want to ensure clean and healthy air, while reducing heating expenses.

⭐️⭐️⭐️⭐️⭐️

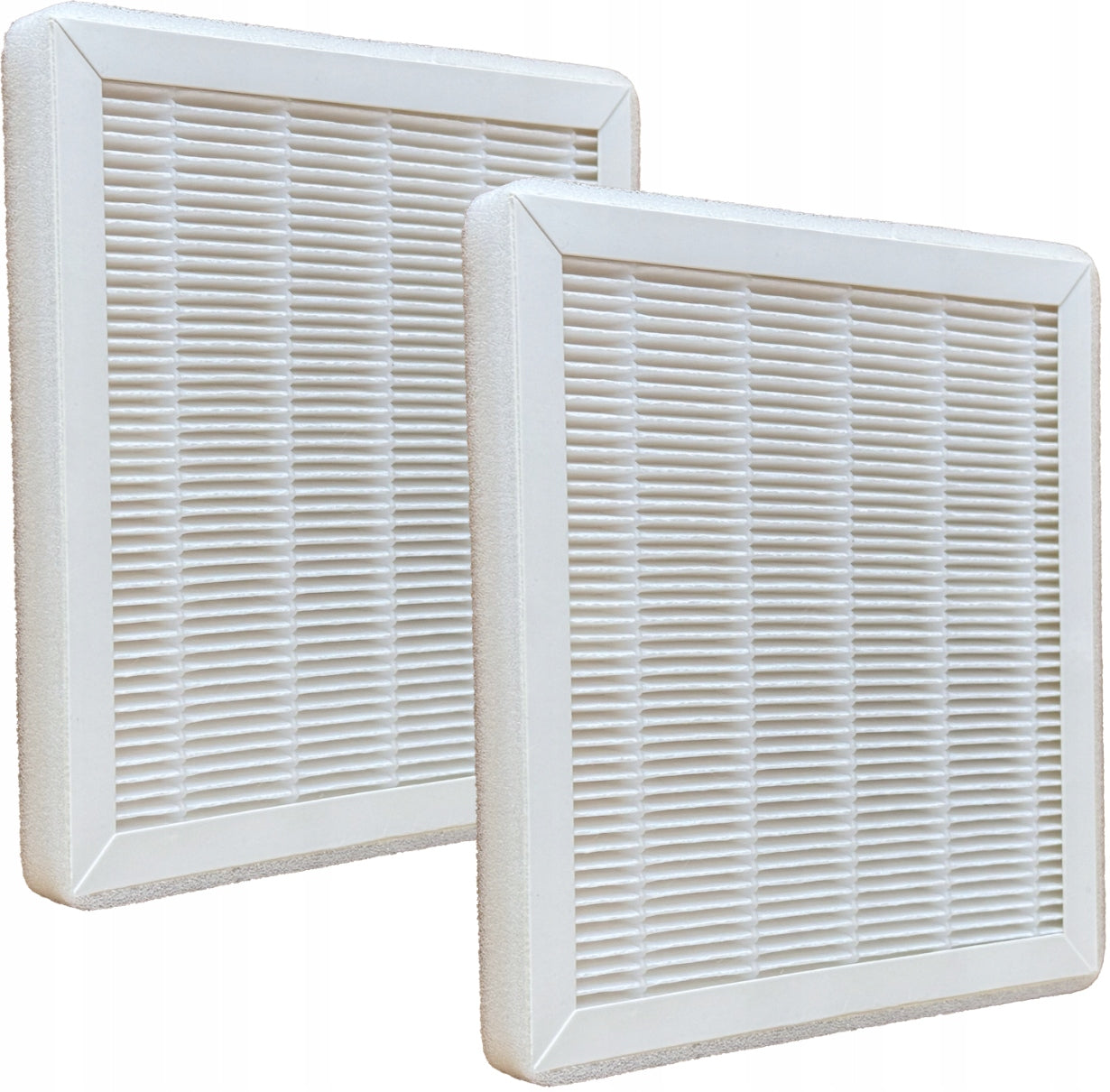

✅ SET INCLUDES 2 FILTERS - one pre-installed in the device, the second - FREE for replacement

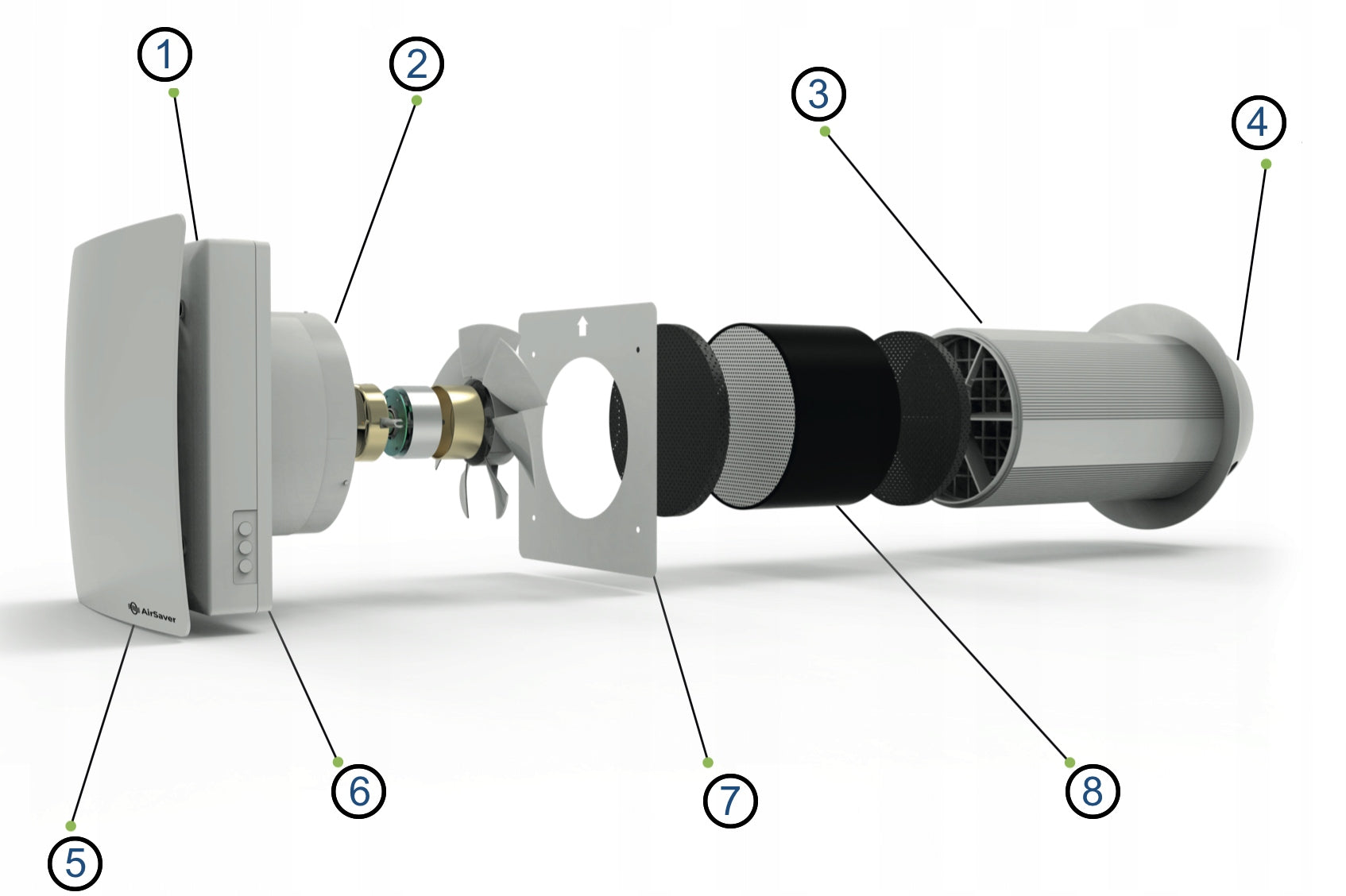

✅ CONSTRUCTION SCHEME

1 Housing with G4 filter

2 Energy-efficient reverse EC motor

3 Telescopic ventilation duct

4 External intake/launch

5 Decorative front panel with magnetic handles for quick assembly/disassembly

6 Electronics housing containing moisture sensor with external control panel (buttons)

7 Frame for easy installation of the device

8 Ceramic Accumulation Heat Exchanger

✅PRINCIPLE OF ACTION

I. - EXHAUST CYCLE (65s) - removal of used air - during this cycle lasting 65 seconds, the device extracts used air from the room (W), which flows through the ceramic exchanger leaving part of the thermal energy in it

II. - AIR SUPPLY CYCLE (65s) - fresh air supply - during this cycle lasting 65 seconds, the device draws fresh air from the outside (Z), which flows through the ceramic exchanger and recovers some of the thermal energy left in it during the previous cycle

✳ ADDITIONAL FUNCTIONS

1. Cable with power plug - makes it easy to connect the device to the electrical network yourself
2. Application for mobile devices such as smartphones
3. Control with the included remote control

⚙ TECHNICAL DATA

Basic technical parameters:

• supply voltage - 100 ÷ 240V 50/60 Hz
• efficiency of the exchanger - up to 90 %
• temp. air - from -20°C to +50°C
• Weight - 4,5 kg

The device can work in 4 modes, in which it will have different parameters:

1. NIGHT MODE

• capacity - 20 m3/h
• noise level - 13 dB(A)/3m
• Fan power - 5,5 W
• fan speed - 995 rpm /min.

2. RUN AND

• capacity - 30 m3/h
• noise level - 19 dB(A)/3m
• Fan power - 5,8 W
• fan speed - 1475 rpm /min.

3. RUNNING II

• capacity - 45 m3/h
• noise level - 25 dB(A)/3m
• Fan power - 7,3 W
• fan speed - 2085 rpm /min.

4. RUN III

• capacity - 60 m3/h
• noise level - 33 dB(A)/3m
• Fan power - 9,5 W
• fan speed - 2535 rpm /min

✅Dimensions of the device [mm]

• A - 245
• B - 245
• C - 245
• D - 63,3
• E - 43,5
• F - 125
• G - 183
• H - 86
• I - 119
• J - 320 ÷ 500

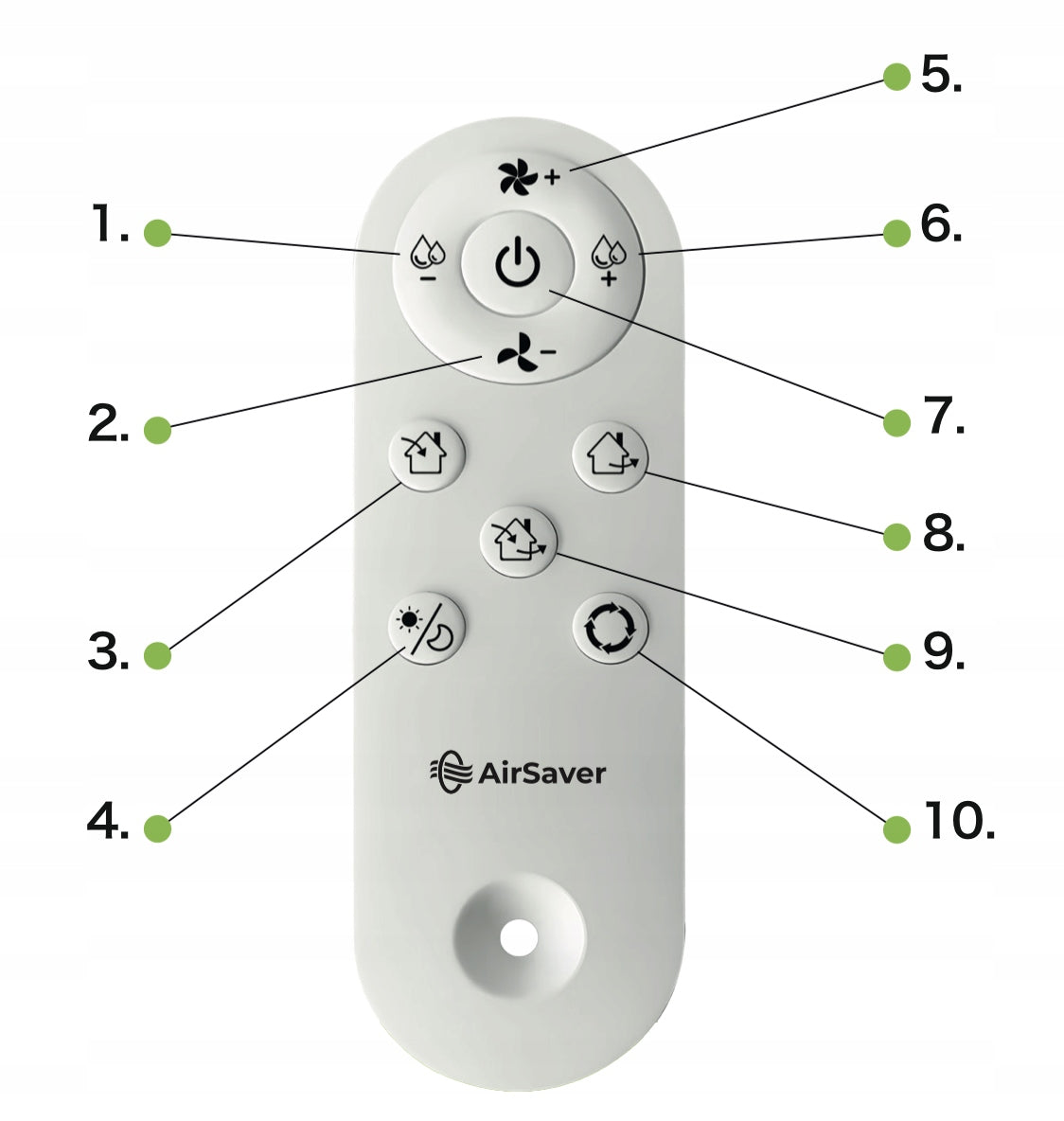

✅REMOTE CONTROL

1. Reduced HUMIDITY MODE
2. Reducing fan speed
3. Venting mode
4. Night mode (quiet)
5. Increasing fan speed
6. Increasing HUMIDITY MODE
7. ON/OFF switch
8. Exhaust mode
9. 65s / 65s - on/off cycle mode
10. SYNC mode - on/off

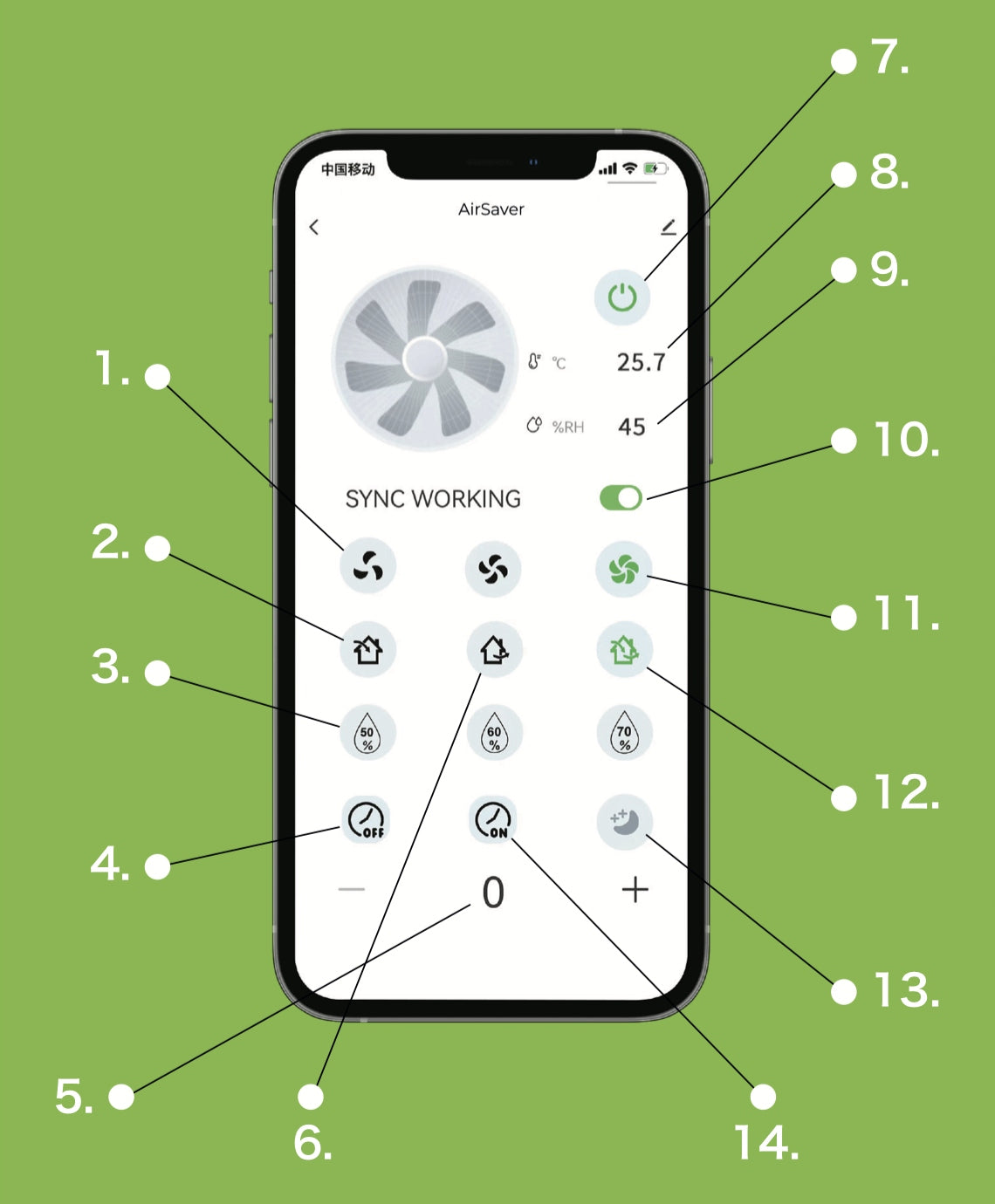

✳ APPLICATION CONTROL

1. Reducing fan speed
2. Venting mode
3. Reduced HUMIDITY MODE
4. Disabling according to programmer
5. Device number
6. Exhaust mode
7. ON/OFF switch
8. Temp reading. inside the room
9. Reading the humidity level inside the room
10. SYNC mode - on/off
11. Increasing fan speed
12. 65s / 65s - on/off cycle mode
13. Night mode (quiet)
14. Enabling by programmer

✳ PRINCIPLE OF OPERATION OF MANY DEVICES

Up to 8 devices can be paired and configured

Markings in the figure:

• M - unit MASTER (master device)
• S - unit SLAVE (sub-device)

Specifications
