Aprašymas
Trumpai apie prekę
Prekė: Oro rekuperatorius Awenta HRV100, 100 mm, buitinis. Kategorija: Rekuperacinės vėdinimo sistemos.
- Gamintojas: Awenta
- Modelis: HRV100
✅ Product Description:

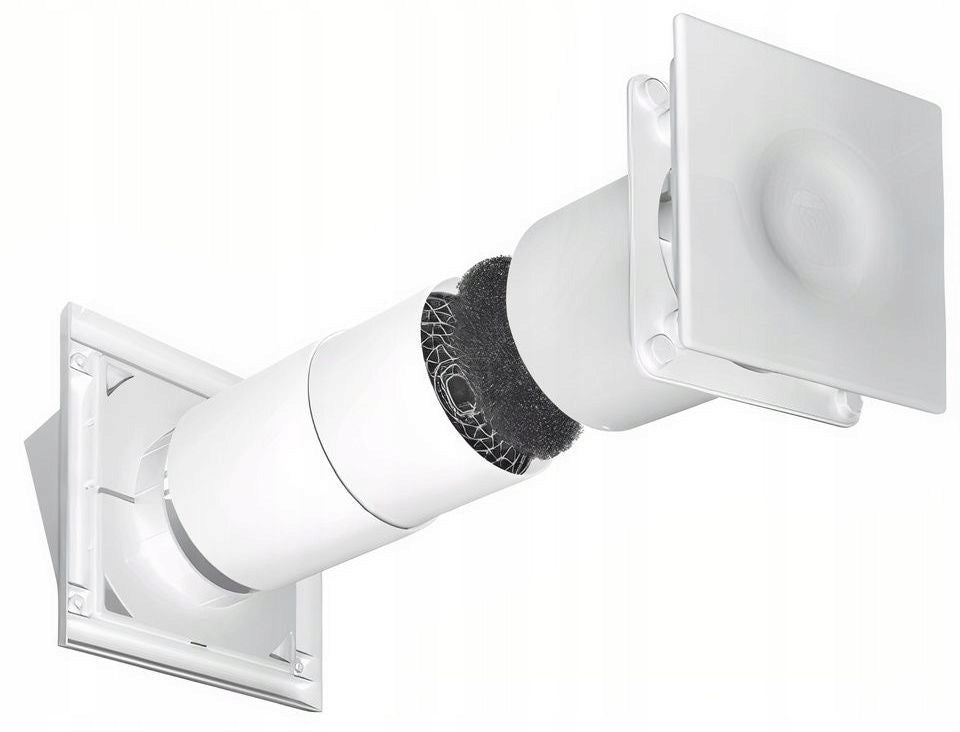

The compact recuperator HRV100 is designed for decentralized ventilation with heat recovery for use in one room in residential buildings. The product is designed for continuous operation. It is equipped with an accumulative heat exchanger, whose task is to collect and render (recuperation) of thermal energy in the process of exhaust and air supply from the room in which it is installed.
Recuperation gives the opportunity to reduce heat losses caused by ventilation of the room. The task of the recuperator is therefore to recover heat from the air exhausted from the room in which it is installed. The HRV series is equipped with an accumulative heat exchanger that stops and collects heat energy to transfer it to the supply air from the outside. Thanks to this solution, it is possible to exchange fresh air at a temperature similar to the temperature in the room.
✅ Technical data:
I gear:
- Noise level - 32 dB. (A)
- Performance - 30 m3/h
- Power - 1,5 W
II gear:
- Noise level - 36 dB. (A)
- Performance - 45 m3/h
- Power - 2 W
Awenta manufactures fans that are designed for use in both residential, commercial and office spaces. Depending on the size of the room and its nature, the offer of Aventa includes fans whose functions, parameters and properties ensure proper ventilation. All fans are powered by 230V with a rated frequency of 50 Hz.
✅ The principle of operation of the compact HRV recuperator:
Exhaust mode:
The HRV recuperator is always started in exhaust mode. The air coming out of the room after turning it on gives heat energy to the aluminum exchanger. After sixty seconds, the fan automatically switches to airflow mode.
Air supply mode:
The air supplied from the outside - before it reaches the room - is heated by the accumulated heat of the exchanger. Thanks to this action, the heat loss is not felt.
✅ Technical data:
- Model - HRV100
- Material - ABS plastic
- Equipment - two gears
- Brand - Awenta
- Noise level - 32/36 dB
- Power - 1,5/2 W
- Performance - 35/50 m3/h
- Engine speed - 2100/2500 rpm. /min
- Resilience class - IPX4
- Ball bearings

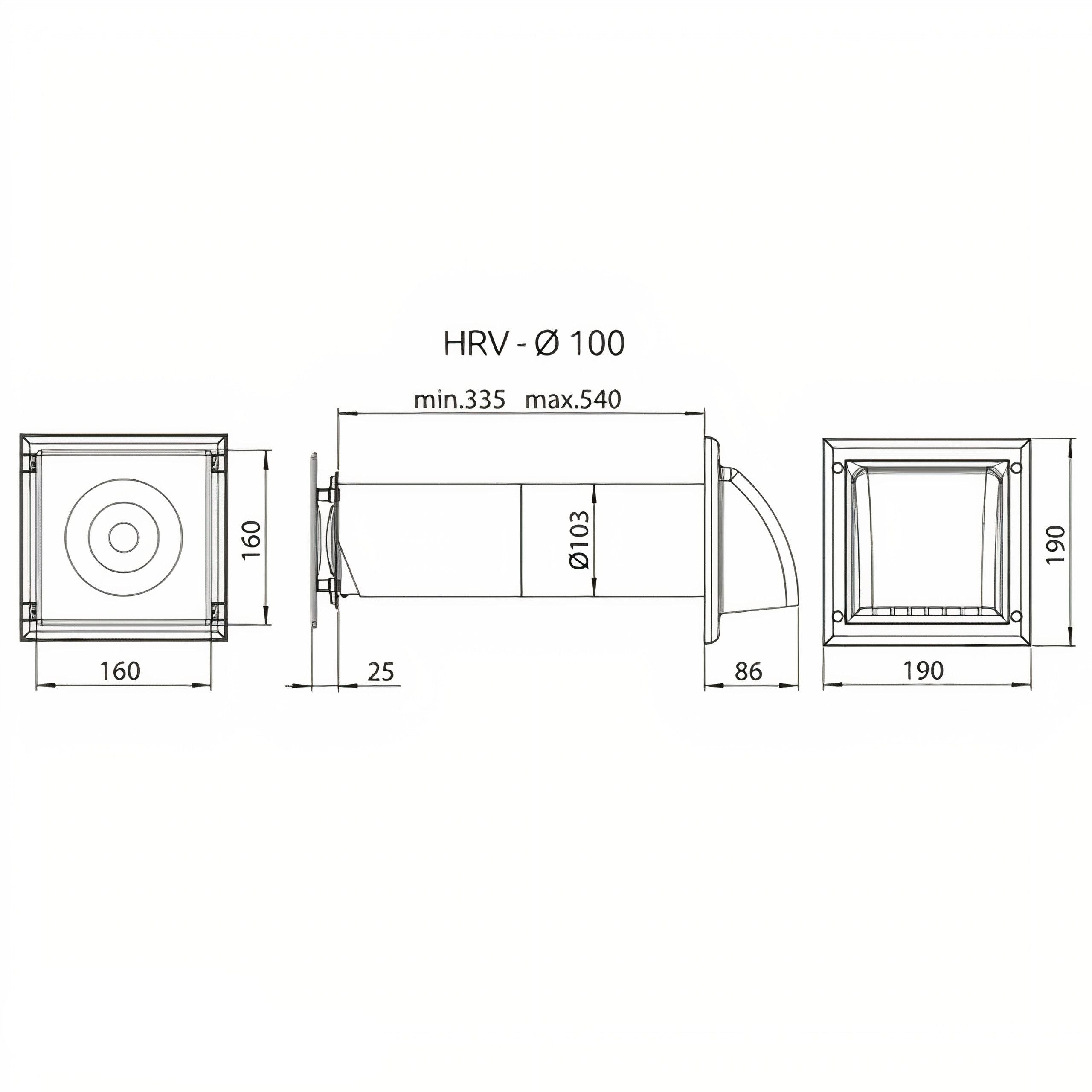

✅ Technical drawing and dimensions in [mm]:
Energy label of recuperator ➡
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Awenta |
| Parametry | Kind | heat recovery ventilator |
| Parametry | Product weight with unit packaging | 2 kg |
| Parametry | Manufacturer code | HRV100 |
| Parametry | Range of energy efficiency classes | A+ - G |
| Parametry | Energy efficiency class | A |
| Parametry | Batteries included | no |
