Oro rekuperatorius su pulteliu ir WiFi, Weber, 160 mm, 64 m³/h

Trumpai apie prekę

Prekė: Oro rekuperatorius su pulteliu ir WiFi, Weber, 160 mm, 64 m³/h. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Weber
• Modelis: AV-TTW6-W

Index: 04010249

RELEVANT INFORMATION

Remember that the larger the channel diameter, the slower the airflow through the exchanger and thus the greater the efficiency of heat recovery. Our device has a channel with a diameter of up to 160 mm!!!

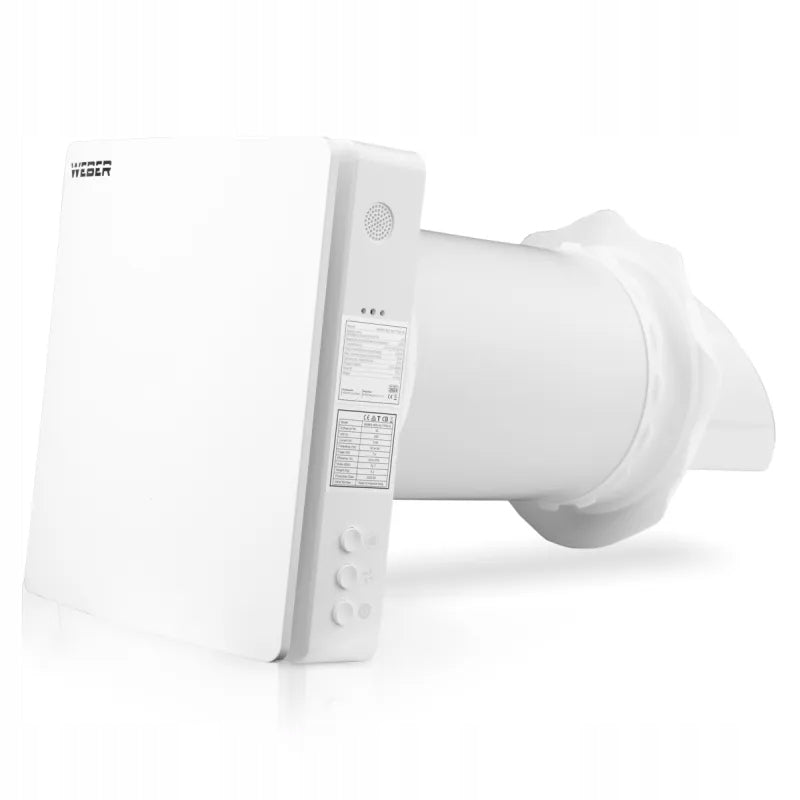

Electric wall air recuperator WEBER AV-TTW6-W in set with remote control and Wi-Fi is a ventilation device for building in closed rooms, ensures effective exchange of used air saturated with carbon dioxide for fresh air taken from the outside of the building while heating it.

This small device can be installed in houses, apartments, cottages and public buildings, hotels, cafes, small shops and other such facilities.

These recuperators are a modern solution ensuring proper air exchange. Their task is to bring fresh air from the outside while draining the air used from the rooms with simultaneous recovery of thermal energy.

The mechanical ventilation system enabling the recovery of heat from the ventilation air becomes an element of a healthy and warm home with parallel energy saving.

ABILITY TO ADJUST THE LENGTH OF THE TELESCOPIC TUBE!

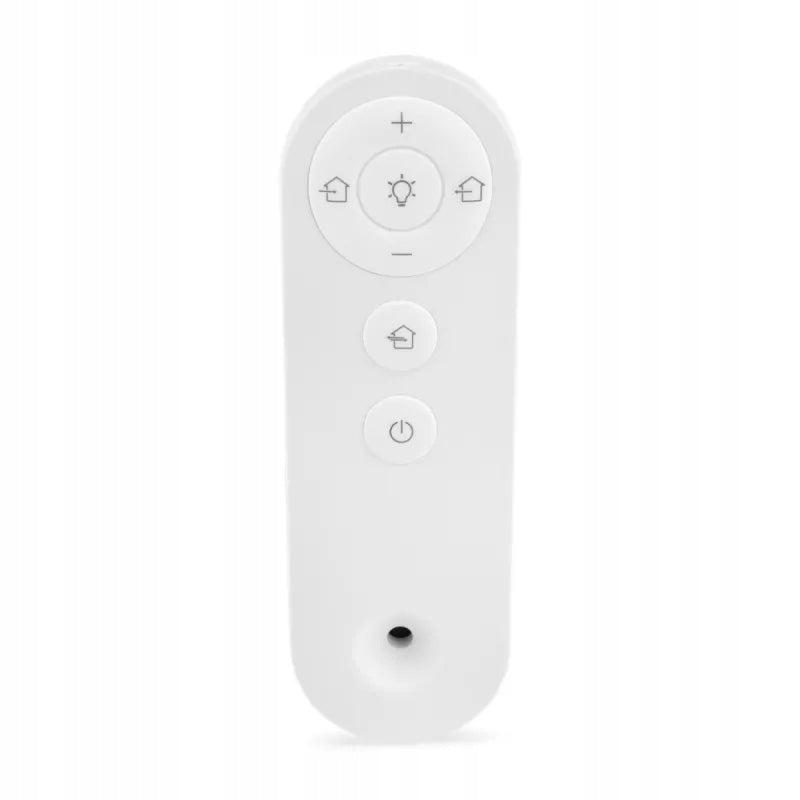

The compact recuperator with energy class A is accompanied by a small remote control (without batteries), thanks to which we can easily and conveniently control the device. The remote control has three available operating modes and the ability to choose three gears with a higher, medium or lower fan speed setting.

• Supply mode (the device supplies external air for an appropriate amount of time, then begins to work in recuperation mode with heat recovery).
• Recovery mode (the device works in two cycles of 75 seconds to ensure heat and moisture regeneration).
• Exhaust mode (the device removes air for an appropriate amount of time, then begins to work in recuperation mode with heat recovery.

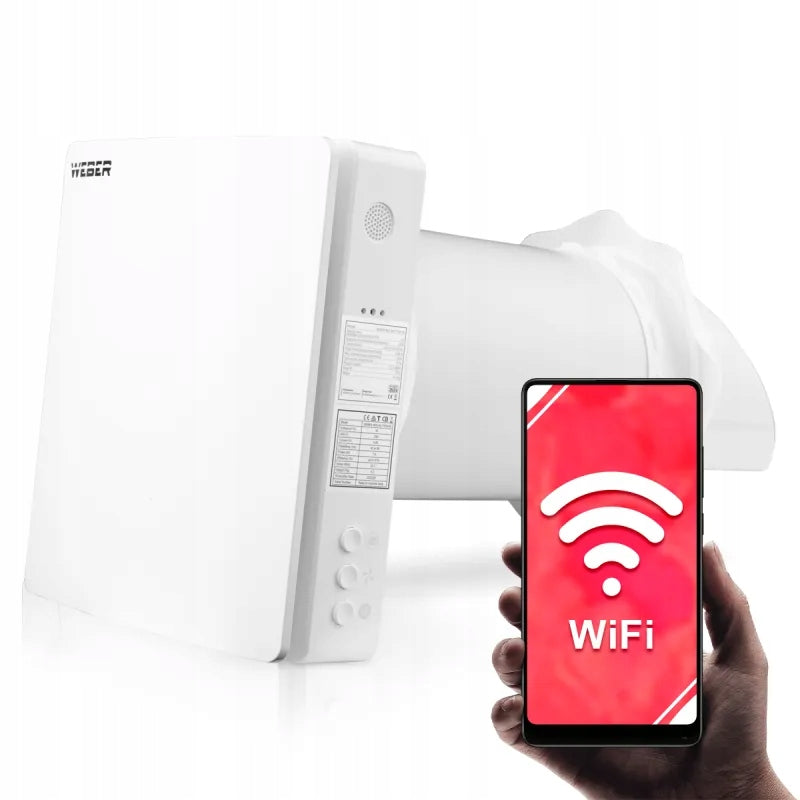

The AV-TTW6 is an advanced version of the 1.0. with built-in Wi-Fi module. We can wirelessly control the device from anywhere using your smartphone, thanks to the available application. The free application allows us to operate several recuperators and combine them into one ventilation system. With the help of a convenient application, we can create an efficient ventilation system, where the entire ventilation system is controlled by one superior recuperator.

PRINCIPLE OF ACTION

Each cycle is 75 seconds, the device operates in two cycles.

I cycle

Warm, polluted and used air is removed from the room by flowing through a ceramic heat exchanger. Ceramic regenerator transfers heat, absorbing moisture. After 75 seconds from the start of heating, the respirator switches to airflow mode.

II cycle

Fresh, cool outdoor air flows through the heating device and heat exchanger. The heat previously stored in the exchanger humidifies and heats the exchanged air. The regenerator and heating device absorbs the accumulated moisture and heat, thanks to which the supply air flow has a room temperature.

After 75 seconds, the fan switches back to exhaust mode and the cycle repeats.

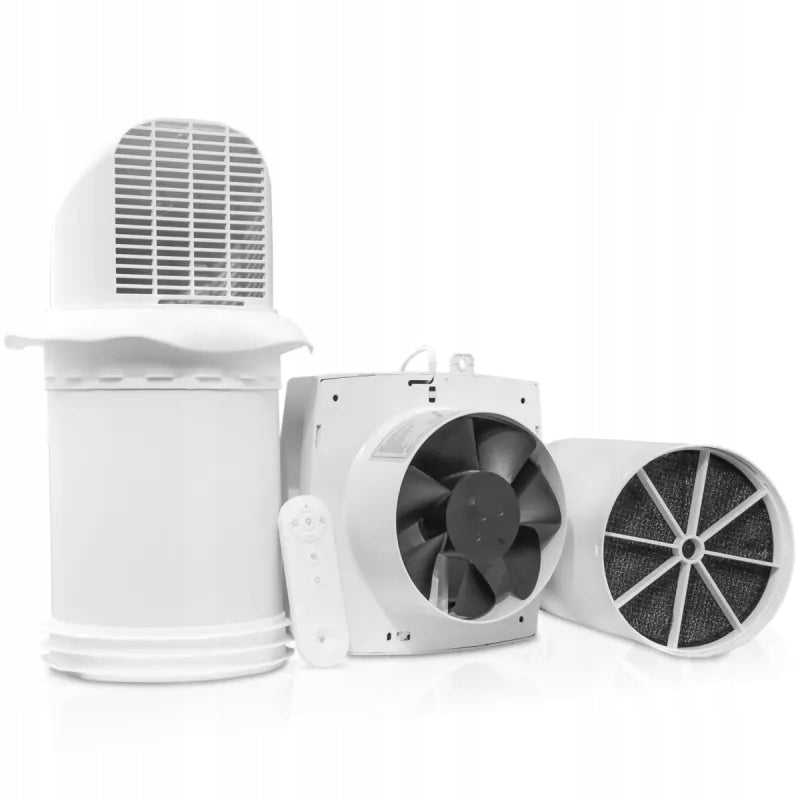

Construction of the device (components) Weber AV-TTW6-W

• Waterproof Silicone Wheel
• External ventilation hood
• Adjustment bracket (allows adjustment of channel inlet and outlet)
• Internal air duct
• Bracket (for fixing ceramic heat exchanger)
• Pre-filter

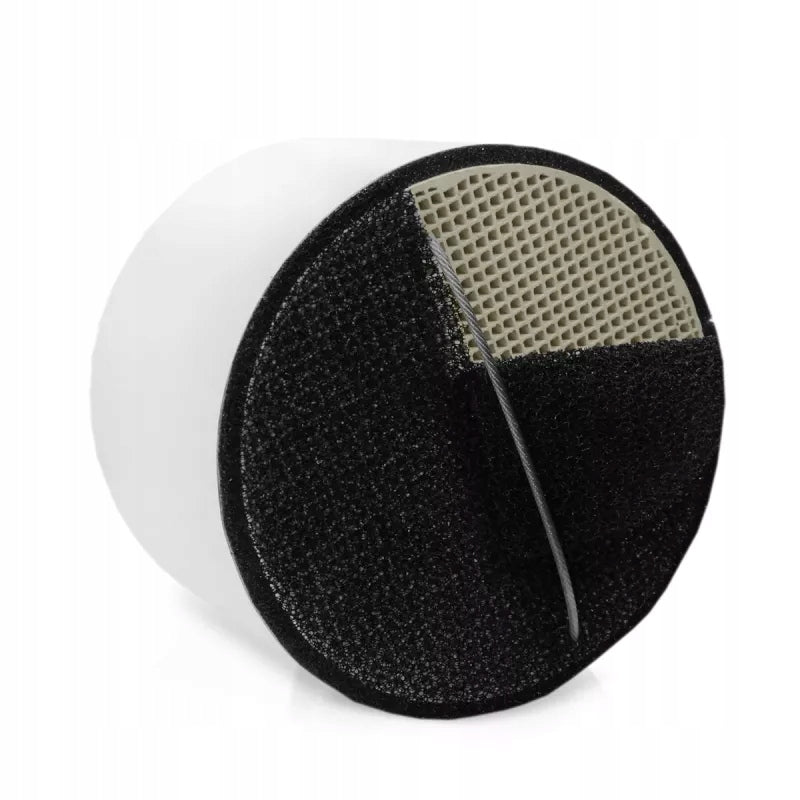

• Ceramic heat exchanger
• Pre-filter
• Bracket (for fixing ceramic heat exchanger)
• External air duct
• Fan with automatic shutter in white with power plug

PRODUCT ADVANTAGES

• Alternating air exchange
• WiFi function
• Wireless pairing of multiple recuperators
• Prevents mold
• Prevents rain and bird inlets
• Lower energy costs
• High efficiency
• Fan with automatically closed shutter
• Easy installation
• Quiet operation of the device
• Decorative front panel
• Alternatives to channel recuperation

TECHNICAL DATA

• Product: Wall recuperator
• Product model: WEBER AV-TTW6-W
• Maximum airflow: 64 m³ / h
• Rated voltage (nominal): 230 V
• Rated Power: 11,3 W (nominal)
• Frequency: 50/60 Hz
• Maximum efficiency: 97%
• Noise level: 36.7 dB (A)
• Ambient temperature: from - 20ºC to + 50ºC
• Relative humidity: up to 80%
• Channel diameter: 160 mm
• IP Class: IPX2

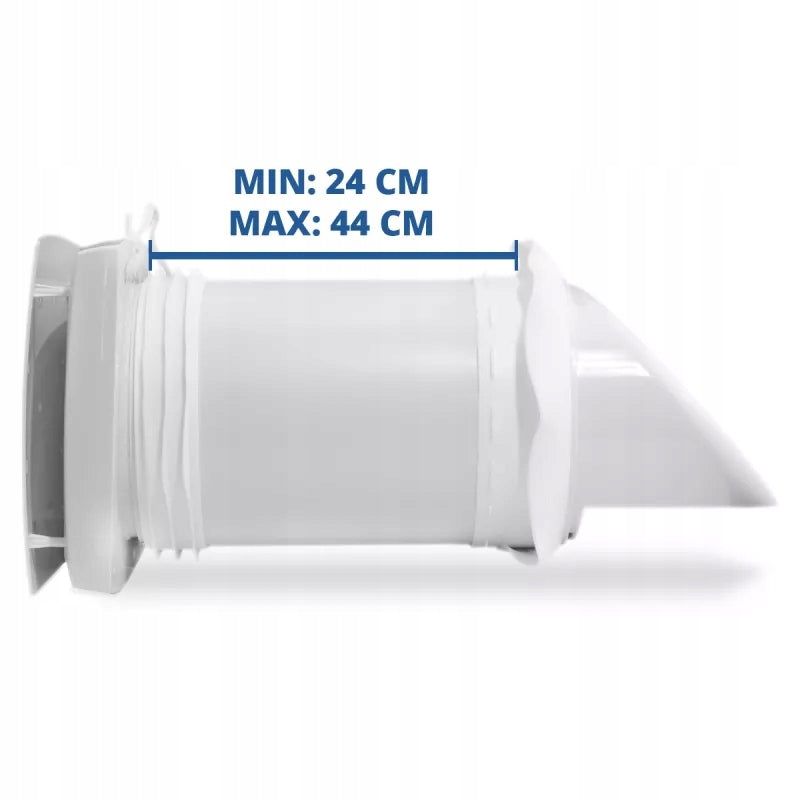

• Length. telescopic tube (minimum): 24 cm
• Dimensions: 205 x 205 x 440 mm
• Weight: 3,4 kg
