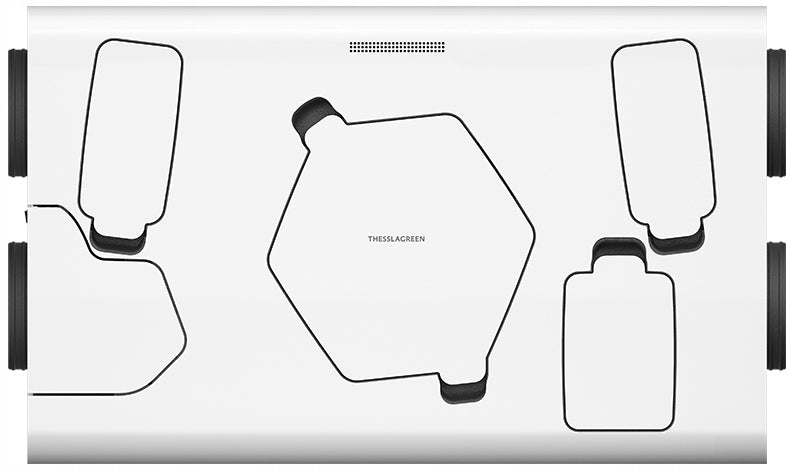

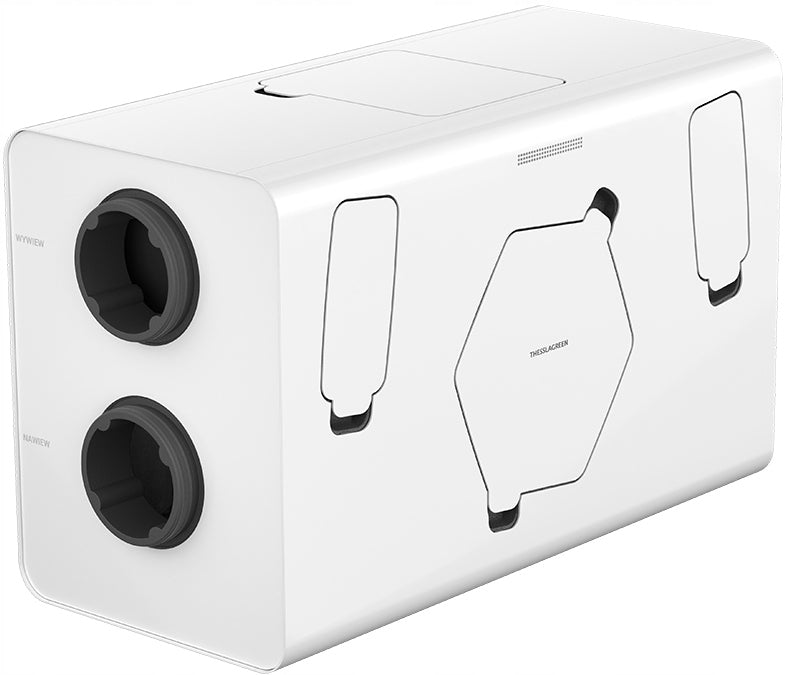

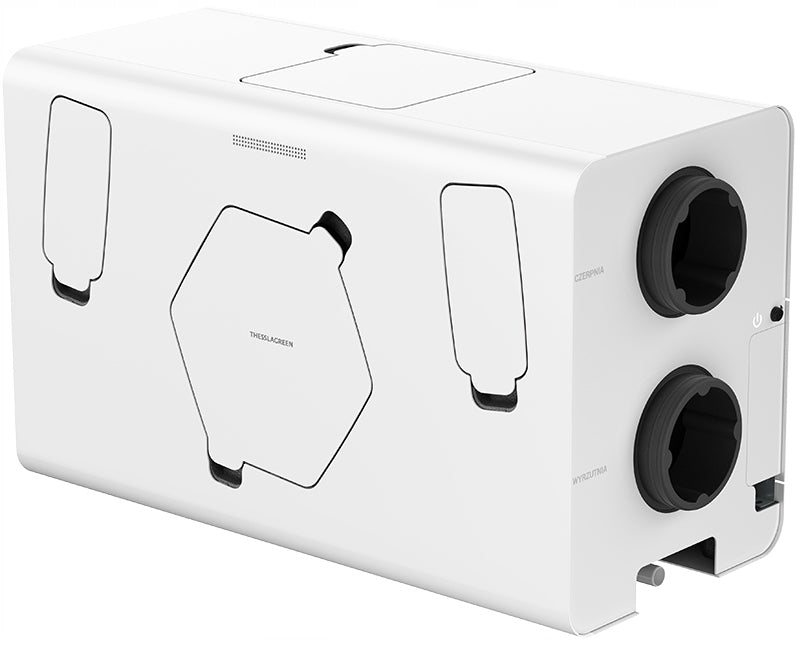

Oro rekuperatorius THESSLA GREEN AirPack4 300H ENERGY+ su CF valdymo pultu

Trumpai apie prekę

Prekė: Oro rekuperatorius THESSLA GREEN AirPack4 300H ENERGY+ su CF valdymo pultu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Thesslagreen
• Modelis: 005C0002

Thessla Green AirPack4 300h Energy+ recuperator with CF system

AirPack4 300h Energy+ is a solution for owners of single-family houses who want to eliminate the problem of moisture, fungus and high heating costs. The device solves the problem of heat loss generated by traditional gravity ventilation, ensuring a constant supply of fresh, filtered air without the need to open windows and let smog or outside noise in. 🏠

⚠ The subject of this offer is a product with assembly, it is the price of the product itself in the case of assembly. (at a VAT rate of 8%)For a previously completed installation with all media and connections to the control panel.

✅InFlow Technology – the silence you need

The use of the InFlow system reduces noise entering the supply ducts by up to 10 dB(A). In practice, this means that the work of the recuperator is almost inaudible in the bedrooms or living room, which ensures that the household members sleep peacefully and rest

✅FPXptc system – efficient ventilation even on cold days

The integrated, smoothly adjustable PTC heater protects the exchanger from freezing. Thanks to this, the recuperator works flawlessly and effectively recovers heat even during severe frosts, protecting your interiors from cooling.

✅FullShell enclosure – installation where you have free space

Thanks to full insulation with a thickness of 50 mm and elimination of thermal bridges, the control panel can be installed even in unheated rooms, where the temperature drops to -15°C (e.g. in the attic). This saves valuable usable space inside your home.

✅CleanPad Pure Filters – a healthier environment for your family

Two-stage filtration system ePM10 70% effectively traps dust and debris. The device monitors the degree of contamination of the filters on an ongoing basis and will inform you when they will need to be replaced, taking care of the cleanliness of the air you breathe.

✅CF system – balancing flows with +/-2% accuracy

The hermetic IP66 design and automatic air flow control (CF) ensure that the supply stream is always equal to the exhaust stream. Recuperation efficiency can increase by up to 30% compared to control panels without this system.

📊 Technical Specifications

• Parameter: Value
• Airflow (100 Pa): 310 m3/h
• Airflow (150 Pa): 275 m3/h
• Airflow (200 Pa): 240 m3/h
• Heat Recovery Efficiency (max.): 95%
• Heat Recovery Efficiency (standard): 89%
• Sound Power Level – Casing: 45 dB(A)
• Sound Power Level – Supply Duct: 45 dB(A)
• Energy Efficiency Class (temperate climate): A
• Maximum Fan Power Consumption: 120 W
• Operating Temperature: -15°C to +45°C
• Power Supply: 230 V (AC), 50 Hz
• Connection Ports: ∅ 200 mm
• Condensate Port: ∅ 32 mm
• Heat Exchanger: Counter-flow
• Air Filters (CleanPad Pure): Two-stage: ePM10 70% (M5) + ISO Coarse 30% (G2)
• Bypass: 100%, controlled and thermally insulated
• Fans: EC with diagonal rotor
• Anti-freeze System: FPXptc with continuously adjustable PTC heater
• Automatic Flow Control CF: Yes (IP66, accuracy +/-2%)
• Communication: Modbus RTU (open protocol)

💬 FAQ – Frequently Asked Questions

Can the AirPack4 300h Energy+ be mounted in an unheated attic or garage?

Yes. The control panel is designed to work in unheated rooms, where the temperature in winter drops to -15°C. FullShell housing with 50 mm insulation and FPXptc anti-freeze system protect the device and maintain recuperation efficiency even in severe frosts.

How often do I have to look at the device to check the filters? You don't have to do it in person. The intelligent Energy+ measuring system continuously examines the actual degree of contamination of the filters and automatically displays a message when it is necessary to replace them.

Can the control panel be connected to a smart home system?

Yes. AirPack4 300h Energy+ supports the open Modbus RTU communication protocol, which allows you to integrate the recuperator into your building management system. It is also possible to connect external modules – m.in. threshold air quality sensor and hygrostat, as well as a module for controlling radiators and heaters.

Please carefully check the contents of the shipment in the presence of the courier. In the event of damage to the goods or shortages in the shipment, a damage report should be drawn up, which the courier is obliged to provide.

Such a document will be the basis for submitting a complaint.
