Oro šildytuvas su PTC, 12V, 180W

Trumpai apie prekę

Prekė: Oro šildytuvas su PTC, 12V, 180W. Kategorija: Oro šildytuvai.

• Gamintojas: no brand
• Modelis: 11202252885522

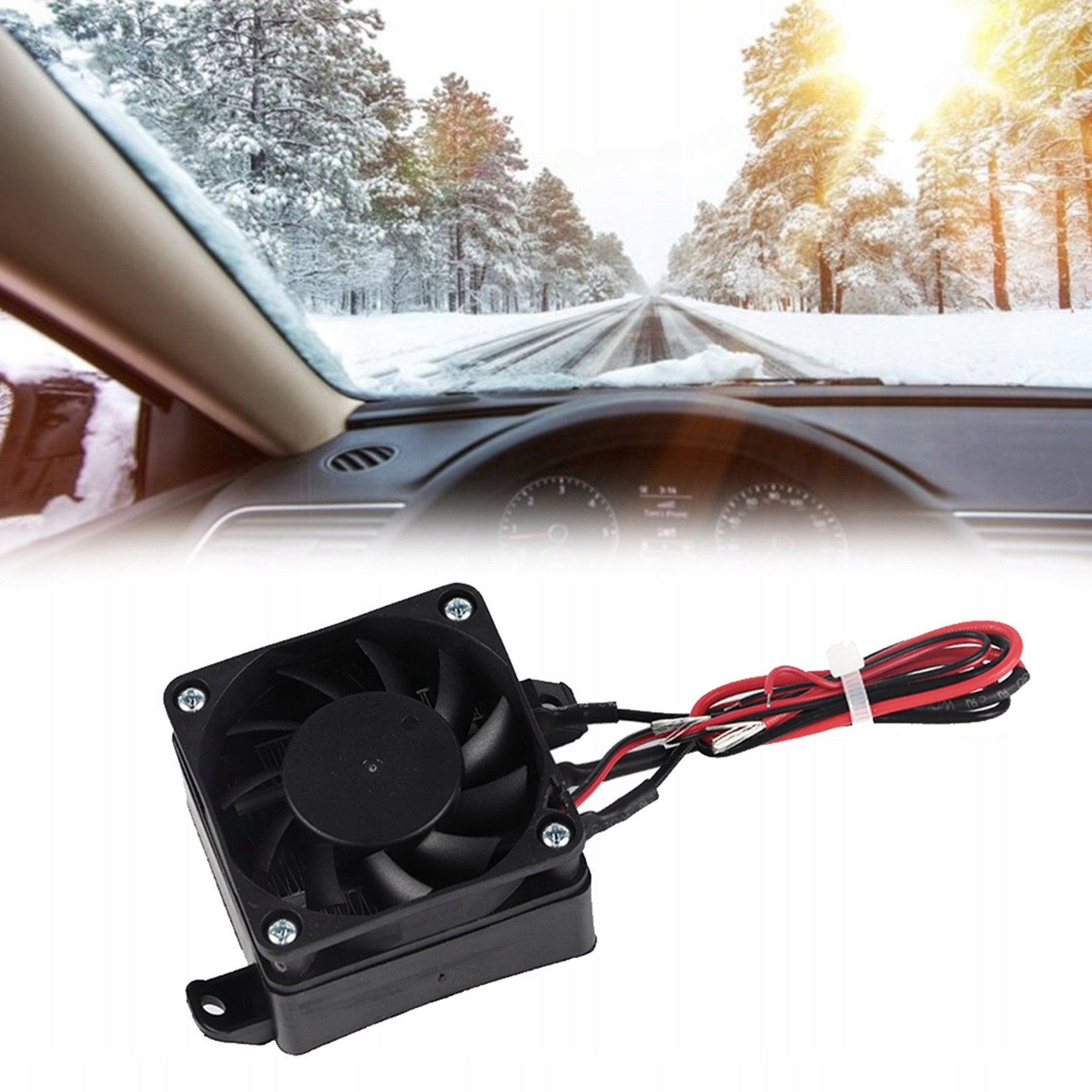

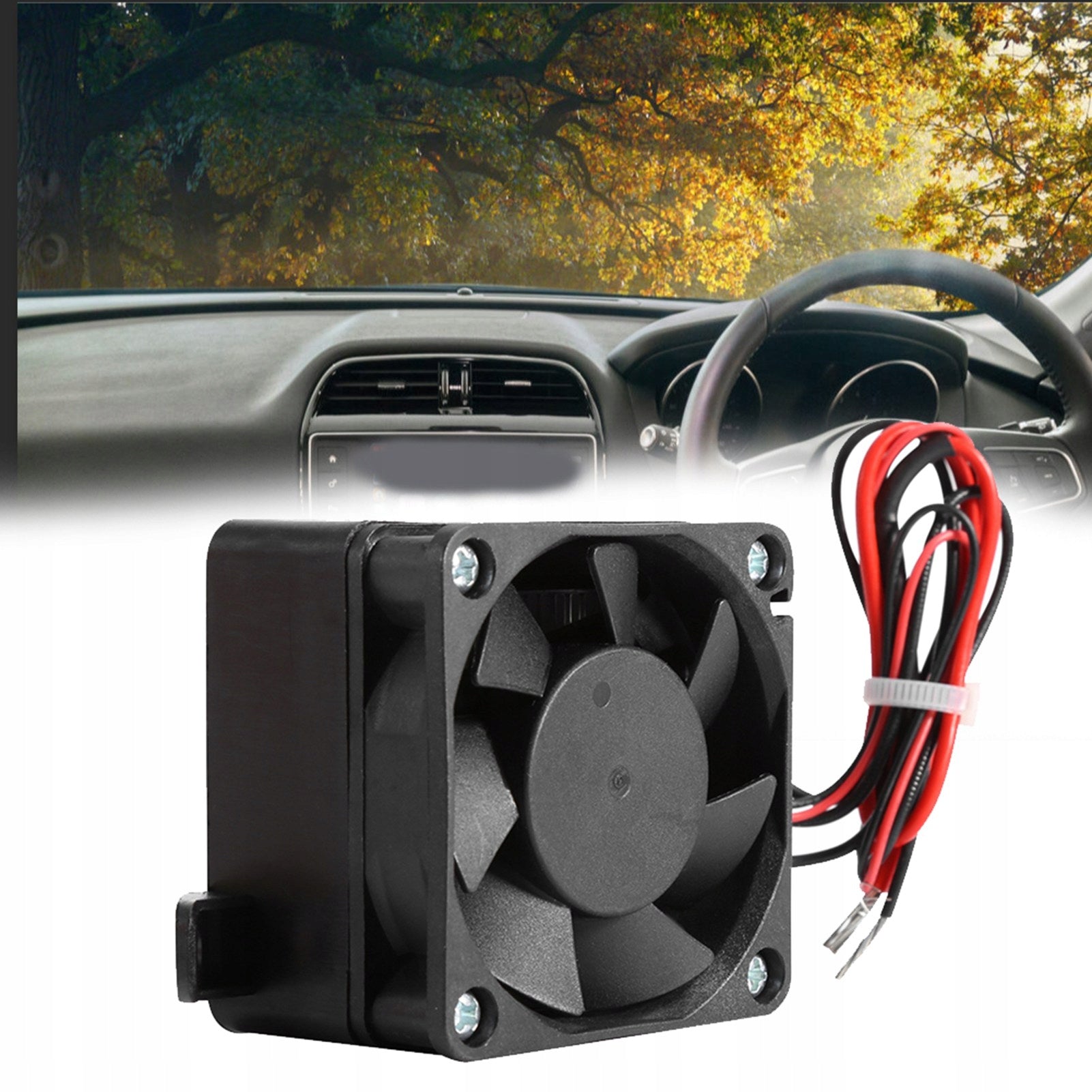

Car Heater With Constant Temperature PTC Fan Small Incubator For Room Heating (12V 180W)

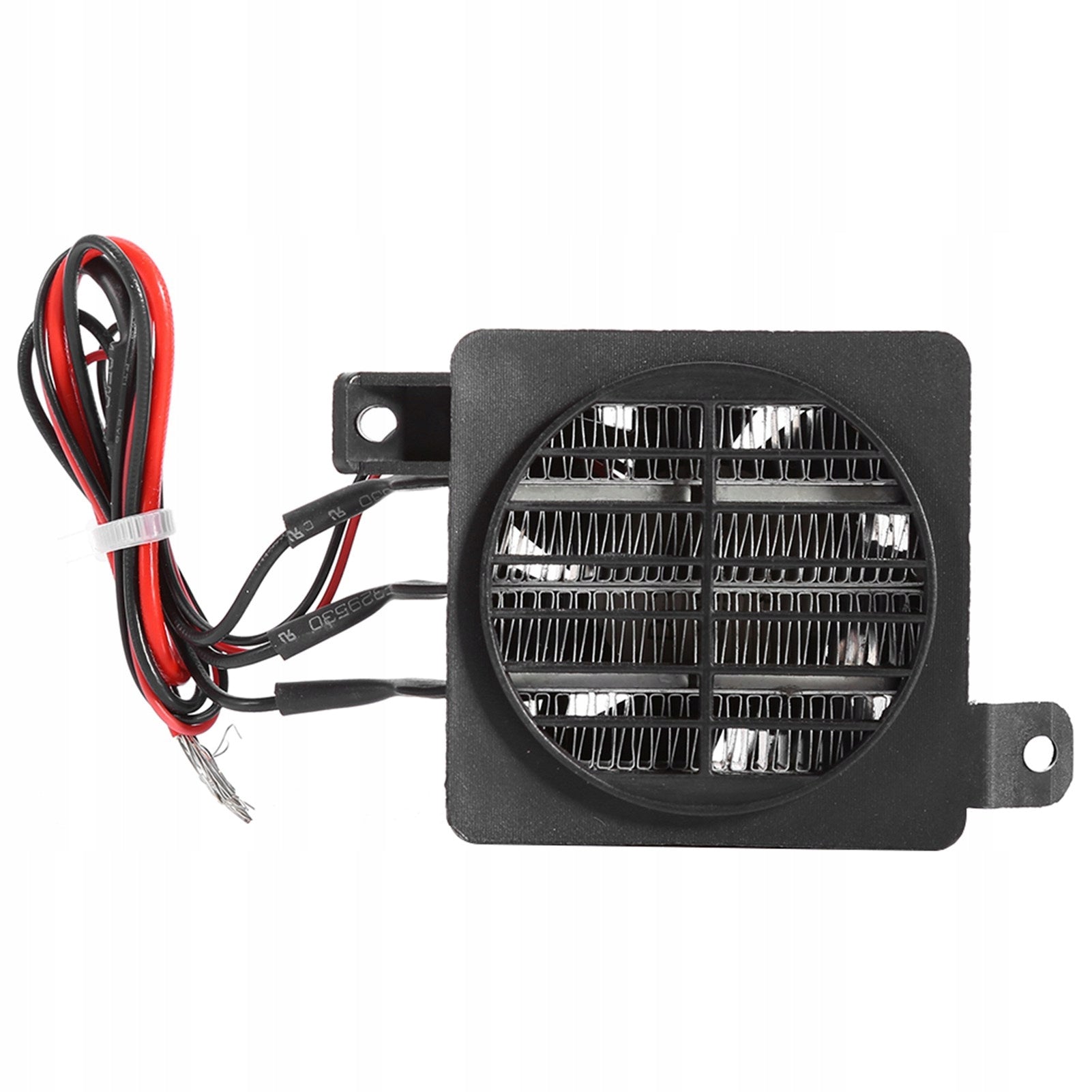

✴ ✴ ✴ 12V 180W FAN PTC AIR HEATER

✅ With insulator on the surface, safe to use, high reliability.

✅ Heats up quickly, long service life. With mounting holes, easy to install.

✅ Adopts heat-resistant silicone wire as guide wire, red wire for "+" and black wire for "-".

✅ This system is energy efficient, when the heater increases the ambient temperature, the power will be gradually reduced in certain ranges.

✅ Applicable to radiators, humidifiers, air conditioning and other commonly used equipment.

◼ Black colour

⭐type: No. 1 Rated voltage: 12 V

⭐Rated power: 180 W (15 A)

⭐Distance of mounting hole: approx. 87mm / 3,4"

⭐Diameter of mounting hole: approx. 4mm / 0,16"

⭐Product size: approx. 60 x 60 x 42 mm / 2,4 inch x 2,4 inch x 1,7 inch

◼ Ambient temperature range: -5 ~ 65 ℃

◼ Package weight: approx. 160g

◼ Quantity: 1 piece

• 1 x PTC Heater

☑ Instructions for PTC air heater with fan series:

1. When the bare wire protrudes from the heater, the positive and negative electrodes are not distinguished. Please enter the rated voltage and sufficient current.

2. When the bare wire protrudes from the fan, the red is the positive electrode and the black is the negative electrode. Please enter the rated voltage and sufficient current.

3. The heater can be used in a very humid environment. It does not matter whether a small amount of water droplets will splash on the surface of the radiator, but they can not be immersed in

fluid.

4. The insulation of the black radiator bracket is resistant to high temperatures, but the metal part conducts. During use, attention should be paid to safety.

5. The life of the heater fan is 3~5 years, 20 000~30 000 hours.

6. The heater is equipped with a 230℃ chip. When the fan blows, the surface temperature of the heater is about 100℃. When the fan fails and stops rotating, stop using

heater to avoid potential safety hazards.

7. When the heater is used for the first time, a small amount of smoke or odor may appear, which is caused by an oil stain and the leakage of heat conductive adhesive formed after the aluminum corrugations are pressed. This is normal and will soon disappear.

8. The power of the product depends on the mode of use, heat dissipation conditions, ambient temperature and other factors. The rated power given by us refers to the power measured at

ambient temperature 24℃. Under these conditions, the air temperature at a distance of 5 cm from the outlet is about 50 ℃ Celsius. (when the ambient temperature drops, the heater power will be

increase. )

9. When used in a small enclosed space, after some working time and an increase in ambient temperature near the heater, the energy consumption of the heater will gradually decrease, which is a characteristic feature of the PTC products themselves in terms of energy saving.

10. Safety, stability, energy saving, environmental protection and long service life are the most important advantages of PTC products. With normal use from 5000 to 10000 hours, the power attenuation is about 15%. (Unlimited switching times)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Kind	electric
Parametry	Product weight with unit packaging	0.16 kg
Parametry	Manufacturer code	11202252885522
Parametry	Packaging status	original
Parametry	Energy efficiency class	A
Parametry	Range of energy efficiency classes	A++ - G
