Aprašymas
Trumpai apie prekę
Prekė: Oro šildytuvas Volcano VR2 EC 8, 50 kW, su montavimo konsole ir laidais. Kategorija: Oro šildytuvai.
- Gamintojas: VTS
- Modelis: Volcano

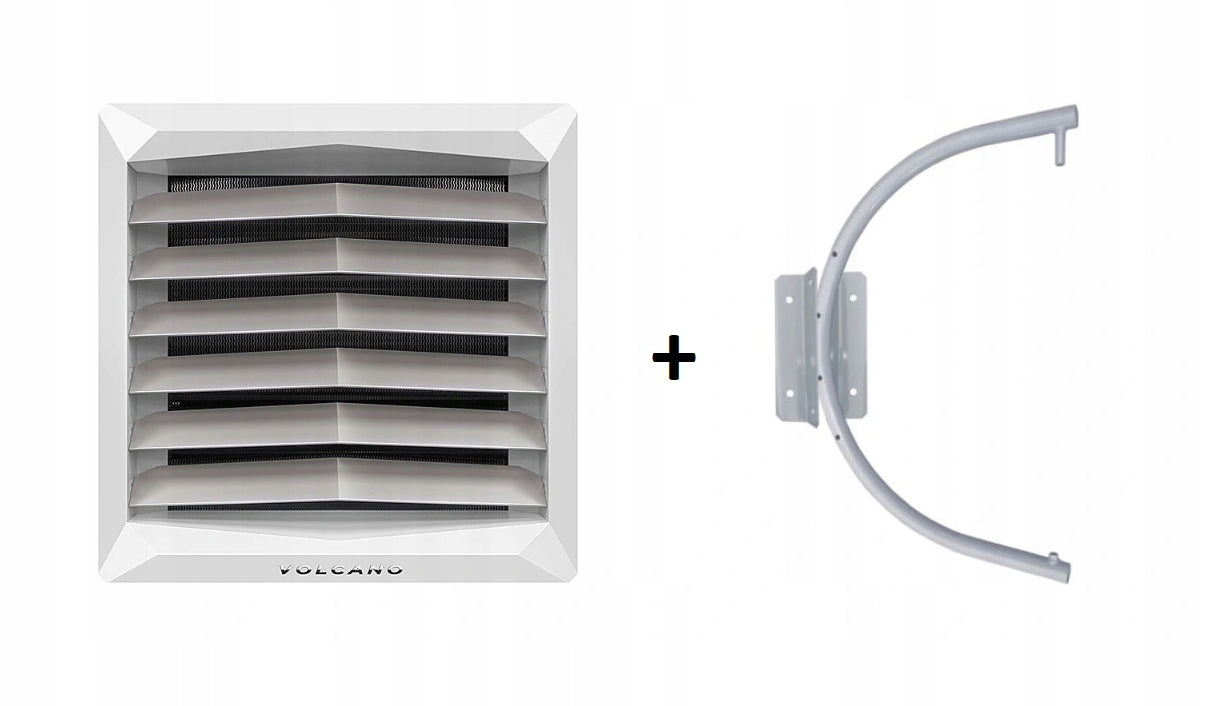

The set includes:
- Water heater VOLCANO VR2 EC 8-50 MOUNTING CONSOLE FREE VTS

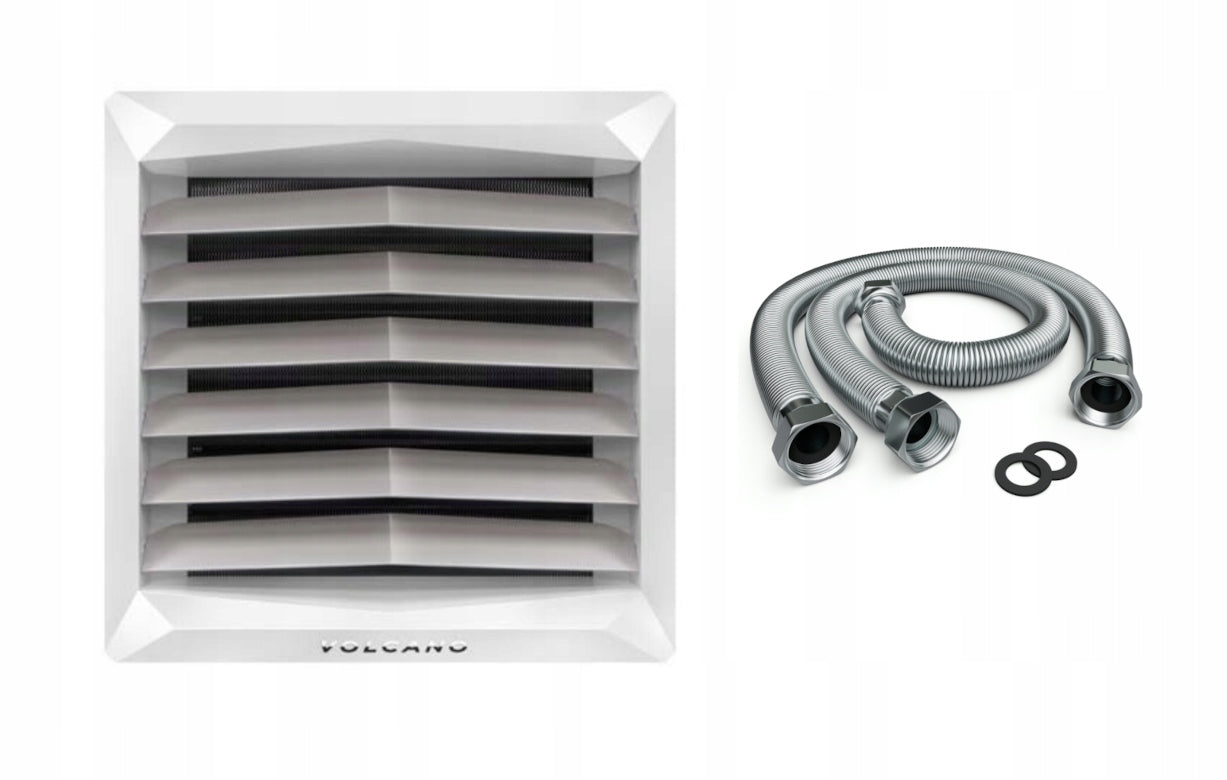

- Flexible cables for VR1 VR2 VR3 3/4" VTS VOLCANO heaters
Water heater VTS VOLCANO VR2 EC 8-50 MOUNTING CONSOLE FREE
Technical data:
- Manufacturer: VTS
- Manufacturer code: 1-4-0101-0443
- EAN: 5902854420018
- Engine: EC (electronically switched)
- Heating power range: 8-50 kW
- Number of heater rows: 2
- Max. air efficiency: 4850 m3/h
- Max. temp. heating medium: 130 °C
- Max. Operating pressure: 1,6 MPa
- Max. horizontal air range: 22 m
- Max. vertical air range: 11 m
- Water capacity: 2,16 dm3
- Diameter of connection connectors: 3/4"
- Weight of the device (without water): 21,5 kg
- Supply voltage: 1~230/50 V/Hz
- EC motor power: 0,25 kW
- Rated motor current EC: 1,3 A
- EC motor speed: 1430 rpm
- Degree of protection of the EC engine: IP44
- Manufacturer: VTS
VOLCANO air heaters
VOLCANO air heaters are devices designed for efficient heating of large spaces using the blow method. Thanks to the heat exchanger, they heat the air and distribute it evenly in the room, allowing you to quickly reach the set temperature.
They work well in warehouses, sports halls, car workshops, greenhouses, churches and other medium- and large-scale facilities.
The most important design features
- Developed housing design – optimal exposure of the exchanger surface while hiding technical elements.
- ABS plastic housing with anti-UV pigment – high resistance to temperature, mechanical damage and discoloration.
- Smart Lock system – precise and durable connection of housing elements, increasing the stability of the structure.
- Modern form and universal colors – aesthetic integration with industrial and commercial space.
Performance and air flow technology
- Individually adjustable air steering wheels – control of the airflow direction and stable positioning of the blades.
- Profiled blades with low flow resistance – better use of heating power.
- Integrated diffuser and fan housing – even air distribution in the exchanger and high airflow efficiency.
- Maximum air efficiency – full use of heater parameters without energy losses.
Heat exchangers tailored to your needs
- 1, 2 and 3-row versions – the ability to adjust the heating power to the size of the object.
- Developed heat transfer area – more efficient transfer of energy to the air.
- Working with low-temperature factors – compatibility with modern heating systems.
- The tightness test of each exchanger – full control of production quality.
VOLCANO heaters combine an efficient blowing system, durable construction and well-thought-out technical solutions. It is a solution for facilities where fast, even and economical heating of large volumes is crucial.
- Producer: Volcano
- Manufacturer code: 1-2-2702-0076
- EAN: 5902854460069
- Max. Operating pressure: 1,6MPa
- Max. Operating temperature: 130°C
- Thread: GW/GW 3/4"
- Nominal hose length: 60cm
- Maximum hose length: 90cm
Fits most m.in water heaters to: Flowair, Volcano
3/4" thread
Hydraulic hoses VTS 0,6 – 0,9 m
Flexible connection hoses designed for water and heating installations. Made of corrugated corrosion-resistant steel, with permanently soldered or welded tips, they ensure a secure and tight connection between devices and the installation.
The most important features
- Scope of length 0,6 – 0,9 m – possibility of stretching and adjusting to the connection system.
- Stainless steel corrugated pipe – corrosion resistance and durability in water installations.
- Solidly connected ends – stable and tight connection with fittings.
- Suitable for hot and cold water installation – application in sanitary and heating systems.
- For permanent connection of devices – designed for fixed receivers.
Application
VTS hydraulic hoses are suitable for connecting:
- water heaters,
- water air curtains,
- water tanks and heaters,
- boilers, radiators and central heating systems,
- plate exchangers and other installation equipment.
Practical mounting solution
The flexible design makes it easy to fit into your existing installation, reducing the need for rigid pipes and additional fittings. Hoses should be installed in accordance with the manufacturer's instructions, using fittings and fittings designed for sealing with a gasket.
VTS stretch hoses are a functional element of water and heating systems, ensuring durable and safe connection of devices in residential, industrial and commercial facilities.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | VTS |
| Parametry | Kind | water |
| Parametry | Heating power | 50 kW |
| Parametry | Model | Volcano |
| Parametry | Product weight with unit packaging | 21.5 kg |
| Parametry | Manufacturer code | VR2 EC |
| Parametry | Packaging status | original |
| Parametry | Energy efficiency class | A++ |
| Parametry | Range of energy efficiency classes | A++ - G |
