Oro stotelė GoGEN ME 7900 su Wi-Fi ir 7-in-1 jutikliu

Trumpai apie prekę

Prekė: Oro stotelė GoGEN ME 7900 su Wi-Fi ir 7-in-1 jutikliu. Kategorija: Oro stotelės.

• Gamintojas: GoGEN
• Modelis: GOG-ME7900

Wireless weather station GoGEN ME 7900 with Wi-Fi

The GoGEN ME 7900 meteorological station is an extensive measuring set designed to monitor basic and advanced weather parameters in amateur and hobby applications. The device measures indoor and outdoor air temperature and humidity, atmospheric pressure, wind speed and direction, precipitation, UV index, solar radiation, as well as calculation values such as perceptible temperature and dew point.

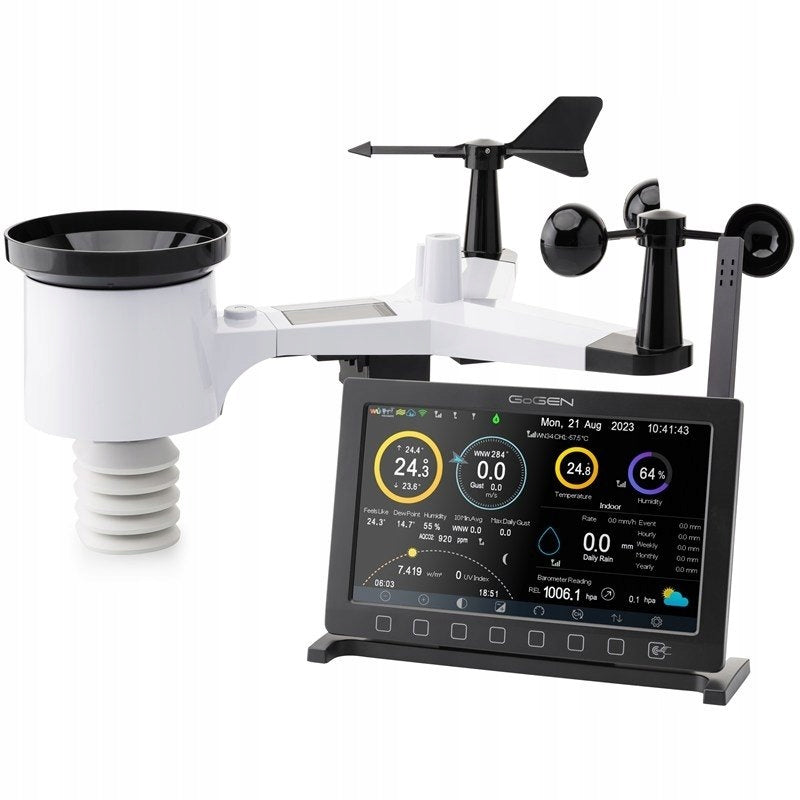

The set consists of a console with a TFT color LCD display and an external 7-in-1 sensor, communicating wirelessly in the 868 MHz band at a distance of up to 150 m in open space. The model is also equipped with a Wi-Fi module that allows you to transfer data to Ecowitt Weather, Weather Underground and Weathercloud weather services, as well as to WSView Plus applications and home automation systems that work with the Ecowitt protocol.

Key features

• Extensive meteorological station with TFT color LCD display
• 7 in 1 external sensor for measuring temperature, humidity, wind, precipitation, UV index and solar radiation
• measurement of temperature and humidity of internal and external air
• absolute and relative atmospheric pressure measurement
• Measurement of wind speed, direction and gusts
• registration of hourly, daily, weekly, monthly, annual and total precipitation
• indication of the perceptible temperature and dew point
• memory of minimum and maximum values for most parameters
• Configurable alarm alerts for temperature, humidity, pressure, wind, precipitation and weather indicators
• Wi-Fi connectivity and data transfer to Ecowitt Weather, Weather Underground, Weathercloud and your own website
• cooperation with the WSView Plus application
• possibility of integration with Home Assistant via Ecowitt protocol
• clock radio controlled by DCF-77 signal
• possibility of expanding the system with up to 8 additional temperature and humidity sensors

Application

• Amateur monitoring of weather conditions around the house
• gardens, plots and private properties
• hobby observation of wind, precipitation and sunlight
• supporting irrigation and home automation systems
• Current preview of weather data locally and remotely over the Internet

Connectivity and remote access

The GoGEN ME7900 model is equipped with a Wi-Fi module operating in the 802.11 b/g/n standard in the 2,4 GHz band, which allows you to publish measurement data in external weather services and their remote viewing from mobile devices. The station works with Ecowitt Weather, Weather Underground and Weathercloud platforms, as well as the WSView Plus app.

Data can also be used in smart home environments, including the Home Assistant system via the Ecowitt protocol. In practice, this allows you to build automation scenarios depending on current weather conditions, e.g. precipitation, wind, temperature or sunlight.

Possibility of expanding the system

The station works with optional additional temperature and humidity sensors GoGEN MESENZOR 39 / GOGMESENZOR39. The main unit supports up to 8 additional sensors of this type, which allows you to extend monitoring with additional rooms or measurement zones.

Technical data

Measurement characteristics Internal temperature

• Measuring range: -10°C to +60°C
• Accuracy: ±0,3°C
• Units: °C/°F
• Memory: current, max. /min.
• Alarm: high/low temperature

External temperature

• Measuring range: -40°C to +60°C
• Accuracy: ±0,3°C
• Units: °C/°F
• Memory: current, max. /min.
• Alarm: high/low temperature

Indoor/Outdoor Air Humidity

• Measuring range: 1% to 99% RH
• Accuracy: ±5% RH
• Units: % RH
• Memory: current, max. /min.
• Alarm: high/low humidity

Atmospheric pressure

• Measuring range: 300 to 1100 hPa
• Accuracy: ±5 hPa (700 to 1100 hPa)
• Units: hPa, inHg, mmHg
• Type of indication: relative and absolute pressure
• Memory: max. /min.
• Alarm: High/Low Pressure

Wind

• Measured parameters: speed, gusts, current wind direction, average wind direction
• Measuring range: 0 to 50 m/s
• Units: m/s, km/h, nodes, mph, bft, ft/s
• Speed accuracy: < 5 m/s: ±0,5 m/s; > 5 m/s: ±10%
• Direction accuracy: ±12°
• Memory: wind speed / maximum gust speed
• Alarm: strong wind/wind gusts

Rainfall

• Measuring range: 0 to 9999 mm
• Units: mm, inches
• Accuracy: ±10%
• Indication modes: current, hourly, daily, weekly, monthly, annual, total
• Memory: hourly / daily / weekly / monthly / annual precipitation
• Alarm: maximum hourly/day precipitation alarm

UV index

• Measuring range: 0 to 15
• Memory: max
• Unit: UV index

Solar radiation

• Measuring range: 0 to 200 kLux
• Units: Lux, Fc, W/m²
• Accuracy: ±15%
• Memory: max

Weather indicators

• Available indications: perceptible temperature, dew point
• Display Mode: Current
• Memory: max. /min.
• Alarm: for perceptible temperature/dew point

General characteristics

• Type: wireless weather station with Wi-Fi
• Model: GoGEN ME7900

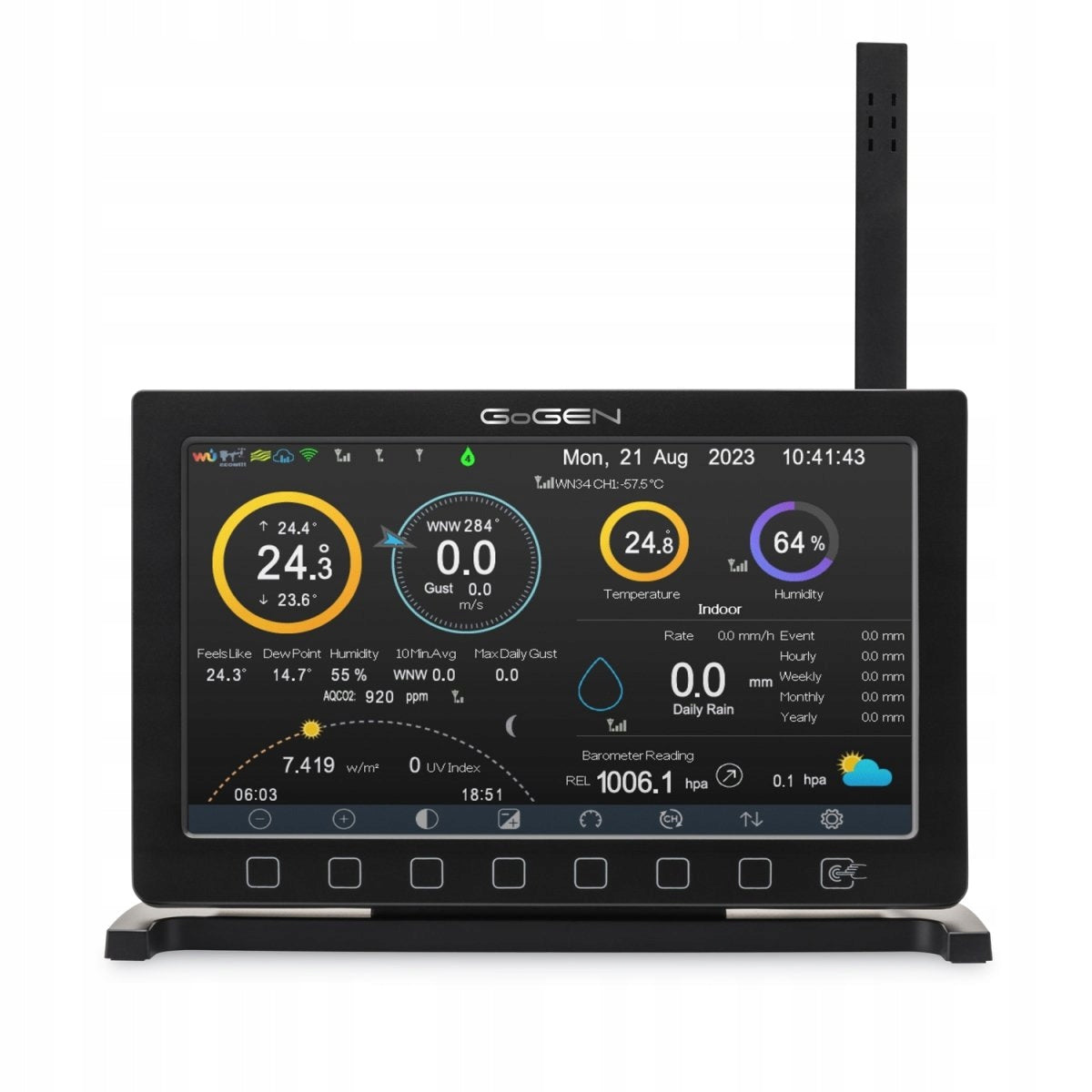

• Display: TFT color LCD
• Color: Black

• Console dimensions: 181 × 116 × 22 mm
• Console weight: 235 g
• 7 in 1 external sensor dimensions: approx. 320 × 295 × 200 mm
• External sensor weight: 585 g
• Wall mountable: yes

• Console power supply: 5V/1A AC-DC power supply (included)
• Console backup power supply: b.d.
• External sensor power supply: built-in solar panel with 6,5V/4mA capacitor
• Emergency sensor power supply: 2 × AA 1,5 V (not included)

• Communication with sensor: wireless 868 MHz
• Sensor EIRP power: -2,44 dBm
• Communication range: up to 150 m in open space
• Transmission interval: every 16 s
• Wi-Fi: 802.11 b/g/n, 2,4 GHz (2412 to 2472 MHz)
• EIRP Wi-Fi Power: 16,1 dBm

• Compatible accessory sensor: GoGEN MESENZOR 39 / GOGMESENZOR39
• Max. Number of additional T&H sensors: 8 units
• Mobile application: WSView Plus
• Weather Services: Ecowitt Weather, Weather Underground, Weathercloud
• SMART Integration: Home Assistant by Ecowitt

• Time Display: HH : MM : SS
• Time format: 12-hour or 24-hour
• Date display: DD/MM, MM/DD/YYYY or YYYY/MM/DD
• Time zones: GMT ±12
• DST: on. / off.
• Clock: DCF-77
• Weather forecast: sunny, partly cloudy, cloudy, rainy, stormy, snowy and stormy snowy

About the manufacturer

GoGEN is a consumer electronics brand owned by the Czech company ETA a.s., a manufacturer and distributor of consumer equipment operating on the Central European market. The brand’s offer includes m.in. Extensive meteorological stations with online functions and electronic devices for home and hobby applications.

Good to know

Amateur station and professional applications: GoGEN ME7900 is an extensive meteorological station for home and hobby applications. Despite the wide range of functions and extensive measurement system, it is not an instrument designed for professional, official or industrial applications where a specific instrument class, calibration and full metrological repeatability are required.

7-in-1 sensor mounting location: The quality of wind, precipitation, temperature and sunlight measurement largely depends on where the external sensor is installed. The measuring unit shall be installed in the openest possible space, away from terrain obstacles, building walls, tree crowns and heating surfaces which could interfere with the representativeness of the measurements.

Icon forecast and online data: The animated forecast displayed by the station is indicative and is mainly based on the analysis of pressure changes and current local parameters. The greatest utility value of this type of device is a constant preview of data from its own location, their archiving and the possibility of using them in home automation applications and systems.

Frequently Asked Questions

Does the station send data to the Internet?

Yes, the GoGEN ME7900 can transmit data over Wi-Fi to Ecowitt Weather, Weather Underground, Weathercloud and the WSView Plus app.

Can the system be expanded with additional sensors?

Yes, the main unit supports up to 8 additional temperature and humidity sensors GoGEN MESENZOR 39 / GOGMESENZOR39.

What parameters does the station measure?

The device monitors m.in. temperature, humidity, pressure, wind, precipitation, UV index, solar radiation, dew point and perceived temperature.

Does the time set automatically?

Yes, the clock is synchronized with the DCF-77 radio signal.

Contents of the set

• receiving console with colour display
• 7 in 1 external sensor
• AC-DC 5 V / 1 A power supply

Downloadable

• User Manual (PDF)
• Product card (PDF)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	GOG-ME7900
Parametry	Brand	GoGEN
Parametry	Model	GOG-ME7900
Parametry	EAN (GTIN)	8590393326402
Parametry	Batteries included	yes
