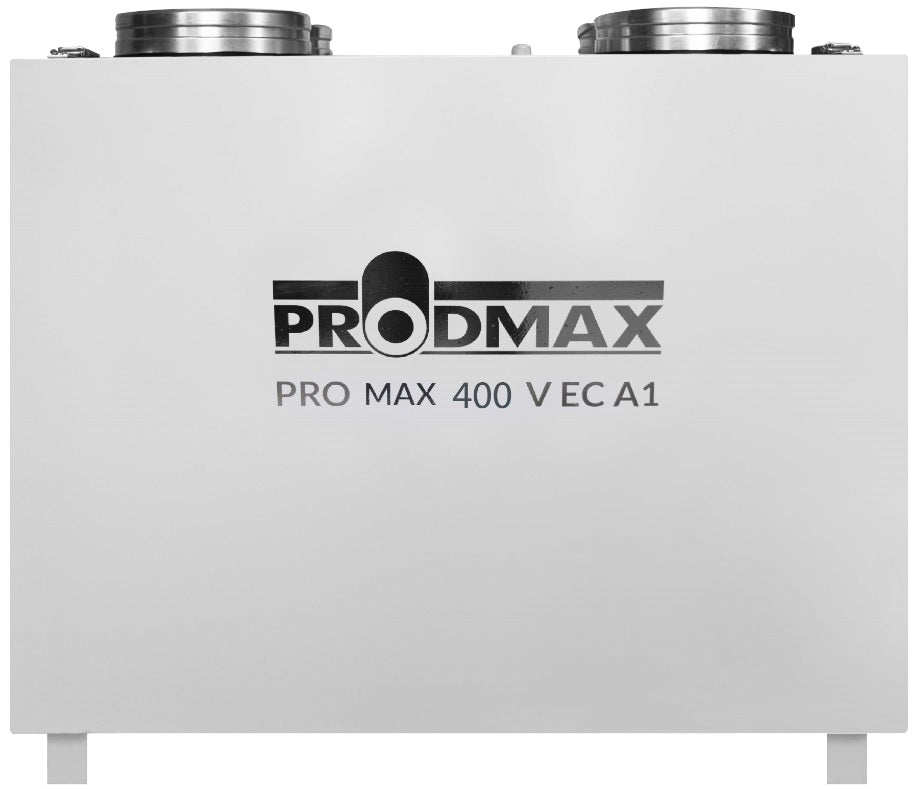

Oro tiekimo rekuperatorius Pro Max Basic 400V

Trumpai apie prekę

Prekė: Oro tiekimo rekuperatorius Pro Max Basic 400V. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Prodmax
• Modelis: SK REKUPERATOR PRO MAX 400V-B

THE MOST IMPORTANT FEATURES OF THE CONTROL PANEL

✅ Housing made entirely of powder coated steel, sound-absorbing insulation gr. 40 mm is characterized by excellent vibration damping properties, noise.

✅ Heat exchanger the most effective and reliable cross-current o high efficiency heat exchange - efficiency up to 98% - reputable company Recair with many years of experience.

✅Fans - electro commutator motors direct current EC from the renowned company AFL were used, guaranteeing reliability and energy-saving quiet operation.

✅ Automatic bypass – the offered control panels are equipped with 100% by-pass, providing, if necessary, the possibility of cooling the room thanks to the direct supply of cool air to the rooms from the outside in the summer without the need to replace the exchanger with summer cassettes, which in retrospect and operation is quite burdensome in operation.

✅ M5 filtration in the intake chamber and G4 filtration in the exhaust chamber

✅ Modern controller – advanced automation allows you to precisely adjust the parameters of the control panel for the current installation and prevailing weather conditions.

PRO MAX

is a series of economical and compact control panels

ventilation PLUG&PLAY type, which are the main

element of mechanical ventilation system.

Their main task is to replace and process air.

PROMAX control panels are high-quality supply and exhaust devices

with heat recovery, which is carried out by means of

high-efficiency cross-current exchangers.

BASIC FUNCTIONS OF CONTROL PANEL AUTOMATION

✅ GWC control

✅ Control of pre/secondary/cooler heater

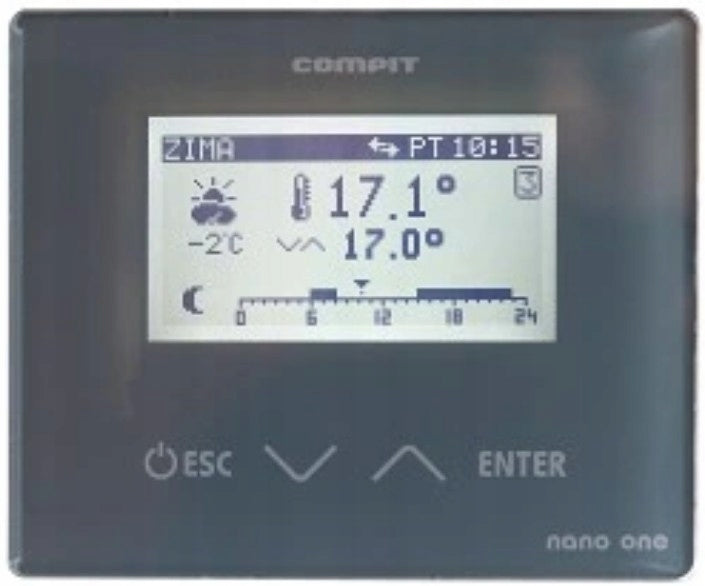

✅ Black and white graphic display and touch keyboard

✅ Built-in temperature sensor

✅ Possibility to set a weekly schedule

✅ Automatic switching modes WINTER, SUMMER, COOLING

✅ Displaying data from other devices operating in the C14 system

✅Ventilation control using modules from the AERO series,

✅ reading of all temperatures

✅ Filter contamination indicator

✅ Operation control of the heating system

✅ Smooth fan speed control

✅ Control of pre/secondary/cooler heater

✅ On-line control (optional)

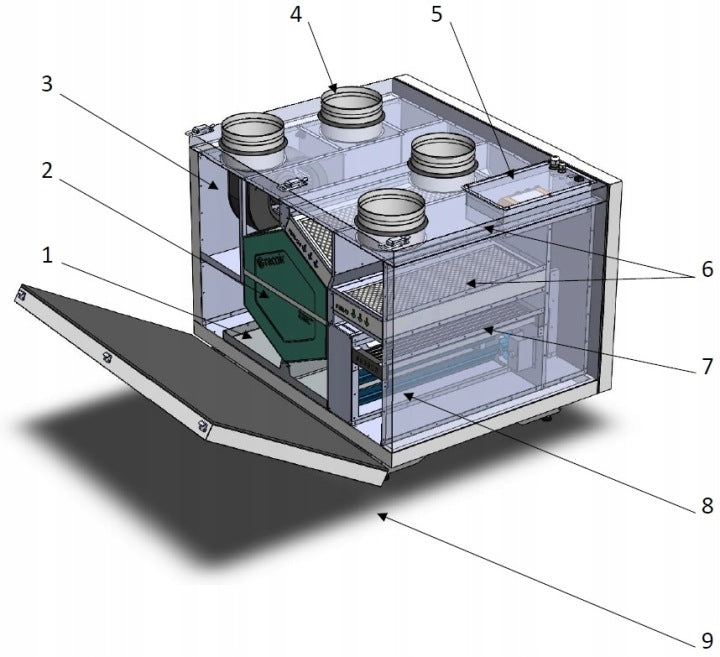

CONSTRUCTION:

1 - Drain tray

2 - Heat exchanger Recair with cross, countercurrent design

3 - Fans EC AFL radial

4 - Connection connections to the 4x Ø160 system

5 - Control AREO 4 – Compit

6 - M5 filter, intake chamber, G4 filter in exhaust chamber

8 - Bypass controlled by electric actuator Belimo

9 - Hinged flap, closed with buckle locks

PARAMETERS:

➡ Maximum flow rate at 100 Pa : 470 m3/h

TECHNICAL DATA:

➡ Voltage: 230 V

➡ Maximum fan power: 2 x 120 W

➡ Maximum fan current consumption: 2 x 0,86 A

➡ Total power of the device: 0,24 kW

➡ Rotation: 1900/min

➡ Maximum temp. Pressed air: -20 to +50°C

➡ Exchanger material: polystyrene

➡ Housing material: powder coated steel

➡ Insulation: 40 mm, mineral wool

➡ Intake filter: M5 (F7* option)

➡ Filter extract: G4

➡ Diameter of air connection connectors: Ø160 mm

➡ Air flow at 100Pa: 470 m3/h

➡ Dimensions [length x width x height]: 877x745x729 mm

➡ Heat exchanger: cross-current RECAIR

➡ Maximum Exchanger Efficiency: up to 98 %

➡ Noise level: 41 dB

➡ Fans: EC AFL

➡ Internet module: not

➡ Bypass: yes
