Oro užuolaida AERIS AC150E1P, 1,5 m, 230 V, balta

Trumpai apie prekę

Prekė: Oro užuolaida AERIS AC150E1P, 1,5 m, 230 V, balta. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AERIS AC150E1P
• Galia: 230 W

The AERIS electric curtain is an effective and easy-to-install solution that creates a heat barrier over the front door. Thanks to the built-in electric heaters, the device instantly heats the air, protecting the interior from cooling down in winter and preventing the penetration of heat, dust and insects in the summer season.

⚙ Efficient Electric Heaters

The AC150E1P is equipped with a modern heating system that allows you to reach the set temperature almost immediately. It is a plug & play solution – it does not require connecting pipes or interfering with the central heating system, which makes installation extremely fast and clean.

💨 Optimal Range for Wide Inputs

The width of 150 cm allows for effective protection of wide single doors or standard double-leaf entrances. The transverse fans used generate a stable air flow with a range of up to 2,5 meters, which guarantees high efficiency of air mass separation.

🛡 Aesthetic Housing and Durability

The curtain has a durable housing made of powder coated steel in white (RAL 9016). This material is corrosion resistant and easy to clean. Minimalist design makes the device discreetly fits into the decor of shops, pharmacies, offices or catering establishments.

🔌 230V Power Supply – Easy Installation

The device operates at a standard voltage of 230V, which is a big advantage in facilities where there is no access to power supply (400V). Integrated mounting brackets allow for secure and stable fixing of the curtain directly above the door opening.

WORKING PARAMETERS:

• Width of the device: 1500 mm (1,5 meters)
• Heater type: Electric
• Maximum flux range: 2,5 m
• Maximum airflow: 1800 m³/h
• Power supply: 230V / 50Hz

📦 SET COMPOSITION – WHAT YOU WILL GET:

• ✅ Electric air curtain – AERIS AC150E1P (150 cm)
• ✅ Built-in mounting plate – for easy installation
• ✅ Instructions for use and assembly – in Polish
• ✅ Guarantee Card

ASSEMBLY:

• Mounting type: Levels (wall or underfloor)
• Recommended mounting height: Up to 2,5 m above the floor
• Electrical connection: Required protection compatible with the power of the device

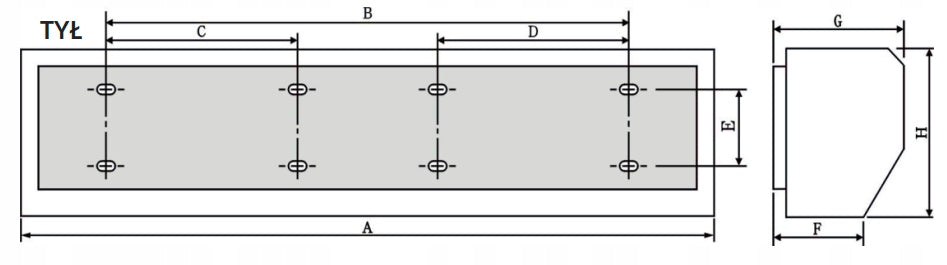

EXTERNAL DIMENSIONS:

• A (Total width): 1500 mm
• G (Total depth): 215 mm
• H (Total height): 180 mm

MOUNTING DIMENSIONS:

• B (Total spacing of extreme holes): 1020 mm
• C (First section spacing): 510 mm
• D (Second section spacing): 510 mm
• E (Height between mounting holes): 130 mm
• F: 143 mm
