Oro užuolaida FERONO FK200E3 su elektriniu šildytuvu MIL-DAM

Trumpai apie prekę

Prekė: Oro užuolaida FERONO FK200E3 su elektriniu šildytuvu MIL-DAM. Kategorija: Oro užuolaidos.

• Gamintojas: Ferono
• Modelis: FK200E3
• Galia: 230 W

Air curtain

with electric heater

three-phase

• Dual safety technology
• Wireless remote control
• Adjustable jet
• Modern control panel
• Electric heater
• Curtain cooling technology

• Model FK200E R15
• Voltage (V) 230
• Frequency (Hz) 50
• Fan power (W) 350
• Airflow (m³/h) 2800
• Noise level (dB) < 59-61
• Heating power (kW) 4,6 / 9,4 / 14,0
• Net weight / Gross weight (kg) 26,0 / 28,0

Flagship and classic model of FERONO curtains. The main task of the air curtain is to create an aerodynamic protective barrier between rooms or zones with different temperatures and high traffic. All models are designed for installation at a height of up to 3 meters above the floor.

The air curtain has a built-in Potential-Free Dry Contract (On/Off)

Open contact – Off

Compact contact – He

Magnetic contactor included. The wall controller option excludes the use of a reed.

Double safety technology

FERONO air curtains have a built-in additional fuse to protect the device from surges. Their advantage is the ability to automatically adjust the work to changes in the voltage level.

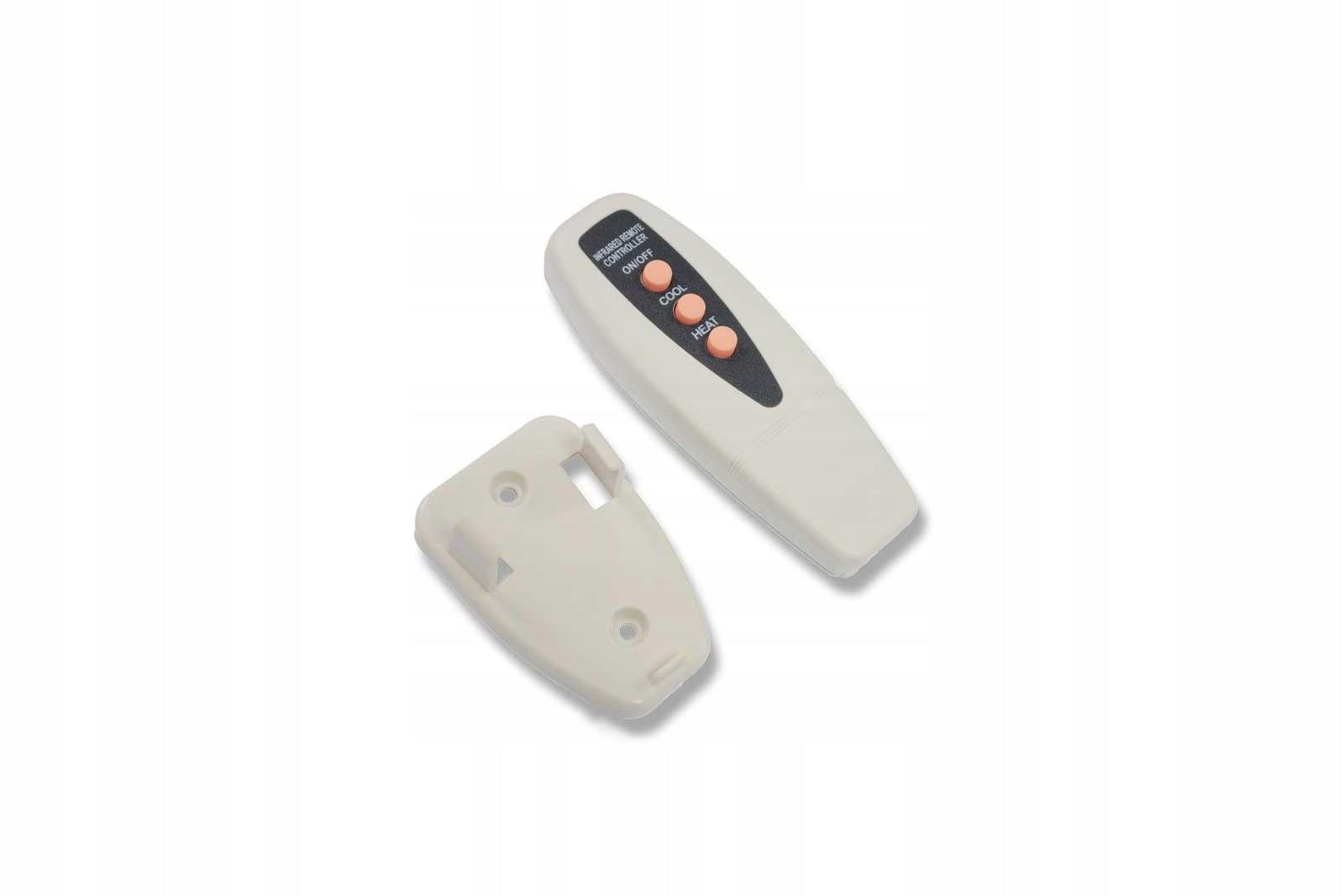

Wireless remote control

Thanks to the remote control, it is possible to remotely control the device.

Adjustable streamer

Thanks to the ability to adjust the angle of the built-in streamer, the curtain achieves optimal operating parameters in any season.

Modern control panel

The front panel with a modern honeycomb pattern allows at the same time very effective air intake at very low volume. Buttons placed on the curtain allow you to control its operation, and the LED indicates its mode of operation.

Electric heater

The high-efficiency and energy-efficient PTC heater is responsible for efficient and fast heating of the supplied air. In addition, the curtain user has the ability to control the heating power of the device.

Curtain cooling technology

The curtain has been programmed in such a way that when the heating mode is turned off, the fan works for another 30 seconds to cool the built-in heaters.

Additional options for air curtain equipment

Door sensor option

Choose from a mechanical or magnetic door sensor, allowing you to turn on the curtain if you open the door or turn it off if you close the door.

Wall driver option

The wall controller with LCD display allows you to adjust the fan power in two ranges: low or high gear.

Group work option

Additional automation allows serial connection of several curtains and control them via a wireless remote control, a control panel on the curtain or an additional wall controller.

Speed Control option with door sensor function

Speed Control option, ensures continuous operation of the curtain on low LO gear, when opening the door, the curtain switches to high Hi fan mode. When the door is closed, it returns to LO. If Speed Control is selected, contacts whose short circuit (e.g. wall switch) turn off the curtain (e.g. outside the operating hours of the facility, or when the operation of the curtain is not needed).

Note: Speed Control can only be installed on any door with a mechanical switch.

Model FK200E3

• A (mm) 2000
• B (mm) 195
• C (mm) 265
