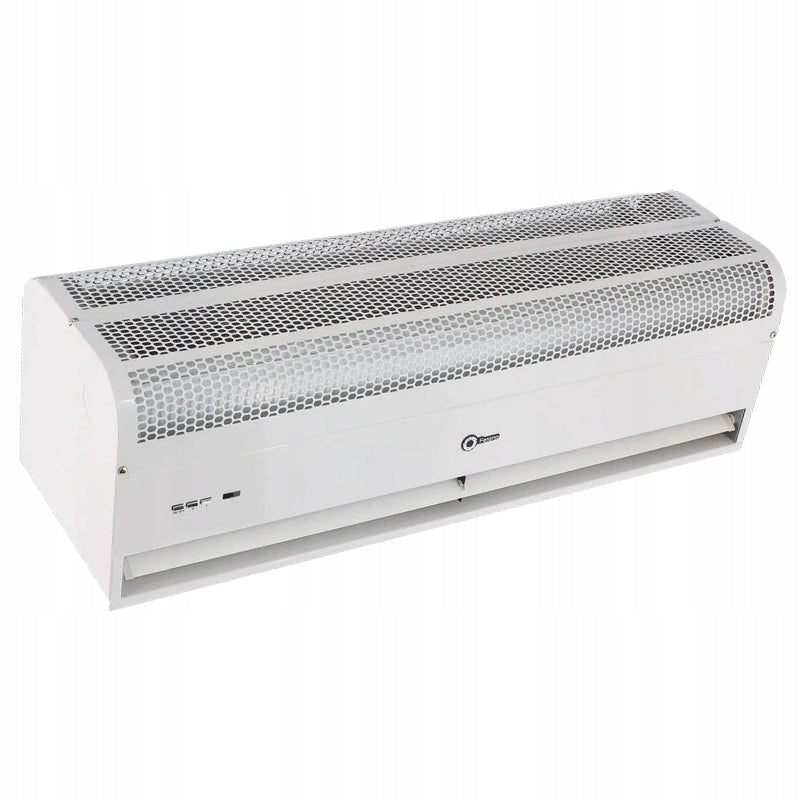

Oro užuolaida FERONO FK90W su vandens šildytuvu MIL-DAM

Trumpai apie prekę

Prekė: Oro užuolaida FERONO FK90W su vandens šildytuvu MIL-DAM. Kategorija: Oro užuolaidos.

• Gamintojas: Ferono
• Modelis: FERONO FK90W
• Galia: 20000 W

Air curtain

with water heater

• Dual safety technology
• Wireless remote control
• Adjustable jet
• Modern control panel
• Water heater
• reliable fan

• Model FK90W
• Voltage (V) 230
• Frequency (Hz) 50
• Fan power (W) 350
• High airflow (m³/h) 1400
• Low airflow (m³/h) 1100
• Noise level (dB) < 55
• Connection pipe diameter (inches) 3/4”
• Net weight / Gross weight (kg) 19,0 / 22,0

Curtain with ultra-thin modern metal construction. All models are designed for installation at a height of up to 3 meters above the floor.

Double safety technology

FERONO air curtains have a built-in additional fuse to protect the device from surges. Their advantage is the ability to automatically adjust the work to changes in the voltage level.

Wireless remote control

Thanks to the remote control, it is possible to remotely control the device.

Adjustable streamer

Thanks to the ability to adjust the angle of the built-in streamer, the curtain achieves optimal operating parameters in any season.

Modern control panel

The front panel with a modern honeycomb pattern allows at the same time very effective air intake at very low volume. Buttons placed on the curtain allow you to control its operation, and the LED indicates its mode of operation.

Water heater

Suitable construction – aluminum lamellas are applied to copper pipes, meanderingly entwining the exchanger body – ensures effective heat reception from pipes filled with hot heating medium through the flow of flowing air.

Reliable fan

The high-performance motor and transverse fan made of durable plastic guarantee reliable operation of the curtain.

Additional options for air curtain equipment

Door sensor option

Choose from a mechanical or magnetic door sensor, allowing you to turn on the curtain if you open the door or turn it off if you close the door.

Wall driver option

The wall controller with LCD display allows you to adjust the fan power in two ranges: low or high gear.

Group work option

Additional automation allows serial connection of several curtains and control them via a wireless remote control, a control panel on the curtain or an additional wall controller.

Speed Control option with door sensor function

Speed Control option, ensures continuous operation of the curtain on low LO gear, when opening the door, the curtain switches to high Hi fan mode. When the door is closed, it returns to LO. If Speed Control is selected, contacts whose short circuit (e.g. wall switch) turn off the curtain (e.g. outside the operating hours of the facility, or when the operation of the curtain is not needed).

Note: Speed Control can only be installed on any door with a mechanical switch.

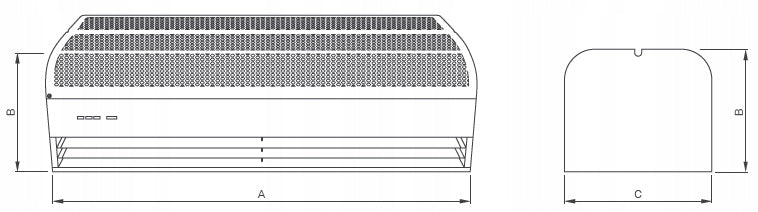

Model FK90W

• A (mm) 900
• B (mm) 195
• C (mm) 265
