Oro užuolaida FLOWAIR SLIM W-100, juoda

Trumpai apie prekę

Prekė: Oro užuolaida FLOWAIR SLIM W-100, juoda. Kategorija: Oro užuolaidos.

• Gamintojas: Flowair
• Modelis: 56211
• Galia: 12100 W

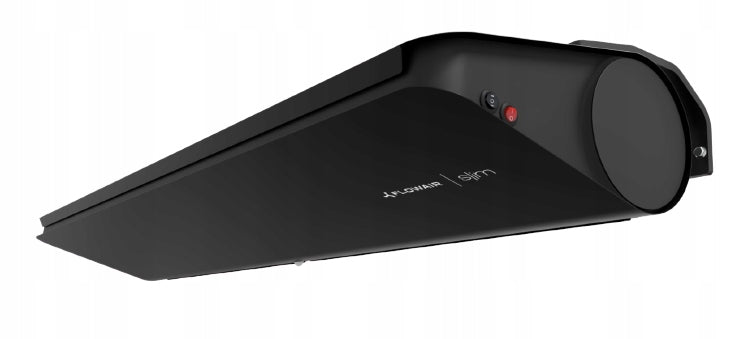

FLOWAIR SLIM WATER DOOR CURTAIN W-100 1M

FLOWAIR

The Slim curtain is designed to be almost silent. Thanks to the unique design and components used, in silent mode, the level of noise generated does not exceed the intensity of the conversation sound.

• Length: 1m
• Version: with water heat exchanger
• Color: black

The device is equipped with a motion sensor that activates the curtain when motion is detected in the environment. Thanks to this, the curtain itself knows when to work. No additional door sensor or automation is needed for operation.

Purpose:

Slim is the narrowest air curtain on the market, matched with design, colors, range and size up to 99% of doors. The devices can be mounted both vertically and horizontally.

Control:

As standard, the curtain has built-in switches that allow automatic adjustment of the device relative to the signal from the motion sensor.

Advantages of Slim curtain:

• This allows the curtain to know when to work. Built-in buttons on the side of the curtain allow for easy and quick change of operating mode.

• IMPROVING AIR — improves air qualityThe design of the Slim curtain allows for full protection against unwanted air inflow over the entire width of the door opening. The device is designed to work with an external filter module that improves air quality and protects the device from the ingress of dirt and other contaminants (Filter type: Coarse 30%, Thickness: 4 mm - to be purchased separately)

• INVISIBLE — discretion in actionThe Slim Curtain has been designed in such a way that it does not catch the eye. It works quietly even on the highest gear.

• IDEAL – tailored to your businessThe device fits 99% of door openings – it is the narrowest curtain on the market, whose length is equal to 1m.

Technical data of SLIM W-100:

• Power supply: 230/50 V/Hz
• Max. power consumption: 0,12kW
• Max. Power consumption: 0,5A
• IP: 20
• Connection: 1/2"
• Performance: 750-1100m3/h
• Sound Pressure Level 5m: 45-54,5dB(A)
• Sound Pressure Level 3m: 46-55,5dB(A
• Acoustic power level: 61-70,5dB(A)
• Heating power: 1,2-12,1kW
• Max. temp. heating water: 110oC
• Max. working pressure: 1,6oC
• Temperature increase (T): 3,0-32,5°C
• Weight of the device: 16,1kg
• Range: 3,2m

Slim curtains are adapted for horizontal installation above the door opening, without limiting the space inside the room. It is possible to mount the curtain using mounting brackets (directly to concrete partitions) or on pins at the glass door, creating almost one invisible line with a door leaf. However, if the space above the door is less than 25 cm, vertical installation is also possible, also with the same mounting brackets as for horizontal installation.

• Manufacturer code: 56211

FLOWAIR SLIM WATER DOOR CURTAIN W-100 1M

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Flowair
Parametry	Kind	with water heater
Parametry	Power	12100 W
Parametry	Product width	100 cm
Parametry	Maximum mounting height	3.2 m
Parametry	Product weight with unit packaging	16.2 kg
Parametry	Manufacturer code	56211
