Oro užuolaida HUMMER ACH200C-1P, 200 cm, pramoninė

Trumpai apie prekę

Prekė: Oro užuolaida HUMMER ACH200C-1P, 200 cm, pramoninė. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: Hummer ACH200W-1P230V
• Galia: 1440 W

HUMMER ACH200C-1P is a powerful air curtain with a width of 2 meters, designed to work in the most demanding industrial conditions. The "cold" model (without heat exchanger) is used to create an extremely strong air barrier that effectively cuts off the interior of the hall, warehouse or workshop from external conditions, dust and insects.

⚙ DESIGN FOR SPECIAL TASKS

Thanks to the unique shape of the "cone" housing, the curtain focuses the air stream, giving it a high muzzle velocity. It is an ideal solution for large industrial gates, where standard office curtains do not pass the test.

✅ KEY FEATURES OF THE 200C:

• Industrial range: Effective protection of the door opening up to a height of 3,0 m above the floor.
• Efficient fans: The device is equipped with three powerful drive units powered by 230V.
• Solid housing: Durable construction adapted for horizontal (wall or substrate) installation.
• Quick installation: Integrated mounting system reduces the time of embedding the device over the gate.

WORKING PARAMETERS:

• Width of the device: 2000 mm (2 meters)
• Curtain type: Cold (without heater)
• Maximum mounting height: 3,0 m
• Power supply: 230 V / 50 Hz

OVERALL DIMENSIONS:

• Overall height: 540 mm
• Overall depth: 522 mm
• Outlet nozzle width: 156 mm

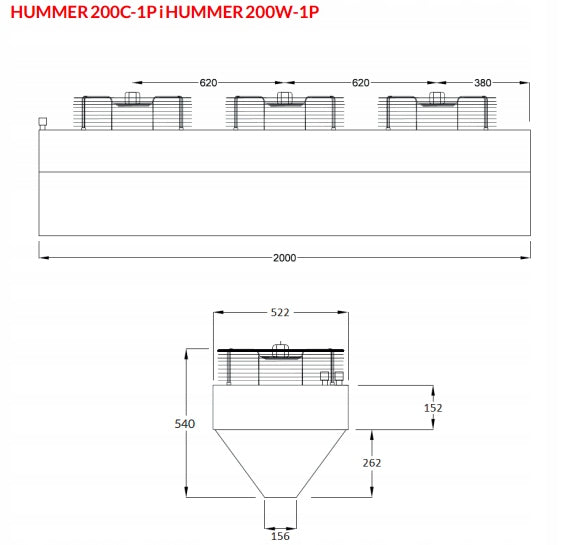

According to the technical drawing, the dimensions of the curtain are as follows:

• Total width: 2000 mm
• Total height: 540 mm
• Total depth: 522 mm
• Height of upper housing: 152 mm
• Height of conical part: 262 mm
• Air outlet width: 156 mm

Fan spacing (upper dimensions):

• Distance between first and second fan axes: 620 mm
• Distance between the second and third fan axes: 620 mm
• Distance from the axis of the last fan to the edge: 380 mm
