Oro užuolaida Reventon AERIS 100WN-1P

Trumpai apie prekę

Prekė: Oro užuolaida Reventon AERIS 100WN-1P. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AC100WN1P
• Galia: 17 W

Air curtain with water heater is a perfect solution to protect the interior of the room / building from heat, cold, dust and insects. In summer, the water air curtain effectively retains warm air coming from the outside, while in winter it prevents energy loss through the door opening. In addition, the device has a water heat exchanger and when connected to the c. o. installation acts as a heating curtain, which perfectly regulates the conditions in terms of thermal comfort prevailing in a given building / room.

Water air curtain – application

Air curtains are widely used in such facilities as shops, supermarkets, hotels, restaurants, as well as public administration offices or office buildings. The devices perform their function best when mounted above the door opening. Kair urtins with water heater are intended for internal use only.

Characteristic

• Durable metal housing, powder coated.
• Available in 3 dimensions: 100, 150, 200 cm.

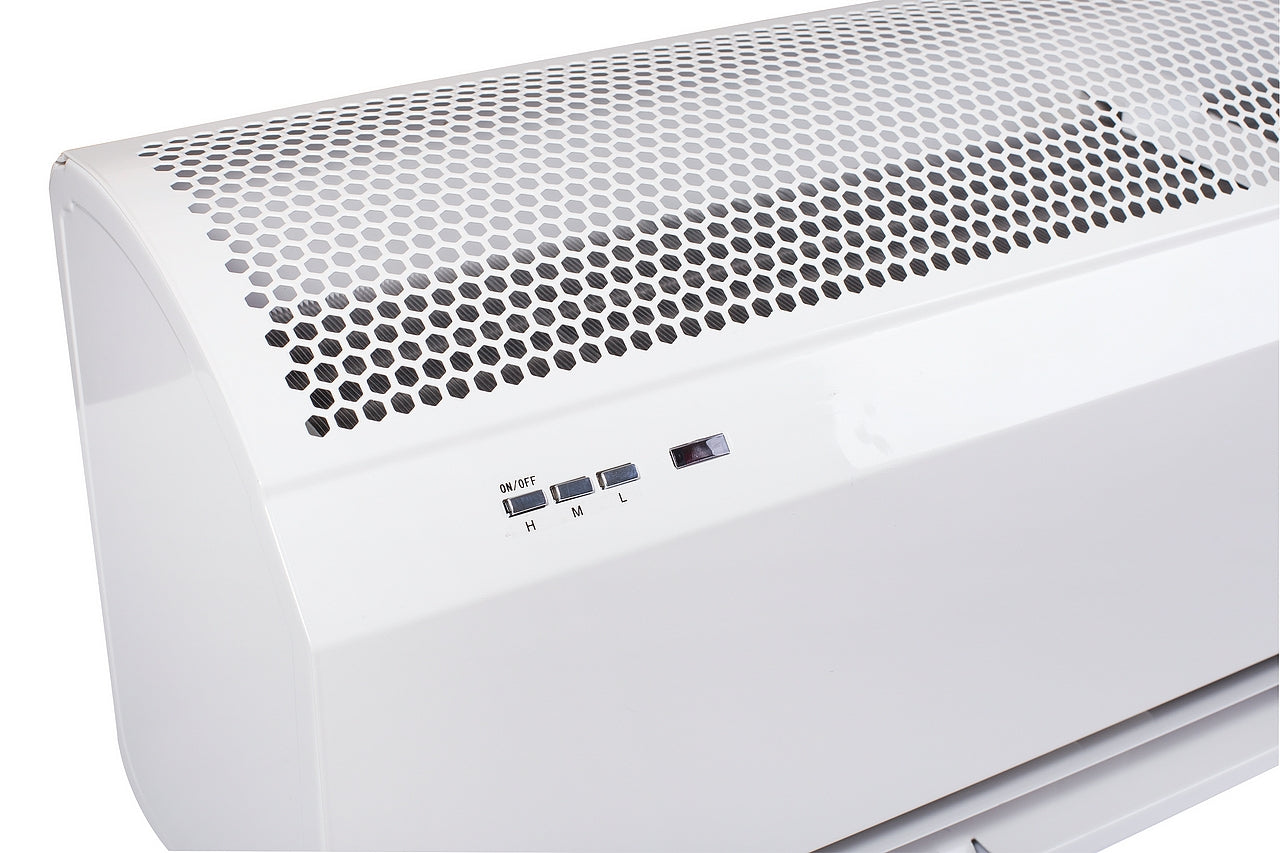

• 3-stage HI/MID/LOW fan speed control.
• Possible operation in continuous, thermostatic mode or using a door sensor.
• Mounting panel and door sensor included.

Our offer also includes an electric curtain.

TECHNICAL DATA:

Power of the Device [kW]*

III GEAR - 17,0

II GEAR - 15,8

AND GEAR - 14,2

Maximum airflow [m³/h]

III GEAR - 1500

II GEAR - 1350

AND GEAR - 1150

Maximum air speed [m/s]

III GEAR - 9

II GEAR - 8

AND GEAR - 7

Water flow rate [dm³/h]

III GEAR - 749

II GEAR - 698

AND GEAR - 625

Curtain range [m]

III GEAR - 3

Maximum water temperature [°C]

90

Maximum pressure [MPa]

1,6

Diameter of connection connectors [``]

¾

Engine power supply voltage [V] /Engine power supply frequency [Hz]

230/50

Engine rated current [A]

III GEAR - 0,65

II GEAR - 0,57

AND GEAR - 0,52

Engine power [W]

III GEAR - 150

II GEAR - 130

AND GEAR - 120

Isolation class / Degree of protection IP [-]

E/IP 20

Net weight [kg]

18,0

Volume [dB]

III GEAR - 57

II GEAR - 55

AND GEAR - 52

* with water parameters of 90/70°C and air intake temperature of 0°C
