Oro užuolaida Sonniger Guard 100C su komplektu

Trumpai apie prekę

Prekė: Oro užuolaida Sonniger Guard 100C su komplektu. Kategorija: Oro užuolaidos.

• Gamintojas: Sonniger
• Modelis: GUARD 100C
• Galia: 220 W

Index: 02080357

RELEVANT INFORMATION

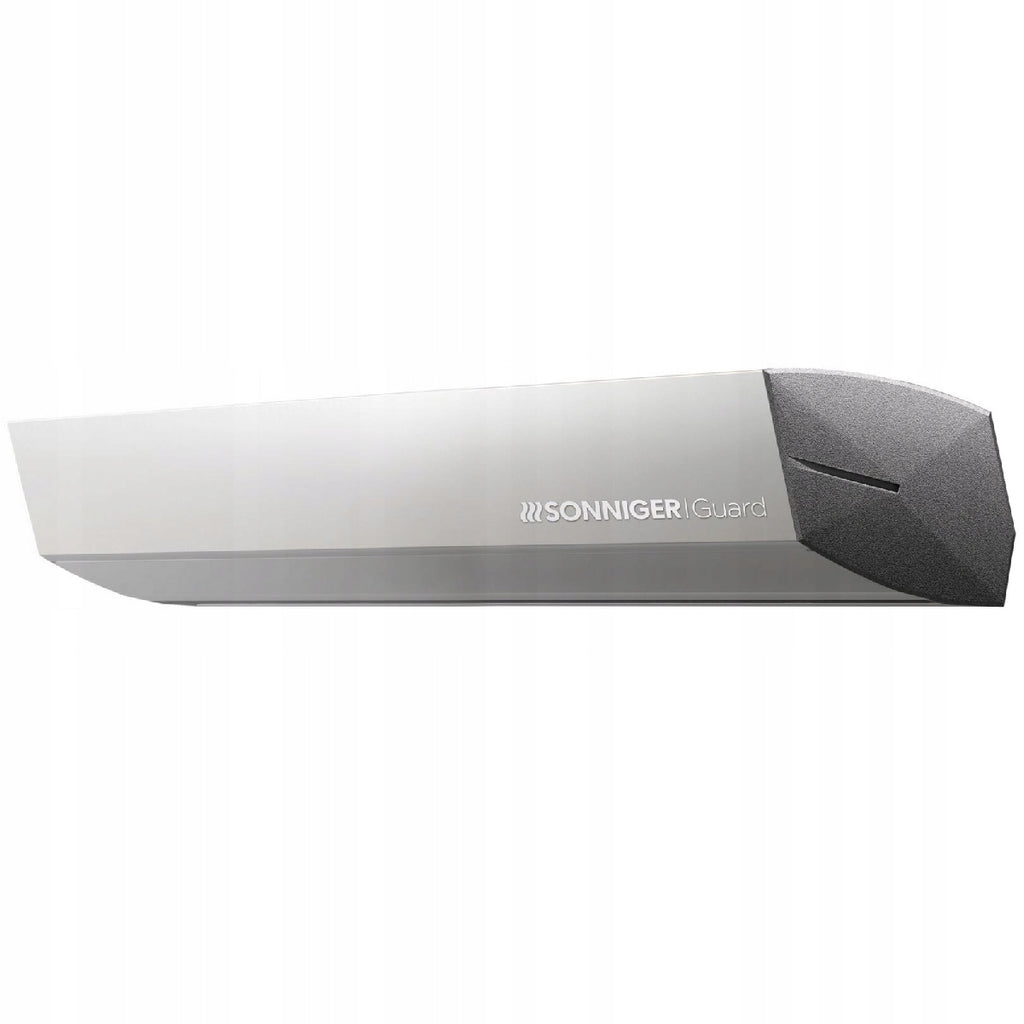

The cold air curtain Sonniger Guard 100C without a heating element creates an excellent barrier against the influx of warm air into rooms where maintaining a cold temperature in the room is a priority.

It is a product with effective work and the highest quality of workmanship combined with modern style. Comes with Comfort control panel + horizontal mounting brackets.

MAIN ELEMENTS OF THE SET

• Cold air curtain Sonniger Guard 150C
• Comfort panel Sonniger

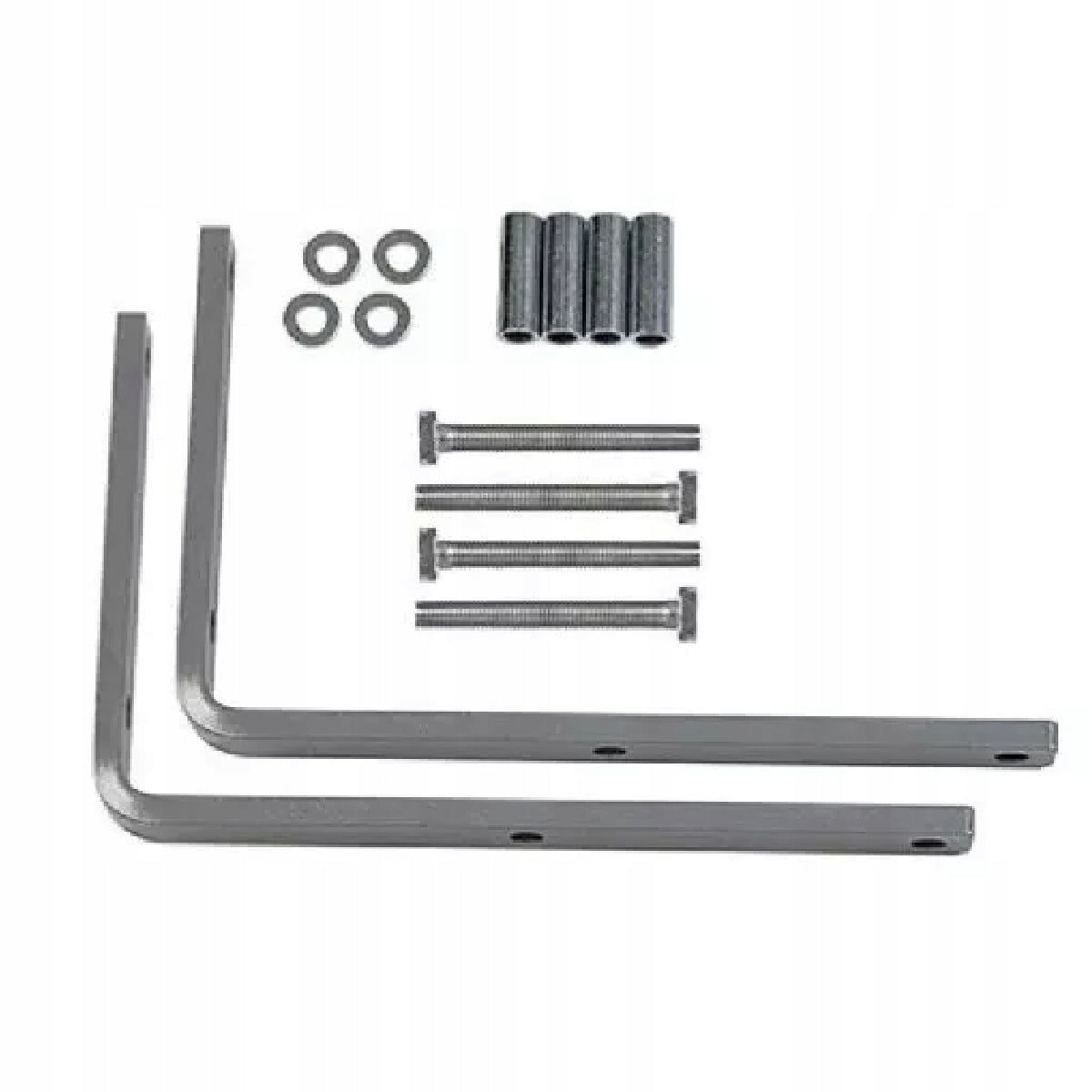

• Mounting bracket set (2 horizontal mounting brackets)
• Mounting accessories
• Operation and assembly manual in Polish
• Warranty card

Curtain air cold GUARD brand Sonniger is a professional device whose main task is to effectively create a protective barrier against the influx of warm air into the cooled interior of the room. The presented device is mainly used in places where the efficient and undisturbed course of the production process depends on their operation.

Such rooms are, for example, freezers, cold stores and any other food storage and processing facilities where keeping the temperature low is crucial. It is a product that is very often used for thermal separation of two rooms in one building.

The cold air curtain (without heater) Sonniger GUARD 100C with a maximum air expenditure of 2100 m³/h and a length of 1 m provides a strong stream of cold air, allowing you to create an effective barrier at entrances up to 4 m in height. It is a reliable device equipped with an efficient system to ensure proper circulation and air exchange. A product with high energy efficiency cools the room extremely efficiently with minimal electricity consumption.

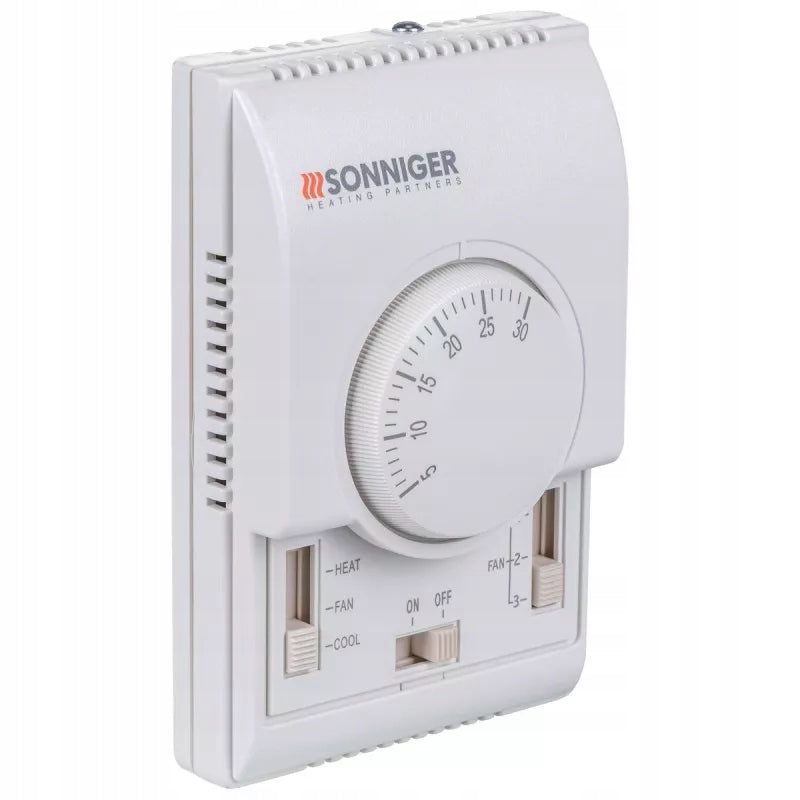

The GUARD line model is made of a combination of stainless steel with the highest quality plastic. The device is the definition of modernity and quality. The product with an elegant appearance in gray silver color in the set has a controller Sonniger Panel Comfort to regulate the temperature inside the rooms, which is especially useful in the summer with a large amount of heat. Minimalist panel in white will fit into any interior.

With the help of manual and convenient control of the knob, adjusting the system from 5°C to 35°C is easy and convenient. The wall-mounted installation of the regulator is also not a problem. The Comfort panel can be used to control two Guard air curtains.

PRINCIPLE OF OPERATION OF COLD AIR CURTAIN

Cold air curtains as well as warm air curtains (water or electric), blowing air, create a special barrier, whose task is to cut off the exchange of air between two spaces where opposite temperatures prevail.

In conclusion, any air curtain of your choice helps to avoid uncontrolled air exchange, eliminate drafts and protect against pollution. A cold air curtain for separating two air zones will be the most economical choice, because as a device without a heat exchanger, it will minimize energy costs.

The internal air sucked in by the fan is fed at high speed into the room, creating a protective barrier. The appropriate speed of supply air creates an effective barrier to external air. The cold air curtains and the warm air curtains of the GUARD series are intended for indoor use only with vertical and horizontal mounting. For optimal operation of the system, the device is mounted above the door, window or anywhere on the wall.

Regardless of which air curtain you choose, it will work effectively both in winter and summer. Their use is a fantastic way to maintain the right high or low temperature in the building. By blowing air, it creates a special barrier whose task is to cut off the exchange of air between two spaces where opposite temperatures prevail.

In winter, when there is a negative, frosty aura outside, and there is heat in the room, the air flow generated by the heaters will prevent heat from escaping from the interior of the building, thereby reducing its losses and allowing for a greater reduction in heating expenses. However, in the summer, the air curtain will create a barrier that allows warm air from outside the building to enter its cooled interior. Thanks to the curtain, thermal energy losses are reduced by up to 60-80%.

No matter which air curtain you choose, it will work effectively in both winter and summer. Their use is a fantastic way to maintain the proper high or low temperature in a building. By blowing air, it creates a special barrier whose task is to cut off air exchange between two spaces with opposing temperatures. In winter, when there is a negative, frosty atmosphere outside and it is warm inside, the stream of air produced by the heater will prevent heat from escaping from the building's interior, thereby reducing its losses and allowing for a significant reduction in heating costs. In the summer, the air curtain creates a barrier that prevents warm air from entering the cooled interior of the building from the outside. Thanks to the curtain, heat energy losses are reduced by as much as 60-80%.

NOTE!

When purchasing a product, it is possible to replace horizontal mounting brackets with vertical mounting brackets. Remember to properly install the water air curtain, as well as choose the right heating power of the device, which will result in its proper and effective operation.

FUNCTIONS OF THE CURTAIN SONNIGER GUARD

• Efficient air circulation
• Effective protective barrier
• Quiet operation, reduced weight of the device
• For hanging inside the room
• Horizontal or vertical mounting

ADVANTAGES

• Strong, durable and ergonomic design
• High-performance fan with three-stage speed control
• Efficient protection of indoor climatic conditions
• Favorable price

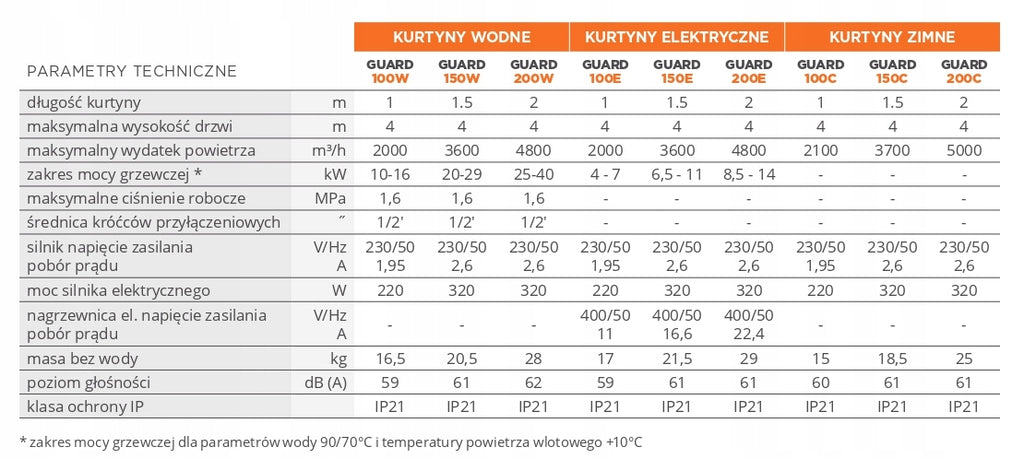

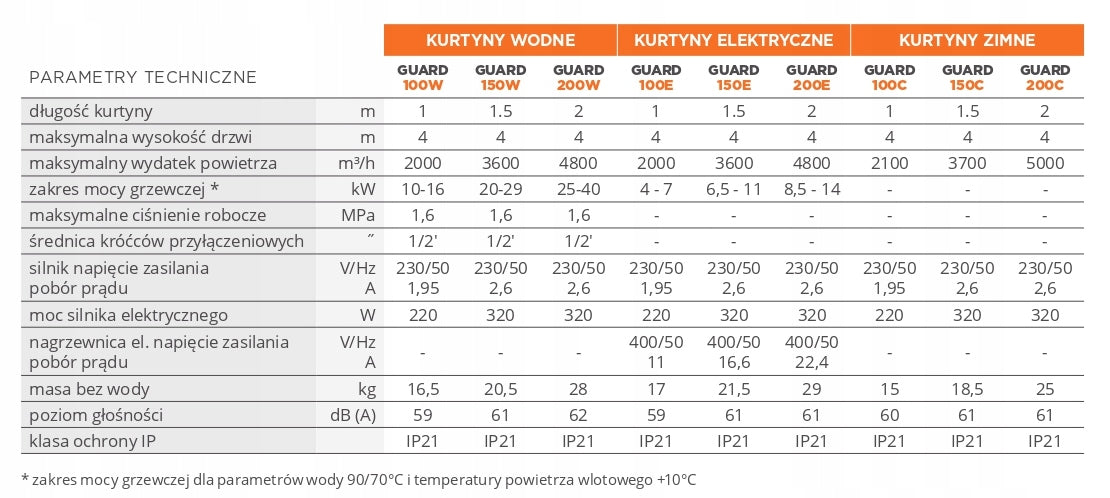

TECHNICAL DATA

• Product: Cold air curtain
• Model: GUARD 100C
• Maximum air output: 2100 m³/h
• Supply voltage: 230 V, 50 Hz, 1,4 A
• Power of electric motor: 220 W
• Volume Level: 60 dB
• Color: Grey Silver
• Curtain length: 1 m
• Degree of protection: IP21
• Mounting method: Pziomo, vertical
• Maximum mounting height: 4 m
• Product weight: 15 kg
• Dimensions (W) x depth. x H ): 108,4 x 36,8 x 25,5 cm

Specifications
