Oro užuolaida Sonniger GUARD 150E, 6–11 kW

Trumpai apie prekę

Prekė: Oro užuolaida Sonniger GUARD 150E, 6–11 kW. Kategorija: Oro užuolaidos.

• Gamintojas: Sonniger
• Modelis: 98298
• Galia: 11000 W

>> FITTINGS -- RADIATORS -- BOILERS -- PUMPS -- TANKS -- -- < <

#ID : CG0023

EAN : 5906660483342

Short description:

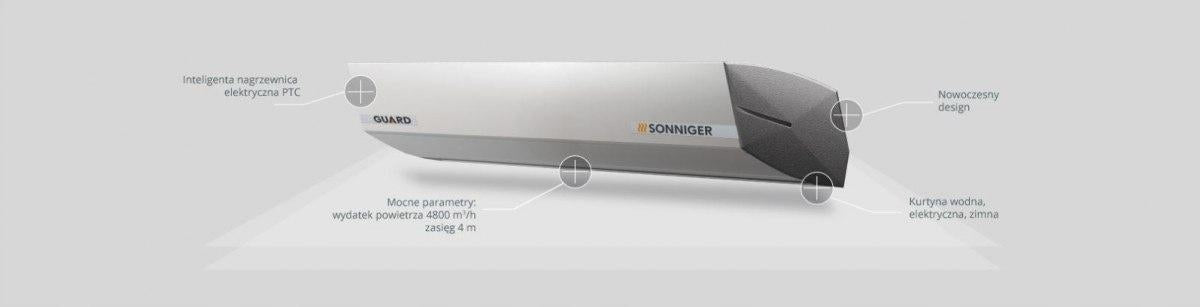

The new GUARD is a combination of modern design, strong technical parameters and adjustment of the operating range of the device. The GUARD air curtain is synonymous with modernity, superior quality and advanced technology.

GUARD is a professional and aesthetic air curtain whose main task is to maintain a protective barrier at the entrance to the facility. The GUARD curtain protects the entrance to the building from cold and warm air, as well as dust or insects. The use of the GUARD curtain allows you to minimize heat loss, which affects both the operating costs of the facility and the comfort of work. The GUARD curtain line is designed for facilities where the installation height of the devices does not exceed 4 m.

Technical data:

Curtain Length: 1,5m

Max. Door height: 4m

Max. door expenditure: 3600m3/h

Heating power range: 6,5-11 kW

Max. Operating pressure: --

Diameter of connection connectors: --

Motor supply voltage: 230/50 V/Hz

Power Consumption: 1,8 A

Power of electric motor: 220 W

Heater el. Supply voltage: 400/50 V/Hz

Power Consumption: 16,6A

Weight without water: 21,5 kg

Volume Level: 61 dB (A)

IP Protection Class: IP21

*Heating power range for water parameters 90/70*C and inlet air temperature +10*C
