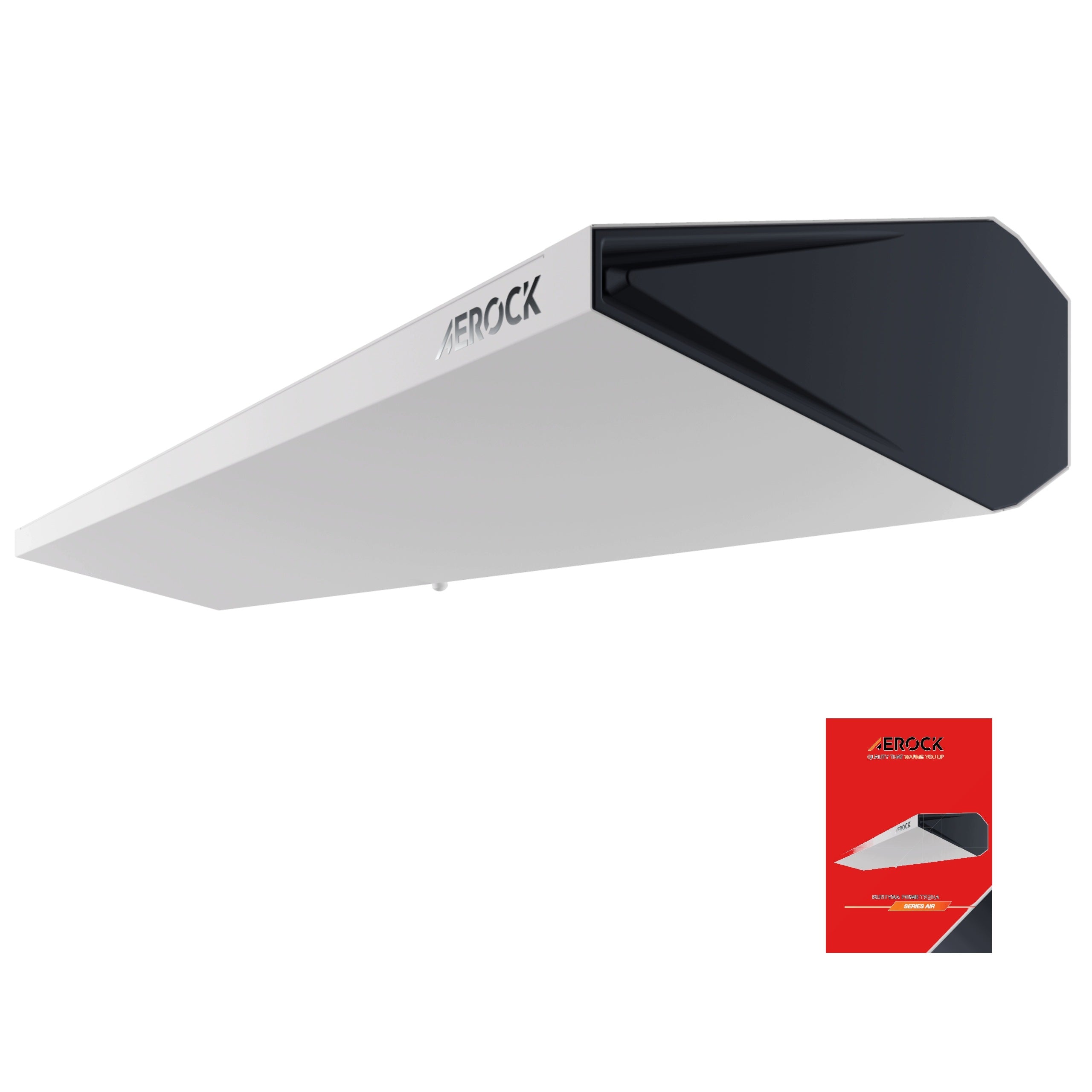

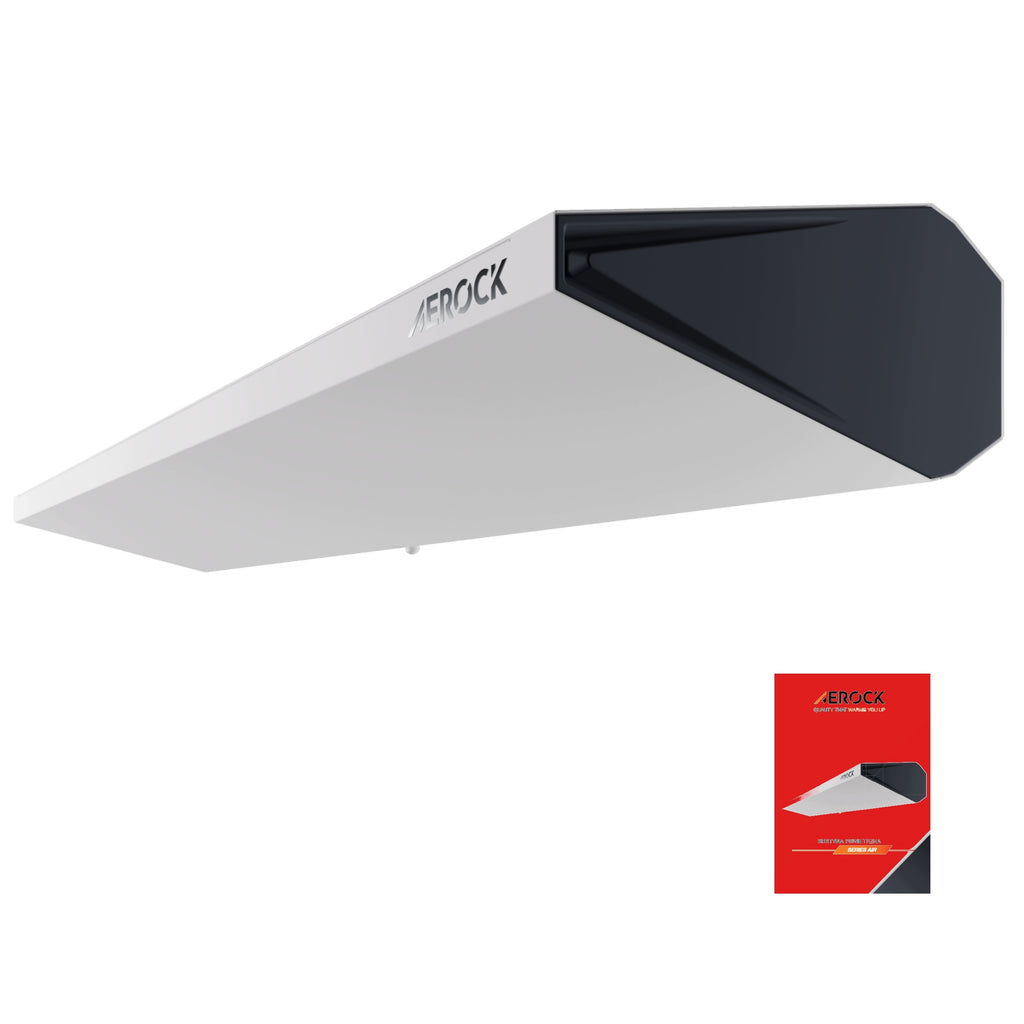

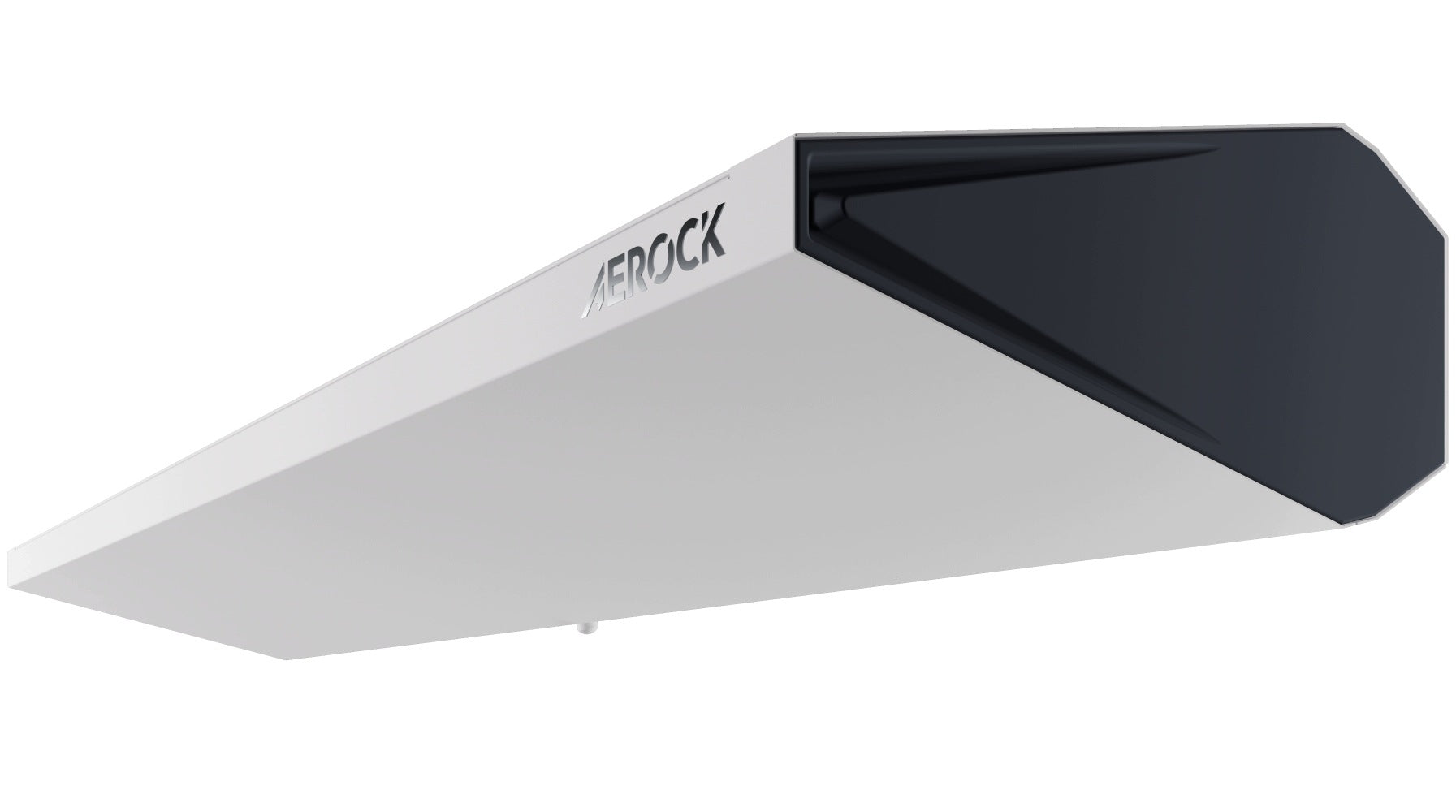

Oro užuolaida STRONG, 150 cm, elektrinė, 9000 W, AEROCK

Trumpai apie prekę

Prekė: Oro užuolaida STRONG, 150 cm, elektrinė, 9000 W, AEROCK. Kategorija: Oro užuolaidos.

• Gamintojas: AEROCK
• Modelis: 140204
• Galia: 9000 W

✅ELECTRIC CURTAIN SPECIFICATION:

• Power supply: 230/50 V/Hz or 3x400/50 V/Hz
• Max. rated power consumption: 145W
• Rated power consumption: 13,1A
• IP: 20
• 3 fan gears (2 gears on the curtain - 3 gears on the wall controller)
• Performance: 1220-2160m3/h
• Noise level: 39-53dB(A)
• Heating power: 3kW when connected 230/50V - 9kW when connected 3x400/50V/Hz
• Max. operating temperature: 55°C
• Weight of the device: 22,6kg
• Maximum range on 3rd gear: 3,5m
• Width: 150cm
• Height: 19,8cm
• Depth: 44,3cm

SUPPORTS ARE COMPLETED SEPARATELY.

✅WHAT IS THE AIR CURTAIN USED FOR?

The air curtain is used to create an invisible barrier from fast-flowing air with the door or gate open. Its task is to limit the exchange of air between the interior and the environment.

The most important applications are:

• Reduction of heat loss in winter – reduces the escape of heated air from the building and the inflow of cold air from the outside.
• Keep cool in summer – helps to keep air-conditioned air inside the room.
• Insect protection – a strong stream of air makes it difficult for flies, mosquitoes and other insects to enter.
• Reducing dust and exhaust gases – especially useful in shops, warehouses and production halls.
• Improvement of comfort – people passing through the entrance feel less drafts.

✅PROVEN QUALITY

The AEROCK curtain was created without material compromises. Each component is designed for the highest durability and resistance to demanding operating conditions, including thermal loads. This quality is present in every detail – from the extremely solid construction to the smooth, quiet operation of rotating components.

INOVEL DESIGN - The futuristic form of the device is a harmonious combination of design and functionality. The refined design creates a compact, rigid and resonant structure that not only guarantees durability, but also sets new standards in the premium curtain segment.

ACOUSTIC COMFORT - Precisely refined fan aerodynamics combined with top-class vibration-reducing materials translates into extremely quiet operation. The AEROCK curtain remains almost acoustically invisible, creating a noise-free comfort space. This is probably the quietest air curtain on the market.

STABILITY. PRECISION. STRENGTH. Each unit undergoes rigorous quality control, including simulations of extreme operating conditions. You choose a solution for years, not for one season.

✅CURTAIN FUNCTIONS

1. PLUG & PLAY POWER SYSTEM - No more hours of wiring. The device is designed to work immediately when connected to a 230V network. The system is ready to start immediately after connecting to the power supply – it does not require additional drivers or complicated wiring.
2. INTELLIGENT ACTIVATION - Built-in motion sensor enables automatic detection of activity in the entry zone. The curtain reacts immediately to the presence of people, optimizing the working time and energy consumption. Full protection is activated exactly when it is needed — providing peace of mind and savings when space is unused. The sensor allows precise adjustment of the shutdown delay time, offering several degrees of settings: 5 s, 30 s, 1 min, 3 min, 5 min and 8 min.
3. CONTROL PANEL - Instantly manage the key operating parameters of the device: ON/OFF sequence and the choice of fan gears (blowing power). Intuitive buttons provide full, manual control over the device in any situation.

✅AEROCK AIR ELECTRIC - AIR CURTAIN WITH ELECTRIC HEATERS

The use of high-efficiency heaters ensures immediate heat flow and complete thermal safety with minimal energy loss.

The solution is dedicated to:

• public buildings,
• hotels,
• shops,
• modern boutiques,
• office workers
• apartment buildings,

where maintenance-free operation and quick response of the system to the opening of the door are crucial.

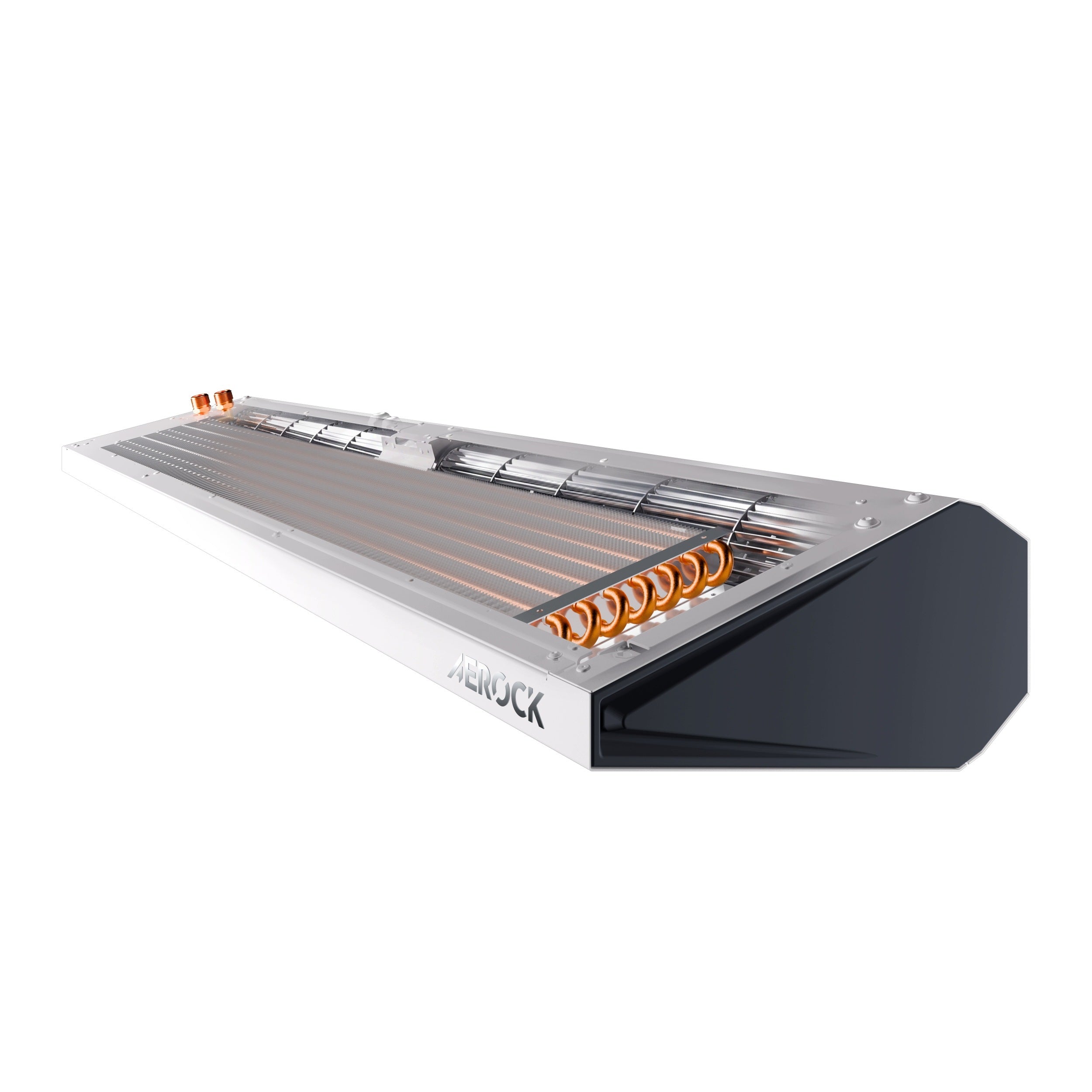

Thanks to the use of a tilting inspection flap, access to electrical components and connectors does not require disassembly of the housing. Leaving the lower panel facilitates installation, maintenance and cleaning of the exchanger directly on the facility. In practice, this means maximum time saving during service work and comfort of operation of the device.

✅TECHNICAL DATA:

A - 1500mm

B - 1450mm

• Power supply: 230/50 V/Hz or 3x400/50 V/Hz
• Max. rated power consumption: 145W
• Rated power consumption: 13,1A
• IP: 20
• 3 fan gears
• Performance: 1220-2160m3/h
• Noise level: 39-53dB(A)
• Heating power: 3kW when connected 230/50V - 9kW when connected 3x400/50V/Hz
• Max. operating temperature: 55°C
• Weight of the device: 22,6kg
• Maximum range on 3rd gear: 3,5m
• Width: 150cm
• Height: 19,8cm
• Depth: 44,3cm
